User Manual

1. Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of the AXIS M5000-G 5 Megapixel Network Camera. Please read this manual thoroughly before using the product to ensure proper functionality and safety.

The AXIS M5000-G is a high-performance network camera designed for surveillance applications, offering 5-megapixel resolution and PTZ capabilities for enhanced monitoring.

2. Safety Information

Observe the following safety precautions to prevent damage to the product or injury to yourself:

• Ensure the power source matches the camera's requirements.
• Do not expose the camera to extreme temperatures or humidity.
• Avoid direct exposure to strong light sources, which may damage the image sensor.
• Installation should be performed by qualified personnel in accordance with local electrical codes.
• Disconnect power before cleaning or servicing.

3. Package Contents

Verify that all items are present in the package:

• AXIS M5000-G Network Camera Unit
• Mounting Kit (screws, anchors)
• Installation Guide (Quick Start)
• Power Adapter (if included)

Note: Specific components may vary based on region or package version.

4. Product Overview

The AXIS M5000-G is a dome-style network camera designed for discreet and effective surveillance. It features a robust housing suitable for outdoor use and a PTZ (Pan-Tilt-Zoom) mechanism for flexible viewing angles.

Figure 4.1: Front view of the AXIS M5000-G Network Camera. This image shows the camera's dome shape, with the lens visible through the dark transparent cover. The main body is white.

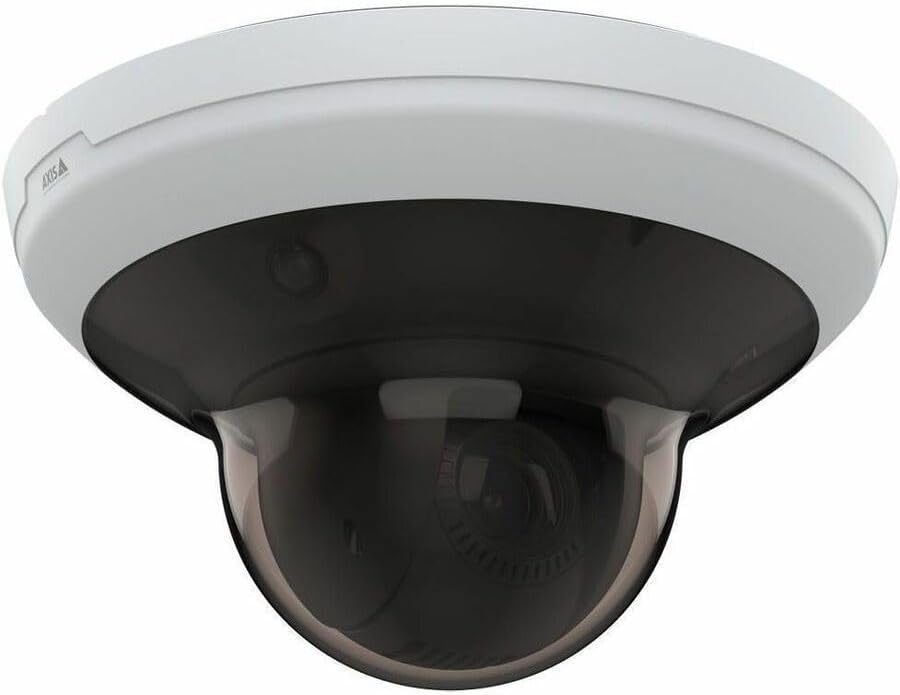

Figure 4.2: Angled view of the AXIS M5000-G Network Camera. This perspective highlights the camera's compact design and the subtle AXIS logo on the side of the white base.

Figure 4.3: Another angled view of the AXIS M5000-G Network Camera. Similar to Figure 4.2, this image provides a slightly different angle, emphasizing the smooth contours of the camera's housing.

5. Setup and Installation

The AXIS M5000-G is designed for wall mount installation and requires a wired connection for network and power.

5.1 Mounting the Camera

1. Choose a Location: Select an outdoor location that provides the desired field of view and is within reach of a power source and network connection. Ensure the mounting surface is sturdy enough to support the camera's weight (approximately 5.7 pounds).
2. Mark Drilling Points: Use the provided mounting template (if applicable) or the camera base to mark the drilling points on the wall.
3. Drill Holes: Drill pilot holes at the marked points. Insert wall anchors if necessary.
4. Secure the Base: Attach the camera's mounting base to the wall using the provided screws.
5. Attach Camera Unit: Secure the main camera unit to the mounted base, ensuring it clicks into place or is fastened according to the quick start guide.

5.2 Connecting Power and Network

1. Power Connection: Connect the provided power adapter to the camera's power input and then to a suitable electrical outlet. The camera operates on corded electric power.
2. Network Connection: Connect an Ethernet cable from your network router or switch to the camera's network port. The camera uses wired connectivity technology.
3. Initial Boot-up: Allow the camera a few minutes to power on and establish a network connection.

6. Operating the Camera

The AXIS M5000-G camera is controlled primarily through a dedicated application or network video recorder (NVR) software.

6.1 Initial Configuration

1. Discover Camera: Use the AXIS IP Utility or your network's device discovery tools to find the camera's IP address on your network.
2. Access Web Interface: Open a web browser and enter the camera's IP address to access its web interface.
3. Login: Enter the default username and password (refer to the quick start guide or manufacturer's documentation for default credentials). Change default credentials immediately for security.
4. Network Settings: Configure network settings (e.g., static IP, DHCP) as required by your network environment.
5. Date and Time: Set the correct date and time for accurate video timestamps.

6.2 Live View and PTZ Control

• Live View: Access the live video feed through the web interface or a compatible surveillance application. The camera provides 1080p video capture resolution and 5 MP effective still resolution.
• Pan, Tilt, Zoom (PTZ): Utilize the PTZ controls within the application to adjust the camera's viewing angle and zoom level. This feature allows for dynamic monitoring of large areas.
• Preset Positions: Configure and save specific PTZ positions for quick navigation to frequently monitored areas.

6.3 Motion Detection and Alerts

• Motion Only Alert Type: Configure motion detection zones and sensitivity settings within the camera's interface.
• Alert Actions: Set up actions to be triggered upon motion detection, such as recording video, sending email notifications, or uploading images to an FTP server.

7. Maintenance

Regular maintenance ensures optimal performance and longevity of your AXIS M5000-G camera.

• Cleaning the Lens: Gently wipe the camera lens and dome cover with a soft, clean, lint-free cloth. For stubborn dirt, use a mild lens cleaning solution applied to the cloth, not directly to the lens.
• Firmware Updates: Periodically check the AXIS website for firmware updates. Keeping the firmware updated ensures access to the latest features and security patches.
• Cable Inspection: Regularly inspect all cables (power and network) for any signs of wear, damage, or corrosion, especially in outdoor installations.
• Environmental Checks: Ensure the camera's environment remains within its specified operating temperature and humidity ranges.

8. Troubleshooting

This section addresses common issues you might encounter with the AXIS M5000-G camera.

9. Specifications

10. Warranty and Support

For warranty information, please refer to the documentation included with your purchase or visit the official AXIS website. AXIS provides support resources, including FAQs, troubleshooting guides, and contact information for technical assistance.

You can typically find more information and support on the AXIS Store on Amazon or the manufacturer's official website.
