Introduction
The Vimexciter Wall Mount Home Gym Solution (Model MF-03) is a comprehensive, space-saving fitness system designed for home use. It integrates multiple functionalities including a Smith Machine, Power Cage Rack, Cable Crossover Machine, Gym Squat Rack, Pull Up Bar, and Cable Fly System. This manual provides essential information for the safe and effective setup, operation, and maintenance of your new home gym.
Safety Information
WARNING: Before beginning any exercise program, consult with your physician. Read all instructions thoroughly before assembly and use. Failure to follow these instructions may result in serious injury.
- Ensure the unit is securely mounted to a load-bearing wall capable of supporting the equipment's weight and dynamic loads during exercise.
- Always inspect the equipment for loose parts, damaged cables, or worn components before each use. Do not use if any damage is found.
- Keep children and pets away from the equipment during operation.
- Use appropriate safety spotters and collars when performing exercises with the Smith machine bar.
- Do not exceed the maximum weight capacity of the Smith bar (200KG).
- Perform exercises with controlled movements. Avoid sudden jerking motions.
- Wear appropriate athletic footwear and clothing during workouts.
Setup and Installation
The Vimexciter Wall Mount Home Gym Solution comes largely pre-assembled, simplifying the installation process. The primary step involves securely mounting the unit to a suitable wall.
Wall Requirements
It is crucial to mount the unit on a load-bearing interior wall with sufficient fitness load-bearing capacity. Acceptable wall types include:
- Solid Brick Wall
- Solid Concrete Wall
- Wooden Stud Wall (12"/24" OC spacing recommended. Use a stud finder to locate studs. For 16" OC spacing, consult customer support.)
Image: Illustration showing suitable wall types (solid brick, solid concrete, wooden stud) and stud spacing requirements.
Tools Required for Installation
Ensure you have the following tools ready before beginning installation:
- Hammer Drill
- Hammer
- Pen/Marker
- Measuring Tape
- 3/8" Brad Drill Bit (for wooden walls)
- 3/8" Masonry Drill Bit (for concrete & brick walls)
- Ladder
Image: Visual guide of tools required for installation, including hammer drill, hammer, pen, measuring tape, drill bits, and ladder.
Installation Steps
- Unpacking: Carefully unbox the unit. The main components are largely pre-assembled.
- Positioning: Choose a suitable location on a load-bearing wall, ensuring adequate space around the unit for full range of motion during exercises. Refer to the "Space Requirement" image for guidance.
- Marking Drill Holes: Use the pre-drilled holes on the unit's mounting brackets as a template to mark the precise drilling locations on your wall. Ensure the unit is level before marking.
- Drilling: Using the appropriate drill bit for your wall type, drill holes at the marked locations.
- Mounting: Securely attach the unit to the wall using the provided hardware. Ensure all bolts are tightened firmly.
- Attaching Resistance Bands: The system utilizes latex resistance bands instead of traditional weights. Attach the bands to the designated points on the unit using the carabiners. You can add or remove bands to adjust resistance levels.
- Adjusting Components: Adjust the height of the cable bands and the Smith bar as needed for various exercises. The adjustable post offers 16 height settings.
Image: A man demonstrating squats using the installed Wall Mount Home Gym, showcasing its compact design and functionality.
Image: A diagram illustrating the minimal space required for the Wall Mount Home Gym, highlighting its compact footprint of 9.65 sq ft.
Image: Close-up views of the adjustable components, including the Smith bar lock, foldable leg, and handle, demonstrating the customizable design.
Operating Instructions
The Vimexciter Home Gym offers a versatile range of exercises. Familiarize yourself with the different systems and how to adjust them for your workout needs.
Dual Pulley System (Cable Crossover & Fly System)
The independent dual pulley system allows for a wide array of cable exercises. Adjust the height of the pulleys by sliding the attachment points along the vertical posts. Attach desired handles or straps to the carabiners.
Image: Detailed view of the dual pulley system, adjustable post, and VRT (Variable Resistance Training) system.
Smith System (Squat Rack & Pull Up Bar)
The Smith bar provides a guided path for exercises like squats and bench presses, enhancing safety and stability. The bar can be adjusted to different heights and secured with safety stoppers. It also functions as a pull-up bar when positioned at the top.
- Adjusting Smith Bar Height: To adjust the Smith bar, lift it slightly, disengage the locking mechanism, slide it to the desired height, and re-engage the lock.
- Safety Stoppers: Always use the safety stoppers to prevent the bar from descending beyond a safe range.
- Storage: The Smith bar can be removed and stored compactly when not in use, allowing the unit to fold for space-saving.
Image: Diagram illustrating how the unit folds compactly from 27 inches to 8 inches depth, showcasing its space-saving design.
Resistance Adjustment (VRT System)
The Variable Resistance Training (VRT) system uses latex resistance bands. Each band provides a specific resistance level. To increase or decrease resistance, simply attach or detach the bands from the system's connection points. This system matches natural strength curves, maximizes muscle activation, enhances joint health, and improves explosiveness and power.

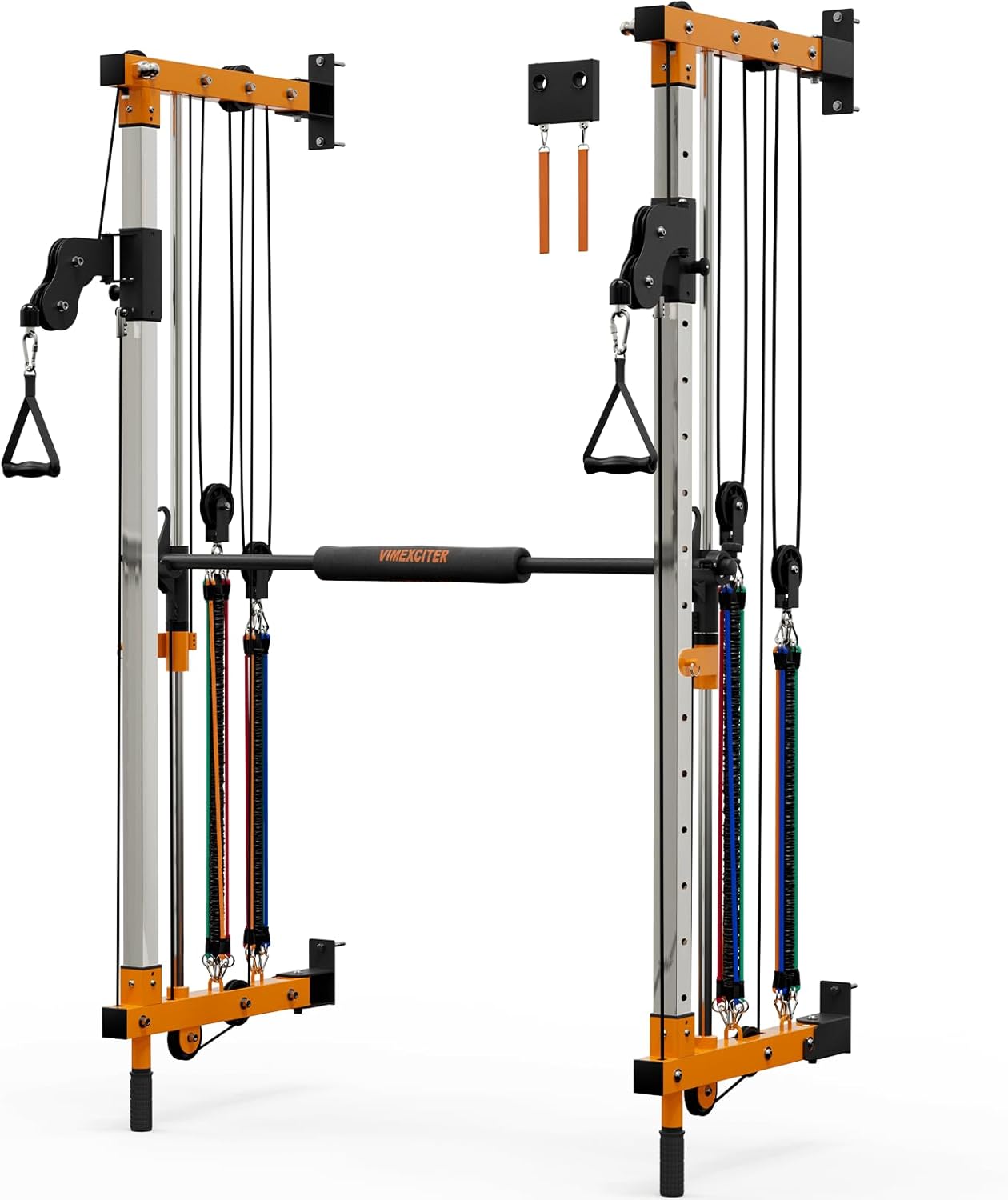

Image: The Vimexciter Wall Mount Home Gym unit shown without a user, highlighting its sleek design and integrated components.
Exercise Examples
The included operation manual provides detailed illustrations for various exercises you can perform with your Vimexciter Home Gym. These include, but are not limited to:
- Bicep Curls
- Tricep Extensions
- Chest Flies
- Squats
- Rows
- Shoulder Presses
- Leg Extensions/Curls (with appropriate attachments)
- Pull-ups
Image: A page from the operation manual displaying various exercise illustrations that can be performed using the home gym.
Maintenance
Regular maintenance will ensure the longevity and safe operation of your Vimexciter Home Gym.
- Cleaning: Wipe down the unit with a damp cloth after each use to remove sweat and dust. Avoid abrasive cleaners.
- Lubrication: Periodically check and lubricate moving parts, especially the pulleys and the Smith bar's sliding mechanism, with a silicone-based lubricant to ensure smooth operation.
- Cable Inspection: Regularly inspect all cables and resistance bands for signs of fraying, cracks, or wear. Replace any damaged components immediately.
- Bolt Tightness: Check all bolts and fasteners periodically and tighten if necessary to ensure the unit remains stable and secure.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Smith Bar catches/jerks during movement. | Lack of lubrication or debris in the sliding mechanism. | Clean the vertical guide bars and apply a silicone-based lubricant. Ensure no foreign objects are obstructing the path. |
| Resistance bands feel too light/heavy. | Incorrect number of bands attached for desired resistance. | Add or remove resistance bands to achieve the appropriate resistance level for your workout. |
| Unit feels unstable after installation. | Mounting bolts are loose or wall is not sufficiently load-bearing. | Check and tighten all mounting bolts. Re-evaluate wall suitability if instability persists. Consult a professional for re-installation if necessary. |
Specifications
- Model Name: MF-03
- Brand: Vimexciter
- Material: Alloy Steel
- Color: Orange
- Strap Type: Cable/Pulley straps
- Tension Level: Heavy Duty (adjustable via bands)
- Handle Type: Fixed Handle
- Max Smith Bar Capacity: 200KG
- Mounting Type: Wall Mounting
- Product Setup Size: 222 x 129 x 69 cm (approx. 87.4 x 50.8 x 27.2 inches)
- Footprint: Approximately 9.65 sq ft (when extended)
- Folded Depth: Approximately 8 inches
Warranty Information
The Vimexciter Wall Mount Home Gym Solution (Model MF-03) comes with a manufacturer warranty for 365 days from the date of purchase. Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, refer to the documentation included with your product or contact customer support.
Customer Support
For any questions, assistance with installation, troubleshooting, or warranty claims, please contact Vimexciter customer support. Refer to the contact information provided in your product packaging or visit the official Vimexciter website.
We are committed to providing you with a high-quality product and excellent service to support your fitness journey.
