1. Introduction
This manual provides essential instructions for the assembly, operation, maintenance, and troubleshooting of your Devoko 8x10 FT Metal Outdoor Storage Shed. Please read this manual thoroughly before beginning assembly or use to ensure proper installation and safe operation. Keep this manual for future reference.
Image 1.1: The Devoko 8x10 FT Metal Outdoor Storage Shed, showcasing its design and size in a typical outdoor environment.
2. Safety Information
- Roof Load Capacity: Do not load more than 440 pounds on the roof of the shed. Exceeding this limit can compromise structural integrity and lead to collapse.
- Assembly Safety: Always wear appropriate safety gear, including gloves, during assembly. Metal edges can be sharp.
- Level Surface: Ensure the shed is assembled on a firm, level surface to prevent instability and ensure proper door function.
- Ventilation: The shed is equipped with ventilation openings. Do not obstruct these openings to maintain proper air circulation and prevent moisture buildup.
- Anchoring: Securely anchor the shed to the ground or a concrete pad to prevent it from being moved or damaged by strong winds.
3. Setup and Assembly
Assembly of the Devoko storage shed requires careful attention to detail and typically involves two people. While the product is designed for DIY assembly, it is not pre-assembled.
3.1 Preparation
- Site Selection: Choose a level area for installation. A concrete pad or a constructed wooden base is highly recommended for optimal stability and alignment.
- Unpacking: Carefully unpack all components. It is advisable to lay out all hardware and panels before starting to avoid searching for parts during assembly.
- Protective Film: Many panels are covered with a protective plastic film. This film can be difficult to remove; consider peeling it off each panel before assembly or as you go.
3.2 Assembly Steps (General Guidelines)
- Base Construction: If not using a concrete slab, construct a sturdy, level base. Ensure the base is square by measuring diagonal corners to confirm equal distances. Secure the shed's bottom frame to this base to maintain squareness during assembly.
- Wall Panel Installation: Attach wall panels according to the provided diagrams. Pay close attention to the orientation of each panel. If screw holes do not align, re-check the previous steps as a panel may be installed incorrectly.
- Door Frame Assembly: Assemble the door frame and install the sliding doors. Ensure they operate smoothly before proceeding.
- Roof Assembly: Carefully attach the roof panels. The pitched roof design aids in rainwater runoff. Ensure all roof screws are properly sealed to prevent leaks.
- Final Checks: Verify all screws are tightened appropriately. Avoid overtightening, as some screws can strip easily.
Image 3.1: The shed with its doors open, demonstrating the spacious interior suitable for various storage solutions.
4. Operating Instructions
4.1 Door Operation
The Devoko storage shed features sliding doors for easy access. To open, gently slide the door along its track. Ensure the track is clear of debris for smooth operation.
4.2 Locking Mechanism
The shed is equipped with a lockable latch for security. Use a padlock (not included) to secure the doors. Always ensure the doors are fully closed and locked when not in use to protect stored items.
4.3 Ventilation
Integrated air vents promote circulation within the shed, helping to reduce condensation and maintain a suitable environment for stored items. Do not block these vents.
Image 4.1: Close-up of the shed's design elements, highlighting the functional air vents, the sloped roof for water drainage, and the secure lockable latch.
5. Maintenance
- Cleaning: Periodically clean the shed's exterior with mild soap and water to remove dirt and debris. Avoid abrasive cleaners that could damage the metal finish.
- Door Tracks: Keep door tracks clear of leaves, dirt, and other obstructions to ensure smooth operation. Lubricate tracks if necessary.
- Fastener Check: Annually inspect all screws and fasteners for tightness. Re-tighten any loose connections to maintain structural integrity.
- Rust Prevention: Although made of high-grade metal with waterproof properties, inspect for any signs of rust, especially in areas where the coating might be scratched. Address any rust promptly with appropriate metal treatment.
- Roof Inspection: Regularly check the roof for any accumulation of heavy snow or debris, especially during winter months, to prevent exceeding the 440 lbs load capacity.
6. Troubleshooting
- Holes Not Aligning During Assembly: This is a common issue if a previous panel was installed incorrectly or the base is not perfectly square. Disassemble the affected section, verify the squareness of the base, and re-check panel orientations against the instructions before re-assembly.
- Doors Sticking: Check the door tracks for debris. Clean the tracks and ensure they are properly aligned. Lubrication with a silicone-based spray can improve movement.
- Water Leaks: Inspect roof panel seams and screw points. Ensure all screws have their plastic washers properly seated and consider applying a dab of acrylic sealant to exposed roof panel screws if leaks persist.
- Shed Instability: Ensure the shed is securely anchored to its base or the ground. Verify all frame connections are tight.
7. Specifications
| Feature | Specification |
|---|---|
| Brand | Devoko |
| Model Number | DV-storage shed |
| Product Dimensions (D x W x H) | 102.3" x 120.8" x 80.3" |
| Item Weight | 74.6 Pounds |
| Material | Metal (Alloy Steel Frame) |
| Color | Brown |
| Water Resistance Level | Waterproof |
| Door Style | Sliding Doors |
| Roof Weight Capacity | 440 lbs |

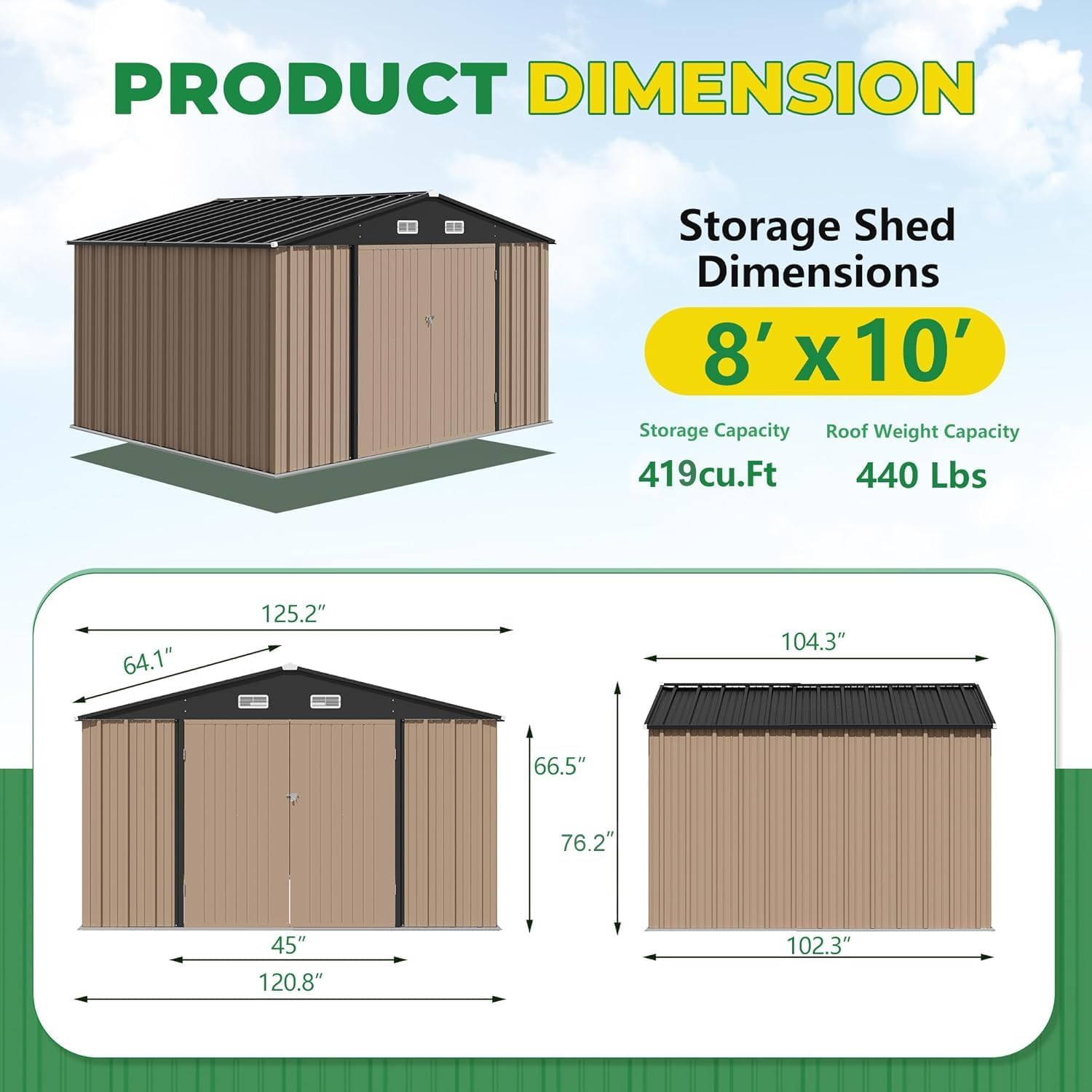

Image 7.1: Technical diagram illustrating the detailed dimensions of the storage shed.
8. Warranty and Support
8.1 Warranty Information
For specific warranty details regarding your Devoko storage shed, please refer to the warranty card included with your product packaging or contact Devoko customer support directly. Warranty terms typically cover manufacturing defects under normal use.
8.2 Customer Support
If you have any questions, require assistance with assembly, or need to report an issue, please contact Devoko customer support. Our dedicated team is available to provide full customer support and excellent after-sales service.
For support, please visit the official Devoko store or contact the seller directly through your purchase platform.
