1. Introduction
Welcome to the KingChii 43L Electric Cigar Humidor instruction manual. This appliance is designed to provide a stable and controlled environment for preserving your cigars, maintaining optimal temperature and humidity levels. Please read this manual thoroughly before use to ensure proper operation and longevity of your humidor.
2. Safety Information
- Read all instructions before using the appliance.
- Do not operate the humidor with a damaged cord or plug.
- Ensure proper ventilation around the unit. Maintain at least 2-3 inches of space from walls and other objects.
- Keep out of reach of children.
- Use only distilled water for the humidification system. Tap water can cause mineral buildup.
- Unplug the unit before cleaning or maintenance.
- Do not place flammable materials or explosives inside the humidor.
- Avoid placing the unit in direct sunlight or near heat sources.
3. Package Contents
Verify that all components are present:
- Electric humidor cabinet
- Spanish cedar wood shelf
- Spanish cedar wood drawer
- Hygrometer (built-in or separate, depending on model)
- Built-in humidification system
- Temperature control system
- Humidity control system
- Touch screen control panel
Image: The KingChii 43L Electric Cigar Humidor, showcasing its exterior and internal components like cedar shelves and drawers.
4. Product Features

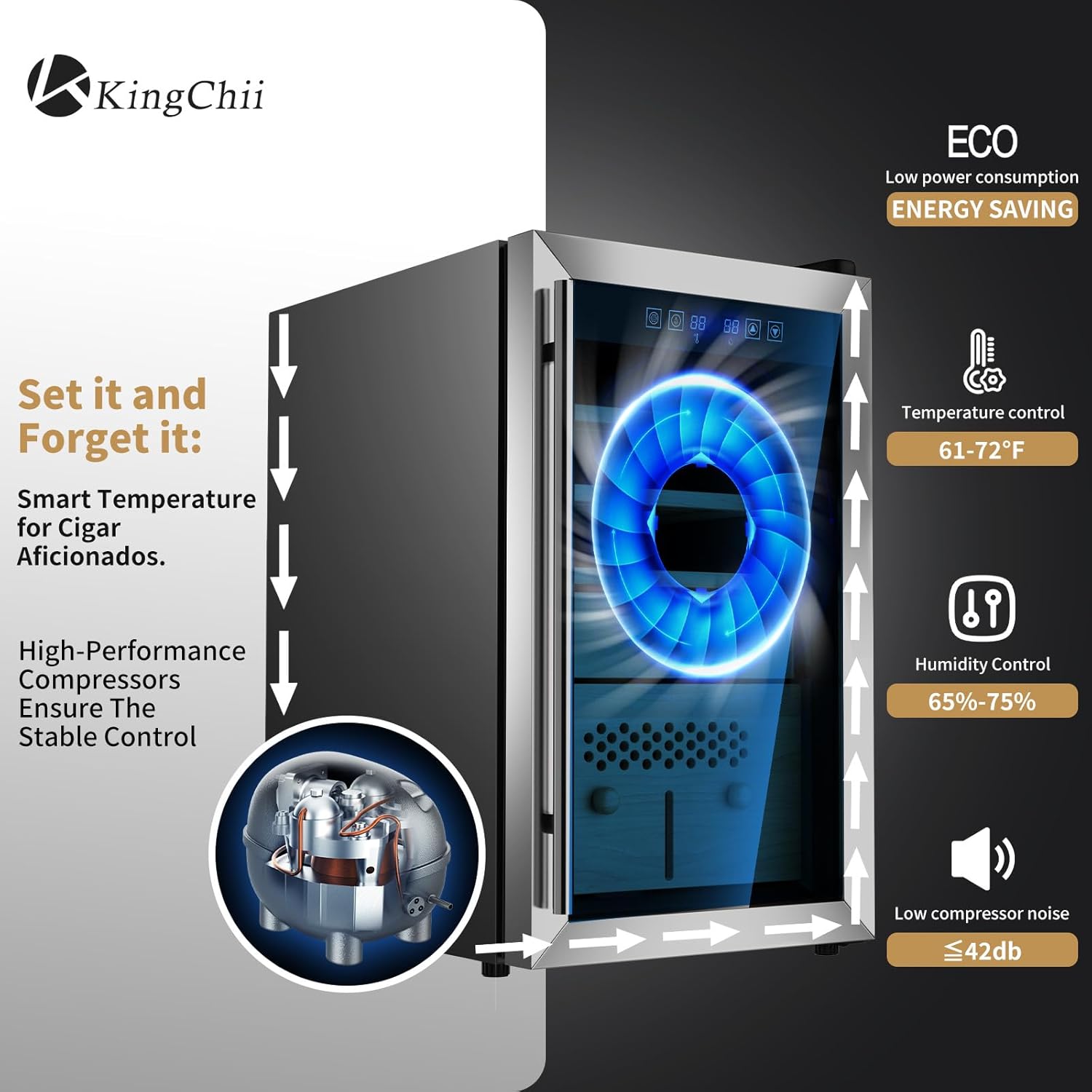

- Temperature & Humidity Control: Utilizes self-regulating compressor technology to maintain a constant temperature range of 61-72°F (16-22°C) and humidity range of 65%-76%.
- Air Circulating Fan: Circulates air to ensure operational efficiency, consistency, and uniformity of temperature and humidity throughout the entire cabinet, drawer, and shelves.
- Natural Conservation Environment: Features high-quality Spanish cedar wood frames, shelves, and drawers. The volatilized cedar wood oil emits a natural aroma, which helps moisturize, breathe, remove peculiar smells, and prevents your collection from drying and mold.
- Hot Film Tempered Glass Door: The double-layer mirror glass is heat-insulating, heat-resistant, wear-resistant, and easy to clean.
- Electronic Touch Screen: Modern electronic touch screen technology provides fast response time and easy operation for temperature and humidity adjustments.
- Capacity: 43 Liters, capable of storing approximately 315 cigars.
- Low Noise Operation: The compressor operates with a noise level of ≤42dB.
Image: Interior view of the KingChii 43L humidor, highlighting the Spanish cedar wood shelves and drawers.
Image: Close-up of the KingChii Electric Cigar Humidor's touch control panel, showing temperature and humidity settings.
5. Setup Guide
- Unpacking: Carefully remove the humidor from its packaging. Inspect for any shipping damage.
- Placement: Place the humidor on a stable, level surface away from direct sunlight, heat sources, and areas of high humidity. Ensure adequate ventilation around the unit (at least 2-3 inches from walls).
- Leveling: Use the adjustable foot pads at the bottom of the unit to ensure the humidor is level. This is crucial for proper door sealing and efficient compressor operation.
- Initial Cleaning: Wipe the interior with a clean, soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the cedar wood and interior surfaces.
- Seasoning the Cedar: Before placing cigars, the Spanish cedar wood shelves and drawers must be seasoned. Lightly wipe the cedar surfaces with a clean cloth dampened with distilled water. Do not soak the wood. Repeat this process daily for 3-5 days, keeping the humidor closed between applications, until the internal humidity stabilizes.
- Power Connection: Plug the humidor into a grounded electrical outlet.
- Filling the Humidification System: Locate the water reservoir (typically at the bottom of the unit). Fill it with distilled water only. Do not use tap water as it can lead to mineral buildup and affect performance.
Image: The KingChii 43L Electric Cigar Humidor placed in a room, demonstrating its compact size and suitable placement.
6. Operating Instructions
6.1 Control Panel Overview
The humidor features an electronic touch screen control panel located on the top front of the unit. It displays current temperature and humidity, and allows for precise adjustments.
Image: Close-up of the KingChii humidor's touch control panel, showing various icons for settings.
6.2 Setting Temperature
- Press the "Temperature" icon (usually a thermometer symbol) on the touch panel.
- Use the Up (▲) and Down (▼) arrows to adjust the desired temperature between 61°F and 72°F (16°C and 22°C).
- The display will flash and then set the new temperature.
6.3 Setting Humidity
- Press the "Humidity" icon (usually a water droplet symbol) on the touch panel.
- Use the Up (▲) and Down (▼) arrows to adjust the desired humidity between 65% and 76%.
- The display will flash and then set the new humidity.
6.4 Internal Lighting
Press the "Light" icon (usually a light bulb symbol) to turn the internal LED lights on or off. These lights are energy-saving and designed to gently illuminate your cigar collection.
Image: Interior of a KingChii humidor with the LED lights activated, showcasing the cigars.
6.5 Placing Cigars
Once the humidor is seasoned and stable, carefully place your cigars on the Spanish cedar shelves and in the drawers. Ensure proper air circulation by not overcrowding the shelves.
7. Maintenance
7.1 Cleaning the Interior
- Unplug the humidor before cleaning.
- Wipe interior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- For the Spanish cedar, use a slightly damp cloth with distilled water only.
- Ensure the interior is completely dry before plugging the unit back in.
7.2 Refilling the Water Reservoir
- Regularly check the water level in the humidification system's reservoir.
- Refill with distilled water as needed.
- Clean the reservoir periodically to prevent mold or algae growth.
7.3 Exterior Cleaning
- Wipe the exterior with a soft, dry cloth.
- For the glass door, use a glass cleaner applied to a cloth, not directly to the door.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Humidor not cooling/heating | Power cord unplugged; thermostat set incorrectly; poor ventilation; unit malfunction. | Check power connection; adjust thermostat to desired range; ensure adequate space around the unit for airflow. If problem persists, contact customer support. |
| Humidity too low/high | Water reservoir empty/overfilled; door not sealed properly; humidor not seasoned; ambient room humidity too extreme. | Refill/adjust water level in reservoir; check door seal for obstructions; ensure proper seasoning of cedar. Consider ambient room conditions. |
| Excessive noise | Unit not level; fan obstruction; normal compressor operation. | Adjust leveling feet to ensure stability; check for obstructions around the internal fan. Some compressor noise is normal. |
| Water leakage | Overfilled water reservoir; damaged reservoir or internal components. | Do not overfill the reservoir. Ensure it is correctly seated. Inspect reservoir for cracks or damage. If damage is found, contact customer support. |
| Display not working | Power issue; control panel malfunction. | Check power connection. If unit is powered but display is off, contact customer support. |
9. Technical Specifications
| Feature | Detail |
|---|---|
| Brand | KingChii |
| Model Name | JCC-43 |
| Capacity | 43 Liters (approx. 315 cigars) |
| Temperature Range | 61-72°F (16-22°C) |
| Humidity Range | 65%-76% |
| Control Method | Touch Screen |
| Material | Glass, Spanish Cedar Wood |
| Power Source | Corded Electric |
| Special Feature | Humidistat, Air Circulating Fan |
| Room Type | Bedroom, Living Room |
Image: Diagram showing the dimensions and key specifications of the KingChii 43L Electric Cigar Humidor.
10. Warranty and Support
For detailed warranty information and customer support, please refer to the documentation included with your purchase. It is recommended to keep your proof of purchase for any warranty claims. You may also visit the official KingChii website for further assistance and contact information.
