Devoko 10 x 10 FT Outdoor Storage Shed Instruction Manual
Model: DV-storage shed
Product Overview
The Devoko 10 x 10 FT Outdoor Storage Shed is a robust and spacious solution for your outdoor storage needs. Constructed from high-grade metal, it offers waterproof and UV-resistant properties, ensuring durability in various weather conditions. Its design includes a pitched roof to prevent water accumulation and ventilation openings for improved air circulation. This shed is ideal for organizing gardening tools, large outdoor equipment, and other items, helping to maintain a tidy and functional outdoor space.
Figure 1: The Devoko 10x10 FT Outdoor Storage Shed, showcasing its spacious interior and sturdy construction. The shed is gray with a light gray roof, featuring double doors.
Safety Information
- Always wear appropriate personal protective equipment (PPE) during assembly, including gloves and eye protection.
- Ensure the assembly area is clear of obstructions and level. A level base is crucial for proper alignment and stability.
- Do not attempt to assemble the shed during strong winds or adverse weather conditions.
- Keep children and pets away from the assembly area.
- Verify all parts are present and undamaged before beginning assembly.
- Secure the shed to the ground using appropriate anchoring methods to prevent tipping in high winds.
- Do not store flammable materials inside the shed, as metal sheds can become very hot in direct sunlight.
- The shed is water-resistant, not fully waterproof. Expect some minor leakage in heavy or prolonged rain. Consider additional sealing if complete waterproofing is required.
Setup and Assembly
Assembly of the Devoko storage shed requires careful attention to detail and is best performed with two people. An electric screwdriver with torque adjustment is highly recommended due to the large number of screws involved. Prepare a clear, level area for assembly, ideally with a sturdy base.
Preparation:
- Unpack and Organize: Remove all components from the packaging. Lay out all hardware and panels in an organized manner to easily identify them during assembly. Note that some panels may have a thin protective film that needs to be removed.
- Foundation: A level and stable base is essential. If not assembling on concrete, consider constructing a wooden base (e.g., 2x6 PT outer frame with 2x4 PT cross members and OSB flooring) slightly larger than the shed's footprint. Ensure the base is squared by measuring diagonal corners.
- Tools Required:
- Gloves
- Eye Protection
- Electric Screwdriver with Torque Adjustment
- Measuring Tape
- Level
- Step Ladder (for roof assembly)
Assembly Steps:
- Base Frame Assembly: Assemble the bottom frame of the shed on your prepared level base. Ensure it is perfectly squared by measuring diagonal distances. Secure the bottom frame to the base if possible to maintain squareness during subsequent steps.
- Wall Panel Installation: Attach the wall panels according to the provided diagrams. Pay close attention to the orientation of each panel.
- Door Frame and Door Installation: Install the door frame and then attach the single lockable door. Ensure the door operates smoothly and the latch aligns correctly.
- Roof Frame Assembly: Assemble the roof frame. Note that the top frame on each side may have a groove instead of individual holes, requiring careful alignment, especially at corners.
- Roof Panel Installation: Attach the roof panels. Ensure proper overlap and secure all fasteners. It is recommended to apply a dab of acrylic sealant to exposed roof panel screws for added water resistance.
- Final Checks: Verify all screws are tightened, and the shed is stable. Check door alignment and locking mechanism.

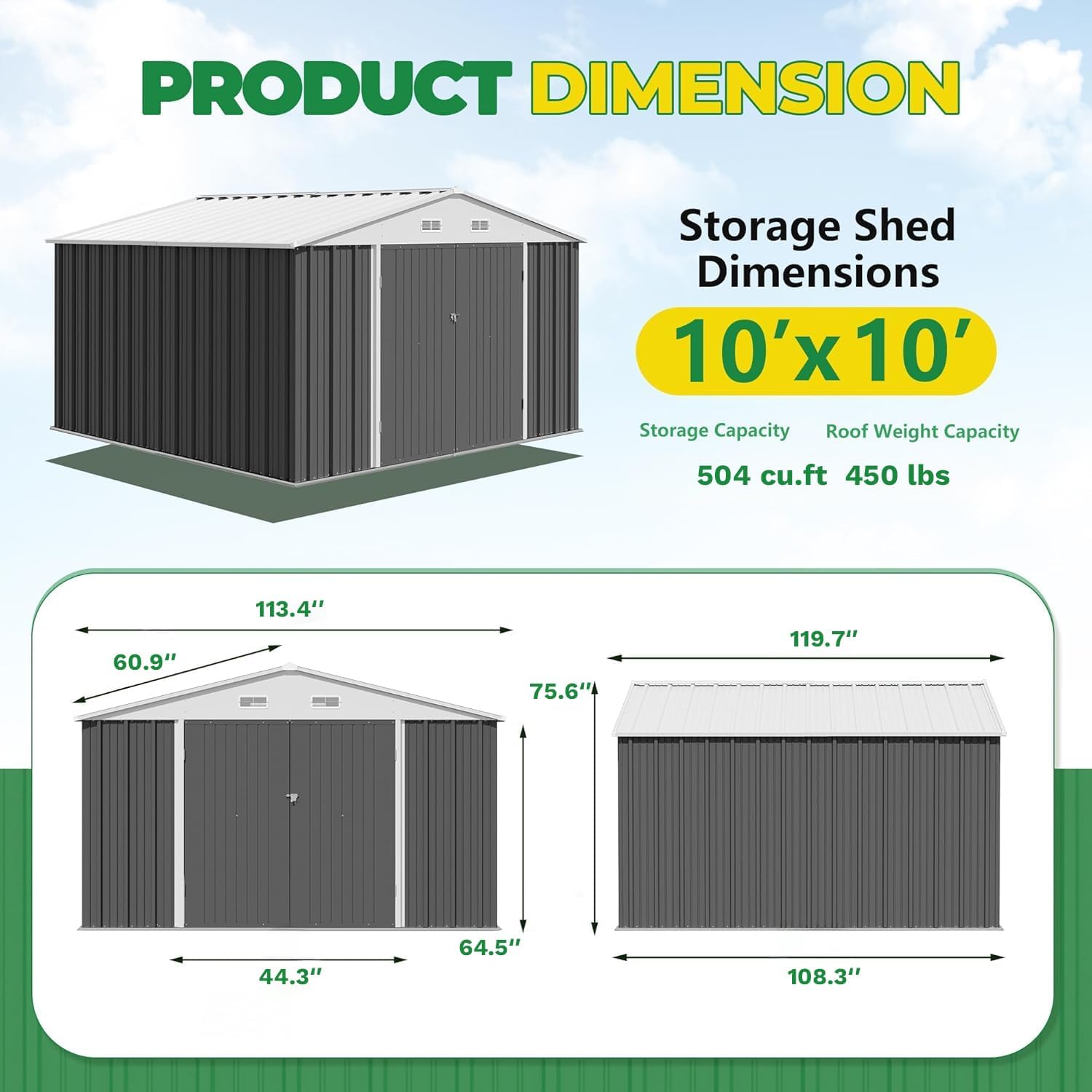

Figure 2: Product dimensions for the 10x10 FT model. Storage capacity is 504 cu.ft and roof weight capacity is 450 lbs.
Operating Instructions
The Devoko storage shed is designed for straightforward operation, providing secure and accessible storage for your outdoor items.
- Accessing the Shed: Use the single lockable door for entry and exit. Ensure the latch is fully engaged when closing the door to secure contents.
- Ventilation: The shed is equipped with ventilation openings to promote air circulation and reduce condensation. Keep these vents clear of obstructions.
- Storage Capacity: The 10x10 FT shed offers ample space (504 cu.ft) for various items, including gardening tools, lawnmowers, furniture, bicycles, and more. Organize items efficiently to maximize space.
Figure 3: The large internal capacity of the shed can accommodate a wide range of outdoor equipment and supplies.
Maintenance
Regular maintenance will help prolong the life and appearance of your Devoko storage shed.
- Cleaning: Clean the exterior of the shed periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the metal finish.
- Inspection: Regularly inspect the shed for any loose screws, damaged panels, or signs of wear. Tighten any loose fasteners.
- Drainage: Ensure the area around the shed has proper drainage to prevent water from pooling at the base. The pitched roof is designed to shed water effectively.
- Ventilation: Keep the ventilation openings clear of debris to ensure continuous airflow.
- Rust Prevention: While made of high-grade metal, inspect for any scratches or areas where the protective coating might be compromised. Touch up with rust-inhibiting paint if necessary to prevent corrosion.
Figure 4: Key design features include air vents for circulation, a sloped roof for efficient water drainage, and a secure lockable latch for safety.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Difficulty aligning screw holes during assembly. | Uneven base or slight manufacturing tolerances. | Ensure the base is perfectly level and square. Apply gentle pressure or slightly adjust panels to align holes. In rare cases, minor drilling may be needed for stubborn holes. |
| Water leakage during heavy rain. | Shed is water-resistant, not fully waterproof; gaps around seams or screws. | Apply silicone sealant along interior seams and around all screw heads, especially on the roof. Ensure proper ground drainage around the shed. |
| Panels dent or bend easily during assembly. | Thin sheet metal construction requires careful handling. | Handle panels with care. Avoid dropping or applying excessive force. Assemble with two people to manage large panels more easily. |
| Protective film difficult to remove. | Film adheres strongly to panels. | Peel slowly and steadily. For stubborn areas, a heat gun on a low setting (from a distance) or rubbing alcohol might help, but test on an inconspicuous area first. |
Specifications
- Brand: Devoko
- Model: DV-storage shed
- Color: Gray
- Product Dimensions: 108.3"D x 113.4"W x 75.6"H
- Item Weight: 74.6 Pounds
- Style: Modern
- Base Material: Metal
- Top Material Type: Galvanized Steel
- Water Resistance Level: Water-resistant (not fully waterproof)
- Frame Material: Metal
- Door Style: Single Door
- Ultraviolet Light Protection: UV Protection
- Assembly Required: Yes
- Door Width: 31.65 Inches
- Country of Origin: China
Warranty and Support
Devoko is committed to providing quality products and customer satisfaction. If you have any questions or require assistance with your storage shed, please refer to the following:
- Worry-free Service: The product comes with a commitment to customer support.
- Returns: Typically, a 30-day easy returns policy is available. Please check your purchase details for specific return window.
- Customer Support: For any inquiries, missing parts, or issues during assembly or use, please contact Devoko customer service. Contact information can usually be found on the product packaging or the retailer's website where the product was purchased.
