1. Introduction
The Victagen 5000 Lumens 3LED Bike Lights are designed to enhance safety and visibility for night riding. This super bright front and back bike light set is USB rechargeable and offers multiple lighting modes, along with a convenient power bank function. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance and a safe riding experience.
2. What's Included
Your Victagen 5000 Lumens 3LED Bike Light set includes the following components:
- VTG10 Front Bike Light
- Bike Light Manual
- Bike Light Handlebar Mount
- USB Charging Cable (Type-C)
- Taillight (Rear Light)
3. Setup
3.1 Front Light Mounting
The front light features a quick-release handlebar mount for easy installation and removal. It is compatible with handlebars ranging from 22mm to 35mm (0.86 to 1.38 inches) in diameter.
- Open the quick-release clamp of the handlebar mount.
- Position the mount on your bicycle's handlebar and tighten the screw until it is securely fastened.
- Slide the Victagen front light onto the mount until it clicks into place. Ensure it is firmly attached.
- Adjust the angle of the light to illuminate the path ahead effectively. The mount allows for 360° rotation.
Figure 3.1: Quick-release handlebar mount installation steps.
Video 3.1: Official product video demonstrating the unboxing, features, and mounting of the Victagen bike light.
3.2 Rear Light Mounting
The included taillight can be easily mounted to your bike's seat post using its flexible strap.
- Wrap the silicone strap of the taillight around your bike's seat post.
- Hook the strap onto the designated latch on the taillight to secure it.
- Adjust the taillight's position to ensure maximum visibility from the rear.
Figure 3.2: Rear taillight with multiple modes for enhanced visibility.
4. Operating Instructions
4.1 Front Light Modes
The front light features a single button to cycle through 6 different lighting modes and 3 brightness levels:
- High: Maximum brightness for optimal visibility.
- Medium: Balanced brightness for general use.
- Low: Lower brightness for extended battery life.
- Fast Flash: Rapid flashing for increased attention.
- Slow Flashing: Slower flashing pattern.
- Navigation Light: A specific mode for navigation.
Press the power button once to turn the light ON. Subsequent presses will cycle through the modes. Press and hold the button to turn the light OFF.

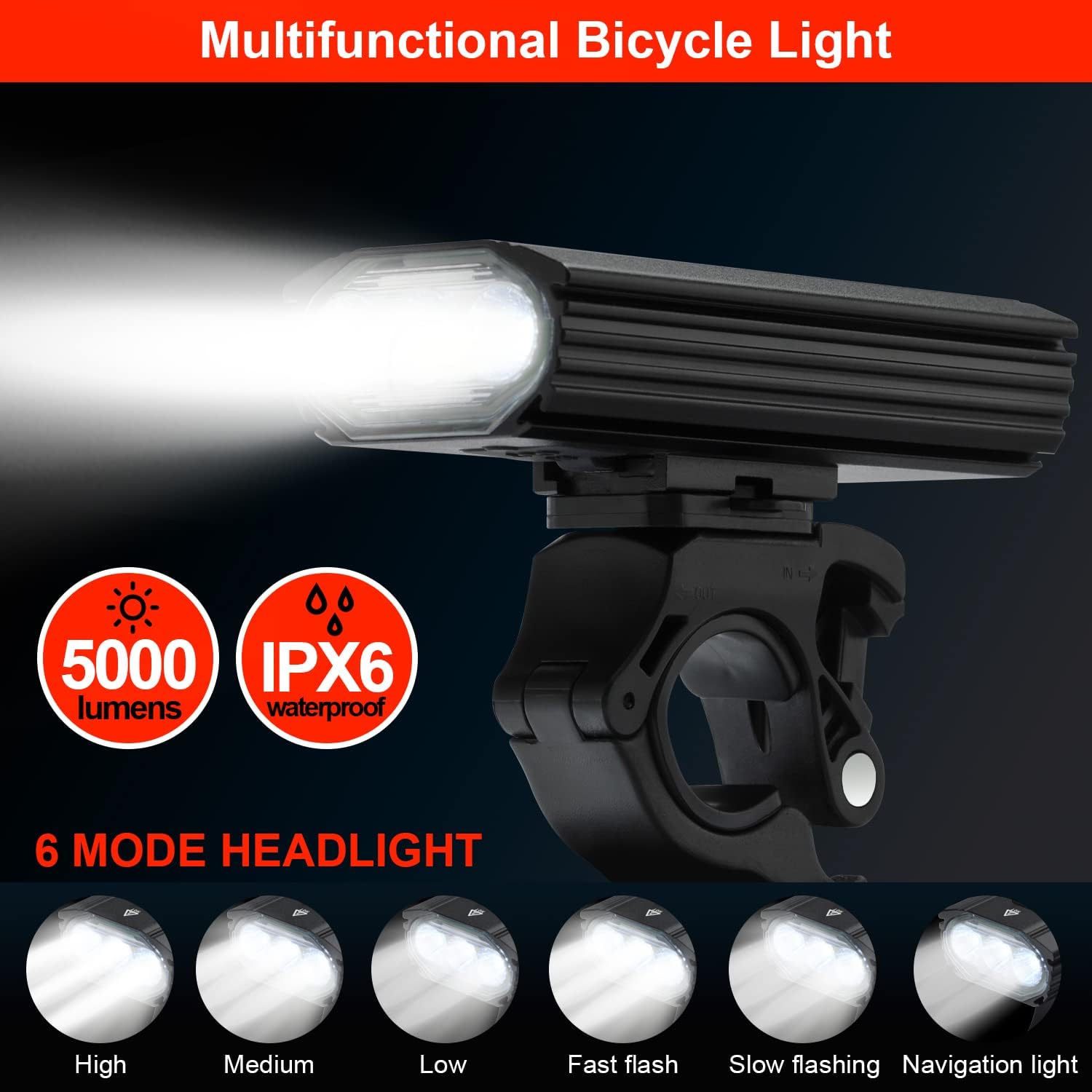

Figure 4.1: Front light modes and brightness levels.
4.2 Power Bank Function
The Victagen front light doubles as a power bank, allowing you to charge your mobile phone or other electronic devices via its USB output port.
- Locate the USB output port on the side of the light (usually protected by a rubber flap).
- Connect your device's charging cable to the USB output port.
- The light will begin charging your device.
Figure 4.2: Bike light with integrated power bank function.
4.3 Rear Light Modes
The included taillight offers 3 modes for rear visibility:
- Red Mode: Solid red light.
- Fast Flash: Rapid red flashing.
- Slow Flash: Slower red flashing pattern.
Press the button on the taillight to cycle through its modes.
Figure 4.3: Rear light modes for safety.
5. Maintenance
5.1 Charging the Front Light
To charge the front light, use the provided USB Type-C charging cable. Connect the cable to the light's input port (usually protected by a rubber flap) and plug the other end into a USB power source (e.g., computer, wall adapter).
Figure 5.1: USB charging port on the front light.
5.2 Waterproofing
The Victagen bike light is rated IP65, meaning it is protected against dust ingress and low-pressure water jets from any direction. This makes it suitable for use in various weather conditions, including rain. However, it is not designed for submersion in water.
Figure 5.2: The bike light is designed to be waterproof (IP65 rated).
5.3 General Care
- Clean the light regularly with a soft, damp cloth. Avoid abrasive cleaners.
- Store the light in a cool, dry place when not in use.
- Ensure the rubber flaps covering the charging ports are securely closed to maintain water resistance.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | Low battery. | Charge the light fully using the provided USB cable. |
| Light is dim or flickers. | Low battery. | Recharge the light. Ensure the charging cable is securely connected. |
| Mount feels loose on handlebar. | Mount not tightened sufficiently or incorrect handlebar size. | Ensure the mount screw is fully tightened. Verify handlebar diameter is within compatible range (22-35mm). |
| Power bank function not working. | Light's battery is too low or cable issue. | Charge the bike light. Try a different USB cable. |
| Rear light not working. | Battery depleted (for non-rechargeable models) or incorrect battery insertion. | Replace the batteries in the taillight if applicable. Ensure batteries are inserted with correct polarity. |
7. Specifications
| Feature | Detail |
|---|---|
| Brand | VICTAGEN |
| Model Name | VTG10 |
| Brightness | 5000 Lumens |
| Number of LEDs | 3 |
| Material | Aluminum |
| Power Source | Battery Powered (USB Rechargeable) |
| Water Resistance Level | IP65 (Waterproof) |
| Item Weight | 153 Grams |
| Mounting Type | Handlebar Mount (Quick-release) |
| Handlebar Compatibility | 22~35 mm (0.86~1.38 inch) |
| Front Light Modes | 6 (High, Medium, Low, Fast flash, Slow flashing, Navigation light) |
| Rear Light Modes | 3 (Red mode, Fast flash, Slow flash) |
| Power Bank Function | Yes |
8. Warranty & Support
VICTAGEN stands behind the quality of its products. Your bike light comes with the following:
- 30 Days Free Return & Exchange: For any issues within 30 days of purchase.
- 1 Year Warranty: Covers manufacturing defects for one year from the purchase date.
- Lifetime After-Sales Support: VICTAGEN provides lifetime customer service and technical assistance.
For further assistance or to claim warranty, please visit the official VICTAGEN Store or contact customer support through your purchase platform.
