Introduction
Thank you for choosing the EMKE Electric Towel Warmer. This manual provides essential information for the safe installation, operation, and maintenance of your new towel warmer. Please read these instructions carefully before use and retain them for future reference.
Image: The EMKE Electric Towel Warmer in anthracite, featuring a sleek design and a digital thermostat, installed in a modern bathroom setting.
Safety Instructions
- Read all instructions before installing and using the appliance.
- Ensure the power supply voltage matches the rating label on the appliance.
- Do not immerse the appliance, cord, or plug in water or other liquids.
- Keep the appliance away from flammable materials.
- This appliance is designed for drying towels and heating bathrooms. Do not use it for other purposes.
- Do not cover the towel warmer with clothes or other items that could obstruct heat dissipation.
- Always ensure the heating rod is mounted on the lower edge of the radiator. Incorrect mounting can lead to malfunction or damage.
- The appliance is rated IP44, providing protection against splashing water, making it suitable for bathroom use.
Package Contents
Please check the package contents upon receipt to ensure all components are present:
- EMKE Electric Towel Warmer (Radiator body)
- Thermostatic Heating Element (pre-installed)
- Mounting Brackets (x4)
- Rubber Rings (x4)
- Long Screws (x4)
- Small Screws (x4)
- Installation Manual
Image: A visual representation of the included accessories for mounting the towel warmer.
Setup and Installation
The electric towel warmer comes with the heating rod and antifreeze pre-installed. Follow these steps for wall mounting:
- Choose Location: Select a suitable wall location in your bathroom, ensuring it is within reach of a power outlet and away from direct water spray.
- Mark Drilling Points: Hold the towel warmer against the wall at the desired height and mark the positions for the mounting brackets. Ensure the heating rod is positioned at the bottom.
- Drill Holes: Drill holes at the marked points, insert wall plugs (if necessary), and secure the mounting brackets using the long screws.
- Attach Towel Warmer: Carefully attach the towel warmer to the secured brackets. Use the small screws and rubber rings to firmly fix the radiator to the brackets.
- Connect Power: Plug the power cord into a suitable electrical outlet.

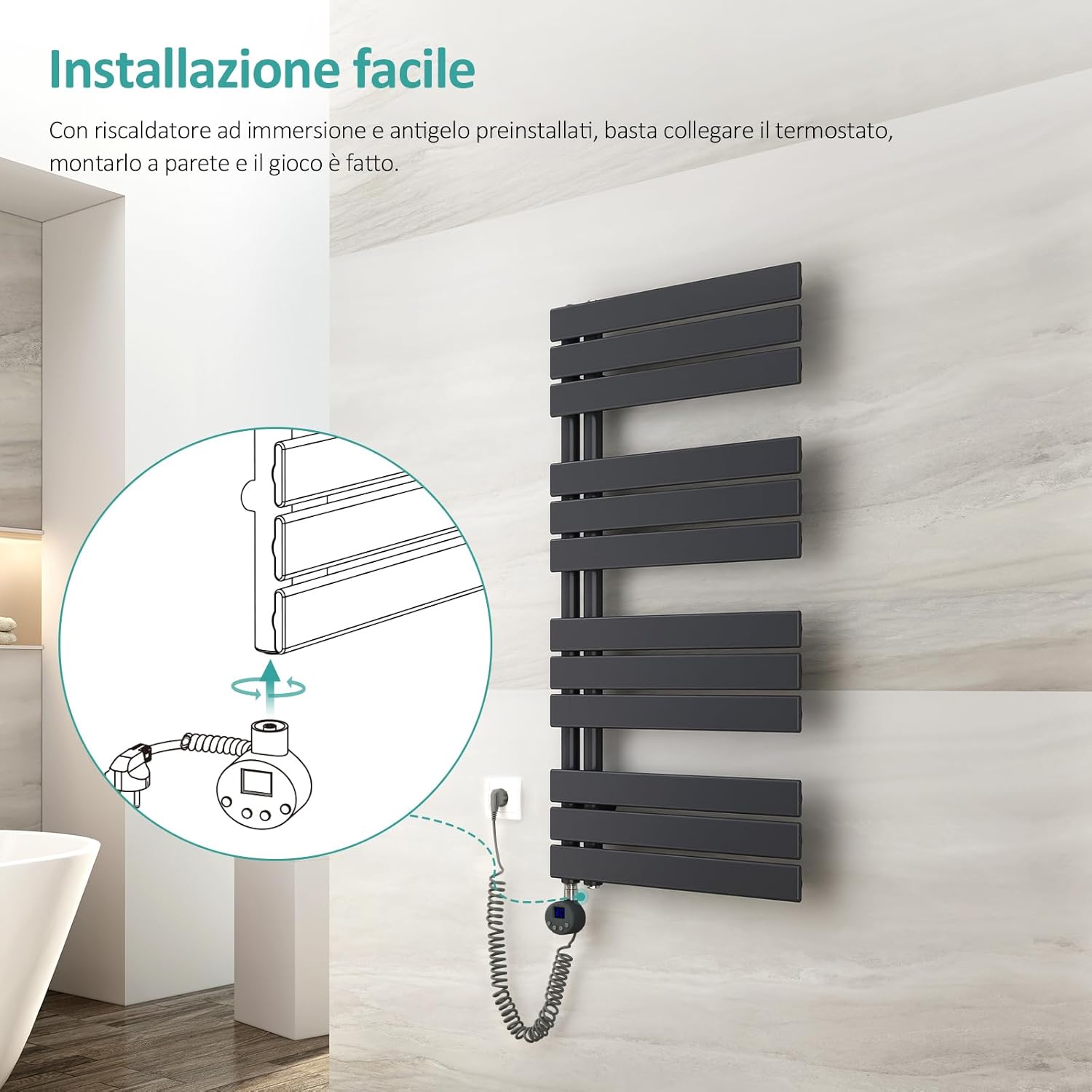

Image: Step-by-step diagram showing how to mount the towel warmer to the wall and connect the thermostat.
Important Installation Note:
The heating rod must always be mounted on the lower edge of the radiator!
Image: Visual guide indicating the correct (bottom) and incorrect (top or side) placement of the heating rod for optimal performance and safety.
Adjustable Wall Distance:
The distance from the wall can be adjusted between 99-115 mm for flexible installation and use.
Image: A diagram illustrating the adjustable wall mounting mechanism, allowing for a wall distance of 99-115mm.
Operating Instructions
Your EMKE Electric Towel Warmer features a thermostatic heating element with a digital display and timer functions.
Thermostat Controls:
Image: Detailed view of the thermostat's digital display and control buttons for temperature and timer settings.
- Power Button: Press to turn the towel warmer ON/OFF.
- Mode Change Button: Cycle through different operating modes (e.g., constant temperature, timing mode).
- Temperature Adjustment (+/-): Adjust the desired temperature within the range of 30℃ to 70℃.
- Timer Settings: Set the operating duration for 2H, 4H, 6H, or 8H.
- Timing Mode: In this mode, the radiator operates at maximum power and maintains a temperature of 65℃.
Thermal Performance:
The towel warmer is designed for high thermal conductivity, efficiently drying towels and contributing to the heating of your bathroom space.
Image: A visual representation of the towel warmer's heat distribution, showing warm air circulating to dry towels and heat the room.
Maintenance
To ensure the longevity and optimal performance of your EMKE Electric Towel Warmer, follow these maintenance guidelines:
- Cleaning: Regularly wipe the surface of the towel warmer with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the finish.
- Inspection: Periodically check the power cord and plug for any signs of damage. If damage is found, discontinue use and contact customer support.
- Dust Removal: Ensure that dust does not accumulate on the heating elements or the thermostat, as this can affect efficiency.
- No Disassembly: Do not attempt to disassemble or repair the appliance yourself. Refer all servicing to qualified personnel.
Troubleshooting
If you encounter any issues with your towel warmer, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Towel warmer does not turn on. | No power supply; Power button not pressed; Faulty outlet. | Check if the plug is securely inserted. Test the outlet with another appliance. Press the power button on the thermostat. |
| Towel warmer is not heating sufficiently. | Temperature setting too low; Timer expired; Room temperature too cold. | Increase the temperature setting. Check the timer settings. Ensure the room is not excessively cold for the unit's capacity. |
| Digital display is not working. | Power issue; Thermostat malfunction. | Check power supply. If the issue persists, contact customer support. |
If you experience any problems not listed here, or if the suggested solutions do not resolve the issue, please contact EMKE customer support for assistance.
Specifications
Below are the technical specifications for the EMKE Electric Towel Warmer (Model: 1041x500mm 600W):
- Dimensions (H x W): 1041 x 500 mm
- Power: 600 W
- Recommended Application Area: Up to 6 m²
- Adjustable Wall Distance: 99-115 mm
- Product Weight: 17.1 kg
- Material: Low Carbon Steel (SPCC) with eco-friendly spray coating
- Protection Rating: IP44 (Splash-proof)
- Power Supply: AC 220-240 V / 50 Hz
- Operating Temperature Conditions: 0℃ to 55℃
- Thermostat Regulation Range: 30℃ to 70℃
- Timer Settings: 2H / 4H / 6H / 8H
- Special Features: Towel drying, timer function, radiant heating, temperature regulation.
Construction Details:
Image: An exploded view illustrating the robust construction of the towel warmer, highlighting the internal coating, low carbon steel, and eco-friendly spray finish.
Size Reference:
Please pay attention to the product dimensions before purchase to choose the correct size.
Image: A visual comparison of various EMKE electric towel warmer sizes, including the 1041x500mm model, to help in selecting the appropriate dimensions.
Warranty and Support
EMKE products are manufactured to high-quality standards. For warranty information or technical support, please refer to the documentation provided with your purchase or contact EMKE customer service directly. Please have your model number and purchase date available when contacting support.
You can visit the EMKE store on Amazon for more information: EMKE Store
