Mobiclinic Vitalfit Total Power Body Crunch Fitness Machine User Manual

1. Introduction

The Mobiclinic Vitalfit Total Power Body Crunch is a versatile fitness machine designed for comprehensive full-body workouts in the comfort of your home. This device allows you to engage multiple muscle groups simultaneously, aiding in weight management, muscle toning, strengthening, and improving endurance. Its compact, foldable design ensures convenient storage and portability.

This manual provides essential information for the safe and effective use of your fitness machine, including setup, operation, maintenance, and troubleshooting.

2. Important Safety Information

Please read all instructions carefully before using the Mobiclinic Vitalfit Total Power Body Crunch. Failure to follow these instructions may result in injury or damage to the equipment.

Consult a Doctor: Before starting any new exercise program, consult with a physician, especially if you have pre-existing health conditions.
Maximum Weight Capacity: Do not exceed the maximum user weight of 100 kg (220 lbs).
Stable Surface: Always place the machine on a flat, stable, and non-slip surface during use. Ensure adequate clear space around the machine.
Proper Assembly: Ensure all parts are correctly assembled and tightened before each use.
Check for Damage: Regularly inspect the machine for any signs of wear, loose parts, or damage. Do not use if damaged.
Children and Pets: Keep children and pets away from the machine during operation.
Proper Form: Use proper exercise form to prevent injury. If you experience pain or discomfort, stop immediately.
Non-slip Features: The machine is equipped with non-slip pedals and a stable steel structure. Ensure these features are intact and functioning correctly.

Mobiclinic Vitalfit Total Power Body Crunch safety features — **Image: Safety Features.** This image highlights the secure and comfortable grip, non-slip pedals, and the height adjustment system, all designed to ensure user safety and stability during workouts.

3. Setup Instructions

Unpacking: Carefully remove all components from the packaging. Verify that all parts are present according to the packing list (not provided in this manual, refer to product packaging).
Unfolding the Machine: Follow the specific instructions provided with your product for unfolding the compact unit. Ensure all locking mechanisms are securely engaged.
Adjusting Handlebars: The handlebars are adjustable to 4 different heights. Locate the adjustment knob or pin on the handlebar post. Pull it out, adjust the handlebar to your desired height, and re-insert the knob/pin, ensuring it locks firmly into place.
Adjusting Seat: The seat is also adjustable. Locate the seat adjustment mechanism. Adjust the seat position to ensure comfortable and effective reach to the pedals and handlebars. Secure the seat firmly after adjustment.
Stabilization: Ensure the machine's base is fully extended and resting firmly on the floor. The non-slip feet should provide adequate grip.
LCD Display Battery: If the LCD display is not functioning, check if batteries are required and installed correctly. (Battery type typically AAA, refer to display compartment for details).

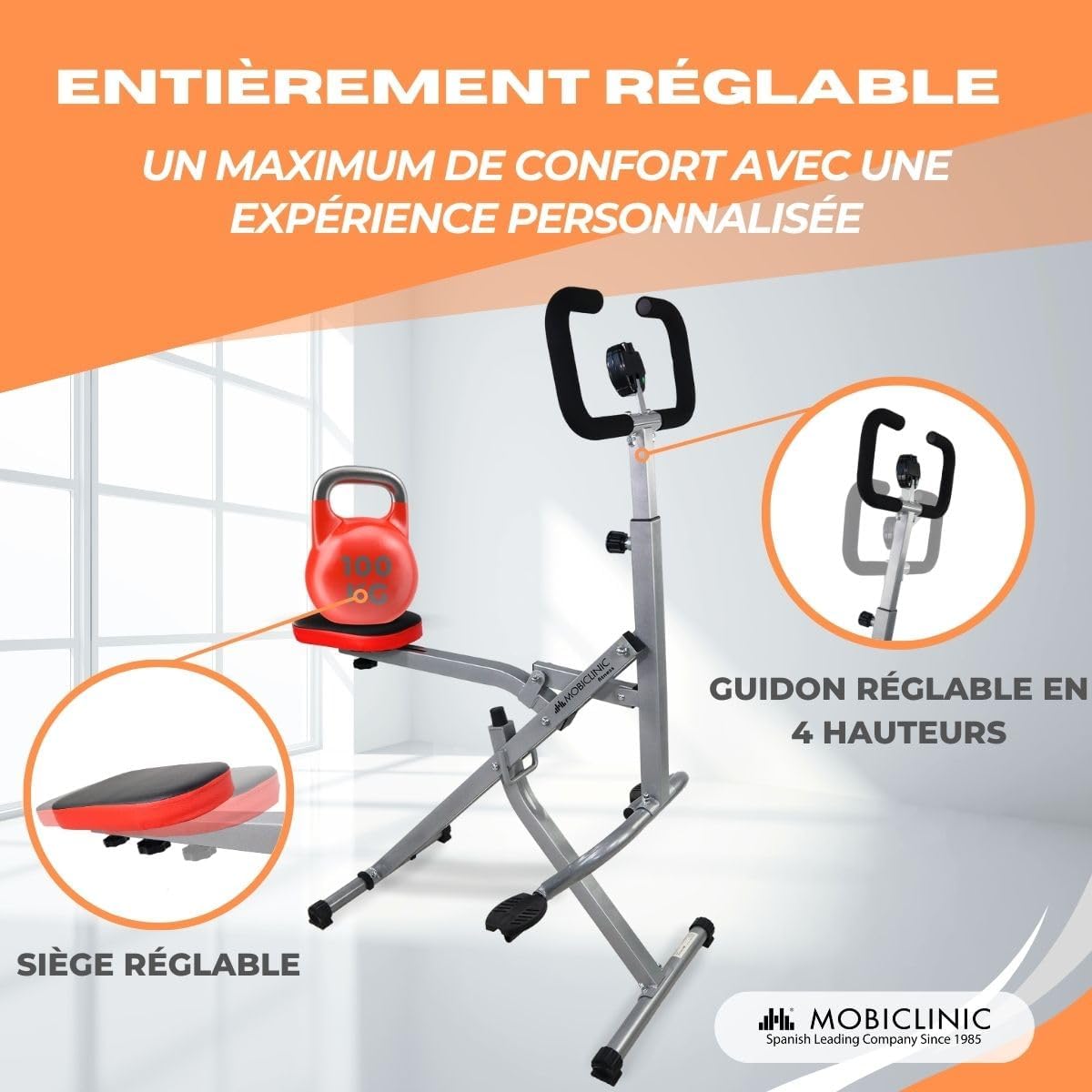

Mobiclinic Vitalfit Total Power Body Crunch adjustable features — **Image: Adjustable Features.** This image illustrates the adjustable handlebar with 4 height settings and the adjustable seat, allowing users to customize the machine for optimal comfort and exercise effectiveness.

4. Operating Instructions

4.1. Getting Started

Sit comfortably on the seat with your feet on the pedals and hands gripping the handlebars.
Ensure your posture is correct, with your back straight and core engaged.

4.2. Basic Operation

The Mobiclinic Vitalfit Total Power Body Crunch utilizes your body weight and a unique motion to provide resistance. The primary movement involves simultaneously pushing with your legs and pulling with your arms, mimicking a squat and rowing motion.

Full Squat Motion: Extend your legs downwards while pulling the handlebars towards your body. This engages legs, glutes, back, and arms.
Half Squat Motion: Perform a shallower squat, focusing more on leg and glute engagement with less arm pull.
Stretching: The machine can also be used for stretching exercises. Consult fitness resources for appropriate stretches.

Man using Mobiclinic Vitalfit Total Power Body Crunch — **Image: Machine in Use.** A man demonstrating the Mobiclinic Vitalfit Total Power Body Crunch machine during a workout, illustrating the full range of motion for effective exercise.

Mobiclinic Vitalfit Total Power Body Crunch multifunctional exercises — **Image: Multifunctional Exercises.** This image displays a user performing various exercises on the machine, including full squat, squat, and half-squat positions, highlighting its versatility for different workout intensities.

Mobiclinic Vitalfit Total Power Body Crunch muscles worked — **Image: Muscles Worked.** An illustration indicating the various muscle groups targeted by the Mobiclinic Vitalfit Total Power Body Crunch, including back, shoulders, triceps, biceps, abdominal, pectoral, legs, and glutes.

4.3. LCD Display Functions

The integrated LCD display helps you monitor your workout progress. It typically shows the following metrics:

TIME: Duration of your current workout session.
SCAN: Automatically cycles through all metrics.
COUNT: Number of repetitions performed.
CALORIES: Estimated calories burned during the workout.

Refer to the display unit's specific buttons (e.g., MODE, RESET) for navigating between functions and resetting values.

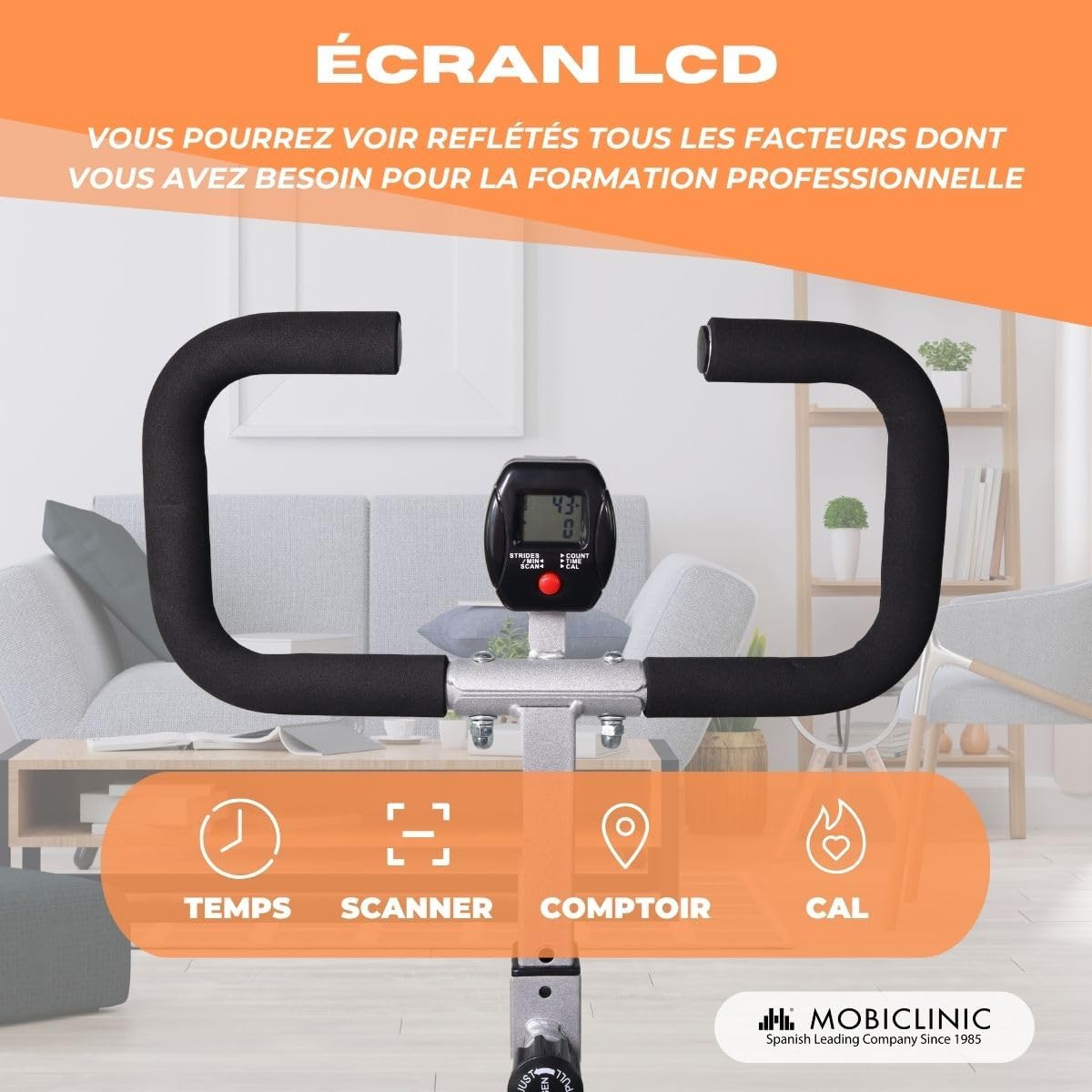

Mobiclinic Vitalfit Total Power Body Crunch LCD display — **Image: LCD Display.** A detailed view of the LCD display on the Mobiclinic Vitalfit Total Power Body Crunch, showing the various metrics it tracks such as time, scan, count, and calories burned.

5. Maintenance

Cleaning: Wipe down the machine with a damp cloth after each use to remove sweat and dust. Avoid abrasive cleaners.
Inspection: Periodically check all bolts, nuts, and moving parts for tightness and wear. Tighten any loose fasteners.
Lubrication: If any moving parts begin to squeak or feel stiff, apply a small amount of silicone-based lubricant.
Storage: When not in use, fold the machine for compact storage. Store in a dry, cool place away from direct sunlight and moisture.

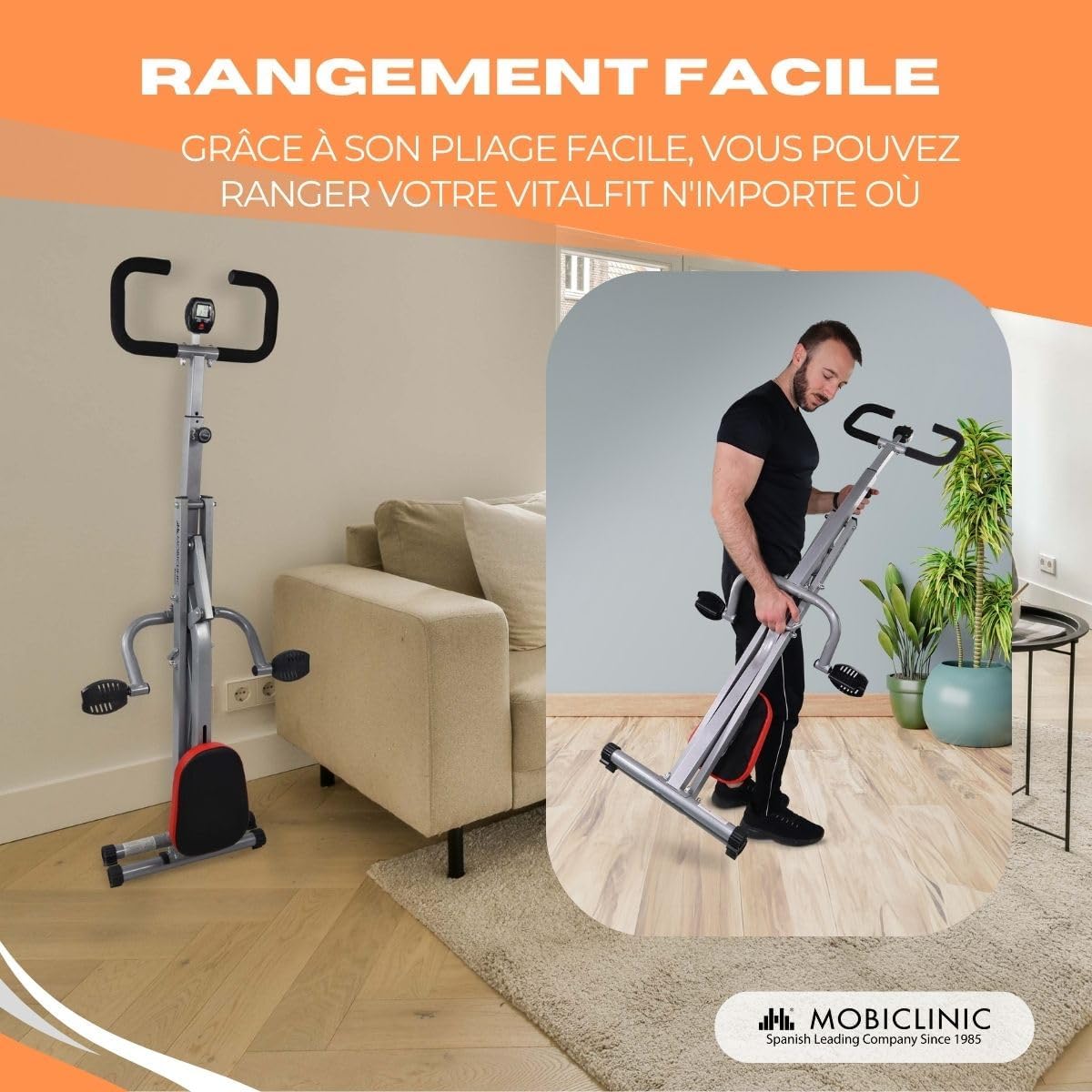

Mobiclinic Vitalfit Total Power Body Crunch folding for storage — **Image: Folding for Storage.** The Mobiclinic Vitalfit Total Power Body Crunch machine is shown in both its assembled and folded configurations, demonstrating its ultra-compact design for easy storage in any home space.

6. Troubleshooting

Problem	Possible Cause	Solution
Machine feels unstable or wobbly	Loose bolts/nuts; uneven surface; improper assembly.	Ensure all fasteners are tightened. Place on a flat, stable surface. Re-check assembly steps.
Squeaking noises during use	Lack of lubrication on moving parts; loose components.	Apply silicone-based lubricant to pivot points. Tighten any loose parts.
LCD display not working	Dead batteries; incorrect battery installation.	Replace batteries (typically AAA). Ensure batteries are inserted with correct polarity.
Difficulty adjusting seat/handlebars	Adjustment knob/pin not fully disengaged; mechanism stuck.	Ensure the knob/pin is fully pulled out. Apply light pressure or lubricant if stuck. Do not force.

7. Product Specifications

Feature	Specification
Model	Vitalfit Total Power Body Crunch
Brand	Mobiclinic
Color	Black
Main Material	Aluminum
Frame Material	Steel
Max Weight Capacity	100 Kilograms (220 lbs)
Item Weight	10.32 Kilograms (22.75 lbs)
Assembled Dimensions (L x W x H)	79 cm x 46 cm x 121 cm (approx. 31.1 x 18.1 x 47.6 inches)
Folded Dimensions (L x W x H)	Approx. 200.66 x 116.84 x 307.34 cm (This dimension seems to be for packaging/shipping, please refer to image for typical folded size)
Display Type	LCD
Display Metrics	Time, Scan, Count, Calories Burned
Power Source (Display)	Battery Powered
Resistance Mechanism	Magnetic
Special Features	Foldable, Portable, Adjustable Handlebars, Adjustable Seat, Non-slip Base

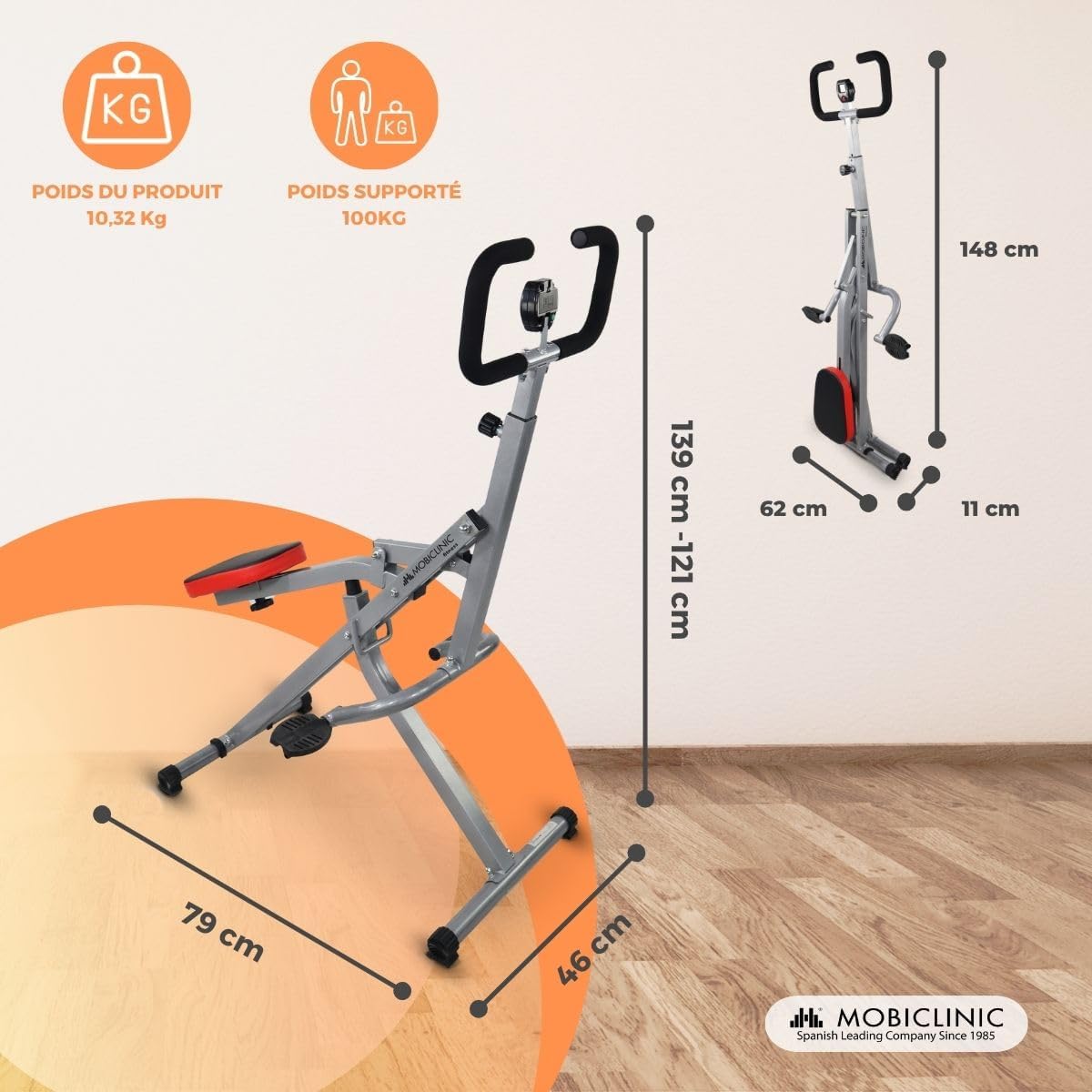

Mobiclinic Vitalfit Total Power Body Crunch dimensions — **Image: Product Dimensions.** A diagram illustrating the assembled and folded dimensions of the Mobiclinic Vitalfit Total Power Body Crunch machine, including its product weight (10.32 kg) and supported weight (100 kg).

8. Warranty and Support

Mobiclinic S.L. is committed to providing high-quality and reliable products. For specific warranty details, please refer to the warranty card included with your product or visit the official Mobiclinic website. For customer support, technical assistance, or inquiries regarding your Vitalfit Total Power Body Crunch, please contact Mobiclinic customer service through the contact information provided on their official website or your purchase documentation.
