KOMFOTT Twin Bed Frame with Charging Station & LED Lights User Manual

Important Safety Information

WARNING: Do not load more than 880 pounds. Keep sharp edges and small parts out of reach of children and pets. Be cautious when adjusting the headboard. Always unplug the power cord and keep USB ports dry to prevent electrical hazards.

Product Overview

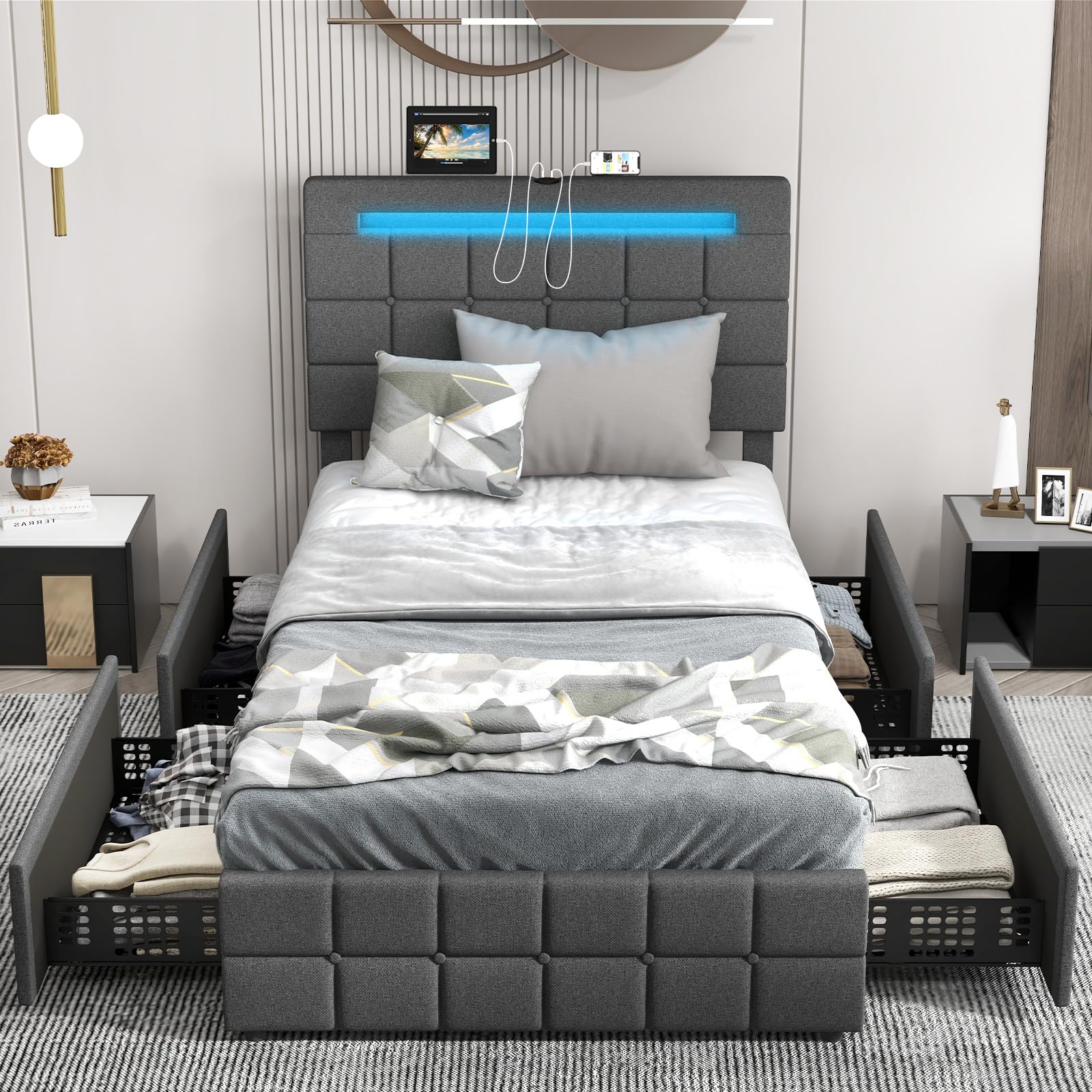

The KOMFOTT Twin Bed Frame is designed for comfort and functionality, featuring an upholstered headboard with integrated LED lighting and a charging station. It includes four spacious storage drawers and is supported by solid wooden slats for durability.

• LED Light System: Multi-color RGB LED strip with 20 static colors, 22 dynamic modes, 10 speed adjustments, and 5 brightness options, controlled by a remote.
• Adjustable Headboard: Height can be set to 40.5 inches or 42.5 inches to accommodate mattresses from 8-12 inches thick. Features a high-density sponge padded, button-tufted design.
• Integrated Charging Station: Two 5V/2A USB ports built into the headboard for convenient device charging.
• Storage Drawers: Four large drawers on casters provide ample under-bed storage and smooth movement.
• Sturdy Construction: Supported by closely spaced solid wooden slats and extra middle metal legs, ensuring a weight capacity of 880 lbs. No box spring is required.

Setup and Assembly

Assembly of the KOMFOTT Twin Bed Frame is designed to be straightforward. It is recommended that two adults assemble the bed due to the weight of the components. Ensure all parts listed in the included components list are present before beginning assembly.

Dimensions and Components

This diagram illustrates the overall dimensions of the twin bed frame and its individual components, including the headboard, bed frame, and storage drawers. Note the adjustable headboard height and the overall weight capacity.

Structural Support

The bed frame features solid wooden slats for mattress support, eliminating the need for a box spring. Extra middle metal legs and non-slip foot pads contribute to the bed's stability and noise-free operation.

For detailed step-by-step instructions, please refer to the assembly manual included in the packaging.

Operating Instructions

LED Light System

The headboard features an integrated RGB LED light strip. Use the provided remote control to customize your lighting experience.

The remote allows you to select from 20 static colors, activate 22 dynamic modes, adjust the flashing speed (10 options), and control the brightness (5 options). Point the remote directly at the headboard's sensor for optimal response.

Charging Station

The headboard includes two built-in USB ports for charging your electronic devices.

To use, simply plug your device's USB charging cable into one of the 5V/2A USB ports. Ensure the bed frame's power cord is connected to a functional wall outlet. Always keep the USB ports dry to prevent electrical hazards.

Storage Drawers

The bed frame is equipped with four large storage drawers on casters for easy access.

The drawers roll smoothly on casters, allowing for convenient storage and retrieval of items such as clothes, books, bed sheets, or other sundries. Simply pull the drawer out from under the bed and push it back in when finished.

Product Feature Video

This video demonstrates the key features of the KOMFOTT bed frame, including the LED lighting, USB charging ports, and storage drawers, showcasing their functionality and design.

Maintenance

• Cleaning the Upholstery: For general cleaning, gently vacuum the upholstered fabric to remove dust. For spills, blot immediately with a clean, dry cloth. For stubborn stains, use a mild fabric cleaner according to its instructions, testing on an inconspicuous area first.
• LED Lights and USB Ports: Ensure the LED strip and USB ports remain dry. Do not use liquid cleaners directly on these components. If cleaning around them, use a slightly damp cloth and immediately dry the area.
• Drawer Casters: Periodically check the casters on the storage drawers for any debris or hair that might impede smooth movement. Clean as necessary.
• Structural Check: Occasionally inspect all bolts and connections to ensure they are tight. Retighten if any looseness is detected to maintain stability and prevent noise.

Troubleshooting

• LED Lights Not Working:
  1. Ensure the power cord for the bed frame is securely plugged into a working outlet.
  2. Check the connection of the LED strip to the power source within the headboard.
  3. Verify the remote control has working batteries and is pointed directly at the headboard's sensor.
• USB Ports Not Charging:
  1. Confirm the bed frame's power cord is plugged in.
  2. Test with a different USB cable and device to rule out cable or device issues.
  3. Ensure no debris is blocking the USB port.
• Drawers Not Sliding Smoothly:
  1. Check the casters for any obstructions like dust, hair, or small objects.
  2. Ensure the drawers are properly aligned within their tracks.
  3. Verify that the items stored in the drawers are not overflowing or catching on the bed frame.
• Bed Frame Noise:
  1. Inspect all assembly bolts and screws. Tighten any that appear loose.
  2. Ensure the bed frame is on a level surface.
  3. Check that the mattress is correctly seated on the slats and not causing friction.

If you encounter issues not covered here or require further assistance, please contact KOMFOTT customer support.

Specifications

Warranty and Support

Returns: This product is eligible for 90-day easy returns. Please refer to your purchase platform's return policy for detailed instructions.

Warranty: For specific warranty information and terms, please contact KOMFOTT customer support directly. Keep your proof of purchase for any warranty claims.

Customer Support: If you have any questions, require assistance with assembly, or need troubleshooting help, please visit the KOMFOTT Store on Amazon or contact KOMFOTT customer service through your purchase channel.
