1. Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of the Heschen MCCB HSM3DC-320 2-Pole DC1000V 300A Photovoltaic Circuit Breaker. This device is designed to protect circuits and electrical equipment in solar PV systems from overloads, short circuits, and other electrical faults. Please read this manual thoroughly before installation and use.

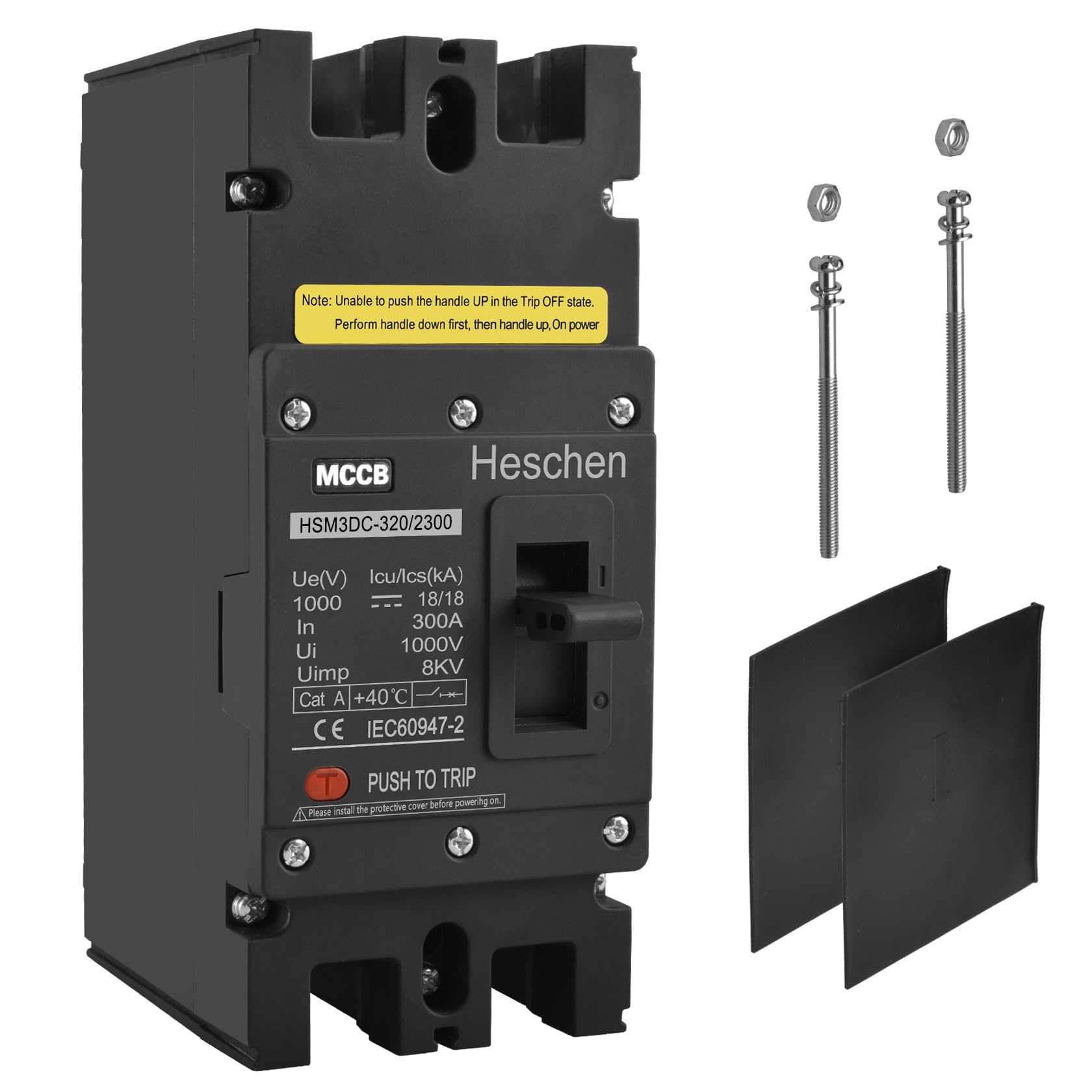

Figure 1: Heschen HSM3DC Series MCCB, designed for protection against electrical faults.
2. Safety Information
WARNING: Electrical installations should only be performed by qualified and licensed personnel. Failure to follow these safety instructions can result in serious injury, death, or equipment damage.
- Always disconnect power before installing, servicing, or removing the circuit breaker.
- Ensure all connections are tight and secure to prevent overheating and arcing.
- Verify the voltage and current ratings of the circuit breaker match the system requirements.
- Do not operate the circuit breaker if it appears damaged.
- Wear appropriate personal protective equipment (PPE) when working with electrical systems.
3. Product Overview
The Heschen MCCB HSM3DC-320 is a 2-pole molded case circuit breaker specifically designed for DC applications up to 1000V and 300A, commonly found in solar photovoltaic systems. It provides reliable protection against overcurrents and short circuits.
Key Features:
- Rated Current: 300 A
- Rated Voltage (Ue): 1000 V DC
- Impulse Withstand Voltage (Uimp): 8KA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu/Ics): 20 KA
- Number of Poles: 2P
Figure 2: Front view of the Heschen HSM3DC-320 circuit breaker, showing the main body, toggle switch, and product labeling.
4. Specifications
| Specification | Value |
|---|---|
| Manufacturer | Heschen |
| Model Number | 300A HSM3DC-320 |
| Rated Current | 300 A |
| Rated Voltage | 1000 Volts DC |
| Number of Poles | 2 |
| Mounting Type | Panel Mount |
| Circuit Breaker Type | Standard |
| Color | Grey |
| Package Dimensions | 23.19 x 16.31 x 13.49 cm |
| Item Weight | 2.15 kilograms |
Figure 3: Detailed dimensions of the Heschen HSM3DC-320 circuit breaker, including a close-up of the terminal lug area with measurements for connection.
Figure 4: A graph illustrating the M3DC action characteristic curve, showing the relationship between action time and rated current for the circuit breaker.
5. Setup and Installation
The Heschen HSM3DC-320 circuit breaker is designed for panel mounting. Ensure the mounting surface is stable and provides adequate ventilation.
Wiring Instructions:
- Identify the input and output terminals on the circuit breaker.
- Connect the DC positive (+) and negative (-) cables from your solar array or charge controller to the appropriate input terminals.
- Connect the DC positive (+) and negative (-) cables to your battery bank or inverter from the output terminals.
- Ensure all cable lugs are properly crimped and securely fastened to the terminals.
- Important Note on Lugs: For 300A applications, 4/0 AWG cable lugs are typically required. Some users have reported that the terminal slots may be narrow for certain 4/0 AWG lugs, potentially requiring minor modification to the lug or terminal area for proper fit. Always ensure a secure and full contact connection.
Figure 5: A detailed wiring diagram showing the integration of the Heschen circuit breaker into a solar photovoltaic system, connecting a solar charge controller, battery, and utility power.
Figure 6: Four different internal wiring configurations (A, B, C, D) for the Heschen HSM3DC-320 circuit breaker, demonstrating various load connection possibilities.
6. Operating Instructions
The Heschen HSM3DC-320 circuit breaker features a toggle switch for manual operation and a 'PUSH TO TRIP' button for immediate circuit interruption.
To Turn On/Reset:
- If the breaker has tripped, the handle will be in the central 'TRIPPED' position.
- First, push the handle fully down to the 'OFF' position.
- Then, push the handle fully up to the 'ON' position to restore power.
To Turn Off:
- Push the toggle handle fully down to the 'OFF' position.
To Manually Trip:
- Press the red 'PUSH TO TRIP' button located on the front of the circuit breaker. This will immediately interrupt the circuit and move the handle to the 'TRIPPED' position.
Figure 7: An image showing the 'PUSH TO TRIP' button on the Heschen HSM3DC-320 circuit breaker, accompanied by a warning about determining product technical parameters and qualified personnel for installation and maintenance.
7. Maintenance
Regular maintenance ensures the longevity and reliable operation of your circuit breaker.
- Visual Inspection: Periodically inspect the circuit breaker for any signs of physical damage, discoloration, or loose connections.
- Cleaning: Keep the circuit breaker free from dust and debris. Use a dry, non-abrasive cloth for cleaning. Do not use liquids or solvents.
- Connection Check: Ensure all terminal connections remain tight. Loose connections can lead to overheating and potential failure.
- Functional Test: Occasionally test the trip mechanism by pressing the 'PUSH TO TRIP' button to ensure it functions correctly.
8. Troubleshooting
If the circuit breaker trips frequently or fails to operate as expected, consider the following:
- Frequent Tripping: This often indicates an overload or a short circuit in the protected system. Disconnect loads and test components to identify the fault. Do not repeatedly reset a tripping breaker without investigating the cause.
- Failure to Reset: If the breaker does not reset after being pushed to the 'OFF' position and then 'ON', there might be a persistent fault or internal damage.
- Overheating: Check for loose connections or undersized wiring if the breaker or surrounding area feels excessively hot.
- No Power: Verify that the breaker is in the 'ON' position and that there is power supplied to the input terminals.
For persistent issues or if you suspect internal damage, consult a qualified electrician or contact Heschen customer support.
9. What's in the Box
The Heschen MCCB HSM3DC-320 package includes:
- 1 x Molded Case Circuit Breaker (HSM3DC-320)
Figure 8: The Heschen HSM3DC-320 circuit breaker shown alongside its brown cardboard packaging.
10. Warranty and Support
For warranty information, technical support, or service inquiries, please contact Heschen customer service through your point of purchase or visit the official Heschen website. Keep your purchase receipt as proof of purchase.
