carleef carleef-Dian Huo-0722

Ignition Switch with Key Instruction Manual

Model: carleef-Dian Huo-0722 | Brand: carleef

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your new carleef 12V 4 Position Ignition Key Switch. Designed for professional use, this universal accessory is suitable for a wide range of vehicles including cars, trucks, SUVs, tractors, and forklifts. Please read this manual thoroughly before installation and use to ensure proper function and safety.

carleef 12V 4 Position Ignition Key Switch with two keys and four hex nuts, with an inset showing the switch being installed into a vehicle's wiring harness.

Figure 1: carleef Ignition Switch with Key and Installation View

The carleef Ignition Switch is engineered with premium ABS and brass materials, ensuring durability, stability, and high performance. Its robust construction provides excellent conductivity, allowing for quick activation of the vehicle's main electrical system upon turning the key.

Product Specifications

Below are the detailed technical specifications for the carleef Ignition Switch with Key:

Parameter	Value
Operation Mode	ON-OFF
Current Rating	30 Amps
Operating Voltage	12 Volts
Contact Type	Normally Closed
Connector Type	Screw
Terminal Count	4
Item Dimensions (L x W x H)	2.87 x 1.73 x 1.73 inches
Circuit Type	4-way
Mounting Type	Panel Mount
Actuator Type	Key
Contact Material	Brass
International Protection Rating	IP00
Number of Positions	4
Upper Temperature Rating	80 Degrees Celsius
Color	Silver
Item Weight	3.95 ounces

Diagram showing the dimensions of the carleef Ignition Switch and its two keys, with measurements in inches.

Figure 2: Product Dimensions

Installation Guide

The carleef Ignition Switch is designed for straightforward installation. It is equipped with ring crimp terminals for secure connections. Before beginning, ensure the vehicle's battery is disconnected to prevent electrical hazards.

Package Contents:

1x Ignition Starter Switch
2x Keys
4x Hex Nuts

Installation Steps:

Preparation: Disconnect the negative terminal of the vehicle's battery.
Remove Old Switch: Carefully remove the existing ignition switch from its mounting panel. Note the wiring connections before disconnecting.
Connect Wiring: Connect the vehicle's wires to the corresponding studs on the new carleef ignition switch. The switch features four terminals: BAT (Battery), IGN (Ignition), START (Starter), and ACC (Accessory). Ensure correct polarity and secure connections.
Mounting: Insert the new ignition switch into the panel opening. Use the provided hex nuts to secure the switch firmly in place. The flipped dust cover helps protect the switch from dust and impact.
Test: Reconnect the vehicle's battery. Insert the key and test all four positions (OFF, ACC, ON, START) to ensure proper functionality.

Image showing the carleef Ignition Switch and a person's hands working on a vehicle engine, illustrating the ease of installation.

Figure 3: Easy Installation Process

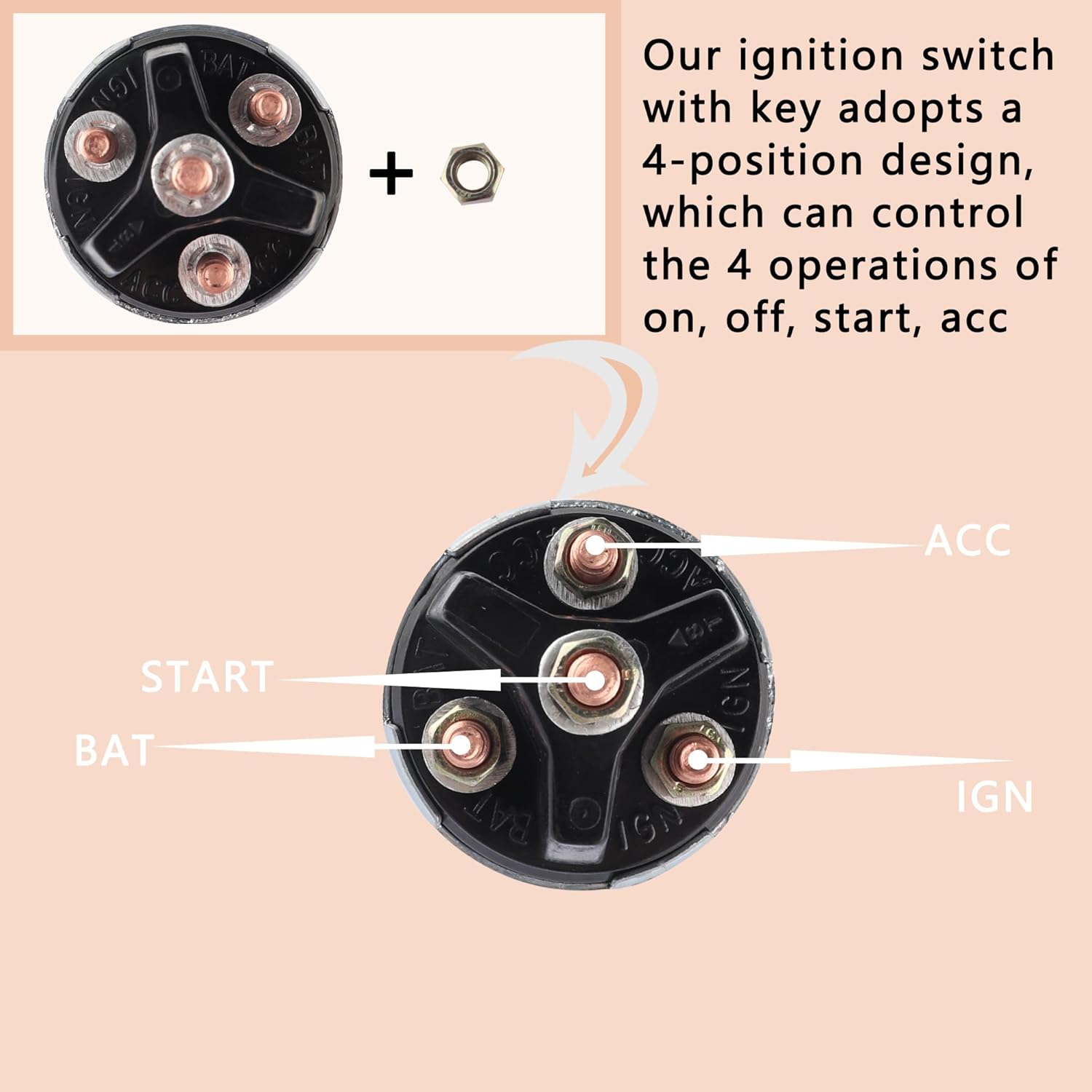

Diagram illustrating the four terminal positions on the back of the ignition switch: ACC, START, BAT, and IGN, with a hex nut shown for connection.

Figure 4: 4-Position Terminal Diagram

Operating Instructions

The carleef Ignition Switch features a standard 4-position design, controlling the primary functions of your vehicle's electrical system. Familiarize yourself with these positions for proper operation:

OFF: The key can be inserted or removed in this position. All electrical systems are typically off.
ACC (Accessory): Turning the key to this position activates accessories such as the radio, power windows, or other non-essential electrical components, without turning on the engine.
ON (Ignition): In this position, the vehicle's ignition system and all essential electrical components are powered. This is the normal running position for the engine.
START: This is a momentary position. Turning the key fully to START engages the starter motor to crank the engine. Release the key once the engine starts, and it will spring back to the ON position.

Always ensure the key is fully engaged in each position for proper function. If the vehicle is difficult to start, consider checking the switch connections and the vehicle's battery.

Collage of various vehicles including a car, truck, forklift, and tractor, demonstrating the wide applicability of the carleef Ignition Switch.

Figure 5: Wide Range of Applicable Vehicles

Maintenance

The carleef Ignition Switch is designed for long-term reliability with minimal maintenance. However, following these general guidelines can help ensure its longevity:

Keep Clean: Periodically inspect the switch and its surrounding area for accumulation of dust, dirt, or debris. Clean with a dry, soft cloth. The integrated dust cover helps prevent intrusion.
Check Connections: Over time, vibrations can loosen electrical connections. Periodically check that all wire connections to the switch terminals are secure.
Avoid Force: Do not apply excessive force when turning the key. If the key feels stiff, do not force it. Inspect for obstructions or damage.
Key Care: Keep the keys clean and avoid bending or damaging them. Damaged keys can wear out the internal mechanism of the switch.

Close-up views of the carleef Ignition Switch, highlighting the keyhole, the main body, and the brass terminals, emphasizing the quality materials.

Figure 6: Product Details and Material Quality

Troubleshooting

If you encounter issues with your carleef Ignition Switch, refer to the following common problems and solutions:

Problem	Possible Cause	Solution
Vehicle does not start when key is turned to START.	Loose wiring connections; Dead or weak battery; Faulty starter motor; Incorrect installation.	Check all wire connections to the switch terminals. Ensure battery is charged and terminals are clean. Consult a mechanic if starter motor is suspected. Review installation steps.
Accessories (radio, etc.) do not work in ACC position.	Loose ACC wire connection; Blown fuse for accessories.	Verify the ACC wire is securely connected. Check the vehicle's fuse box for blown fuses related to accessories.
Key is difficult to turn or gets stuck.	Debris in keyhole; Damaged key; Internal mechanism wear.	Inspect keyhole for obstructions and clean if necessary. Try the spare key. If the issue persists, the switch may need replacement.
Engine turns off unexpectedly.	Loose IGN wire connection; Faulty switch.	Check the IGN wire connection. If connections are secure, the switch may be faulty and require replacement.

If the problem persists after attempting these solutions, it is recommended to consult a qualified automotive technician.

Comparison image showing an older, potentially damaged ignition switch on the left and the new carleef Ignition Switch on the right, with checkmarks indicating the new switch is safe, stable, not easily damaged, and widely applicable.

Figure 7: Comparison of Ignition Switches

Warranty and Customer Support

carleef is committed to providing high-quality automotive accessories and excellent customer service. Each ignition key switch undergoes careful testing and inspection before delivery to ensure product integrity and performance.

For any questions, concerns, or assistance regarding your carleef Ignition Switch, please do not hesitate to contact our customer service team. We are dedicated to helping you and ensuring your satisfaction.

Please refer to your purchase documentation or the retailer's website for specific warranty terms and contact information.
