Introduction
Thank you for choosing the EKO EK6221-55L-WH Step-Type Waste Bin. This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your new waste bin. Please read these instructions carefully before use and retain them for future reference.
The EKO EK6221-55L-WH is a 55-liter capacity waste bin designed for both home and commercial use, featuring a semi-circular shape for efficient space utilization and a quiet closing lid mechanism.
1. Setup
1.1 Unboxing and Placement
- Carefully remove all packaging materials from the waste bin.
- Place the waste bin on a flat, stable surface. Its semi-circular design allows it to fit snugly against a wall, optimizing space.
Image 1.1: The semi-round design of the EKO waste bin allows for efficient placement against walls or furniture.
1.2 Installing the Garbage Bag
- Lift the lid of the waste bin.
- Place your garbage bag inside the bin.
- Utilize the smart liner unit (stainless steel frame) by placing it over the top edge of the garbage bag. This secures the bag and prevents its edges from being visible from the outside, ensuring a neat appearance.
- Ensure the bag fixer on the back of the lid is properly engaged with the bag to prevent slipping.
Image 1.2: Component diagram showing the lid, smart liner unit (stainless steel), bag fixer, main body (PP material), pedal, and pedal guard. The smart liner unit prevents odor leakage and keeps bag edges hidden. The bag fixer secures the garbage bag.
2. Operating Instructions
2.1 Opening the Lid
- Pedal Operation: Gently step on the foot pedal located at the base of the bin. The lid will open smoothly. This allows for hygienic, hands-free operation.
- Stay-Open Feature: For extended use or when changing the garbage bag, lift the lid manually until it locks into the fully open position.
2.2 Closing the Lid
- The EKO waste bin features a Quiet Closing System with an oil damper. When the lid is released from the open position (either by removing your foot from the pedal or gently pushing it down from the stay-open position), it will close slowly and silently. This mechanism prevents abrupt slamming and reduces noise.
Image 2.1: The Quiet Closing System ensures the lid closes slowly and silently using an oil damper, unlike air dampers which can produce noise. The integrated step guard protects your floor even if the pedal is pressed firmly. Hands-free operation is hygienic.
2.3 Versatile Use
Beyond its primary function as a waste bin, the 55L capacity allows for various uses:
- Storage Box: Ideal for storing children's toys, stuffed animals, or other household items.
- Stocker: Convenient for collecting recyclable items such as plastic bottles or cans.
The securely closing lid helps prevent odor leakage, making it suitable for diverse applications.
Image 2.2: The EKO waste bin can be used as a storage box for items like toys or as a stocker for recyclables, thanks to its generous 55L capacity and secure lid.
3. Maintenance
3.1 Cleaning
- The waste bin features a matte finish that is resistant to fingerprints and smudges, making it easy to clean.
- Wipe the exterior with a soft, damp cloth and a mild detergent if necessary. Avoid abrasive cleaners or harsh chemicals, as these may damage the finish.
- For the interior, remove the garbage bag and wipe down with a damp cloth. Ensure the bin is dry before placing a new bag.
4. Troubleshooting
- Lid not closing smoothly or quietly: Check for any obstructions around the lid hinges or the pedal mechanism. Ensure the oil damper is not damaged. If the issue persists, contact customer support.
- Garbage bag slipping: Ensure the smart liner unit is correctly positioned over the bag's rim and that the bag fixer is engaged. Use bags that are appropriately sized for a 55L bin.
- Pedal not functioning: Check for any debris or objects lodged under the pedal. Ensure the pedal mechanism is free to move.
5. Specifications

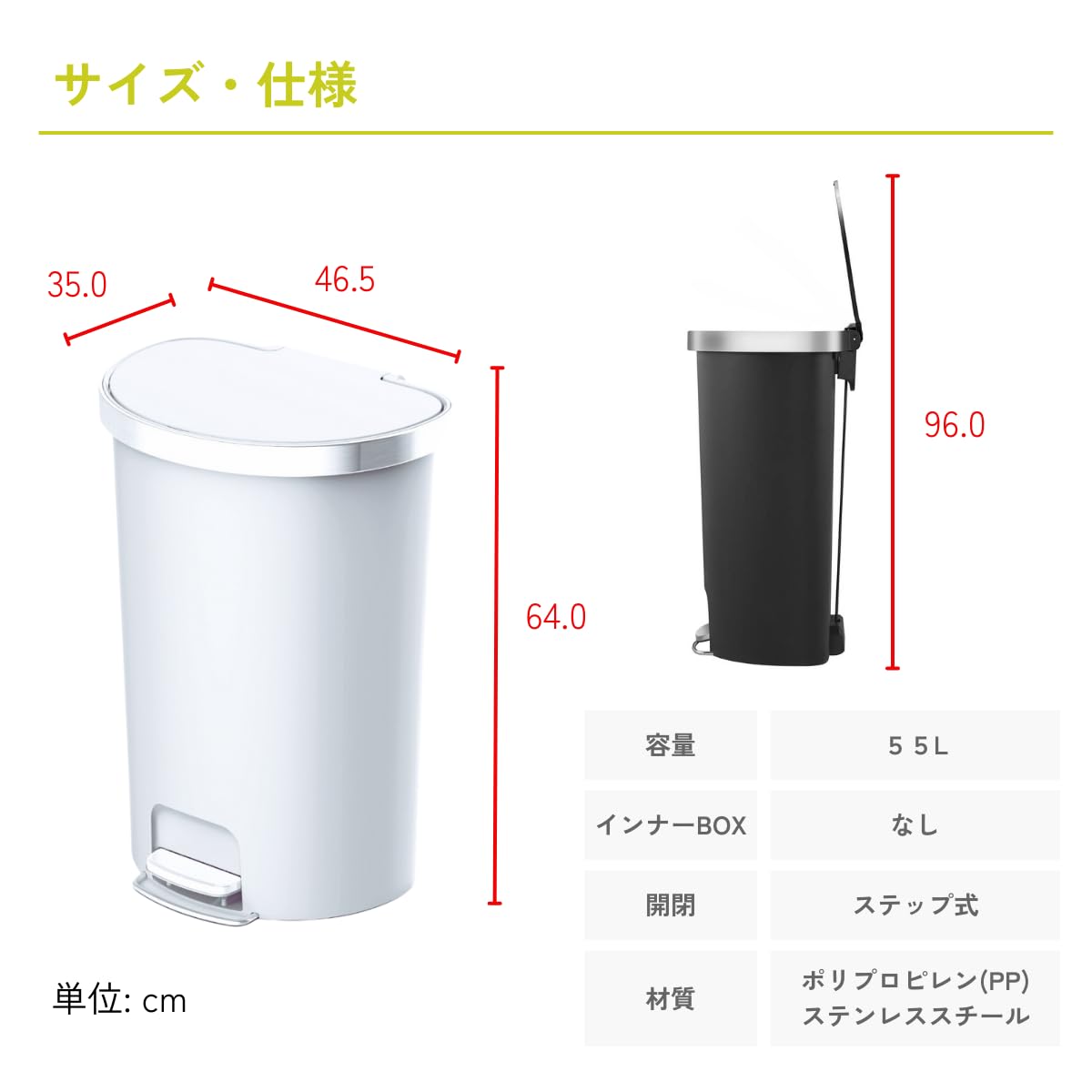

Image 5.1: Dimensions and specifications of the EKO EK6221-55L-WH waste bin.
| Specification | Detail |
|---|---|
| Model Number | EK6221-55L-WH |
| Capacity | 55 Liters |
| Product Dimensions | 46.5 x 35 x 64 cm |
| Item Weight | 3.33 Kilograms |
| Colour | White |
| Material | Polypropylene (PP), Stainless Steel |
| Opening Mechanism | Step-Type (Pedal) |
| Finish Type | Matte Finish |
| Inner Box | None |
| Recommended Uses | Indoor, General Waste Management (Kitchen, Offices, Factories, Warehouses) |
6. Warranty and Support
EKO provides a comprehensive warranty and support system for its genuine products.
6.1 Genuine Products
Products sold by authorized retailers, such as Amazon.co.jp, are genuine EKO products. These products undergo strict inspection and thorough quality control to ensure reliability.
6.2 1-Year Warranty Service
- A free repair service is available within one year from the date of purchase.
- To avail of the free repair service, please present your warranty card and proof of purchase (date and store).
- Important Note: OEM products and parallel imports are not covered by EKO Japan support. Please ensure you retain the warranty issued by EKO Japan at the time of purchase.
6.3 Official Support Contact
For official support inquiries, please contact EKO during the following hours:
- Operating Hours: Weekdays 9:00 - 12:00 / 13:00 - 17:00
- Exclusions: Saturdays, Sundays, public holidays, summer holidays, and winter holidays.
Image 6.1: EKO's comprehensive warranty and support system details, including official support, genuine product verification, and a 1-year free repair service.
