iJoy Wireless Karaoke Microphone (Model IJMC210230) User Manual

1. Introduction

Thank you for choosing the iJoy Wireless Karaoke Microphone. This device combines a microphone and a speaker, offering a portable solution for karaoke and entertainment. This manual provides essential information for the safe and efficient use of your new microphone.

This image displays the iJoy Wireless Karaoke Microphone alongside its retail packaging. The microphone features a metallic grille and a control panel with various buttons. The packaging highlights Bluetooth connectivity and up to 5 hours of playtime.

Safety Information

• Do not expose the device to extreme temperatures, direct sunlight, or high humidity.
• Avoid dropping or subjecting the microphone to strong impacts.
• Keep the device away from water or other liquids.
• Do not attempt to disassemble or repair the microphone yourself. Contact qualified service personnel.
• Use only the provided charging cable or a certified equivalent.

2. Package Contents

Please check the package for the following items:

• iJoy Wireless Karaoke Microphone (Model IJMC210230)
• USB Charging Cable
• User Manual

3. Product Overview

Controls and Functions

A close-up view of the microphone's control panel, illustrating the functions of each button and slider. Labels indicate 'PLAY/PAUSE', 'PREV' (Previous Track), 'NEXT' (Next Track), 'VOL+' (Volume Up), 'VOL-' (Volume Down), 'EFFECTS', 'MIC VOL' (Microphone Volume slider), and 'REVERB' (Reverb slider). A 'VOICE CHANGER' button is also visible.

• PLAY/PAUSE: Press to play or pause music playback.
• PREV (Previous Track): Press to go to the previous song.
• NEXT (Next Track): Press to go to the next song.
• VOL+ (Volume Up): Press to increase music volume.
• VOL- (Volume Down): Press to decrease music volume.
• EFFECTS (Voice Changer): Press to cycle through different voice effects.
• MIC VOL (Microphone Volume Slider): Slide to adjust the microphone's vocal volume.
• REVERB (Reverb Slider): Slide to adjust the echo effect on your voice.

Ports and Connections

This image shows the side of the microphone handle, highlighting the various ports available. These include a '5V AUX' port, a 'REC' (Recording) port, a 'TF' (MicroSD card) slot, an 'OUT' port, and a 'USB' port for charging or external device connection.

• 5V AUX: Auxiliary input port for connecting external audio devices.
• REC: Recording output port.
• TF (MicroSD Card Slot): Insert a MicroSD card for music playback.
• OUT: Audio output port.
• USB: Micro USB port for charging the microphone.

4. Setup

4.1 Charging the Microphone

Before first use, fully charge the microphone. Connect the provided USB charging cable to the microphone's USB port and the other end to a 5V USB power adapter (not included) or a computer's USB port. The charging indicator light will illuminate during charging and turn off when fully charged. A full charge provides up to 5 hours of playtime.

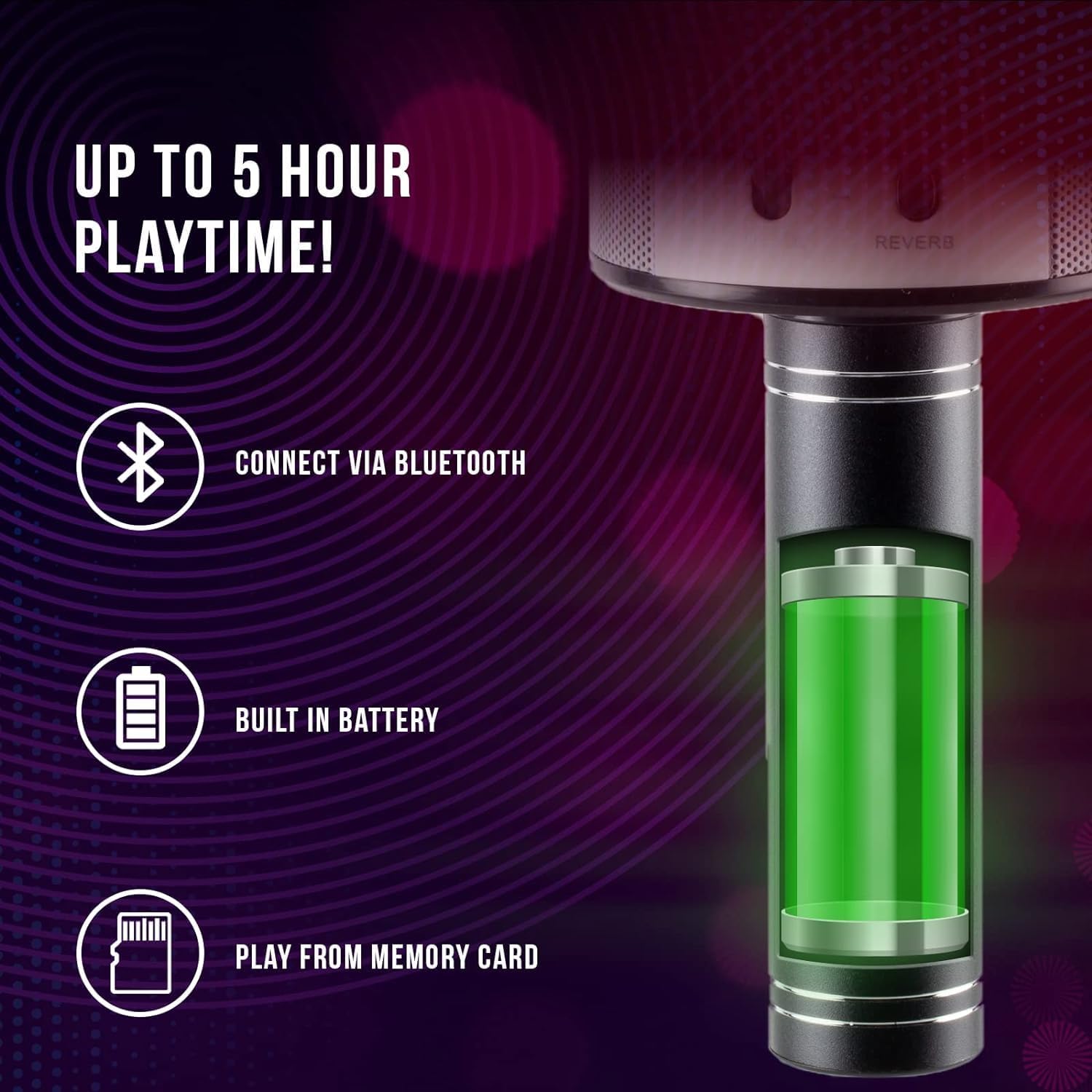

An infographic detailing key features: a Bluetooth icon indicating wireless connectivity, a battery icon representing the built-in rechargeable battery, and a memory card icon signifying the ability to play from a memory card. The image also shows a stylized internal view of the microphone's battery.

4.2 Powering On/Off

To power on the microphone, press and hold the power button (often integrated with the PLAY/PAUSE button or a separate button, refer to your specific model's physical layout if different from the diagram) until you hear a power-on prompt or see an indicator light. To power off, press and hold the same button until you hear a power-off prompt.

4.3 Bluetooth Pairing

1. Ensure the microphone is powered on and in Bluetooth pairing mode (it usually enters this mode automatically upon power-on if not already connected). An indicator light may flash to show it's ready to pair.
2. On your smartphone, tablet, or other Bluetooth-enabled device, go to the Bluetooth settings.
3. Search for available devices. You should see "iJoy Karaoke Mic" or a similar name appear in the list.
4. Select the microphone from the list to connect. You will hear an audible confirmation when the connection is successful.
5. Once paired, the microphone will automatically connect to your device when both are powered on and within range.

5. Operating Instructions

5.1 Singing with Music

After successfully pairing your microphone with a Bluetooth device, open your favorite music or karaoke app. Play a song, and the music will stream through the microphone's built-in speaker. You can then sing along into the microphone.

5.2 Adjusting Volume and Effects

• Music Volume: Use the VOL+ and VOL- buttons on the microphone to adjust the volume of the background music.
• Microphone Volume: Use the MIC VOL slider to increase or decrease the volume of your voice.
• Reverb/Echo: Use the REVERB slider to add or reduce the echo effect on your voice.
• Voice Changer: Press the EFFECTS button repeatedly to cycle through the available voice changing effects. There are 4 different voice effects to choose from.

5.3 Playing from TF Card / USB

Insert a MicroSD (TF) card or a USB drive (if supported via the USB port) with MP3 music files into the corresponding slot. The microphone will automatically detect the media and begin playing. Use the PREV, NEXT, and PLAY/PAUSE buttons to control playback.

6. Maintenance

• Cleaning: Wipe the microphone with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Storage: Store the microphone in a cool, dry place away from direct sunlight when not in use.
• Battery Care: To prolong battery life, avoid fully discharging the battery frequently. Charge the microphone regularly, even if not in use for extended periods.

7. Troubleshooting

8. Specifications

9. Warranty and Support

For warranty information or technical support, please refer to the warranty card included with your product or visit the official iJoy website. You may also contact iJoy customer service directly for assistance with product issues or inquiries.
