1. Introduction
Thank you for choosing the ZIPRO Nitro RS Home Exercise Bike. This manual provides essential information for the safe assembly, operation, and maintenance of your new fitness equipment. Please read all instructions carefully before use to ensure optimal performance and safety.
Image: The ZIPRO Nitro RS Home Exercise Bike, showcasing its sleek design and key features.
2. Important Safety Information
Before beginning any exercise program, consult with your physician. Failure to follow these safety instructions could result in injury or damage to the equipment.
- Ensure all parts are securely tightened before each use.
- Keep children and pets away from the equipment during operation.
- Place the exercise bike on a flat, stable surface.
- Wear appropriate exercise attire and footwear.
- Maximum user weight: 150 kg.
- Maximum user height: 200 cm.
3. Package Contents
Verify that all components are present before assembly. Refer to the included assembly guide for a detailed list and diagrams.
- Main frame components
- Handlebar assembly
- Seat post and saddle
- Pedals
- Stabilizer bars
- Computer console
- Water bottle holder
- Assembly tools and hardware
4. Assembly Instructions
Assembly typically requires two people. Follow the step-by-step instructions provided in the separate assembly manual for detailed diagrams and hardware identification. A general overview is provided below:
- Attach Stabilizer Bars: Secure the front and rear stabilizer bars to the main frame using the provided bolts and washers.
- Install Pedals: Attach the left and right pedals to the crank arms. Note that pedals are typically threaded differently (left pedal is reverse-threaded).
- Mount Seat Post and Saddle: Insert the seat post into the main frame and secure it at the desired height. Attach the saddle to the seat post.
- Assemble Handlebar: Connect the handlebar post to the main frame. Attach the handlebar to the post.
- Install Computer Console: Connect the sensor cables from the main frame to the computer console. Mount the console onto the handlebar post.
- Attach Accessories: Install the water bottle holder.
- Final Check: Ensure all bolts and nuts are securely tightened. Adjust the leveling feet on the stabilizer bars to ensure the bike is stable on your floor.
Image: The sturdy base and adjustable stabilizer feet of the ZIPRO Nitro RS, ensuring stability during workouts.
5. Operating Instructions
5.1 Adjusting Resistance
The ZIPRO Nitro RS features 8 levels of magnetic resistance. To adjust the resistance, turn the resistance knob located on the main frame. Turn clockwise to increase resistance and counter-clockwise to decrease it.

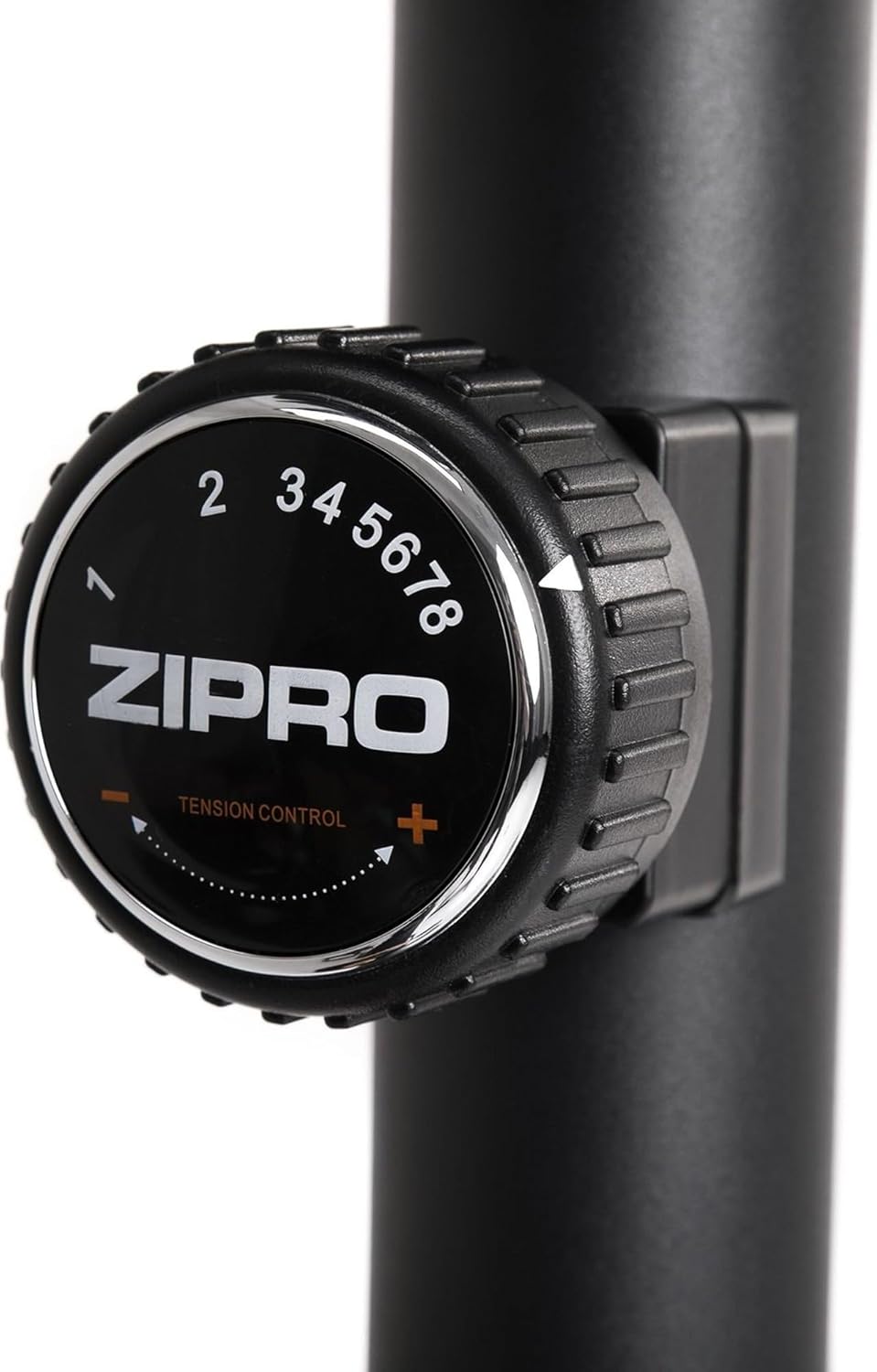

Image: Close-up of the resistance adjustment knob with levels 1-8 clearly marked.
5.2 Computer Console Functions
The advanced computer console displays key workout metrics. Insert batteries (included) into the console before first use.
Image: The computer console displaying workout data and control buttons.
- SCAN: Automatically cycles through all display functions.
- TIME: Displays the duration of your workout.
- SPEED: Shows your current cycling speed.
- DISTANCE: Tracks the distance covered during your session.
- CALORIES: Estimates the calories burned.
- PULSE: Displays your heart rate when holding the pulse sensors on the handlebars.
- TOTAL DIST: Accumulates total distance over multiple workouts.
Use the MODE button to select a specific display function, RESET to clear current workout data, and SET to configure target values (if applicable).
5.3 Adjusting Seat and Handlebar
Proper adjustment of the seat and handlebar ensures comfort and effective training.
- Seat Height: Loosen the adjustment knob on the seat post, raise or lower the seat to the desired height, and re-tighten securely.
- Seat Horizontal Position: Loosen the knob beneath the saddle, slide the seat forward or backward, and re-tighten.
- Handlebar Angle: Loosen the adjustment knob on the handlebar post, tilt the handlebar to a comfortable angle, and re-tighten.

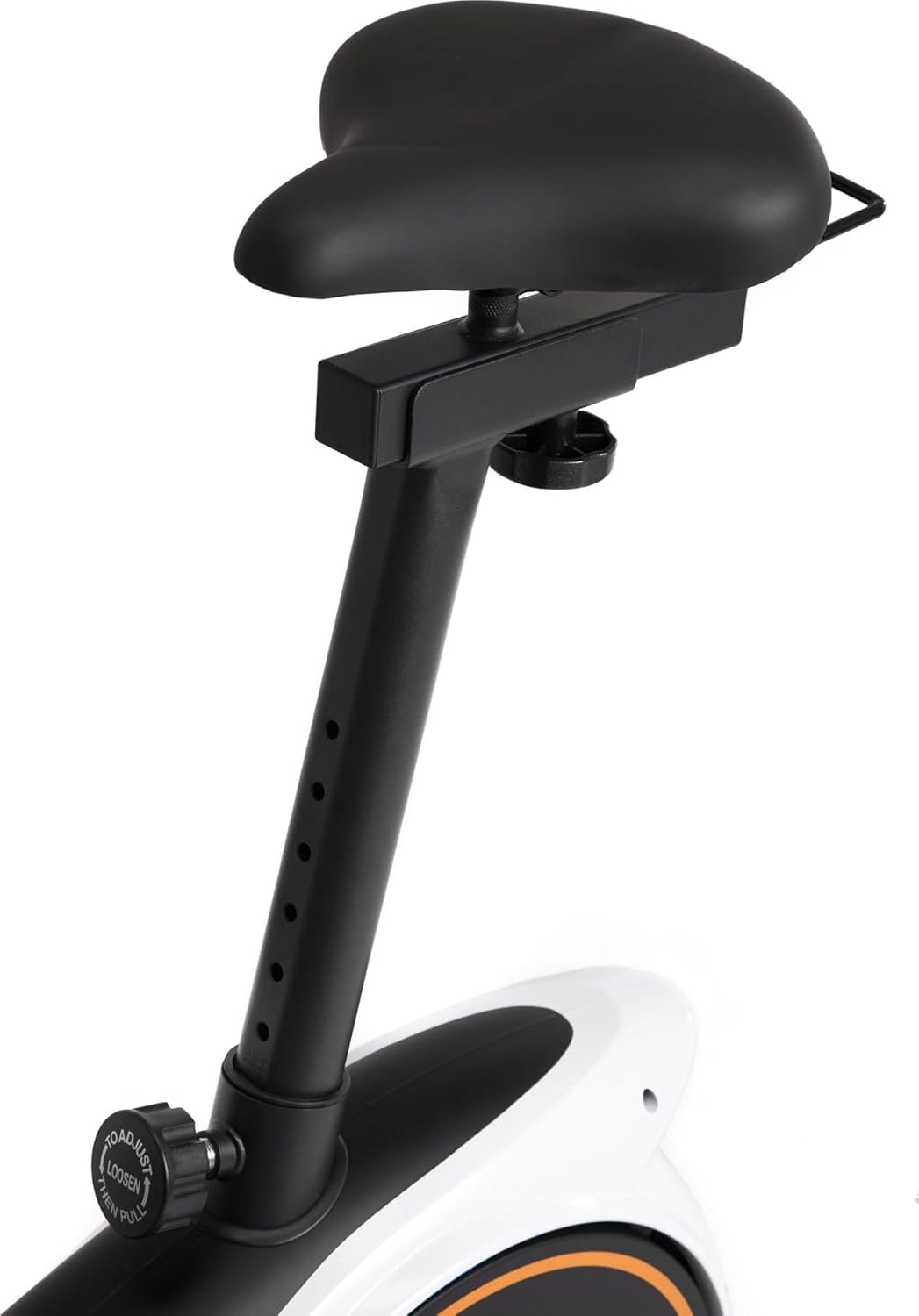

Image: Seat height adjustment mechanism.
Image: Seat horizontal adjustment mechanism.
5.4 Using the Device Holder
The console features a convenient holder for your smartphone or tablet, allowing you to enjoy entertainment or follow guided workouts during your session.
Image: A smartphone placed in the console's device holder.
Image: A tablet placed in the console's device holder.
6. Maintenance
Regular maintenance ensures the longevity and safe operation of your exercise bike.
- Cleaning: Wipe down the bike with a damp cloth after each use to remove sweat and dust. Avoid abrasive cleaners.
- Inspection: Periodically check all bolts, nuts, and moving parts for tightness and wear. Tighten any loose fasteners.
- Lubrication: The magnetic resistance system is generally maintenance-free. Refer to the full manual for any specific lubrication requirements for other moving parts.
- Storage: Store the bike in a dry, cool place away from direct sunlight and extreme temperatures.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bike is unstable or wobbles | Uneven floor; loose stabilizer bolts | Adjust the leveling feet on the stabilizer bars. Ensure all stabilizer bolts are tight. |
| Computer display not working | Dead batteries; loose sensor connection | Replace batteries. Check that all sensor cables are securely connected to the console. |
| Resistance not changing | Resistance cable disconnected or damaged | Inspect the resistance cable connection to the knob and the flywheel mechanism. Contact customer support if damaged. |
| Unusual noise during operation | Loose parts; friction | Check all bolts and nuts for tightness. Ensure no parts are rubbing. |
8. Product Specifications
| Feature | Detail |
|---|---|
| Brand | ZIPRO |
| Model | Nitro RS |
| Color | Black |
| Resistance Mechanism | Magnetic |
| Resistance Levels | 8 |
| Drive System | Belt |
| Material | Plastic |
| Maximum User Weight | 150 kg |
| Maximum User Height | 200 cm |
| Product Dimensions (L x W x H) | 92 x 60 x 143 cm (approximate) |
| Item Weight | 28.6 kg |
| Power Source (Console) | Battery Powered |
| Model Number | 5304090 |
Image: Dimensions of the ZIPRO Nitro RS Home Exercise Bike (115 cm length, 59 cm width, 145 cm height).
9. Warranty and Support
Your ZIPRO Nitro RS Home Exercise Bike comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. For technical support, spare parts, or warranty claims, please contact ZIPRO customer service through their official website or the retailer where you purchased the product.
For additional information and support, visit the official ZIPRO website: www.zipro.pl
