Taurus Blaze High-Performance Countertop Blender User Manual

Introduction

Thank you for choosing the Taurus Blaze High-Performance Countertop Blender. This powerful appliance is designed to provide efficient and versatile blending for a variety of culinary needs, from smoothies to hot soups. Please read this manual thoroughly before operating your new blender to ensure safe and optimal performance.

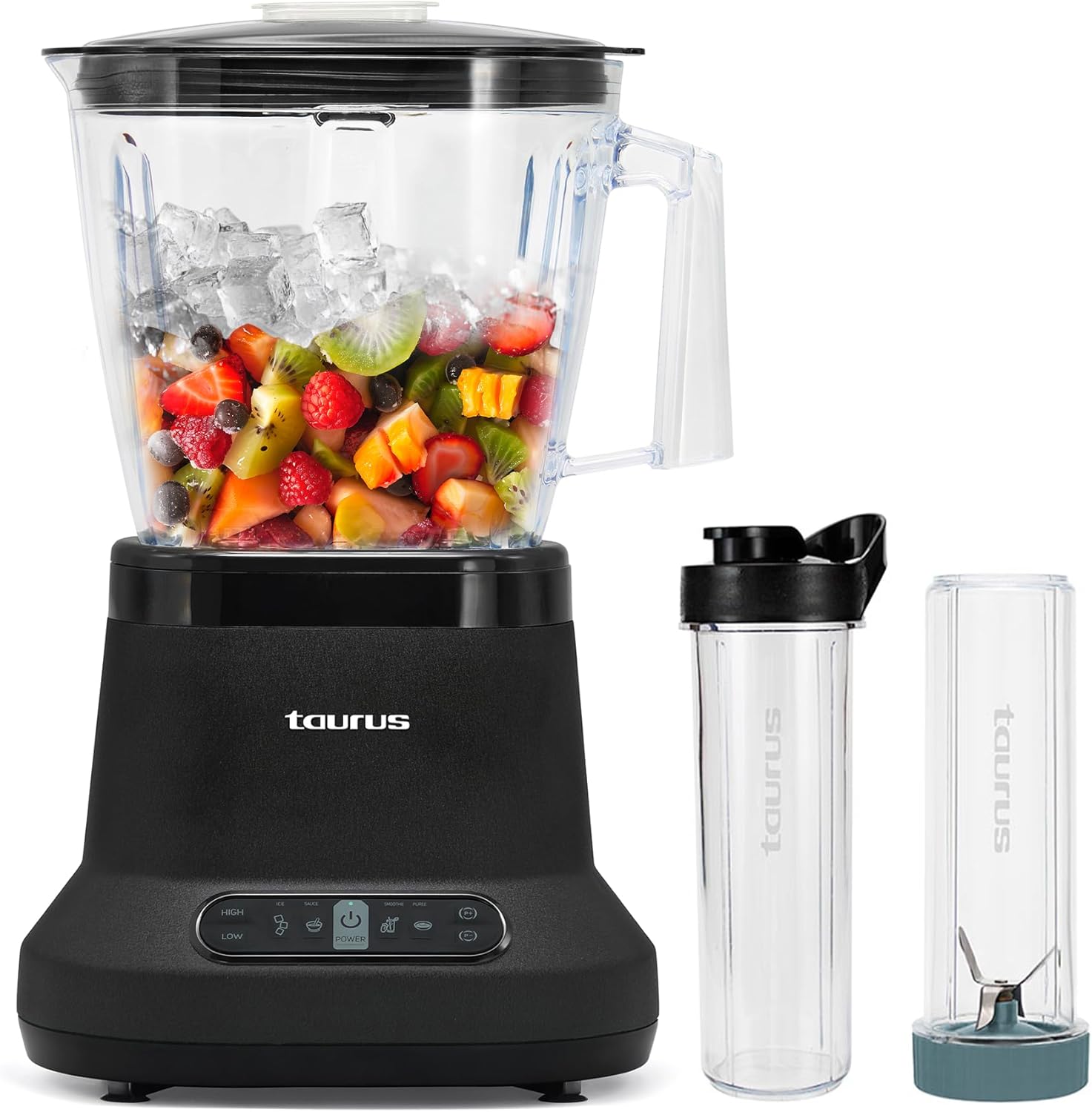

Figure 1: Taurus Blaze High-Performance Countertop Blender with its main jar filled with fruits and ice, ready for blending. The base features a sleek black design with an intuitive control panel.

Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions before use.
• To protect against risk of electrical shock, do not immerse the blender base in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use, before assembling or disassembling parts, and before cleaning.
• Avoid contact with moving parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been dropped or damaged in any manner.
• The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter or touch hot surfaces.
• Do not place on or near a hot gas or electric burner or in a heated oven.
• Always operate the blender with the lid in place.
• Blades are sharp. Handle with care.
• Do not blend hot liquids in the main jar without proper ventilation to avoid pressure buildup.

Product Components

The Taurus Blaze Blender comes with the following components:

• Blender Base with Control Panel
• 64oz (2.5 Liter) Tritan Blending Jar with Lid
• Two 500ml 2GO Bottles with Lids
• Blade Assembly (integrated into main jar and 2GO bottles)

Figure 2: The Taurus Blaze Blender disassembled, showing the main blender base, the large 64oz Tritan jar with its lid, and the two 500ml 2GO portable blending bottles with their respective lids.

Figure 3: The Taurus Blaze Blender base with the two 500ml 2GO bottles attached, demonstrating its dual blending capability. A smoothie is shown in a glass next to the blender.

Setup

1. Unpacking and Initial Cleaning

1. Carefully remove all components from the packaging.
2. Wash the main blending jar, lid, and 2GO bottles with warm, soapy water. Rinse thoroughly and dry.
3. Wipe the blender base with a damp cloth. Do not immerse the base in water.

2. Assembly

• For Main Blending Jar: Place the 64oz Tritan jar onto the blender base, ensuring it is securely seated. The jar can be placed in any direction.
• For 2GO Bottles: Fill the 2GO bottle with ingredients, then screw the blade assembly lid onto the bottle until tight. Invert the bottle and place it onto the blender base, aligning the tabs.
• Ensure the lid is properly secured on the main jar before operation.

Operating Instructions

Control Panel Overview

Figure 4: Close-up view of the Taurus Blaze Blender's touch control panel, featuring buttons for High/Low speeds, Power, and dedicated preset functions for Ice, Sauce, Smoothie, and Puree, along with Pulse (P+, P-) controls.

The control panel features touch-sensitive buttons for various functions:

• POWER: Turns the blender on/off.
• HIGH / LOW: Continuous speed settings.
• P+ / P-: Pulse functions for short bursts of power.
• Preset Programs:
  • ICE: Optimized for crushing ice.
  • SAUCE: Ideal for making smooth sauces.
  • SMOOTHIE: Perfect for blending fruits and liquids into smooth beverages.
  • PUREE: Designed for creating fine purees.

General Blending Steps

1. Place the blender on a stable, flat surface.
2. Add ingredients to the blending jar or 2GO bottle. Ensure ingredients do not exceed the MAX fill line.
3. Securely attach the lid (for main jar) or blade assembly lid (for 2GO bottle).
4. Place the jar/bottle assembly onto the blender base.
5. Plug the power cord into a grounded electrical outlet.
6. Press the POWER button to turn on the blender.
7. Select your desired speed (HIGH/LOW), pulse function (P+/P-), or a preset program (ICE, SAUCE, SMOOTHIE, PUREE).
8. Allow the blender to run until desired consistency is achieved.
9. Press the POWER button to turn off the blender, then unplug from the outlet.
10. Carefully remove the jar/bottle from the base and pour out contents.

Note: For optimal blending, always add liquids first, followed by soft ingredients, then harder ingredients, and finally ice or frozen items.

Care and Maintenance

Self-Cleaning Function

The Taurus Blaze blender features a convenient self-cleaning function:

1. After use, rinse the jar.
2. Fill the jar halfway with warm water and add a drop of dish soap.
3. Secure the lid and place the jar on the blender base.
4. Run the blender on a low speed or use the Pulse function for 30-60 seconds.
5. Empty the soapy water, rinse the jar thoroughly, and allow it to air dry.

General Cleaning

• Blender Base: Wipe the base with a damp cloth. Do not immerse in water.
• Jars and Lids: The Tritan jar and 2GO bottles are dishwasher safe (top rack only) or can be hand-washed with warm, soapy water.
• Blades: Exercise extreme caution when cleaning the blade assembly. Use a brush to clean around the blades if necessary.
• Ensure all parts are completely dry before storing.

Storage

Store the blender in a clean, dry place. Ensure the power cord is neatly wrapped and not kinked.

Troubleshooting

Product Specifications

Figure 5: Diagram illustrating the dimensions of the Taurus Blaze Countertop Blender: approximately 17 inches (43 cm) in height, 10.23 inches (26 cm) in width, and 5.5 inches (14 cm) in depth.

Warranty and Support

The Taurus Blaze High-Performance Countertop Blender comes with a 2-Year Limited Warranty from the date of purchase, covering defects in material and workmanship under normal household use. The manufacturer also expresses confidence in the product's durability, stating it is designed for up to 5 years of reliable performance.

For warranty claims, technical support, or general inquiries, please contact Taurus customer service through their official website or the retailer where the product was purchased. Please have your model number and proof of purchase ready.
