Goldair 3 Bar Quartz Heater GBH-333 Instruction Manual

Introduction

Thank you for purchasing the Goldair 3 Bar Quartz Heater. This manual provides important information regarding the safe operation, installation, maintenance, and troubleshooting of your appliance. Please read these instructions thoroughly before use and retain them for future reference.

This portable space heater is designed to provide efficient radiant heat for small to medium-sized indoor areas. It features three quartz heating elements, a safety tip-over switch, and cool-touch housing for enhanced safety.

Important Safeguards

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all instructions before using this heater.
• This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Use handles if provided when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 1 meter (3 feet) from the front of the heater and keep them away from the sides and rear.
• Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
• Always unplug the heater when not in use.
• Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped, or damaged in any manner. Return heater to authorized service facility for examination, electrical or mechanical adjustment, or repair.
• Do not use outdoors. This heater is intended for indoor use only.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic area and where it will not be tripped over.
• To disconnect heater, turn controls to OFF, then remove plug from outlet.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
• To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
• A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored.
• Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
• Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip).
• This heater includes a safety tip-over switch that automatically turns off the heater if it is accidentally tipped over.
• The housing remains cool to the touch during operation, reducing the risk of accidental burns.

Product Overview

The Goldair 3 Bar Quartz Heater (Model GBH-333) is a compact and lightweight radiant heater designed for portability and efficient heating.

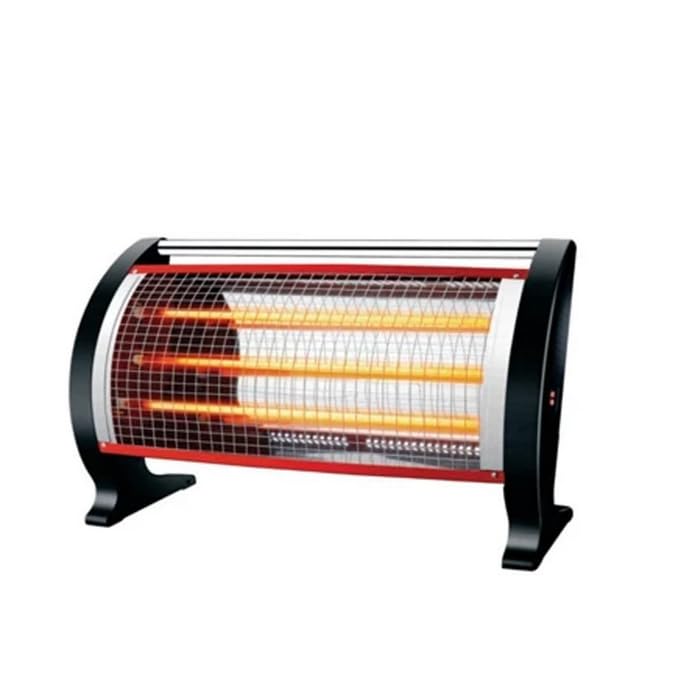

Image showing the Goldair 3 Bar Quartz Heater in black, featuring its three quartz heating elements and stable base.

Key Features:

• Safety Tip-Over Switch: Automatically shuts off the heater if it is accidentally knocked over.
• Cool Touch Housing: The exterior remains cool during operation for safer handling.
• Compact and Lightweight Design: Easy to move and store.
• Easy to Carry: Designed for convenient portability.
• Ideal for Small to Medium-Sized Rooms: Provides effective heating for personal spaces.
• 3 Quartz Heating Elements: Offers multiple heat settings for customizable warmth.

Setup

1. Unpacking: Carefully remove the heater from its packaging. Retain the packaging for future storage or transport. Inspect the heater for any signs of damage. If damaged, do not operate and contact customer support.
2. Placement:
   • Place the heater on a firm, level surface.
   • Ensure there is at least 1 meter (3 feet) of clearance from walls, furniture, curtains, and other combustible materials on all sides.
   • Do not place the heater directly below a power outlet.
   • Avoid placing the heater in high-traffic areas where it could be easily tripped over.
3. Power Connection: Ensure the heater is switched off before plugging it into a standard 220-240V AC electrical outlet. Do not use extension cords or power strips.

Operating Instructions

1. Power On: Plug the heater into a suitable electrical outlet.
2. Select Heat Setting: Locate the control knob or buttons, typically on the front or top of the heater. This model features 3 quartz bars, allowing for multiple heat settings. Turn the knob or press the buttons to select your desired heat output (e.g., 1 bar for low heat, 2 bars for medium, 3 bars for high heat).
3. Safety Tip-Over Switch: The heater is equipped with a safety tip-over switch. If the heater is accidentally knocked over, it will automatically shut off. To resume operation, place the heater upright on a stable surface, and it should restart. If it does not, check the power connection and heat settings.
4. Power Off: To turn off the heater, set the control knob or buttons to the "OFF" position. Unplug the heater from the wall outlet when not in use.

Note: It is normal for heaters to emit a slight odor when first used. This is due to the burning off of manufacturing oils and will dissipate after a few uses.

Maintenance and Cleaning

Regular cleaning and maintenance will help ensure the efficient operation and longevity of your heater.

1. Before Cleaning: Always ensure the heater is switched off, unplugged from the power outlet, and completely cool before attempting any cleaning or maintenance.
2. Exterior Cleaning: Wipe the exterior surfaces of the heater with a soft, damp cloth. Do not use abrasive cleaners, waxes, or polishes as these may damage the finish. Ensure no water enters the interior of the heater.
3. Dust Removal: Use a vacuum cleaner with a brush attachment to remove dust from the grilles and ventilation openings. Do not attempt to clean the quartz heating elements directly.
4. Storage: When not in use for extended periods, store the heater in its original packaging in a cool, dry place.
5. Cord Care: Do not wrap the power cord tightly around the heater. Avoid twisting or kinking the cord.

Warning: Never immerse the heater in water or any other liquid.

Troubleshooting

If the problem persists after attempting these solutions, please contact Goldair customer support.

Specifications

• Brand: Goldair
• Model Number: GBH-333
• Type: 3 Bar Quartz Heater
• Power / Wattage: 2100 watts
• Item Weight: 3.44 kg
• Product Dimensions: 62D x 21W x 44H centimetres
• Power Source: Corded Electric
• Heating Method: Radiant
• Indoor/Outdoor Usage: Indoor only
• Mounting Type: Tabletop Mount
• Special Features: Portable, Safety Tip-Over Switch, Cool Touch Housing

Warranty and Support

For warranty information, please refer to the warranty card included with your purchase or visit the official Goldair website. If you require technical assistance, spare parts, or have any questions regarding your Goldair 3 Bar Quartz Heater, please contact Goldair customer support through their official channels.

Please have your model number (GBH-333) and purchase details ready when contacting support.
