1. Introduction
Thank you for choosing the Homra Removable Recessed Bin. This product is designed to provide an organized and discreet waste management solution for your kitchen, fitting conveniently under your sink. It features two removable 20-liter compartments, ideal for separating waste and recyclables. This manual provides essential information for safe installation, operation, and maintenance of your new recessed bin.

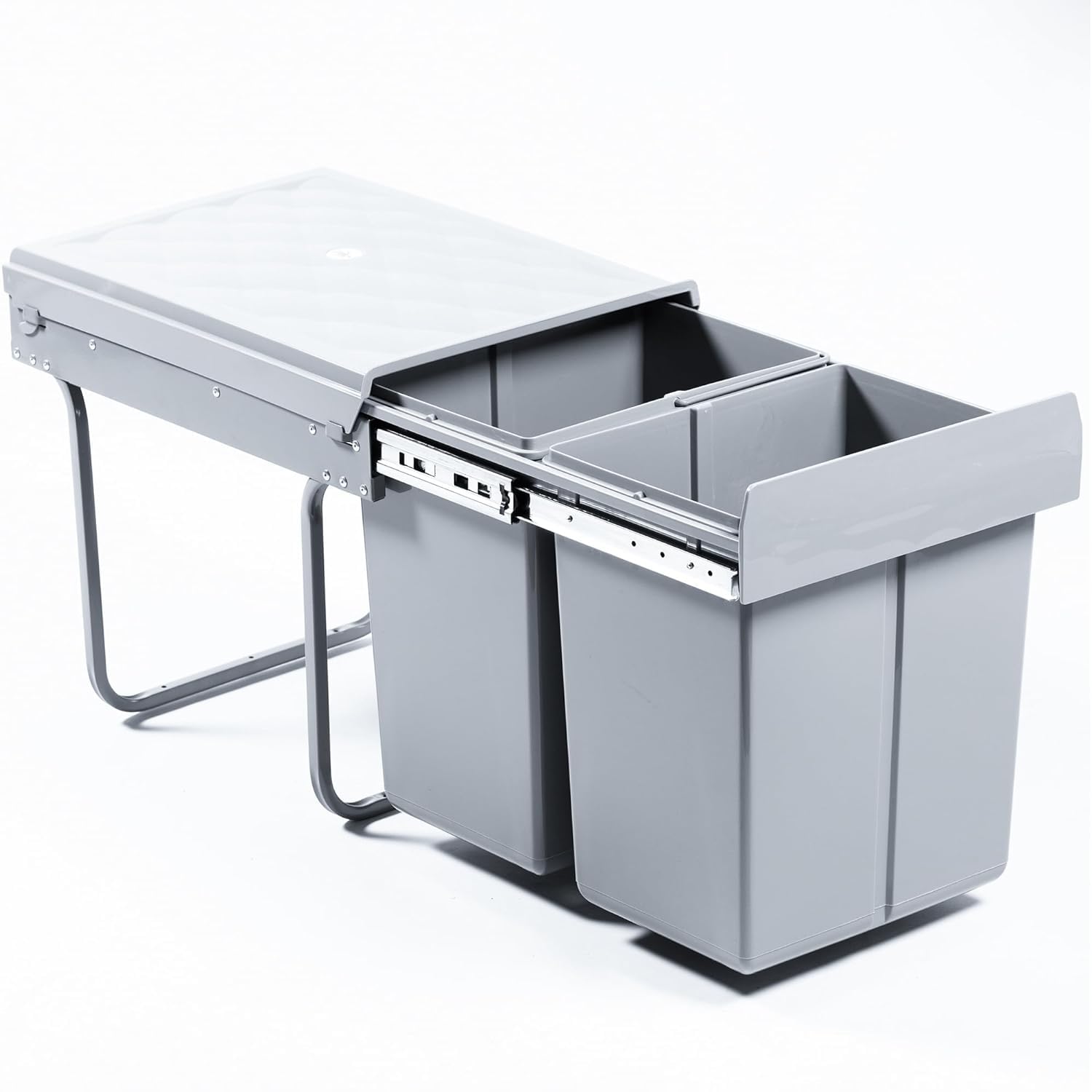

Figure 1: The Homra Removable Recessed Bin, showcasing its two compartments and under-sink installation.
2. Safety Instructions
Please read all safety instructions carefully before installation and use. Failure to follow these instructions may result in injury or damage to the product.
- Ensure the installation area is clear of electrical wires, water pipes, and gas lines before drilling.
- Always wear appropriate safety gear, such as gloves and eye protection, during installation.
- Do not overload the bins. The maximum capacity for each compartment is 20 liters.
- Keep hands and fingers clear of moving parts during operation to prevent pinching.
- This product is intended for household use only.
- Keep out of reach of children to prevent accidents.
3. Package Contents
Verify that all components are present and undamaged before proceeding with installation.
- 1x Main frame/housing with pull-out mechanism
- 2x Removable 20-liter bins (grey)
- 1x Set of mounting hardware (screws, washers)
- 1x Instruction Manual
4. Setup and Installation
The Homra Recessed Bin is designed for base fixing within a kitchen cabinet, typically under the sink. Ensure your cabinet meets the minimum dimension requirements for proper fit and function.
4.1. Pre-Installation Checks
- Cabinet Dimensions: The bin requires a minimum cabinet width of 40 cm. Measure the internal width, depth, and height of your cabinet to ensure adequate space, especially considering any plumbing under the sink.
- Clearance: Verify that no pipes, hoses, or other obstructions will interfere with the bin's movement or installation.
- Tools Required: You will need a measuring tape, pencil, drill, screwdriver, and possibly a level.
4.2. Mounting the Frame
- Position the main frame of the bin inside your cabinet at the desired location. Ensure it is flush against the cabinet base and aligned correctly.
- Using a pencil, mark the positions for the mounting screws through the pre-drilled holes in the frame's base.
- Remove the frame and, if necessary, pre-drill pilot holes at the marked positions. Be careful not to drill through the cabinet base.
- Reposition the frame and secure it to the cabinet base using the provided screws and washers. Tighten securely, but do not overtighten.
Note: An image illustrating the frame being secured to the cabinet base would typically be included here, showing screw placement.
4.3. Inserting the Bins
- Once the frame is securely mounted, slide the two removable 20-liter bins into their designated slots within the frame.
- Ensure the bins sit firmly and are properly aligned.
Your Homra Recessed Bin is now installed and ready for use.
5. Operating Instructions
5.1. Opening and Closing
- To access the bins, gently pull the front of the bin assembly outwards from the cabinet. The pull-out mechanism will extend the bins.
- To close, push the bin assembly back into the cabinet until it is fully recessed.
5.2. Waste Separation
Utilize the two separate 20-liter compartments for efficient waste separation. For example, one bin can be used for general waste and the other for recyclables (plastic, paper, etc.).
5.3. Emptying the Bins
- Pull the bin assembly out of the cabinet.
- Lift each individual 20-liter bin upwards to remove it from the frame.
- Empty the contents into your main waste or recycling collection.
- Return the empty bins to their respective slots in the frame.
6. Maintenance
Regular cleaning and maintenance will ensure the longevity and hygienic operation of your Homra Recessed Bin.
6.1. Cleaning the Bins
- The removable plastic bins can be easily cleaned with warm water and mild detergent.
- Rinse thoroughly and allow to air dry completely before placing them back into the frame.
- Avoid using abrasive cleaners or harsh chemicals, as these may damage the plastic.
6.2. Cleaning the Frame and Mechanism
- Wipe down the metal frame and pull-out mechanism with a damp cloth.
- For stubborn dirt, use a mild, non-abrasive cleaner.
- Ensure the mechanism is dry after cleaning to prevent rust.
- Periodically check the mounting screws for tightness and re-tighten if necessary.
7. Troubleshooting
If you encounter any issues with your Homra Recessed Bin, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bin is difficult to pull out or push in. | New mechanism stiffness; obstruction; loose mounting screws. | Operate several times to break in; check for obstructions; tighten mounting screws. |
| Bins do not sit properly in the frame. | Incorrect placement; debris in slots. | Ensure bins are inserted correctly; clear any debris from the slots. |
| Bin assembly feels wobbly. | Loose mounting screws. | Re-tighten all mounting screws securing the frame to the cabinet base. |
8. Specifications
- Brand: Homra
- Model: 2x20L Recessed Bin (B0CLDKR783)
- Capacity: 40 Liters (2 x 20L compartments)
- Color: Grey
- Material: Plastic (bins), Metal (frame)
- Opening Mechanism: Manual Pull-out
- Installation Type: Base Fixing (Under Sink)
- Minimum Cabinet Width: 40 cm
- Item Weight: Approximately 5.3 Kilograms
- Special Feature: Removable Bins
9. Warranty and Support
Homra products are manufactured to high-quality standards. For specific warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. If you have any questions, require technical assistance, or need to report a defect, please contact Homra customer support through the retailer's platform or the official Homra website.
