1. Introduction
This manual provides essential information for the safe operation, installation, and maintenance of your Xbeauty 23-inch Freestanding Electric Fireplace Stove. Please read all instructions carefully before use and retain this manual for future reference.

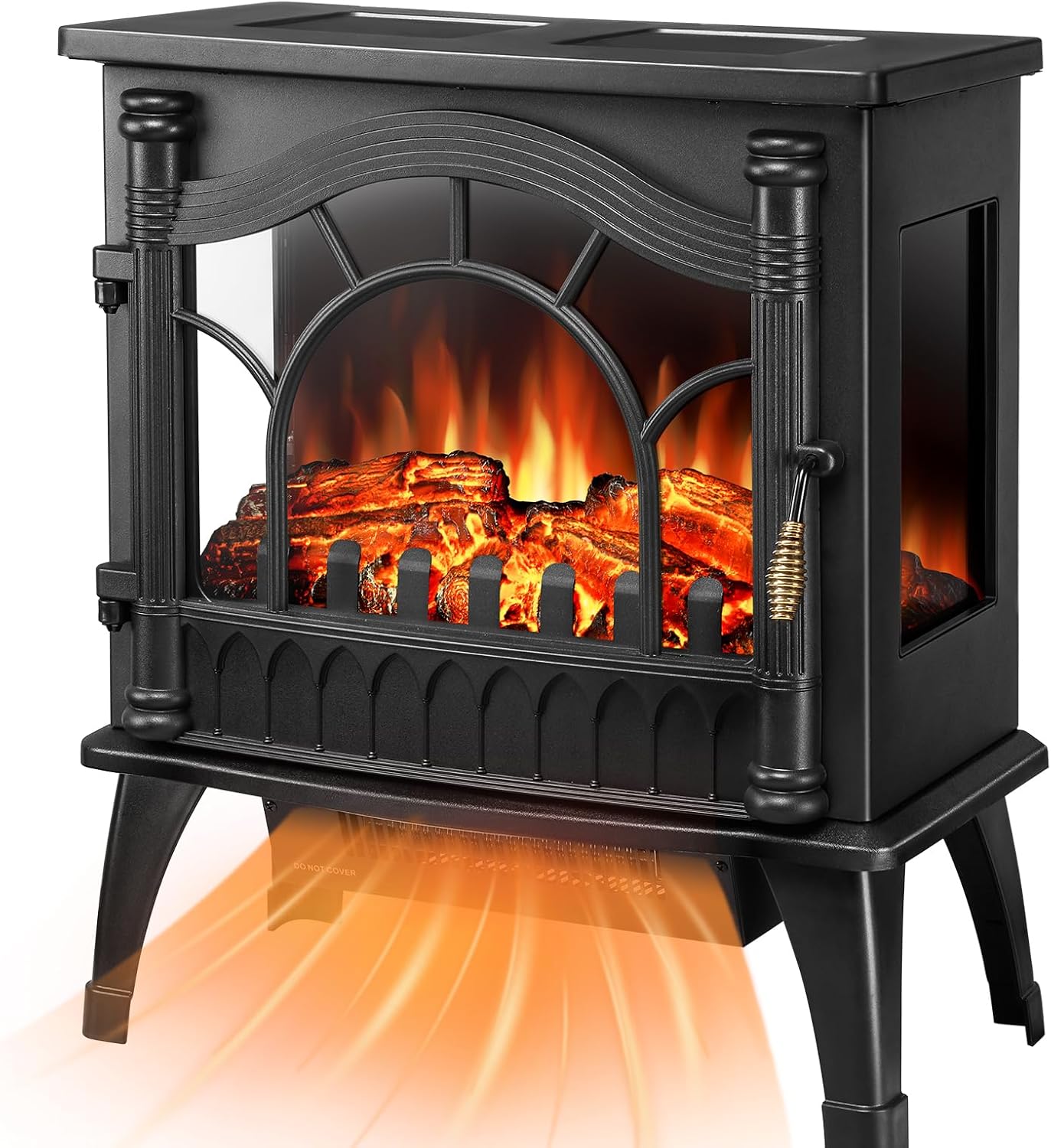

Figure 1: Front view of the Xbeauty Electric Fireplace Stove, showcasing its design and flame effect.
2. Important Safety Instructions
WARNING: To reduce the risk of fire, electric shock, or injury, read all instructions before using this appliance.
- Ensure the power outlet voltage matches the appliance's rating.
- Do not operate the fireplace with a damaged cord or plug.
- Keep combustible materials at least 3 feet (0.9 meters) from the front of the fireplace.
- Do not insert or allow foreign objects into any ventilation or exhaust opening.
- Always unplug the fireplace when not in use or before cleaning.
- This appliance is equipped with an overheating protection device that automatically shuts off the heater if it overheats. If this occurs, unplug the unit and allow it to cool for 15 minutes before restarting.
Figure 2: The fireplace operates quietly and includes an overheat protection device for safety.
3. Package Contents
Verify that all components are present before assembly:
- Electric Fireplace Stove Unit (1)
- Legs (4)
- Mounting Screws for Legs (Quantity as specified in hardware pack)
- User Manual (1)
4. Assembly and Installation
The Xbeauty Electric Fireplace Stove is designed for freestanding use. Minimal assembly is required.
- Carefully remove all components from the packaging.
- Place the main fireplace unit upside down on a soft, non-abrasive surface to prevent scratching.
- Attach each of the four legs to the designated mounting points on the bottom of the fireplace using the provided screws. Ensure they are securely fastened.
- Carefully turn the assembled fireplace upright and place it on a stable, level surface.
- Ensure the fireplace is placed away from drapes, furniture, and high-traffic areas. Maintain adequate clearance around the unit for proper ventilation.
Figure 3: Product dimensions for placement consideration.
5. Operating Instructions
Your electric fireplace features intuitive controls for heat and flame effects.
Controls Overview

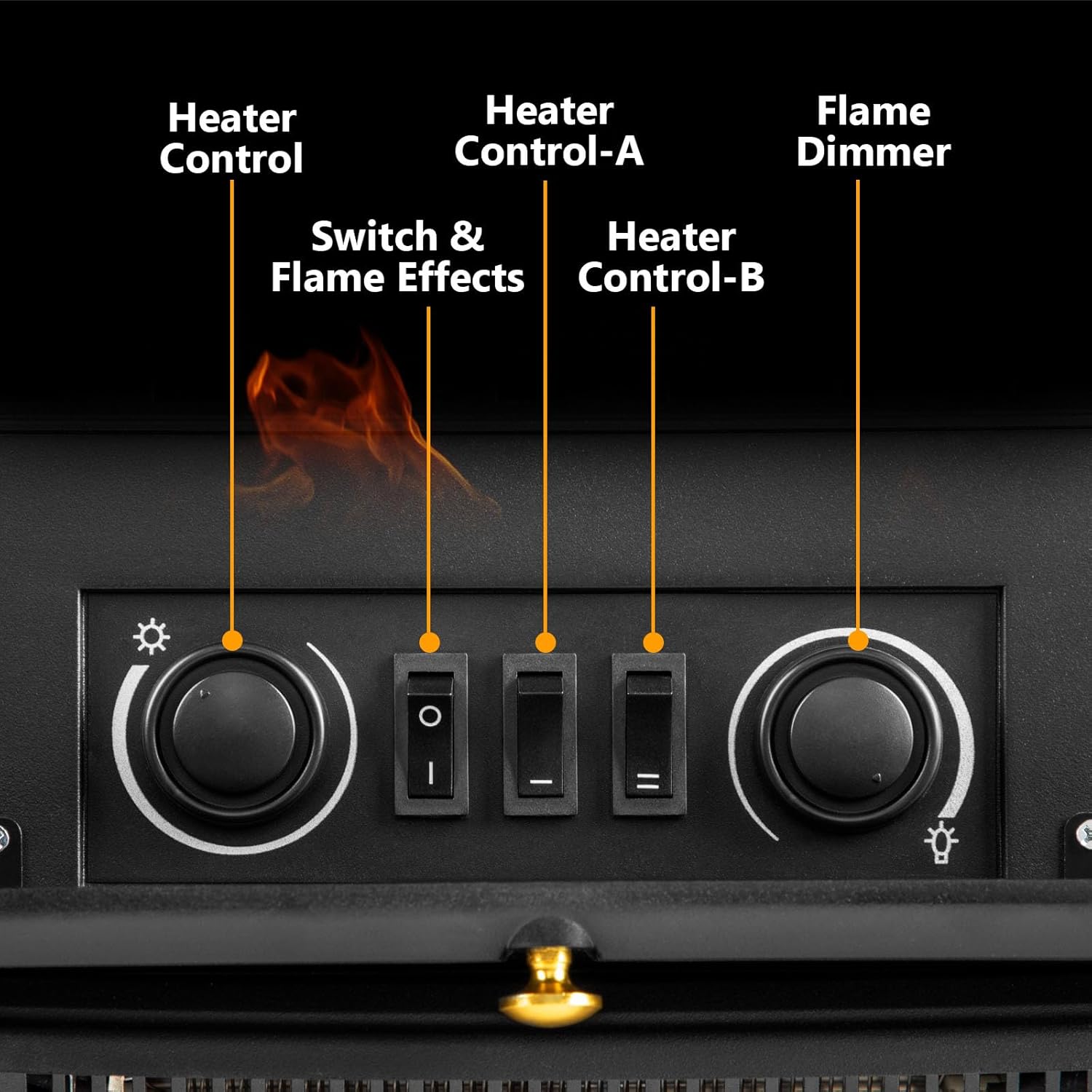

Figure 4: Control panel for the electric fireplace.
- Heater Control Dial: Adjusts the thermostat to set the desired room temperature.
- Switch & Flame Effects: Powers the unit on/off and activates the flame effect. The flame effect can be used independently without heat.
- Heater Control-A (1000W): Activates the lower heat setting.
- Heater Control-B (1500W): Activates the higher heat setting. Can be used in conjunction with Heater Control-A for maximum heat output.
- Flame Dimmer Dial: Adjusts the brightness of the flame effect.
Using the Fireplace
- Plug the power cord into a grounded 120V AC outlet.
- Press the 'Switch & Flame Effects' button to turn on the unit and activate the flame effect.
- To activate heating, select the desired heat level using 'Heater Control-A' (1000W) or 'Heater Control-B' (1500W). For maximum heat, activate both.
- Adjust the 'Heater Control Dial' to set your preferred temperature. The heater will cycle on and off to maintain this temperature.
- Use the 'Flame Dimmer Dial' to adjust the intensity of the flame effect.
- To turn off, first switch off the heater controls, then press the 'Switch & Flame Effects' button. Unplug the unit when not in use.
Figure 5: Realistic flame effect and independent flame operation.
6. Care and Maintenance
Regular cleaning and proper care will ensure the longevity and optimal performance of your fireplace.
- Always unplug the appliance before cleaning.
- Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Periodically check the air intake and exhaust vents for dust or obstructions. Use a vacuum cleaner with a brush attachment to remove any debris.
- The flame effect uses LED lights which do not require replacement.
- Store the fireplace in a dry, cool place when not in use.
7. Troubleshooting
Refer to the table below for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| No power/Unit does not turn on | Not plugged in; Power outlet issue; Circuit breaker tripped | Ensure plug is fully inserted; Test outlet with another device; Reset circuit breaker |
| No heat output | Heater controls not activated; Thermostat set too low; Overheat protection activated | Activate heater switches; Increase thermostat setting; Unplug and allow to cool for 15 minutes |
| Flame effect not working | Unit not powered on; Flame effect switch off | Ensure unit is powered on; Press 'Switch & Flame Effects' button |
| Unusual noise | Fan obstruction; Loose component | Unplug and check for obstructions in vents; Contact customer support if noise persists |
8. Product Specifications
| Feature | Specification |
|---|---|
| Brand | Xbeauty |
| Model Name | YH-2211 |
| Product Dimensions | 11.02"D x 22.83"W x 20.08"H |
| Power Source | Corded Electric |
| Heat Output | 1000W / 1500W |
| Heating Coverage | 400-500 square feet |
| Material | Stainless Steel |
| Installation Type | Freestanding |
| Special Feature | Adjustable Thermostat, Overheating Protection, 3D Flame Effect |
| Item Weight | 23.4 pounds |
9. Warranty and Customer Support
Xbeauty products are manufactured to high-quality standards. For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. If you encounter any issues or have questions regarding your electric fireplace, please contact Xbeauty customer support through the retailer's platform or the official Xbeauty website for assistance.
