1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your Tribesigns 9-Tier Corner Shoe Rack Organizer. Please read this manual thoroughly before assembly and use to ensure proper installation and safe operation. Keep this manual for future reference.
2. Product Features
- Space-Saving Corner Design: Measures 78.74" H x 23.62" W x 23.62" D, utilizing vertical space with a 90° right-angle design, suitable for hallways, entryways, bedrooms, and dormitories.
- Large Capacity Storage: Features 9 tiers with varied shelf heights. The middle 6 shelves are 8.07" high for flats, sneakers, and high heels. The bottom shelf is 14.37" high, accommodating knee-high boots.
- Multifunctional Use: Beyond shoe storage, this rack can serve as a display shelf for items such as CDs, towels, books, plants, and decorative objects.
- Durable Construction: Constructed from thick E1 particle board and powder-coated steel, ensuring long-term use and a weight capacity of up to 340 lb (154 kg).
- Adjustable Stability: Equipped with adjustable feet to maintain stability on slightly uneven floors.
Figure 2.1: Illustration of the space-saving corner design.
Figure 2.2: The shoe rack's versatility for different shoe types and other storage needs.
Figure 2.3: Detail of the heavy-duty frame, emphasizing durability.
3. Specifications
| Attribute | Value |
|---|---|
| Model Name | Corner Shoe Rack |
| Product Dimensions | 23.62"D x 23.62"W x 78.74"H |
| Item Weight | 71 Pounds |
| Number of Shelves | 9 |
| Weight Limit | 340 Pounds (154 kg) |
| Material | E1 Particle Board, Powder-Coated Steel |
| Color | Brown |
| Installation Type | Freestanding |
| Assembly Required | Yes |

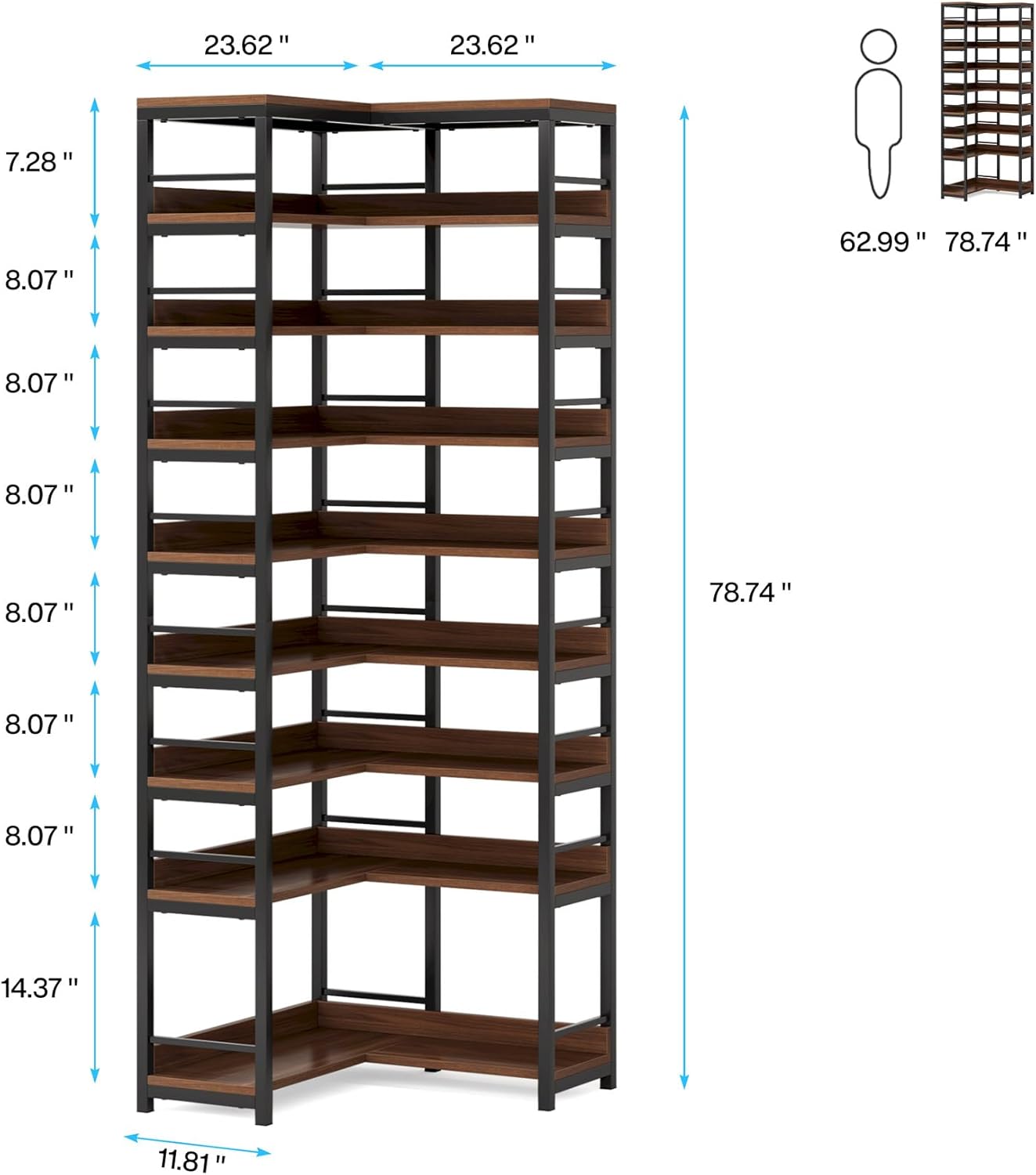

Figure 3.1: Detailed product dimensions.
4. Package Contents
The package for your Tribesigns 9-Tier Corner Shoe Rack Organizer includes the following items:
- 1 x Assembly Kit (containing all necessary hardware and tools)
- 1 x Instructions Manual (this document)
- All structural components for the shoe rack (E1 particle boards and steel frames)
5. Safety Information
WARNING:
- Do not exceed the maximum weight limit of 340 lb (154 kg) for the entire unit. Distribute weight evenly across shelves.
- Follow all assembly instructions carefully to ensure safe and stable use. Improper assembly can lead to instability and potential injury.
- For added stability, especially in homes with children or pets, consider anchoring the unit to the wall using appropriate hardware (not included unless specified in the assembly kit).
- Keep small parts and packaging materials away from children during assembly to prevent choking hazards.
6. Assembly Instructions
Assembly of the Tribesigns 9-Tier Corner Shoe Rack Organizer is required. Please follow the clear, step-by-step instructions provided in the included assembly kit. All numbered parts and necessary tools are supplied. Typical assembly time is approximately 40 minutes for one person.
- Unpack all components and verify against the parts list in the assembly guide.
- Identify all hardware and tools.
- Follow the sequential steps in the assembly guide, ensuring all screws and fasteners are tightened securely.
- Attach adjustable feet to the base of the unit.
- Once assembled, place the unit in its desired corner location.
Video 6.1: Official Tribesigns video demonstrating the assembly and features of the Corner Shoe Rack. This video provides a visual guide to the product's structure and functionality.
7. Operating Instructions
The Tribesigns 9-Tier Corner Shoe Rack Organizer is designed for straightforward use:
- Place shoes, boots, or other items directly onto the shelves.
- Utilize the varied shelf heights to accommodate different types of footwear, placing taller items like boots on the bottom shelf.
- For optimal stability and longevity, distribute weight evenly across all shelves.
- Avoid placing excessively heavy items on upper shelves to prevent tipping.
Figure 7.1: The shoe rack in use, showcasing its capacity for different footwear.
8. Maintenance
To maintain the appearance and longevity of your shoe rack:
- Regularly wipe the surfaces with a dry cloth to remove dust and dirt.
- Avoid using harsh chemicals or abrasive cleaners, as these may damage the finish.
- Periodically check all screws and connections to ensure they remain tight. Retighten if necessary.
- Keep the unit away from direct sunlight and excessive moisture to prevent material degradation.
9. Troubleshooting
If you encounter any issues with your Tribesigns 9-Tier Corner Shoe Rack, please refer to the following common solutions:
- Unit is wobbly: Ensure all screws are fully tightened. Adjust the leveling feet on the bottom of the unit to compensate for uneven floors. Verify that the unit is placed on a flat, stable surface.
- Missing parts: Double-check the packaging and compare with the parts list in the assembly manual. If parts are genuinely missing, contact customer support immediately.
- Difficulty during assembly: Review the assembly instructions carefully. Ensure you are using the correct hardware for each step. Do not force parts together; if they don't fit, re-examine the instructions.
- Damage upon arrival: If the product arrived damaged, document the damage with photographs and contact customer support for assistance.
10. Warranty and Support
Tribesigns offers a 1-year free replacement warranty for any quality problems encountered with this product. If you experience any issues or require assistance, please contact Tribesigns customer service. We commit to replying within 24 hours to address your concerns.
For support, please visit the official Tribesigns store or contact us through your purchase platform.
