ORIKOOL TSSP29
ORIKOOL 29-inch Commercial Sandwich Prep Table Refrigerator (Model TSSP29) Instruction Manual
Comprehensive guide for installation, operation, maintenance, and troubleshooting.
1. Introduction
Thank you for choosing the ORIKOOL 29-inch Commercial Sandwich Prep Table Refrigerator, Model TSSP29. This appliance is designed for commercial food preparation environments, offering efficient refrigeration and a convenient workspace. To ensure safe and optimal performance, please read this manual thoroughly before installation, operation, or maintenance. Keep this manual for future reference.

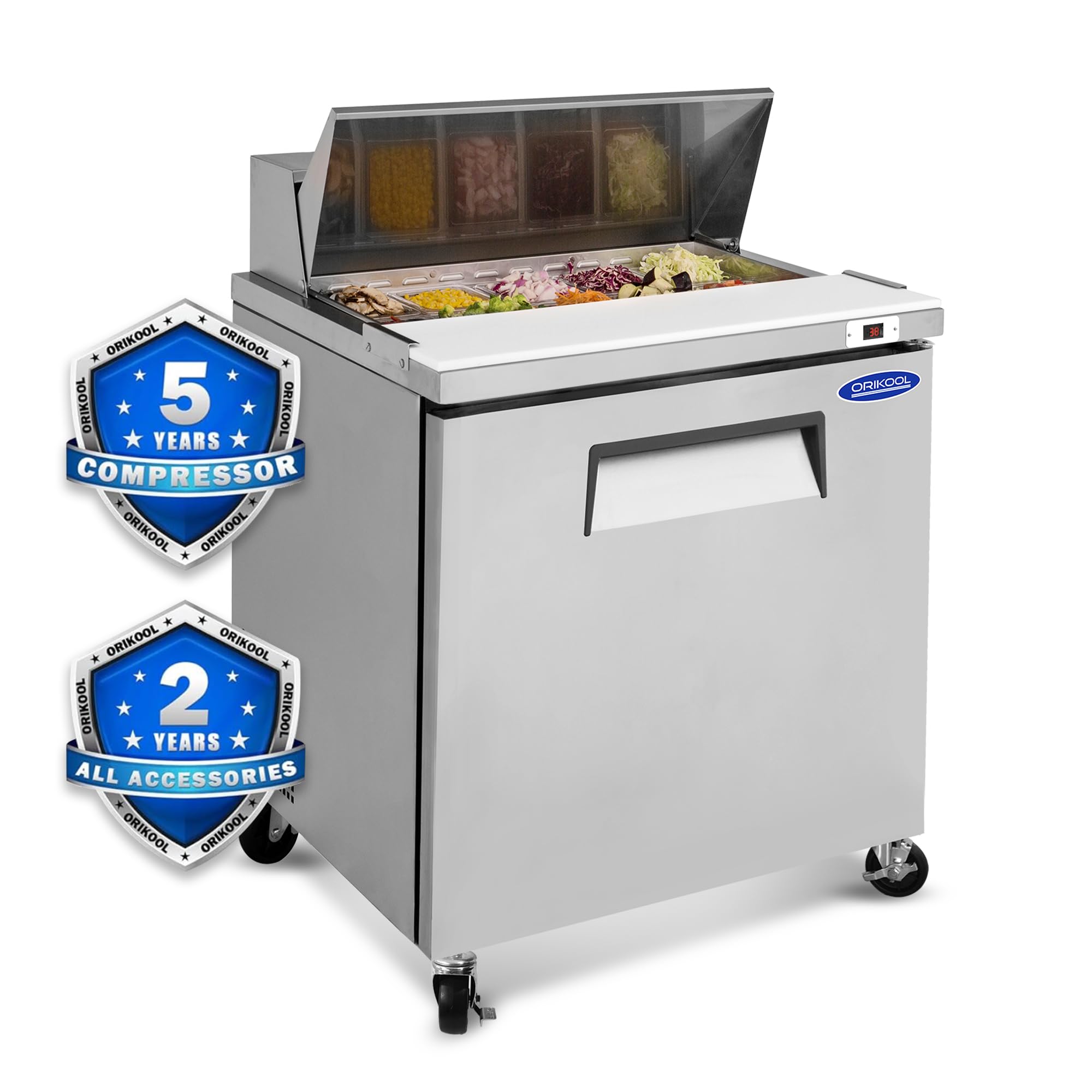

Image 1.1: The ORIKOOL 29-inch Commercial Sandwich Prep Table Refrigerator.
2. Safety Information
Always follow basic safety precautions when using this appliance to reduce the risk of fire, electric shock, or injury.
- Ensure the appliance is properly grounded.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Keep ventilation openings clear of obstruction.
- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- Do not damage the refrigerant circuit.
- Only qualified service personnel should perform repairs.
- Disconnect power before cleaning or servicing.
3. Setup and Installation
3.1 Unpacking
Carefully remove all packaging materials. Inspect the unit for any shipping damage. Report any damage immediately to the carrier and supplier. Ensure all components listed in the package contents are present.
Image 3.1: Package contents including the prep table refrigerator, 8 pans, full-length cutting board, and adjustable shelf.
The package includes: Prep Table Refrigerator x1, 1/6 Pans x8, Full Length Cutting Board x1, Adjustable Epoxy-Coated Wire Shelf x1.
3.2 Placement
Place the unit on a strong, level surface capable of supporting its weight when fully loaded. Ensure adequate clearance around the unit for proper ventilation (minimum 4 inches on sides and back). Avoid direct sunlight or heat sources. The unit comes with four heavy-duty 5-inch casters, two of which are locking, for easy mobility and secure placement.
Image 3.2: Product dimensions and internal layout, showing the 8.0 Cu.Ft capacity and temperature range of 33°F-40°F.
The unit dimensions are approximately 31.46"D x 28.94"W x 45.08"H. The work surface is 29" W x 31.5" D.
3.3 Electrical Connection
Connect the unit to a dedicated electrical outlet with the correct voltage and amperage as specified on the product label. Do not use extension cords. Allow the unit to stand upright for at least 2 hours before plugging it in to allow refrigerants to settle.
3.4 Initial Cleaning
Before first use, clean the interior and exterior surfaces with a mild soap and water solution. Rinse thoroughly and dry. Install the adjustable epoxy-coated wire shelf and the 1/6-size food pans.
Image 3.3: Interior view highlighting the stainless steel exterior, pre-coated aluminum interior, adjustable shelf, and magnetic gasket.
4. Operating Instructions
4.1 Digital Temperature Control
The unit features a CAREL digital temperature controller for precise temperature management. The factory-set temperature range is 33°F to 40°F. To adjust the temperature, refer to the controller's specific instructions. The digital display shows the current internal temperature.
Image 4.1: Close-up of the digital temperature control and illustration of the self-closing door mechanism.
4.2 Adjustable Shelves
The epoxy-coated shelves are adjustable to accommodate various storage needs. Each shelf has a load capacity of 155 lbs. To adjust, simply lift the shelf and reposition the clips to the desired height.
Image 4.2: Illustration of the adjustable shelf with 155 lbs capacity and the dynamic fan cooling system.
4.3 Self-Closing Door
The refrigerator door is designed to close automatically when the opening angle is less than 90 degrees. This feature helps maintain consistent internal temperatures and energy efficiency. The door will stay open if opened beyond 90 degrees for convenient loading and unloading.
4.4 Food Pan Usage
The unit includes eight 1/6-size, 4-inch deep food pans for organized ingredient storage on the prep top. These pans are NSF-certified for food safety. The removable polyethylene cutting board provides a hygienic workspace.
Image 4.3: Details of the removable cutting board for easy cleaning and replacement, and a rubber cushion block for heat dissipation.
5. Maintenance
Regular maintenance ensures the longevity and efficient operation of your refrigerator.
5.1 Cleaning
- Exterior: Clean the stainless steel exterior with a soft cloth and a non-abrasive cleaner. Avoid harsh chemicals that can damage the finish.
- Interior: The pre-coated aluminum interior and removable shelves should be cleaned regularly with mild soap and water.
- Cutting Board: The polyethylene cutting board is easily removable for thorough cleaning and sanitization.
- Gaskets: Inspect door gaskets regularly for tears and ensure they are clean to maintain a proper seal.
5.2 Auto Defrost
The unit features an automatic defrost system that activates once every four hours to prevent ice buildup and ensure consistent cooling performance.
5.3 Condenser Coil Cleaning
The condenser coils should be cleaned periodically (every 3-6 months, depending on usage) to maintain energy efficiency and prevent compressor strain. Disconnect power before cleaning. Use a brush or vacuum cleaner to remove dust and debris from the coils.
6. Troubleshooting
Before contacting service, check the following common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit not cooling | Power supply issue, thermostat set too high, condenser coils dirty, door not sealing properly. | Check power connection, adjust thermostat, clean condenser coils, inspect door gasket. |
| Excessive noise | Unit not level, fan obstruction, loose components. | Ensure unit is level, check for obstructions around fans, tighten any loose parts. |
| Water on floor | Drain pan overflowing, clogged drain line. | Empty drain pan, clear drain line obstruction. |
7. Specifications
| Feature | Detail |
|---|---|
| Model | TSSP29 |
| Product Dimensions (D x W x H) | 31.46"D x 28.94"W x 45.08"H |
| Capacity | 8 Cubic Feet |
| Temperature Range | 33-40°F (Digital Control) |
| Refrigerant | R-290 (Environmentally Friendly) |
| Compressor | Cubigel Compressor |
| Defrost System | Automatic Cycle Defrost |
| Exterior Material | Stainless Steel |
| Interior Material | Pre-coated Aluminum |
| Shelves | 1 Adjustable Epoxy-Coated Wire Shelf (155 lb. capacity) |
| Food Pans | 8 x 1/6-size, 4" deep (NSF-certified) |
| Mobility | 4 Heavy-duty 5" Casters (2 locking) |
| Certifications | ETL-Sanitation, DOE Compliant |
Image 7.1: Illustration of the Cubigel Compressor, High Quality Fan, and Carel Temperature Controller, key reliable components.
Image 7.2: Overview of green refrigeration technology, highlighting R290 refrigerant, ETL/DOE compliance, higher efficiency, faster cooling, and better food preservation.
8. Warranty and Support
ORIKOOL provides comprehensive warranty and customer support for your product.
- Compressor Warranty: 5 years (tested for 100,000 cycles).
- Parts Warranty: 2 years on accessories.
- Customer Service: For any after-sales issues, technical questions, or support, please contact ORIKOOL customer service. Technical questions are addressed within 24 hours, and technicians can fix issues within 72 hours for commercial addresses nationwide.
Image 8.1: Information regarding ORIKOOL's customer service, including response times for shipping, after-sales, and technical support.
9. Product Overview Video
Video 9.1: An overview of the ORIKOOL Sandwich Prep Table Refrigerator, showcasing its features and functionality.
