Product Overview
The ORIKOOL 27"W Commercial Reach-In Upright Freezer is designed for commercial use, offering efficient and reliable frozen goods storage. It features low noise operation, energy-saving components, and a durable stainless steel construction. With 23 cubic feet of storage, 3 adjustable shelves, and LED lighting, it provides optimal visibility and organization. The unit includes automatic defrost and precise digital temperature control for consistent performance.

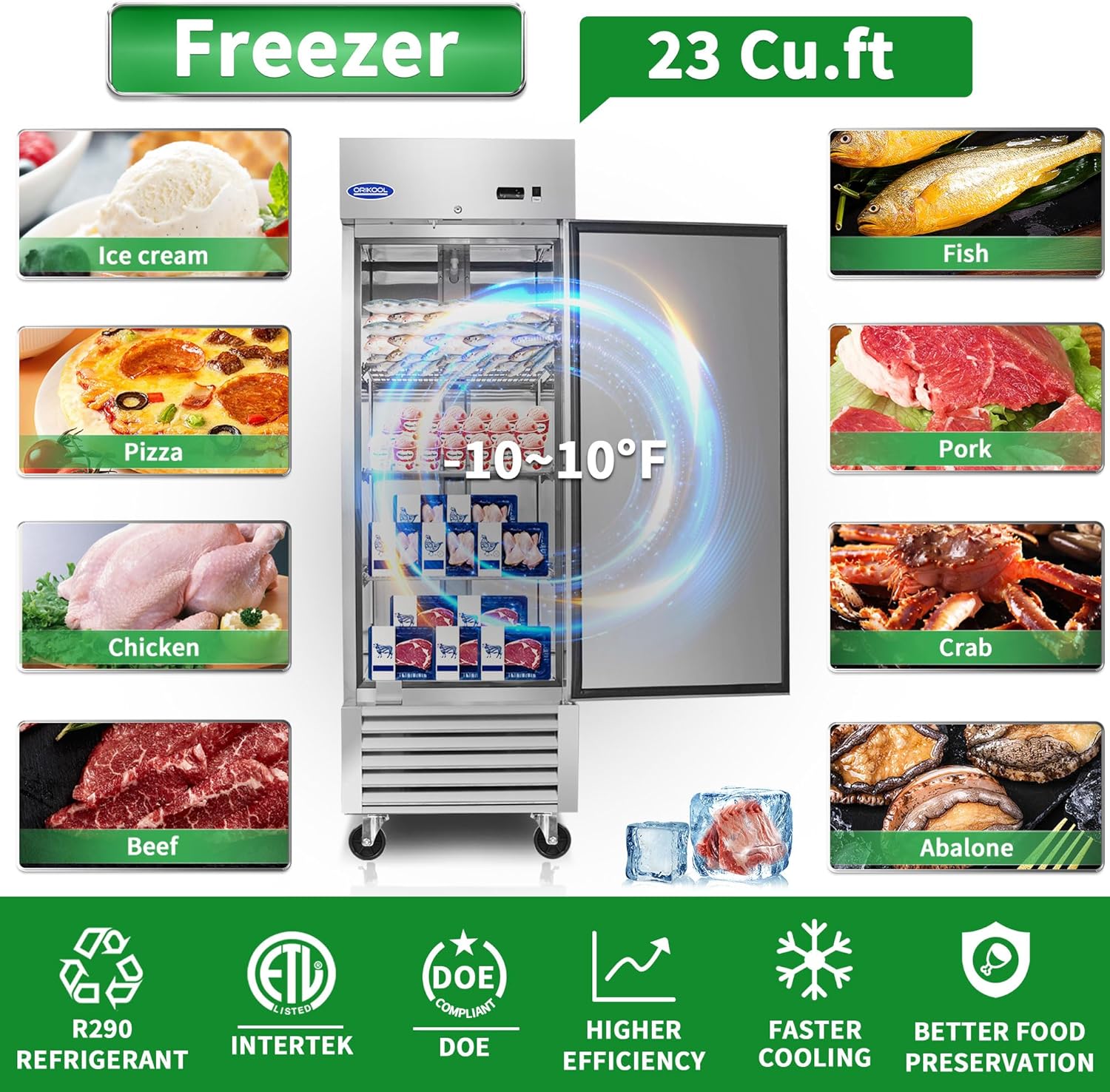

Figure 1: ORIKOOL 27"W Commercial Reach-In Upright Freezer.
Setup and Installation
This commercial freezer is designed for freestanding installation. Ensure the unit is placed on a level surface. The four 360° wheels, two of which are locking, allow for smooth relocation and secure positioning.
Dimensions and Space Requirements
The product dimensions are approximately 32.09 inches (D) x 27.01 inches (W) x 83.11 inches (H). Ensure adequate clearance around the unit for proper ventilation and door opening. The door can be opened by 227 degrees and auto-closes when angled below 90 degrees, providing flexible access in tight spaces.
Figure 2: Product dimensions and door swing clearance.
Electrical Connection
The freezer operates on 115 Volts with a wattage of 320 watts. It uses a NEMA 5-15P plug type. The electrical cord length is 120 inches. Ensure the electrical outlet meets the specified requirements and is properly grounded.
Operating Instructions
Temperature Control
The freezer is equipped with a digital thermostat from the CAREL brand, allowing for precise temperature control. The unit maintains a consistent temperature range of -10°F to 10°F with an accuracy of ±1°F. The digital display provides real-time temperature readings.
Automatic Defrost
The freezer features automatic defrost cycles at 8-hour intervals to prevent frost buildup. The heated stainless steel door frame also contributes to preventing water buildup and maintaining optimal performance.
Figure 3: Digital thermostat and heated door frame for automatic defrost.
Internal Organization and Lighting
The 23 cu.ft interior provides ample space with 3 adjustable shelves, each capable of holding up to 155 lbs. A top-mounted LED light strip ensures optimal visibility for inventory checks. The pre-coated aluminum interior with rounded corners facilitates easy cleaning and optimal space utilization.
Figure 4: Interior features including LED lighting, adjustable shelves, and security lock.
Maintenance
Cleaning the Condenser Coils
Regular cleaning of the condenser coils is crucial for maintaining energy efficiency and extending the lifespan of your freezer. Dust and debris can accumulate on the coils, reducing cooling efficiency. It is recommended to clean the coils periodically.
- Unplug the freezer from the power outlet.
- Locate and remove the front grill at the bottom of the unit. This typically involves unscrewing a few fasteners.
- Using a brush, gently clean the coils to remove accumulated dust.
- For thorough cleaning, use a vacuum cleaner with a crevice attachment. Ensure to follow the fin direction when cleaning to avoid damage.
- Once clean, reinstall the grill and secure it with the fasteners.
- Plug the freezer back into the power outlet.
Video 1: Instructions for cleaning the condenser coils of the freezer. This process helps reduce energy costs and prolong the appliance's life.
Interior Cleaning
The pre-coated aluminum interior with rounded corners is designed for easy cleaning. Use a mild detergent and a soft cloth to wipe down surfaces. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
Figure 5: Comparison of pre-coated aluminum interior (ours) vs. plastic interior (others), highlighting durability and ease of cleaning.
Troubleshooting
For common operational issues or unexpected behavior, please refer to the troubleshooting section in the comprehensive user manual available on the manufacturer's website. If the issue persists or for complex problems, contact customer support for assistance.
Specifications
| Feature | Detail |
|---|---|
| Brand Name | ORIKOOL |
| Model Info | ST27BF |
| Item Weight | 221 pounds |
| Product Dimensions (D x W x H) | 32.09 x 27.01 x 83.11 inches |
| Installation Type | Freestanding |
| Form Factor | Freestanding |
| Special Features | Lockable, Wheels |
| Color | 27"W 23 Cu.ft 1 Door |
| Voltage | 115 Volts |
| Wattage | 320 watts |
| Door Hinges | Right |
| Door Material Type | Stainless Steel |
| Shelves | 3 |
| Certification | ETL |
| Included Components | Inlaid handle |
| Temperature Range | -10°F to 10°F |
| Defrosting | Automatic every 8 hours |
| Capacity | 23 Cu.ft |
Figure 6: Technical data for the freezer, including capacity and temperature range.
Warranty and Support
The ORIKOOL Commercial Reach-In Upright Freezer comes with a 5-year compressor warranty and 2-year full coverage on all other components. For technical assistance or warranty claims, 24/7 technical support is available from US-based warehouses.
The unit also features a dual-key security lock system (2 physical keys included) for restricted access, ensuring the safety of stored contents.
