DEWALT DXV06PL 6 Gallon 4HP Poly Wet Dry Vacuum Instruction Manual

Introduction

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your DEWALT DXV06PL 6 Gallon 4HP Poly Wet Dry Vacuum. Please read all instructions carefully before use to ensure optimal performance and safety.

Important Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury. Keep this manual for future reference.

• Do not leave the appliance unattended when plugged in. Unplug from outlet when not in use and before servicing.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not use without dust bag and/or filters in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.

What's Included

The DEWALT DXV06PL wet/dry vacuum comes with several components to facilitate various cleaning tasks. Refer to the image below for a visual guide to the included items.

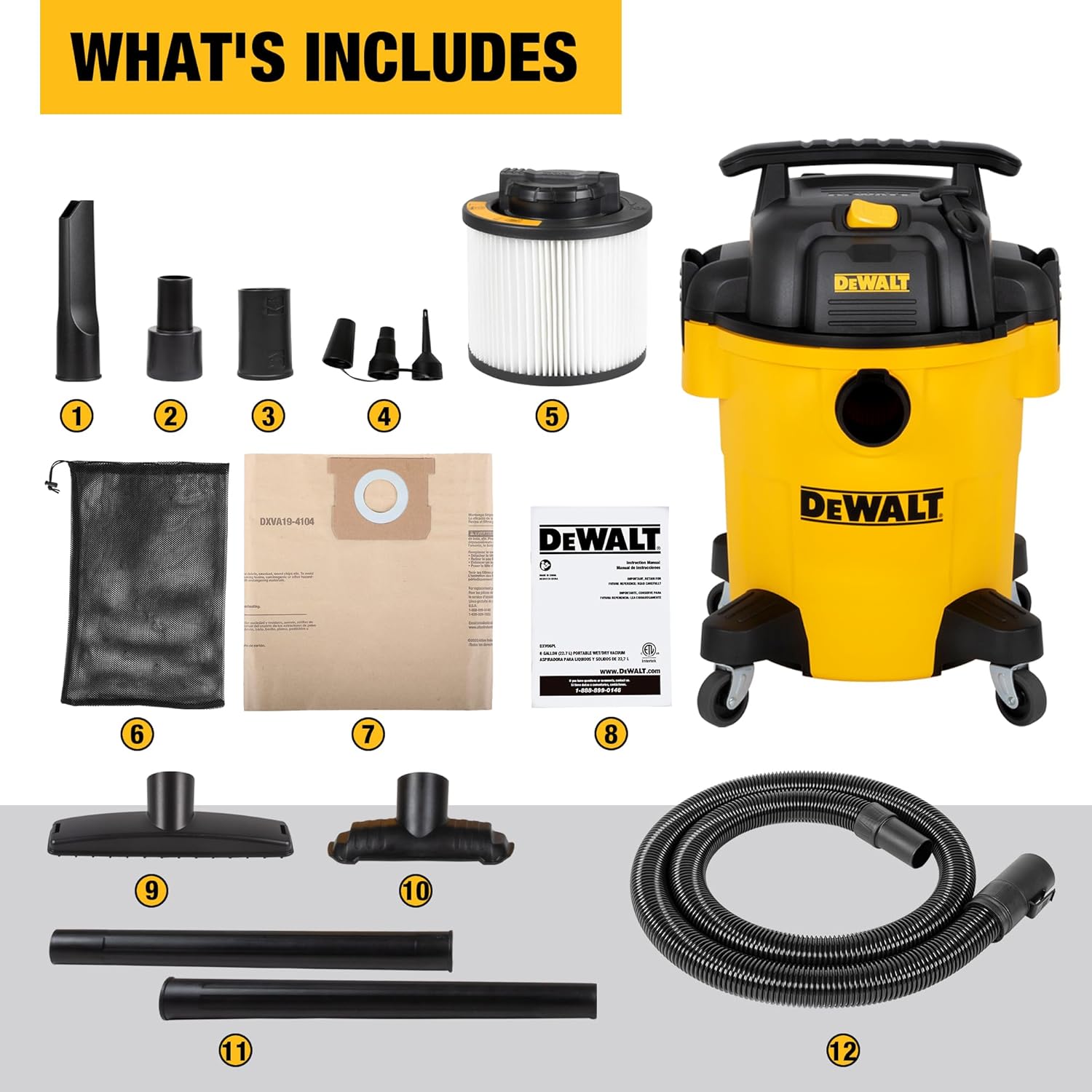

Image Description: This image displays the complete contents of the DEWALT DXV06PL wet/dry vacuum package. It includes the main vacuum unit, a cartridge filter, a disposable dust bag, an instruction manual, a crevice tool, a utility nozzle, extension wands, and a flexible hose. Also shown are various adapters and an inflation kit.

• Crevice Tool
• Utility Nozzle
• Inflation Kit (various nozzles)
• Cartridge Filter
• Disposable Dust Bag
• Accessory Storage Bag
• Instruction Manual
• Flexible Hose (1-7/8" x 7')
• Extension Wands

Assembly and Setup

Before first use, ensure all components are present and properly assembled. The vacuum features a quick-connect locking vacuum port and heavy-duty swiveling casters for easy maneuverability.

Image Description: This image shows the front and back views of the DEWALT DXV06PL wet/dry vacuum, highlighting its compact dimensions. The unit is approximately 22.13 inches high, 15.02 inches wide (front), and 14.49 inches deep (back).

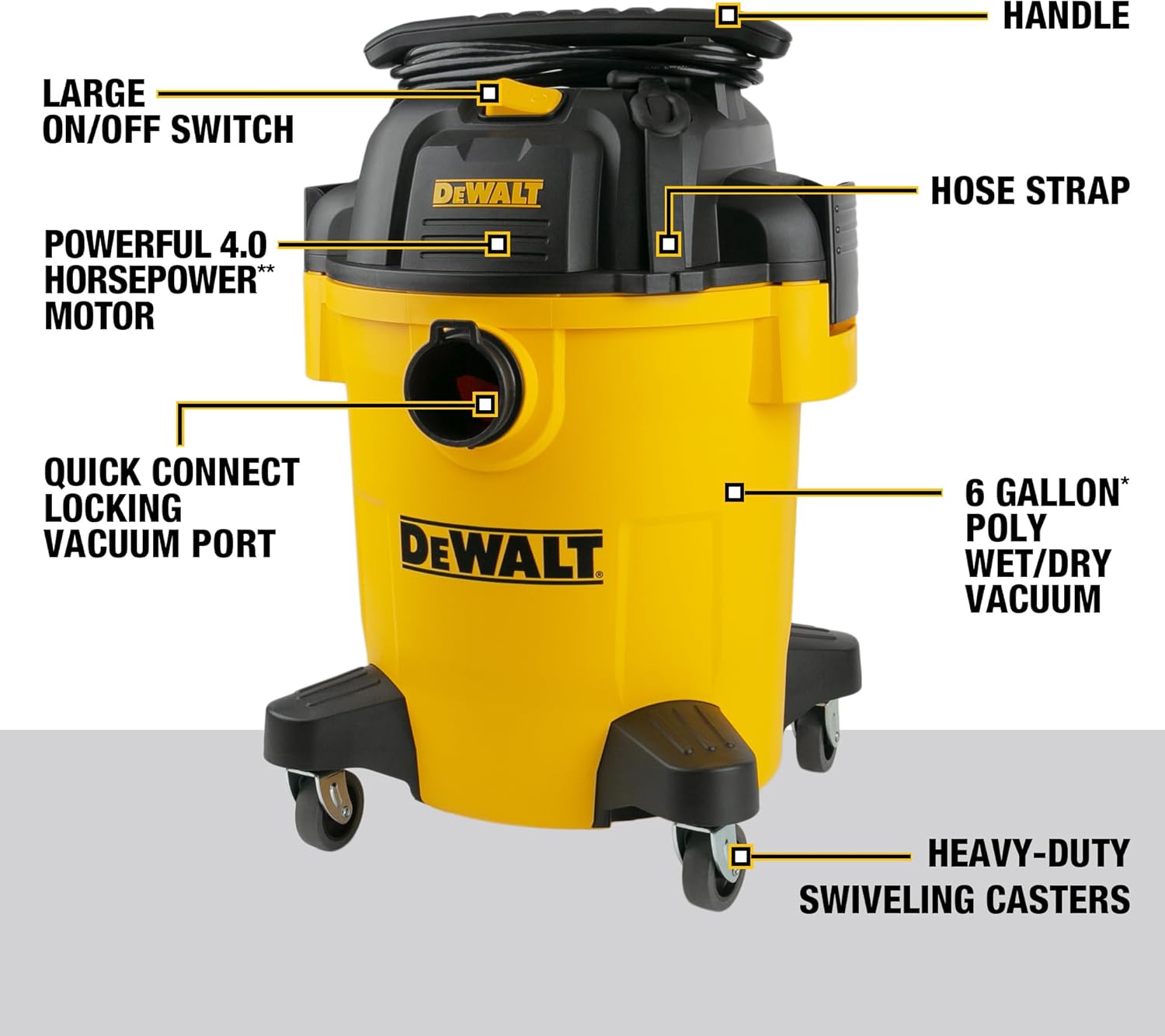

Image Description: This image provides a detailed view of the DEWALT DXV06PL wet/dry vacuum with key features labeled. These include the handle, large on/off switch, hose strap, powerful 4.0 horsepower motor, quick connect locking vacuum port, 6-gallon poly wet/dry vacuum tank, and heavy-duty swiveling casters.

Caster Installation:

1. Invert the vacuum tank.
2. Insert the caster stems into the designated holes on the bottom of the tank.
3. Push firmly until the casters click securely into place.

Hose and Accessory Connection:

1. Attach the flexible hose to the quick-connect locking vacuum port on the front of the unit for vacuuming, or to the rear port for blowing functions.
2. Securely attach desired accessories (crevice tool, utility nozzle, extension wands) to the end of the hose.
3. Ensure the cartridge filter is properly installed inside the vacuum for dry pickup. For wet pickup, the filter should be removed or replaced with a foam filter (sold separately).

Operating Instructions

The DEWALT DXV06PL offers versatile functionality for wet, dry, and blowing applications, along with an inflation kit.

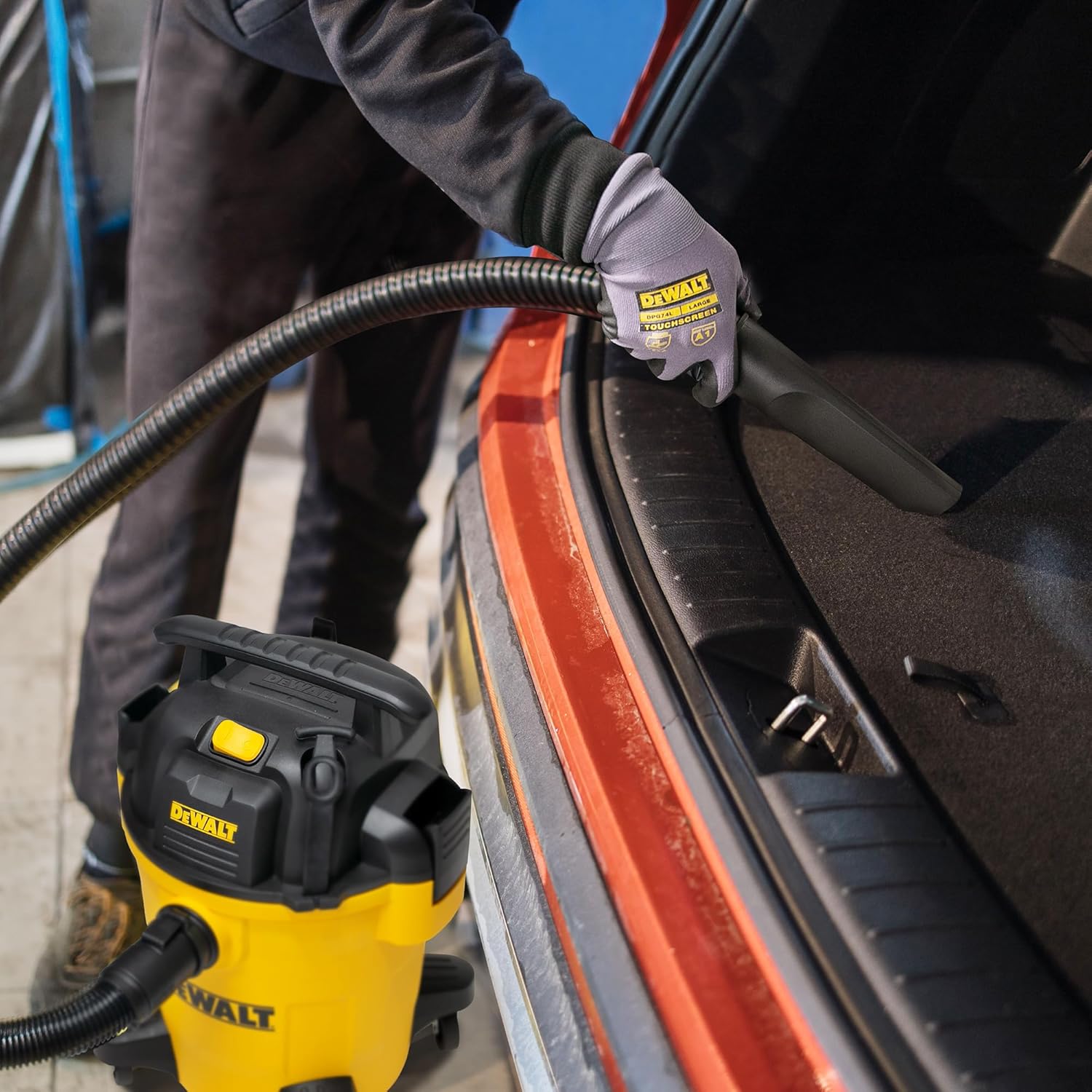

Image Description: A person is shown using the DEWALT DXV06PL wet/dry vacuum with a crevice tool to clean the interior of a car trunk, demonstrating its utility for automotive detailing.

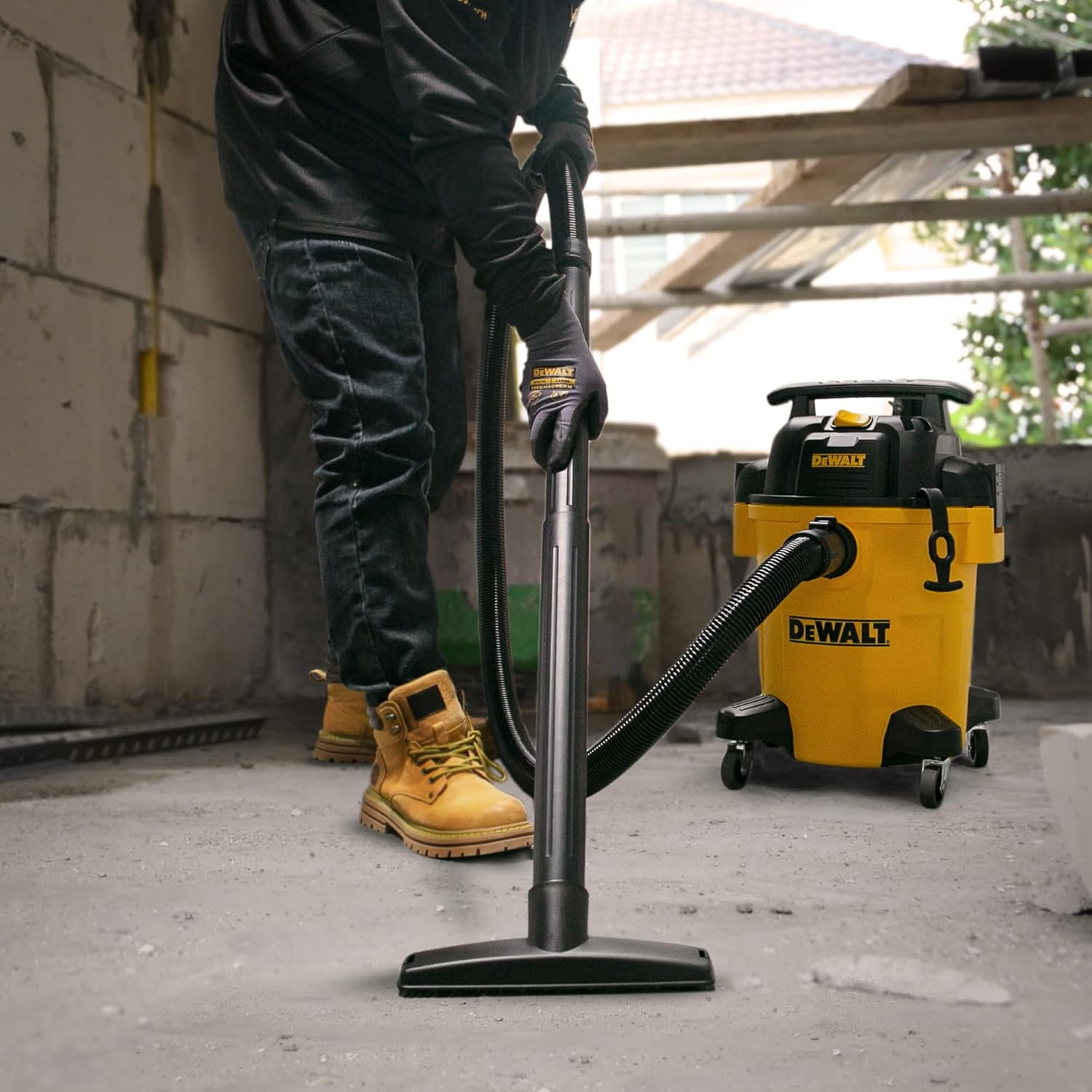

Image Description: This image shows a person using the DEWALT DXV06PL wet/dry vacuum with an extension wand and floor nozzle to clean a concrete floor in a workshop or construction environment.

Dry Vacuuming:

• Ensure the cartridge filter is clean and properly installed.
• For fine dust, consider using a disposable dust bag in conjunction with the filter for improved filtration and easier disposal.
• Connect the hose to the front vacuum port.
• Plug the vacuum into a suitable power outlet.
• Turn the large on/off switch to the "ON" position.
• Begin vacuuming dry debris such as wood chips, dust, and general workshop debris.

Wet Vacuuming:

• Remove the cartridge filter before wet vacuuming. Using the cartridge filter for wet pickup can damage it.
• An optional foam filter (sold separately) can be used for wet pickup to protect the motor.
• Connect the hose to the front vacuum port.
• Plug the vacuum into a suitable power outlet.
• Turn the large on/off switch to the "ON" position.
• Vacuum liquid spills. The vacuum has a float mechanism that will shut off suction when the tank is full to prevent overflow.
• Once the tank is full, turn off the vacuum, unplug it, and empty the tank.

Blowing Function:

• Connect the hose to the rear blowing port of the vacuum.
• Ensure the tank is empty and clean for optimal airflow.
• Plug the vacuum into a suitable power outlet.
• Turn the large on/off switch to the "ON" position.
• Use the blowing function to clear debris from workshops, garages, or outdoor areas.

Inflation Kit Use:

• Attach the hose to the rear blowing port.
• Select the appropriate inflation nozzle from the included kit.
• Attach the nozzle to the end of the hose.
• Turn on the vacuum and use it to inflate items such as tires, air mattresses, or inflatable toys.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your DEWALT wet/dry vacuum.

Filter Maintenance:

Image Description: A person is shown removing the cartridge filter from the top section of the DEWALT DXV06PL wet/dry vacuum, demonstrating the filter access for cleaning or replacement.

• Cartridge Filter: For dry pickup, the cartridge filter should be cleaned regularly. Tap off loose debris, or rinse with water. Allow the filter to air dry completely before reinstallation. Do not use the cartridge filter for wet pickup.
• Foam Filter (Optional, for wet pickup): If using a foam filter for wet pickup, rinse it with water after use and allow it to air dry completely before storage or next use.
• Disposable Dust Bag: Replace the disposable dust bag when it is full or when suction power decreases significantly.

Tank Cleaning:

• After wet vacuuming, empty the tank and rinse it thoroughly with water to remove any residue.
• Allow the tank to air dry completely before storing to prevent mold or mildew growth.

General Cleaning:

• Wipe down the exterior of the vacuum with a damp cloth.
• Inspect the hose and accessories for blockages or damage. Clear any obstructions.
• Store the power cord neatly using the integrated cord wrap.

Troubleshooting

This section addresses common issues you might encounter with your DEWALT wet/dry vacuum.

If the problem persists after attempting these solutions, please contact DEWALT customer support for assistance.

Specifications

Warranty and Support

For detailed warranty information, product registration, or technical support, please refer to the official DEWALT website or contact their customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.

Official DEWALT Website: www.dewalt.com
