1. Introduction
Thank you for choosing the EMKE F18 Kitchen Faucet. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new kitchen faucet. Please read these instructions carefully before installation and retain them for future reference. Proper installation and care will ensure optimal performance and longevity of your faucet.
2. Product Features
The EMKE F18 Kitchen Faucet is designed with advanced features for convenience and efficiency:

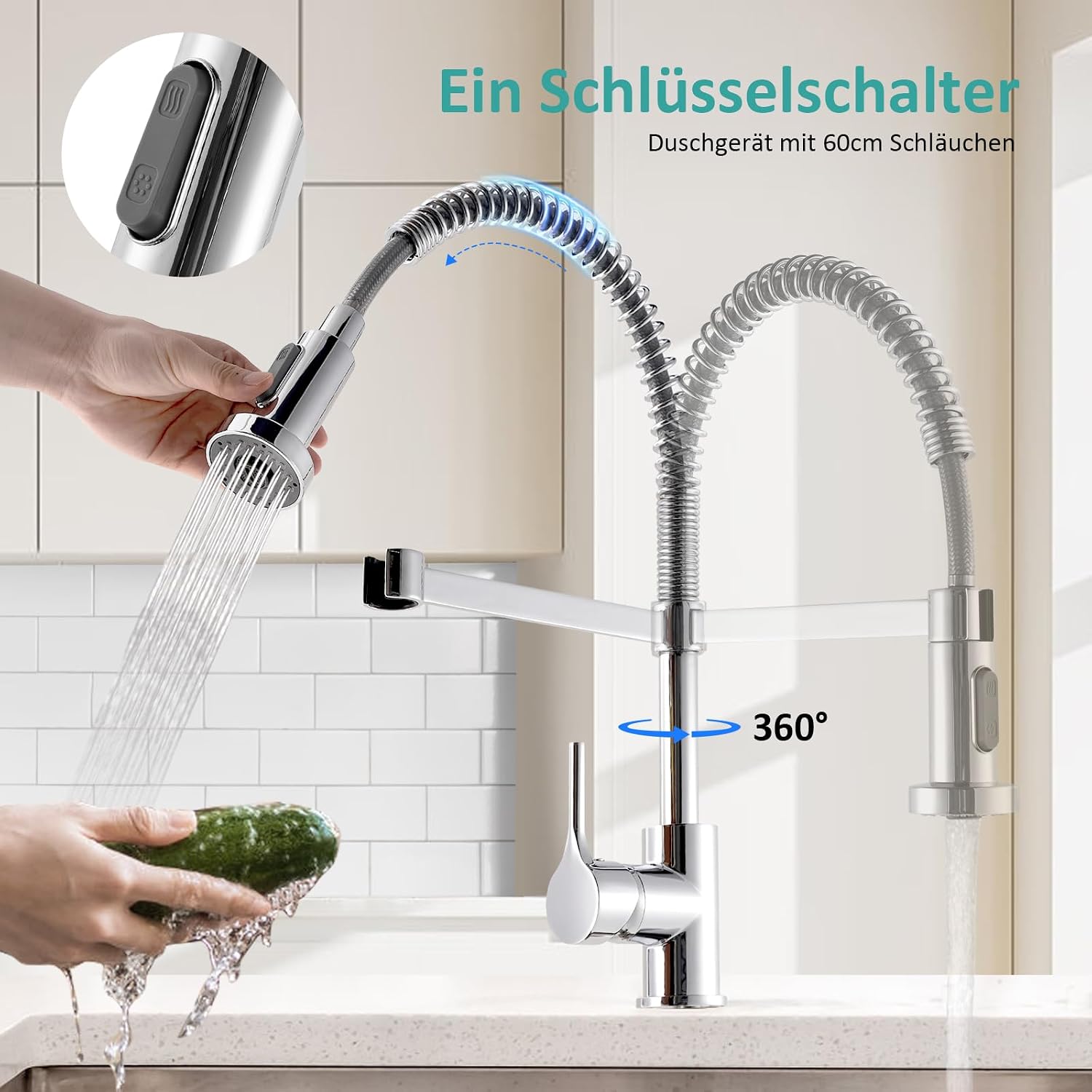

- Pull-Down Spray Head: Features an extendable hose for increased reach and flexibility, making cleaning and rinsing tasks easier.
- Dual Spray Modes: Easily switch between a steady stream and a powerful spray mode using a button on the spray head.
- 360° Rotation: The faucet spout can rotate a full 360 degrees, providing maximum flexibility for various sink configurations and tasks.
- Single-Lever Control: A single lever allows for precise control over both water flow and temperature.
- NEOPERL Technology: Integrated NEOPERL aerator ensures a soft, even water flow and contributes to efficient water usage.
- Durable Construction: Made from high-quality materials including stainless steel, zinc alloy, and a copper core for long-lasting performance.
- KTW Certified: Meets high-quality standards for water safety and health.
3. Specifications
| Feature | Detail |
|---|---|
| Brand | EMKE |
| Model Name | F18 Kitchen Faucet |
| Material | Stainless Steel, Zinc Alloy, Copper Core |
| Finish Type | Chrome |
| Number of Handles | 1 |
| Installation Type | Single Hole |
| Special Features | 360° Swivel, Pull-Down Spray, Dual Spray Modes |
| Spout Design | Swivel/Pull-Down |
| Recommended Use | Kitchen |
| Certifications | KTW Certified |
4. Setup and Installation
Before beginning installation, ensure you have all necessary components and tools. It is recommended to have a qualified plumber perform the installation if you are unsure.
4.1 Included Components
Verify that all parts listed below and shown in Figure 6 are present:
- Faucet Body
- O-Ring
- Spool
- Rubber Ring
- Fixed Seal
- 2x Connection Hoses
4.2 Installation Process
Follow these steps for proper installation:
- Prepare the Mounting Hole: Ensure your sink or countertop has a single mounting hole with a diameter of approximately Ø35mm.
- Insert Faucet Body: Place the faucet body into the mounting hole. Ensure the O-ring is correctly seated at the base of the faucet to create a watertight seal.
- Secure Faucet from Below: From underneath the sink, slide the rubber ring and fixed seal onto the threaded shaft of the faucet. Secure the faucet using the provided mounting nut, tightening it firmly but without over-tightening.
- Connect Water Hoses: Attach the two flexible connection hoses to the corresponding hot and cold water supply lines. Ensure all connections are hand-tightened first, then use a wrench for a final snug fit. Do not over-tighten.
- Test for Leaks: Turn on the main water supply and check all connections for any leaks. If leaks are detected, gently tighten the connections further.
5. Operating Instructions
Operating your EMKE F18 Kitchen Faucet is straightforward:
- Water Flow and Temperature Control: Use the single lever handle. Moving the lever up increases water flow, and moving it down decreases it. Pushing the lever to the left provides hot water, while pushing it to the right provides cold water.
- Switching Spray Modes: On the pull-down spray head, locate the button. Press this button to toggle between the steady stream mode and the powerful spray mode.
- Using the Pull-Down Spray: Gently pull the spray head downwards to extend the hose. After use, guide the spray head back into its docking position.
- 360° Rotation: The entire faucet spout can be rotated horizontally to direct water flow to different areas of your sink or to move it out of the way when not in use.
6. Maintenance
Regular maintenance will help preserve the appearance and functionality of your EMKE F18 Kitchen Faucet.
- Cleaning the Finish: To maintain the chrome finish, clean regularly with a soft cloth and mild soap or a non-abrasive cleaner specifically designed for chrome. Avoid using abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the finish.
- Cleaning the Spray Head: Periodically remove the spray head and clean the rubber nozzles to prevent mineral buildup. You can gently rub the nozzles with your fingers or use a soft brush.
- Aerator Maintenance: If water flow becomes restricted, the NEOPERL aerator may need cleaning. Unscrew the aerator from the tip of the spray head, rinse any debris, and reassemble.
- Hose Maintenance: Ensure the pull-down hose moves freely and is not kinked or obstructed under the sink.
7. Troubleshooting
If you encounter issues with your faucet, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Pressure | Clogged aerator; partially closed shut-off valves; debris in water lines. | Clean the aerator (see Maintenance section). Ensure shut-off valves under the sink are fully open. Flush water lines. |
| Leaks from Faucet Base | Loose mounting nut; improperly seated O-ring or seals. | Tighten the mounting nut under the sink. Check and reseat the O-ring and seals. |
| Leaks from Spray Head | Damaged spray head or internal components. | Contact customer support for a replacement spray head. |
| Stiff Lever Operation | Mineral buildup in the cartridge. | Contact customer support for guidance on cartridge maintenance or replacement. |
| Spray Head Does Not Retract Fully | Weight under sink is dislodged or hose is obstructed. | Check that the counterweight on the hose under the sink is properly positioned and that the hose is not obstructed. |
If these solutions do not resolve the issue, please contact EMKE customer support for further assistance.
8. Warranty and Support
Your EMKE F18 Kitchen Faucet is manufactured to high-quality standards and is KTW certified, ensuring reliability and safety. For specific warranty details, please refer to the documentation provided at the time of purchase or visit the official EMKE website.
For technical support, replacement parts, or any questions not covered in this manual, please contact EMKE customer service through their official channels.
