INGCO Gasoline Lawn Mower 46cm GLM141181 User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your INGCO GLM141181 Gasoline Lawn Mower. Please read this manual thoroughly before assembly, operation, or maintenance to ensure proper use and to prevent injury or damage.

2. Safety Instructions

Always prioritize safety when operating power equipment. Failure to follow these instructions may result in serious injury or death.

• Personal Protective Equipment: Always wear appropriate safety gear, including eye protection, hearing protection, sturdy footwear, and long pants. Do not operate the mower barefoot or in open-toed shoes.
• Fuel Handling: Gasoline is highly flammable. Refuel outdoors in a well-ventilated area with the engine off and cool. Do not smoke or allow open flames near the fuel. Store gasoline in approved containers.
• Operation Environment: Clear the mowing area of debris such as rocks, sticks, and wires before starting. Keep bystanders, children, and pets at a safe distance (at least 15 meters) from the operating mower.
• Slope Operation: Exercise extreme caution when mowing on slopes. Mow across the face of slopes, never up and down. Avoid mowing excessively steep slopes.
• Blade Safety: The mower blade is sharp and rotates at high speed. Never place hands or feet near the rotating blade. Disconnect the spark plug wire before performing any maintenance or clearing blockages.
• Engine Operation: Do not operate the engine in an enclosed space where dangerous carbon monoxide fumes can accumulate.

3. Components and Features

The INGCO GLM141181 is a robust gasoline-powered lawn mower designed for efficient grass cutting. Key components include:

• Engine: Powerful gasoline engine for reliable performance.
• Cutting Deck: Durable metal deck housing the cutting blade.
• Wheels: Sturdy wheels for easy maneuverability.
• Handlebar: Ergonomic handle for comfortable operation.
• Fuel Tank: Reservoir for gasoline.
• Blade: High-quality cutting blade.
• Cutting Height Adjustment: Mechanism to adjust the mowing height.

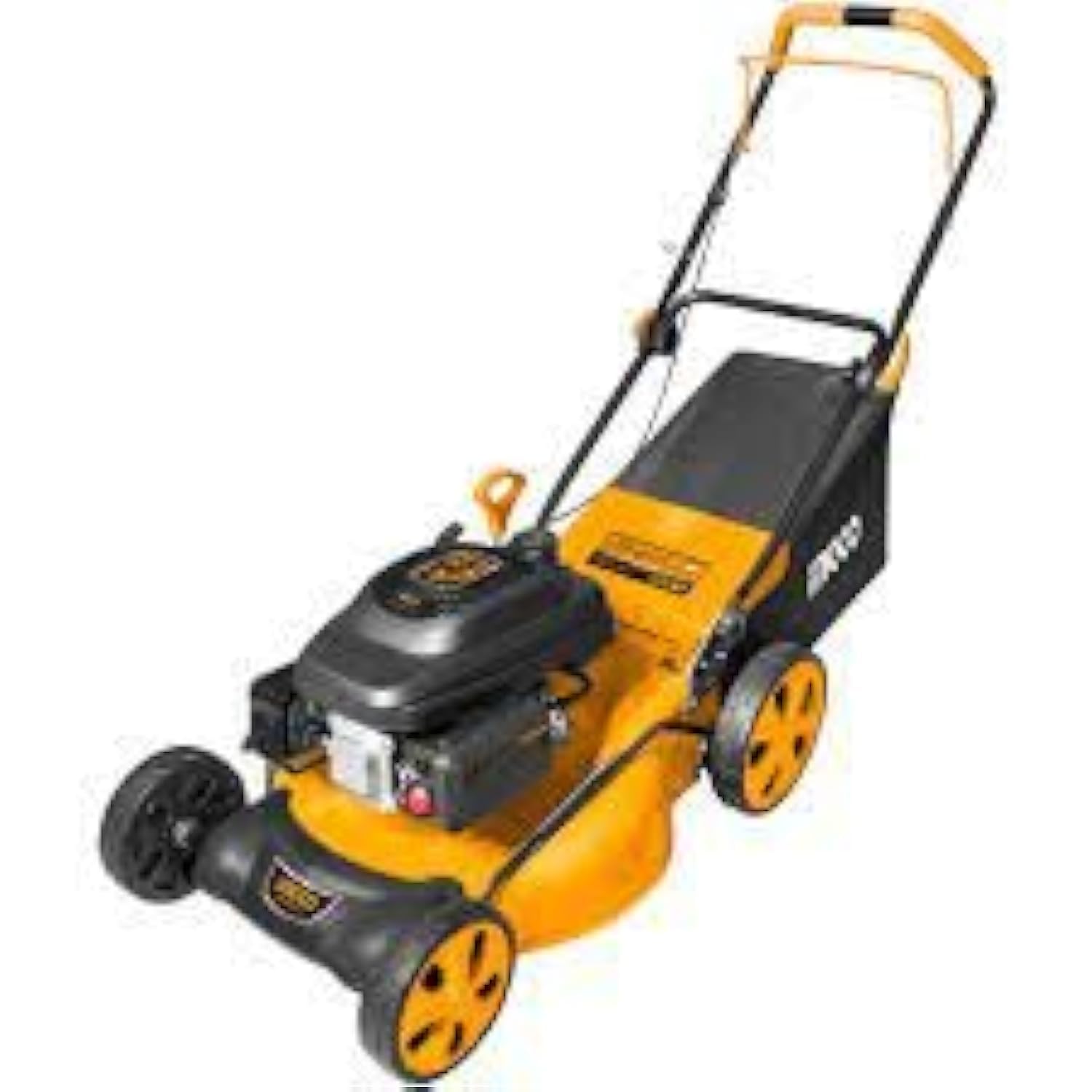

Figure 1: INGCO GLM141181 Gasoline Lawn Mower. This image shows the complete lawn mower, highlighting its yellow and black design, engine housing, cutting deck, and wheels.

4. Setup

Follow these steps to prepare your lawn mower for first use.

1. Unpacking: Carefully remove all components from the packaging. Check for any damage during shipping.
2. Handle Assembly: Attach the handlebar to the mower body using the provided bolts and knobs. Ensure all connections are secure.
3. Add Engine Oil: Before starting, fill the engine with the recommended type and amount of engine oil. Refer to the engine manual for specific oil requirements and capacity. Do not overfill.
4. Add Fuel: Fill the fuel tank with fresh, unleaded gasoline. Do not use E85 or other alternative fuels. Ensure the fuel cap is securely tightened after refueling.
5. Blade Check: Verify that the cutting blade is securely attached and free from damage. If necessary, tighten the blade bolt.
6. Adjust Cutting Height: Set the desired cutting height using the height adjustment lever(s) on the wheels or deck. Ensure all wheels are set to the same height for an even cut.

5. Operating Instructions

Proper operation ensures efficient mowing and extends the life of your equipment.

1. Pre-Operation Checks:
   • Check engine oil level.
   • Ensure fuel tank is adequately filled.
   • Inspect the cutting area for debris.
   • Verify all guards and safety devices are in place and functional.
2. Starting the Engine:
   • Move the throttle lever to the 'CHOKE' position (if applicable).
   • Press the primer bulb 3-5 times (if equipped).
   • Pull the starter rope firmly until the engine starts.
   • Once started, gradually move the throttle to the 'RUN' position.
3. Mowing:
   • Push the mower at a steady pace. For self-propelled models (Automatic operation mode), engage the drive lever.
   • Overlap cutting swaths slightly to ensure an even cut.
   • Avoid cutting wet grass, as it can clog the mower and be slippery.
4. Stopping the Engine:
   • Release the engine control bar (bail lever) on the handlebar. The engine should stop automatically.
   • If the engine does not stop, move the throttle to the 'STOP' position.

6. Maintenance

Regular maintenance is crucial for the longevity and performance of your lawn mower. Always disconnect the spark plug wire before performing any maintenance.

• Cleaning: After each use, clean the underside of the cutting deck to prevent grass buildup. Use a stiff brush or scraper.
• Blade Care: Inspect the blade regularly for sharpness and damage. Sharpen or replace the blade as needed. A dull blade tears grass, leading to an unhealthy lawn.
• Spark Plug: Check the spark plug annually. Clean or replace it if it's fouled or worn.
• Air Filter: Clean the air filter regularly, especially in dusty conditions. A clogged air filter reduces engine performance. Replace if damaged.
• Oil Change: Change the engine oil after the first 5 hours of operation, then every 25-50 hours or annually, whichever comes first.
• Fuel System: At the end of the mowing season, drain the fuel tank or add a fuel stabilizer to prevent fuel degradation.
• Storage: Store the mower in a clean, dry area, away from direct sunlight and extreme temperatures.

7. Troubleshooting

Refer to this section for common issues and their solutions.

8. Specifications

Technical details for the INGCO GLM141181 Gasoline Lawn Mower.

• Model: GLM141181
• Brand: INGCO
• Power Source: Gasoline-powered
• Material: Metal
• Color: Yellow
• Item Weight: 25.8 kg
• Cutting Width: 46 cm (18 inches)
• Operation Mode: Automatic (Self-propelled)
• Wheel Size: 25.4 cm
• Included Components: Mower body
• Shipping Dimensions: 75.5 x 54 x 41 cm

9. Warranty and Support

For warranty information or technical support, please refer to the documentation provided with your purchase or contact your authorized INGCO dealer or customer service. Keep your proof of purchase for warranty claims.
