Defender Enjoy S200 Portable Bluetooth Speaker User Manual

1. Introduction

Thank you for choosing the Defender Enjoy S200 Portable Bluetooth Speaker. This manual provides essential information for setting up, operating, and maintaining your speaker to ensure optimal performance and longevity. Please read this manual thoroughly before use.

The Defender Enjoy S200 is a versatile portable speaker featuring Bluetooth 5.3 connectivity, True Wireless Stereo (TWS) pairing, an integrated FM radio, and MP3 playback capabilities via USB flash drive or microSD card. It also includes an LED light and supports hands-free calling. Designed for portability, it offers up to 9 hours of playback on a single charge and convenient USB Type-C charging.

2. Product Overview

2.1 Key Features

• Bluetooth 5.3: For stable and efficient wireless audio streaming.
• True Wireless Stereo (TWS): Connect two Enjoy S200 speakers for a stereo sound experience.
• Multiple Playback Modes: Bluetooth, FM Radio, USB Flash Drive, MicroSD Card (up to 32GB).
• Integrated LED Light: Provides visual ambiance.
• Hands-Free Calling: Built-in microphone for phone calls.
• Long Battery Life: Up to 9 hours of continuous music playback.
• USB Type-C Charging: Modern and convenient charging port.
• Portable Design: Compact and lightweight with a carrying strap.

2.2 Package Contents

• Defender Enjoy S200 Portable Bluetooth Speaker
• Type-C Charging Cable
• Quick Start Guide
• Carrying Strap

Image: The Defender Enjoy S200 Portable Bluetooth Speaker, showcasing its compact design and front grille with an illuminated LED ring.

Image: An infographic highlighting key features such as multi-colored LED lighting, True Wireless Stereo (TWS) pairing, Bluetooth 5.3, MP3 player, FM receiver, and hands-free calling.

3. Setup

3.1 Charging the Speaker

1. Locate the Type-C charging port on the back of the speaker.
2. Connect the provided Type-C charging cable to the speaker and the other end to a USB power adapter (not included) or a computer's USB port.
3. The LED indicator will show charging status. A full charge typically takes approximately 3-4 hours.
4. Disconnect the cable once fully charged.

3.2 Powering On/Off

• To power on, slide the ON/OFF switch located on the back of the speaker to the 'ON' position.
• To power off, slide the ON/OFF switch to the 'OFF' position.

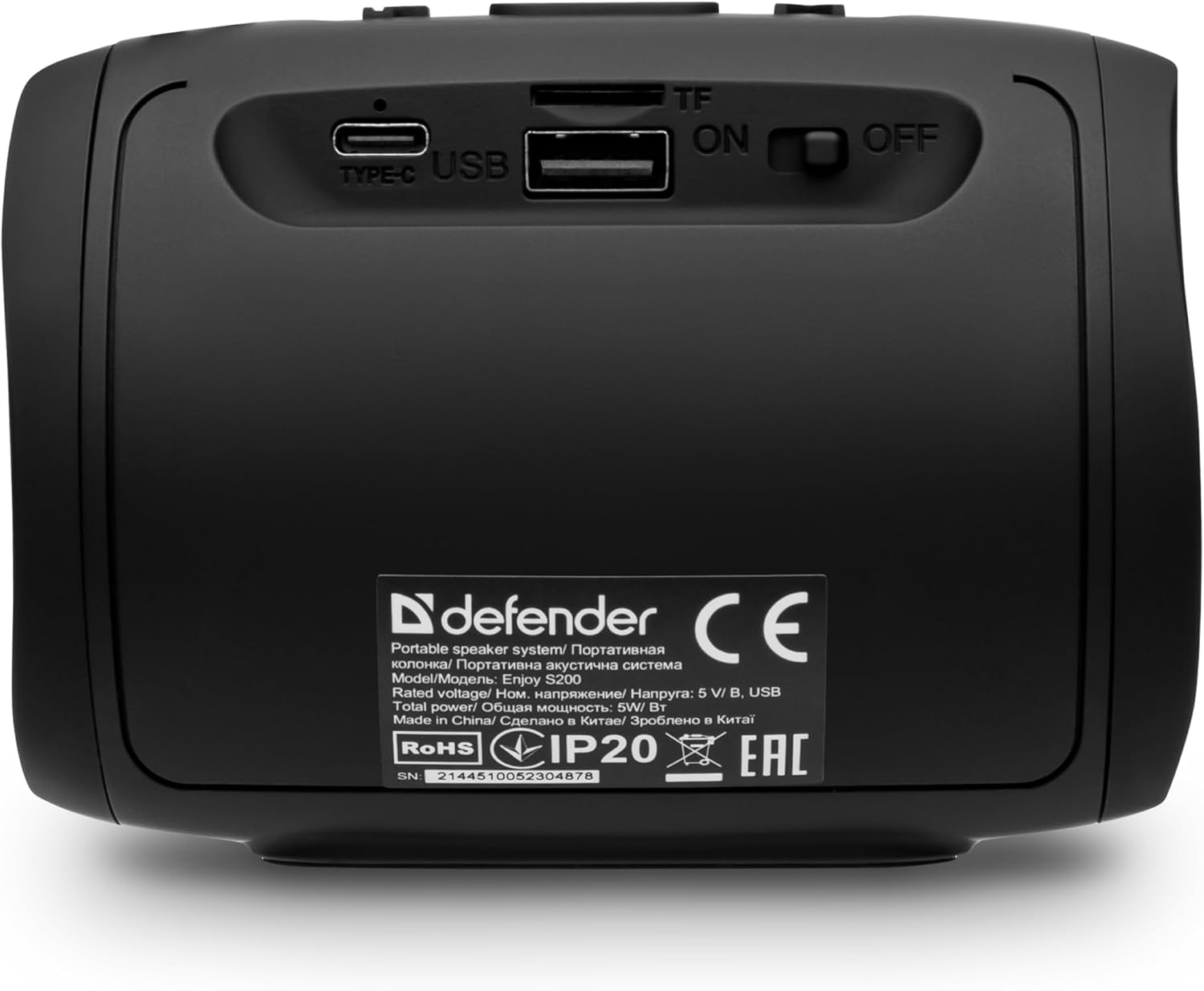

Image: Rear view of the Defender Enjoy S200 speaker, showing the Type-C charging port, USB port, TF (microSD) card slot, and the ON/OFF power switch.

3.3 Bluetooth Pairing

1. Ensure the speaker is powered on and in Bluetooth pairing mode (indicated by a flashing LED).
2. On your device (smartphone, tablet, etc.), enable Bluetooth and search for available devices.
3. Select "Defender Enjoy S200" from the list of devices.
4. Once paired, the speaker will emit a confirmation sound, and the LED will stop flashing.

3.4 True Wireless Stereo (TWS) Pairing

To pair two Defender Enjoy S200 speakers for stereo sound:

1. Ensure both speakers are powered on and not connected to any Bluetooth device.
2. On one speaker (this will be the primary speaker), press and hold the TWS button (often indicated by a double-arrow icon) until you hear a pairing tone.
3. The two speakers will automatically search and connect to each other. A confirmation tone will sound once connected.
4. Now, connect your device to the primary speaker via Bluetooth as described in section 3.3. Audio will play in stereo through both speakers.

Image: A visual representation of two Defender Enjoy S200 speakers pairing wirelessly to create a True Wireless Stereo system, alongside icons for Bluetooth 5.3, MP3 player, FM receiver, and hands-free calling.

4. Operating Instructions

4.1 Button Functions (Refer to top panel controls)

• Power Button: Long press to power on/off. Short press to play/pause in music mode, or answer/end calls.
• Volume Up (+): Short press to increase volume. Long press for next track/station.
• Volume Down (-): Short press to decrease volume. Long press for previous track/station.
• Mode (M) Button: Short press to switch between Bluetooth, FM Radio, USB, and MicroSD modes.
• LED Light Button: Short press to cycle through LED light modes or turn off the LED.

4.2 Bluetooth Playback

After successful Bluetooth pairing (Section 3.3), open your music application on your device and begin playback. Use the speaker's volume buttons or your device's volume controls to adjust the audio level.

4.3 FM Radio Mode

1. Press the 'M' (Mode) button until you hear the FM radio prompt.
2. Long press the Play/Pause button to automatically scan and save available FM stations.
3. Use the Volume Up (+) and Volume Down (-) buttons (long press) to navigate between saved stations.

4.4 USB/MicroSD Playback

1. Insert a USB flash drive or a microSD card (up to 32GB) containing MP3 audio files into the respective port on the back of the speaker.
2. Press the 'M' (Mode) button until the speaker automatically switches to USB or MicroSD mode and begins playback.
3. Use the speaker's control buttons for play/pause, next track, and previous track.

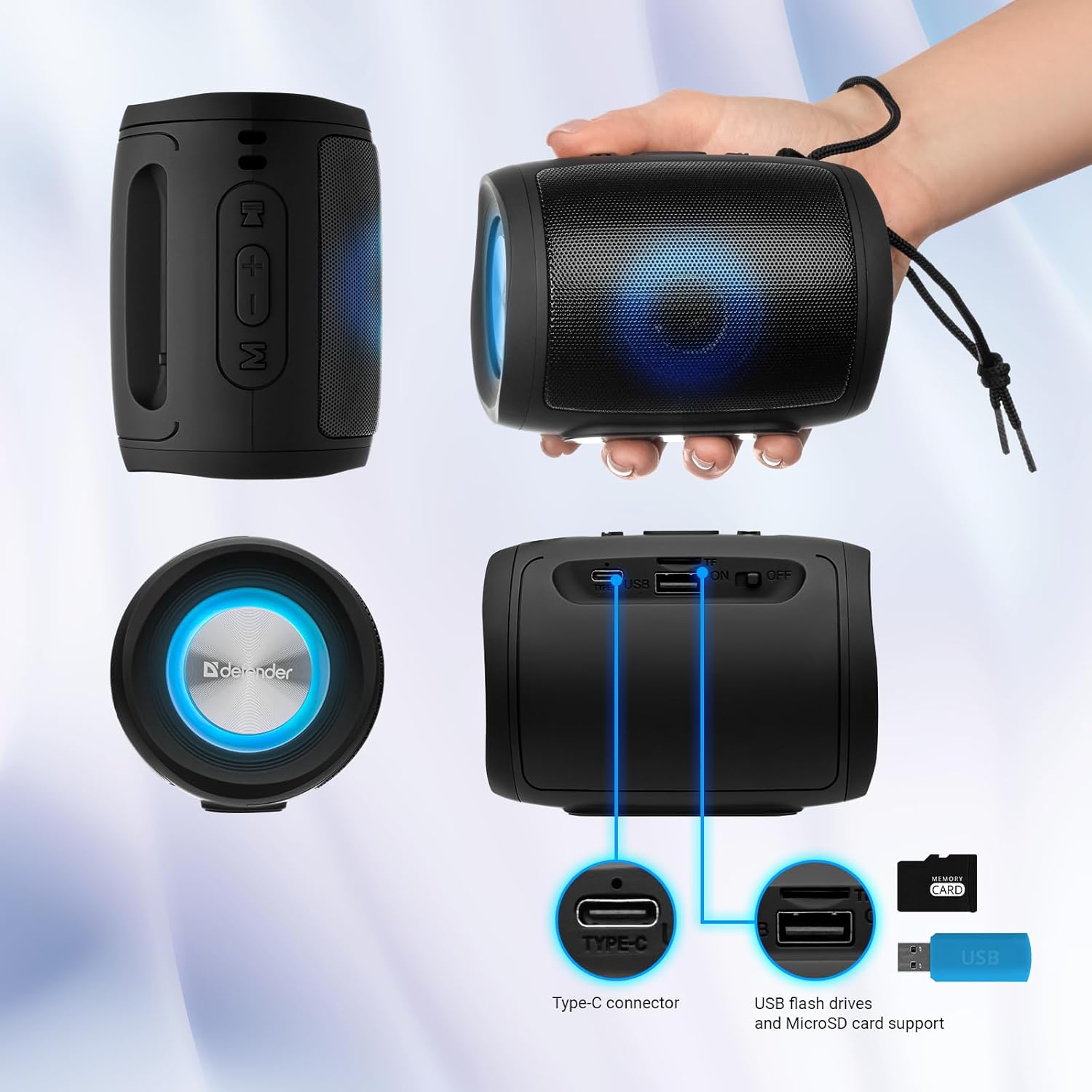

Image: A detailed diagram illustrating the Type-C connector, USB flash drive port, and MicroSD card slot on the Defender Enjoy S200 speaker.

4.5 Hands-Free Calling

When connected to your smartphone via Bluetooth, the speaker's built-in microphone allows for hands-free calls.

• Answer Call: Short press the Play/Pause button.
• End Call: Short press the Play/Pause button.
• Reject Call: Long press the Play/Pause button.

5. Maintenance

• Cleaning: Use a soft, dry cloth to clean the speaker's surface. Do not use abrasive cleaners or solvents.
• Storage: Store the speaker in a cool, dry place away from direct sunlight and extreme temperatures.
• Water Resistance: The speaker has an IP20 rating, meaning it is protected against solid objects larger than 12.5mm but has no protection against water. Avoid exposure to rain, splashes, or immersion in water.
• Battery Care: To prolong battery life, fully charge the speaker before first use and recharge it at least once every three months if not used regularly.

6. Troubleshooting

• No Power: Ensure the speaker is charged. Connect the Type-C cable and allow it to charge for a few minutes before attempting to power on again.
• No Sound: Check the volume levels on both the speaker and your connected device. Ensure the speaker is in the correct mode (Bluetooth, FM, USB, MicroSD).
• Bluetooth Pairing Issues: Ensure the speaker is in pairing mode. Turn off Bluetooth on your device and turn it back on. Try unpairing and re-pairing the speaker. Move closer to the speaker to ensure you are within the 10-meter range.
• FM Radio Reception Poor: Ensure you are in an area with good signal. The charging cable can sometimes act as an antenna; try connecting it for improved reception.
• USB/MicroSD Not Playing: Ensure the audio files are in a compatible format (e.g., MP3). Check that the USB drive or microSD card is inserted correctly and is not corrupted.

7. Specifications

8. Warranty and Support

8.1 Warranty Information

Specific warranty details are typically provided with your purchase documentation or on the manufacturer's official website. Please refer to these resources for information regarding warranty coverage and duration.

8.2 Customer Support

For technical assistance, troubleshooting beyond this manual, or inquiries about your Defender Enjoy S200 speaker, please contact Defender Global customer support. Contact information can usually be found on the product packaging, the manufacturer's website, or your purchase receipt.
