1. Safety Information
Please read and understand all instructions before beginning assembly and use. Failure to follow these instructions may result in injury or damage to the product.
- Keep all small parts and packaging materials away from children.
- Ensure all bolts and screws are securely tightened before use.
- Do not use power tools for assembly unless specifically instructed, as overtightening may damage components.
- Place the bed frame on a flat, level surface.
- Do not stand or jump on the bed frame.
- Regularly check all connections to ensure they remain tight.
- Maximum weight capacity: 1000 lbs.
2. Package Contents
Verify that all components are present before starting assembly. If any parts are missing or damaged, please contact customer support.
Image: Diagram of the DWVO Queen Bed Frame with all components labeled, including the adjustable headboard, frame dimensions (47.2" to 43.3" height, 83" length, 62" width), and mattress thickness recommendation (8"-14").
Components List:
- Upholstered Headboard (Adjustable)
- Side Rails (Left and Right)
- Footboard
- Center Support Beam
- Wooden Slats (10 high-density solid wooden slats)
- Support Legs (2 wooden, 2 plastic, 5 metal)
- Hardware Pack (Bolts, Screws, Allen Wrench)
- Silent Foam Strips
- Foot Mats
3. Assembly Instructions
Assembly is designed to be straightforward. It is recommended to have two people for easier assembly. Please follow the steps below carefully.
3.1 Preparation
- Clear an open space for assembly.
- Lay out all components and hardware.
- Refer to the included detailed installation manual with assembly serial numbers for each component.
3.2 Step-by-Step Assembly
- Unpack Components: Carefully remove all parts from the packaging.
- Assemble Main Frame: The main frame features a metal folding-structure design. Unfold the pre-installed main frame to save time and effort.
- Attach Headboard: Secure the adjustable headboard to the main frame using the provided hardware. Adjust the headboard to your preferred height to fit your mattress (recommended thickness 8-12 inches).
- Install Support Legs: Attach all support legs (wooden, plastic, and metal) to the designated points on the frame. Ensure they are securely tightened.
- Place Wooden Slats: Position the high-density solid wooden slats across the frame. The slats feature a special Velcro design for easy attachment to the bed cleat, preventing movement and noise.
- Apply Silent Foam: Stick the silent foam strips on the pre-installed rail to effectively reduce noise from the slats and metal rail.
- Final Check: Ensure all connections are tight and the bed frame is stable.

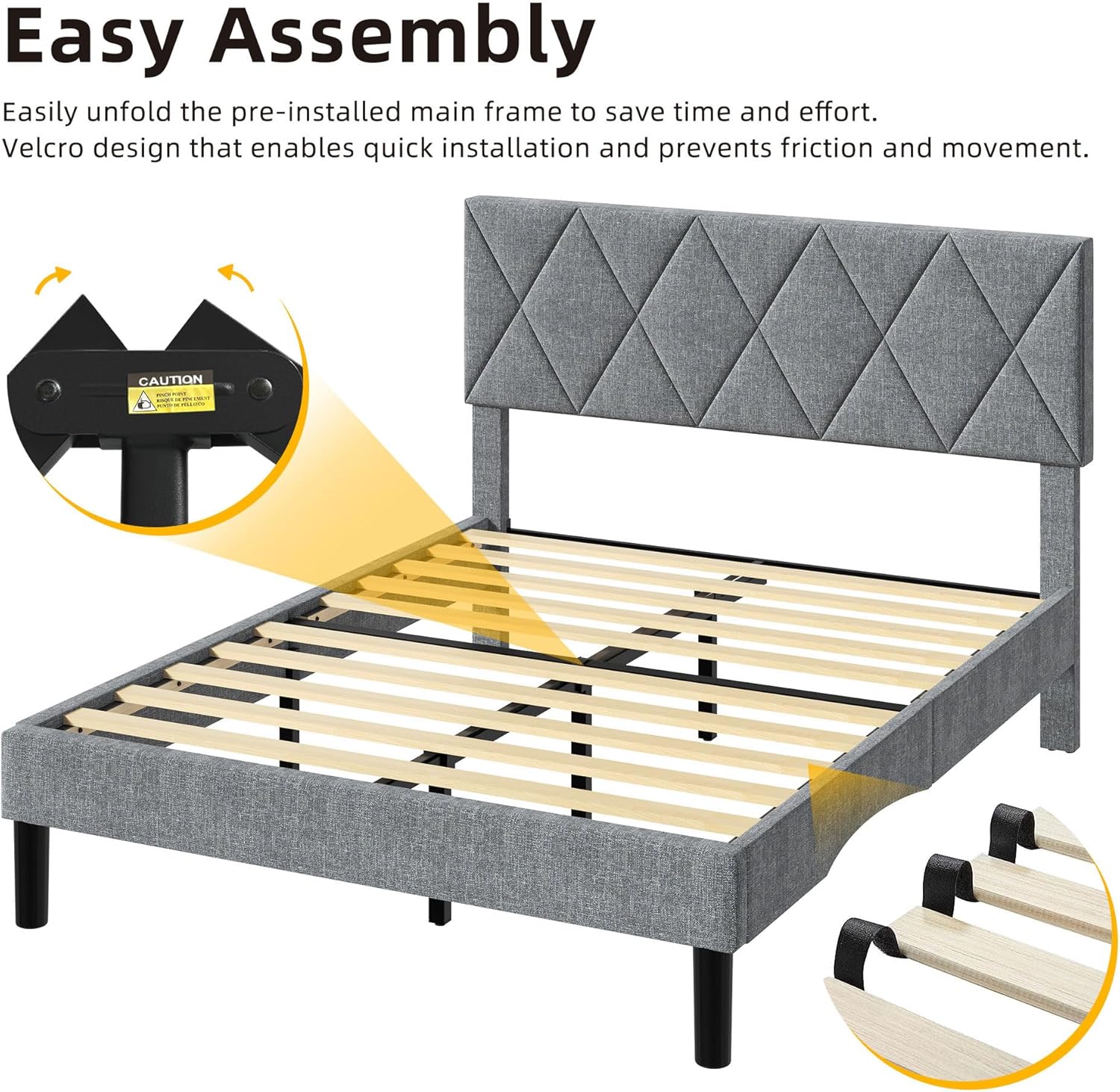

Image: A visual guide to the easy assembly of the bed frame, illustrating the pre-installed folding main frame and the Velcro design for quick slat installation.
Image: Detail of the upholstered headboard, showing the soft linen fabric and high resilience memory foam for comfort and support.
Image: Detail of the Velcro slat attachment, showing how slats are secured to the frame to prevent shifting and noise.
Image: Close-up view of the silent foam strip applied to the metal rail, designed to minimize noise.
3.3 Assembly Video
For a visual guide, please refer to the assembly video below:
Video: A step-by-step assembly guide for the DWVO Queen Bed Frame, demonstrating how to unpack, connect frame components, install slats, and secure the headboard.
4. Operating Instructions
4.1 Headboard Adjustment
The upholstered headboard can be adjusted to accommodate mattresses of varying heights. To adjust, loosen the bolts on the headboard supports, slide the headboard to the desired height, and re-tighten the bolts securely.
4.2 Under-Bed Storage
The bed frame provides 8 inches of clearance for under-bed storage. This space can be utilized for storage bins, seasonal items, or to allow for robotic vacuum cleaners to pass through easily.

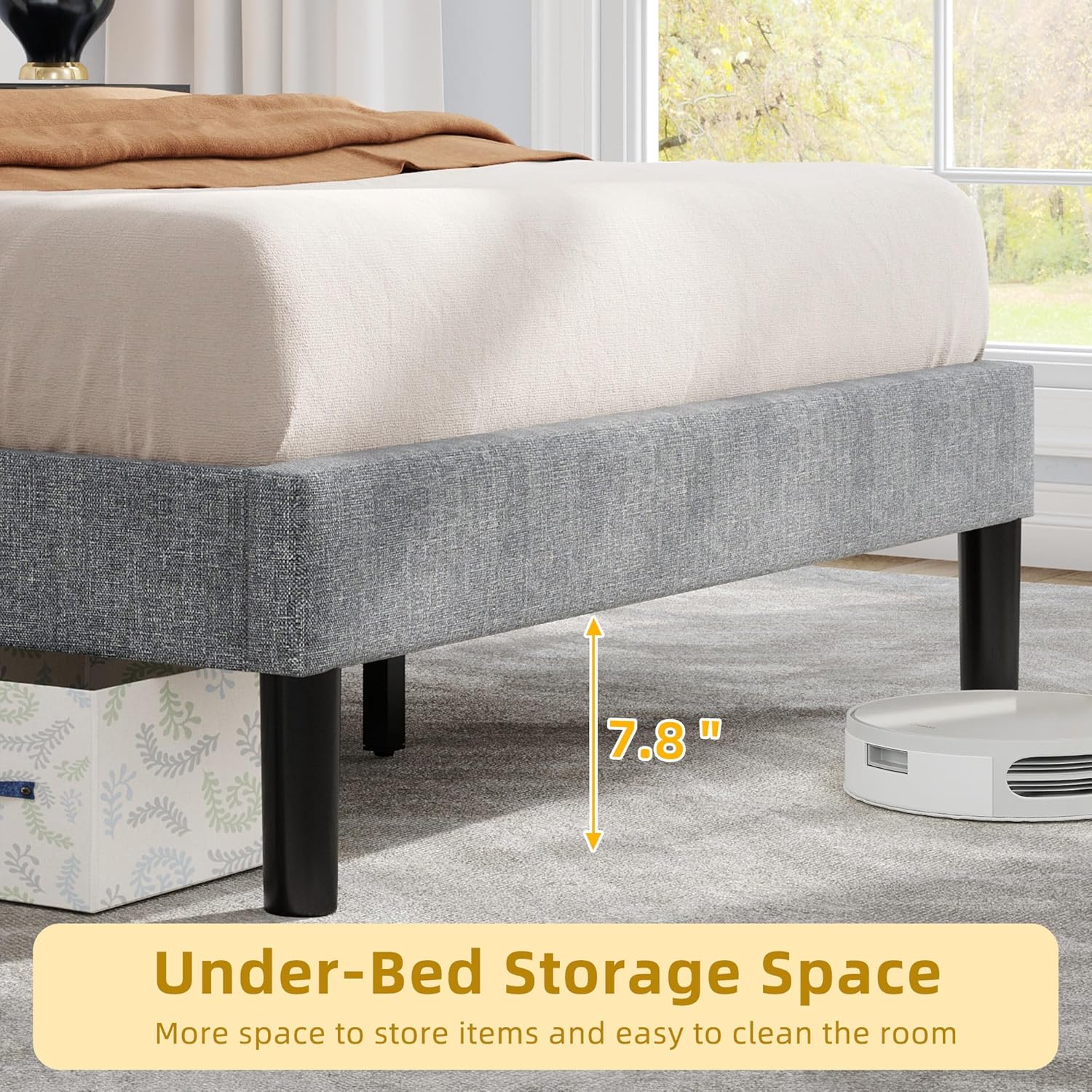

Image: The under-bed storage area, measuring 7.8 inches, shown with storage boxes and a robotic vacuum cleaner, illustrating its practical use.
5. Maintenance
- Cleaning: For the upholstered parts, use a soft, damp cloth and mild detergent for spot cleaning. Avoid harsh chemicals. For metal parts, wipe with a dry cloth.
- Tightening: Periodically check all bolts and screws (every 3-6 months) and re-tighten them to ensure the frame remains stable and noise-free.
- Inspection: Inspect wooden slats for any signs of wear or damage. Replace if necessary.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Squeaking Noise | Loose bolts or screws; slats rubbing against the frame. | Tighten all bolts and screws. Ensure silent foam strips are properly placed. Check that slats are securely attached via Velcro. |
| Bed Frame Instability | Loose connections; uneven floor. | Re-tighten all hardware. Ensure the bed is on a level surface. Adjust foot mats if necessary. |
| Headboard Not Level | Uneven adjustment. | Loosen headboard adjustment bolts, level the headboard, and re-tighten. |
| Missing Parts | Packaging error. | Contact DWVO customer support with your model number and purchase details. |
7. Specifications
- Brand: DWVO
- Model: MADWVvum0b
- Size: Queen
- Product Dimensions: 80"L x 60"W x 43.3"H (Adjustable Headboard Height)
- Material: Metal, Wood, Upholstered Linen Fabric
- Color: Linen Grey
- Weight Capacity: Up to 1000 lbs
- Under-Bed Clearance: 8 inches
- Recommended Mattress Thickness: 8-12 inches
- Assembly Required: Yes (Approx. 1 hour)
- Special Features: Adjustable Headboard, Heavy Duty Structure, No Box Spring Needed, Solid Wood Slats Support, Squeak Resistant
8. Warranty & Support
For warranty information, missing parts, or technical support, please contact DWVO customer service. Please have your model number (MADWVvum0b) and purchase date available when contacting support.
