Manuals+

Eamoment B0CKVFFZ5R

Eamoment Small Rice Cooker (5-Cup) Instruction Manual

Model: B0CKVFFZ5R

1. Introduction

Thank you for choosing the Eamoment Small Rice Cooker. This appliance is designed to simplify your cooking process, offering convenient and consistent results for various dishes. Please read this manual thoroughly before use to ensure safe and optimal operation.

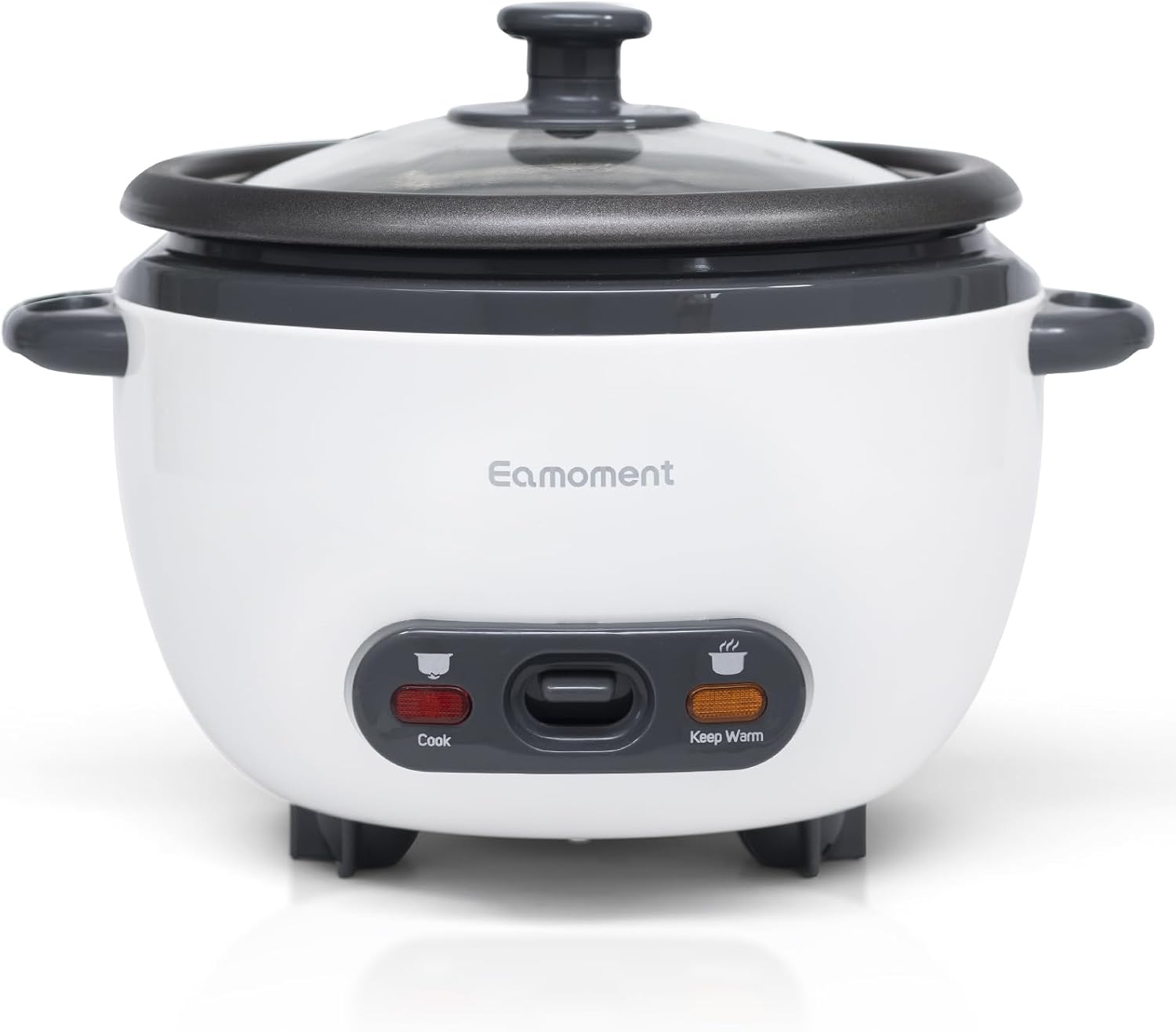

Eamoment Small Rice Cooker, front view with lid and control panel

Figure 1: Eamoment Small Rice Cooker

2. Important Safety Instructions

To reduce the risk of fire, electric shock, or injury, always follow basic safety precautions when using electrical appliances.

3. Product Overview and Components

Familiarize yourself with the parts of your Eamoment Rice Cooker:

Eamoment Small Rice Cooker with approximate dimensions of 10.62 inches deep, 10.62 inches wide, and 7.87 inches high.

Figure 2: Rice Cooker Components and Approximate Dimensions (10.62"D x 10.62"W x 7.87"H)

4. Setup

  1. Unpack: Carefully remove all packaging materials and accessories.
  2. Clean: Wash the inner pot, glass lid, measuring cup, and rice paddle with warm, soapy water. Rinse thoroughly and dry completely.
  3. Placement: Place the main unit on a stable, flat, heat-resistant surface, away from direct sunlight or heat sources. Ensure adequate ventilation around the appliance.
  4. Insert Inner Pot: Place the cleaned inner pot into the main unit, ensuring it sits properly.

5. Operating Instructions

5.1 Cooking Rice

The Eamoment Rice Cooker features a simple one-click operation for cooking rice.

  1. Measure Rice: Use the provided measuring cup to measure the desired amount of rice. For best results, rinse the rice thoroughly until the water runs clear.
  2. Add Water: Add the appropriate amount of water to the inner pot. The inner pot has water level markings for different rice quantities. For white rice, a common ratio is 1:1.5 (1 cup rice to 1.5 cups water), but refer to the markings for precise guidance.
  3. Place Inner Pot: Ensure the inner pot is correctly seated in the main unit.
  4. Close Lid: Place the glass lid securely on the rice cooker.
  5. Plug In: Connect the power cord to a 120V electrical outlet. The 'Warm' indicator light may illuminate.
  6. Start Cooking: Press the 'Cook' switch down. The 'Cook' indicator light will illuminate, indicating that cooking has begun.
  7. Automatic Keep-Warm: Once the rice is cooked, the cooker will automatically switch to the 'Keep Warm' function. The 'Cook' light will turn off, and the 'Warm' light will remain on. This function keeps your rice warm and ready to serve.
  8. Serve: Use the provided rice paddle to fluff and serve the cooked rice.
Close-up of Eamoment Rice Cooker control panel showing Cook and Warm buttons with corresponding indicator lights.

Figure 3: Cook and Warm Indicators

Diagram illustrating the four steps to cook rice: 5 rice cups of rinsed white rice, add water to line 5, press the switch, resulting in 10 cooked rice cups.

Figure 4: How to Cook Rice Steps

Table showing recommended rice to water ratios and cooking times for white rice: 1 cup uncooked yields 2 cups cooked in 13-17 min; 3 cups uncooked yields 6 cups cooked in 24-28 min; 5 cups uncooked yields 10 cups cooked in 32-36 min.

Figure 5: Recommended Rice to Water Ratios and Cook Times

5.2 Other Functions

Beyond cooking rice, this versatile appliance can also be used for:

Various cooked dishes including rice, soup, oatmeal, and couscous, demonstrating the rice cooker's versatility beyond just rice.

Figure 6: Versatile Cooking Options

6. Cleaning and Maintenance

Proper cleaning ensures the longevity and performance of your rice cooker.

  1. Unplug and Cool: Always unplug the rice cooker from the power outlet and allow it to cool completely before cleaning.
  2. Clean Inner Pot: The inner pot features a safe non-stick coating. To clean, gently wipe the inner pot with warm water and mild detergent. Avoid abrasive cleaners or scouring pads that could damage the non-stick surface. The inner pot is dishwasher safe.
  3. Clean Lid and Accessories: Wash the glass lid, measuring cup, and rice paddle with warm, soapy water. Rinse thoroughly and dry.
  4. Clean Main Unit: Wipe the exterior of the main unit with a damp cloth. Do not immerse the main unit in water or any other liquid.
  5. Storage: Store the rice cooker in a dry place when not in use.
A hand washing the non-stick inner pot of the rice cooker under running water in a kitchen sink.

Figure 7: Cleaning the Non-Stick Inner Pot

7. Troubleshooting

If you encounter issues with your rice cooker, refer to the following common problems and solutions:

Problem Possible Cause Solution
Rice is too hard/undercooked Insufficient water; lid not properly sealed. Ensure correct rice-to-water ratio. Check that the lid is securely closed.
Rice is too soft/mushy Too much water. Reduce water slightly for future cooking. Ensure rice is rinsed properly.
Rice sticks to the bottom Rice not rinsed; insufficient water; prolonged 'Keep Warm' time. Rinse rice thoroughly before cooking. Ensure proper water ratio. Avoid keeping rice on 'Warm' for excessively long periods.
Cooker does not turn on Not plugged in; power outage; switch not pressed. Check power connection. Verify power outlet. Ensure 'Cook' switch is pressed down.

8. Specifications

9. Customer Support

For any product issues, questions, or assistance, please contact Eamoment customer service. Refer to the product packaging or your purchase documentation for contact details.
