HOBBYWING EZRUN 4990SD 1650KV G2 Motor Instruction Manual

1. Introduction

The HOBBYWING EZRUN 4990SD 1650KV G2 Motor is an advanced sensored brushless motor designed for high-performance remote control applications. This motor features an upgraded sensored system for improved linearity and explosive power. It is engineered for optimal compatibility with HOBBYWING EZRUN MAX6 G2 or MAX5 HV G2 Electronic Speed Controllers (ESCs), enabling a full sensor mode for precise control and motor overheat protection.

Key features include a waterproof sensor cable, an independent high-precision encoder for stable sensor operation, and a durable construction with CNC machined aluminum housing, high purity copper windings, and high-strength components.

2. Safety Precautions

• Power Pairing: Always ensure that the motor's power requirements are compatible with your Electronic Speed Controller (ESC) and vehicle chassis. Incorrect pairing can lead to motor overload and damage.
• Secure Connections: Carefully wire all components of your RC system. Loose connections due to vibration can result in loss of control of your model.
• Pinion Installation: Never operate the motor at full throttle without the pinion gear installed. Extremely high RPMs without load can cause severe damage to the motor.
• Temperature Monitoring: Do not allow the motor case temperature to exceed 100 degrees Celsius (212 degrees Fahrenheit). High temperatures can demagnetize the motor's magnets, leading to permanent performance degradation.

3. Product Overview and Features

The EZRUN 4990SD 1650KV G2 motor incorporates several design enhancements for superior performance and reliability:

• Sensored System: Upgraded sensored design provides enhanced acceleration linearity and stronger explosive force.
• ESC Compatibility: Perfect compatibility with HOBBYWING EZRUN MAX6 G2 / EZRUN MAX5 HV G2 ESCs. The ESC automatically recognizes the motor, enabling full sensor mode for precise control and motor overheat protection.
• High-Precision Encoder: An independent encoder outputs a pure rotor position signal, preventing sensor signal interference and ensuring stable operation in sensored mode.
• Durable Construction: Features CNC machined aluminum housing, high purity copper windings, a high-strength explosion-proof rotor, ultrathin silicon steel laminations, a high-quality stainless steel output shaft, and high-precision bearings for durability and smoothness.
• Waterproof Sensor Interface: The innovative new sensor interface offers superior waterproof and dustproof protection compared to traditional sensored motors.

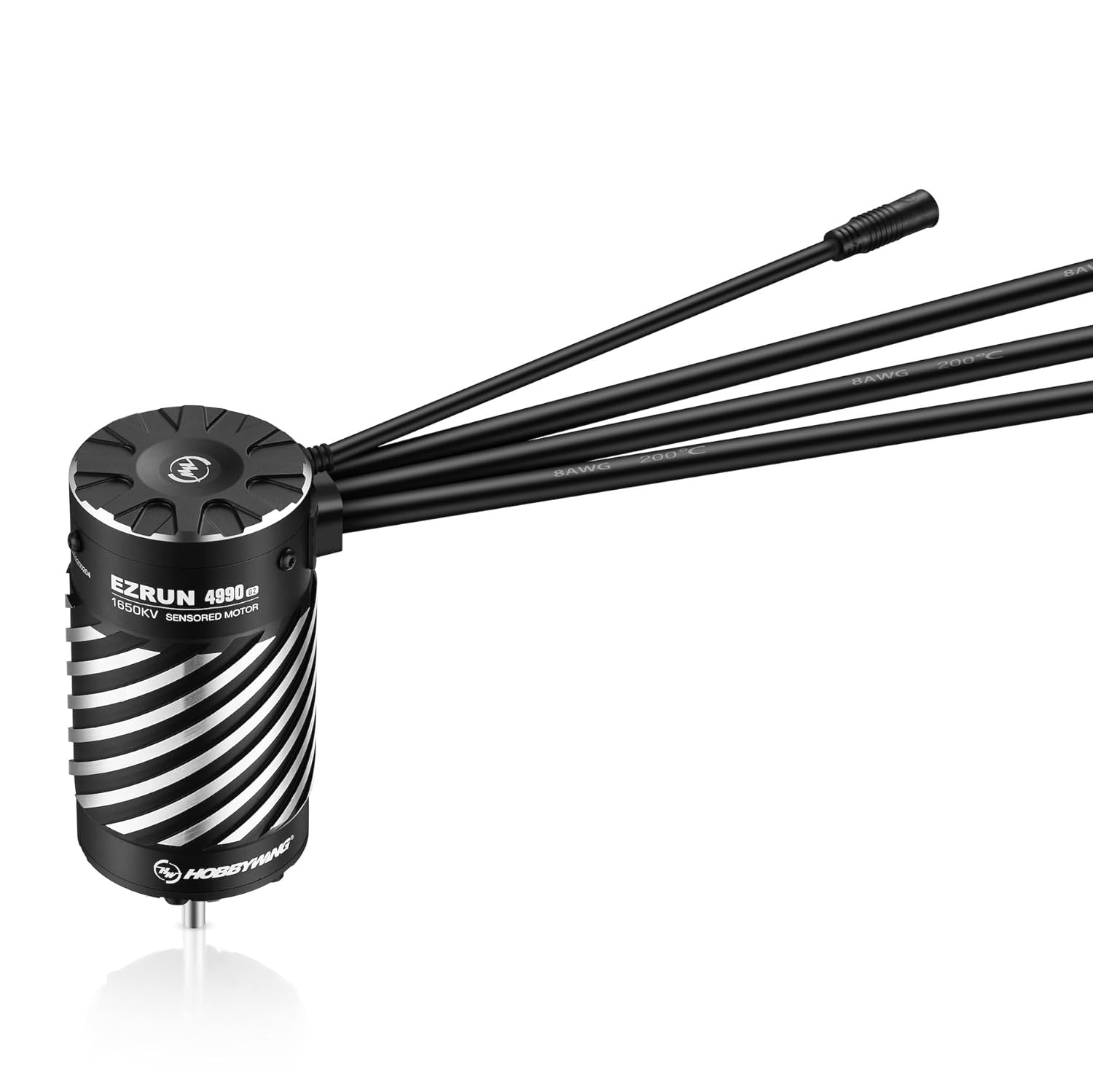

Image 1: Top view of the HOBBYWING EZRUN 4990SD 1650KV G2 Motor, highlighting its robust design and integrated wiring.

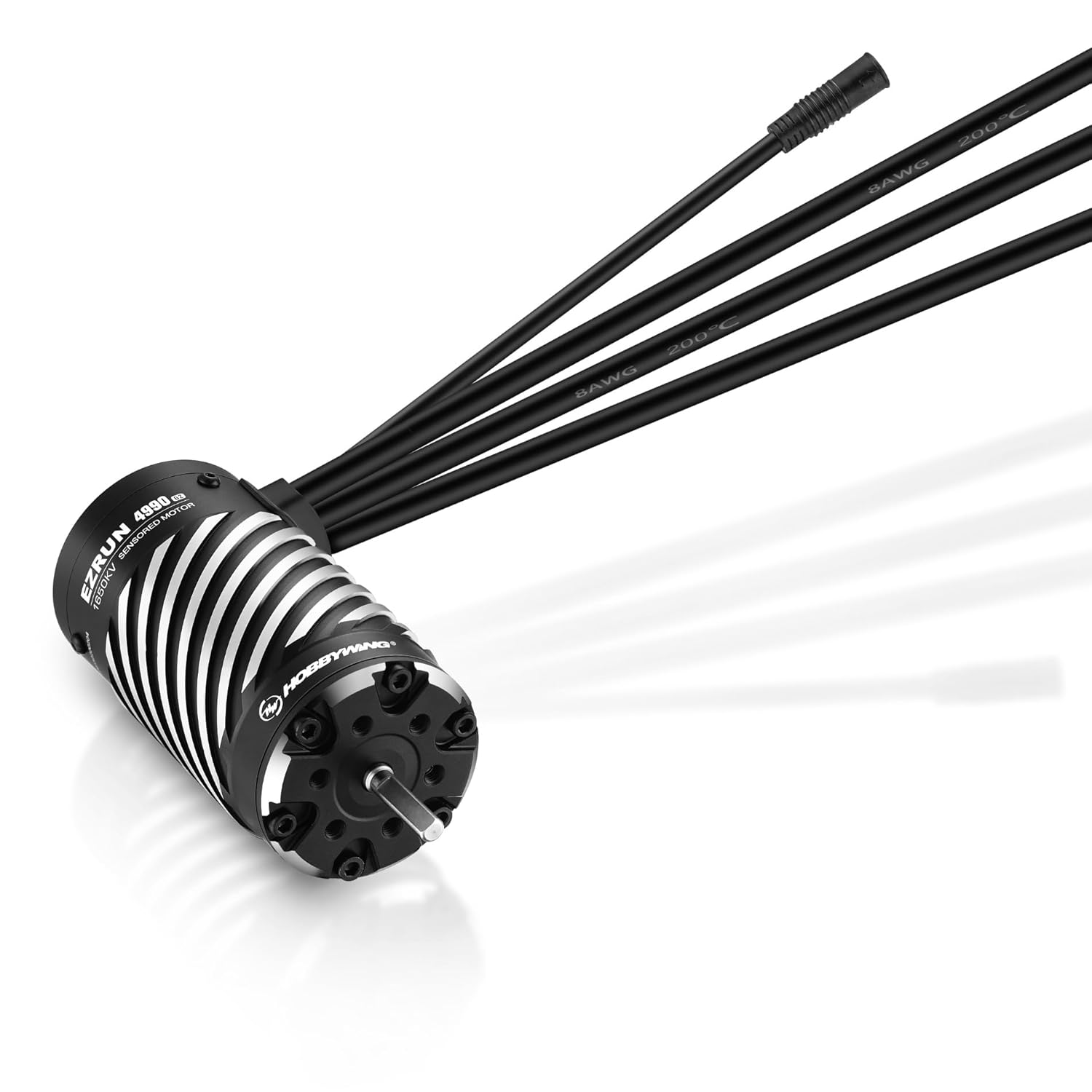

Image 2: Angled view of the motor, showcasing the output shaft and mounting points.

4. Setup and Installation

1. Mounting the Motor: Securely mount the EZRUN 4990SD G2 motor to your vehicle's motor mount using appropriate screws. Ensure proper alignment with the transmission.
2. Pinion Gear Installation: Install the correct pinion gear for your application. Ensure the gear mesh between the pinion and spur gear is set correctly to prevent premature wear and damage.
3. ESC Connection: Connect the motor's three phase wires to the corresponding output terminals on your HOBBYWING EZRUN MAX6 G2 or MAX5 HV G2 ESC. Pay attention to the correct wiring sequence for proper motor rotation.
4. Sensor Cable Connection: Connect the waterproof sensor cable from the motor to the sensor port on your compatible HOBBYWING ESC. Ensure the connection is firm and sealed to maintain its waterproof and dustproof properties.
5. Initial Calibration: Follow the instructions provided with your HOBBYWING ESC for initial calibration with the motor. This ensures optimal performance and proper recognition of the sensored system.

Image 3: The EZRUN 4990SD G2 motor integrated with a compatible HOBBYWING ESC within an RC vehicle chassis, demonstrating a perfect combination for optimal performance.

5. Operating Guidelines

Once installed and calibrated, the EZRUN 4990SD G2 motor is ready for operation. Observe the following guidelines:

• Temperature Monitoring: Regularly monitor the motor's temperature during operation. While the motor is designed for high efficiency and low temperature rise, excessive loads or improper gearing can still lead to overheating.
• Gearing: Experiment with different pinion and spur gear combinations to find the optimal gearing for your specific vehicle, track conditions, and driving style. Proper gearing is crucial for motor efficiency and longevity.
• Environmental Conditions: The motor's all-weather sensor plug system provides enhanced protection against water and dust. However, avoid prolonged submersion or exposure to corrosive liquids.

Image 4: Diagram illustrating the high efficiency and low temperature rise characteristics of the EZRUN 4990SD G2 motor, indicating reduced internal and outer temperatures during operation.

Image 5: The EZRUN 4990SD G2 motor operating in a wet environment, demonstrating the effectiveness of its all-weather sensor plug system in maintaining fully sensored operation.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your HOBBYWING EZRUN 4990SD G2 Motor:

• Cleaning: After each use, especially in dusty or wet conditions, clean the motor's exterior to remove dirt, debris, and moisture. Use a soft brush or compressed air.
• Bearing Inspection: Periodically check the motor bearings for smoothness. If bearings feel rough or noisy, they may need cleaning or replacement.
• Wire and Connector Check: Inspect all wires and connectors for signs of wear, fraying, or corrosion. Ensure all connections remain secure.
• Temperature Management: Always operate the motor within its recommended temperature limits. Consistent overheating can lead to permanent damage.

7. Troubleshooting

If you encounter issues with your EZRUN 4990SD G2 motor, consider the following:

• Motor Not Running:
  • Check all power connections from the battery to the ESC and from the ESC to the motor.
  • Verify that the ESC is properly calibrated with the motor and transmitter.
  • Ensure the sensor cable is securely connected and undamaged.
• Intermittent Power/Cogging:
  • Inspect motor phase wires and connectors for loose connections or damage.
  • Check the sensor cable for damage or improper connection.
  • Ensure the battery is fully charged and capable of delivering sufficient current.
• Overheating:
  • Reduce the pinion gear size or increase the spur gear size to lower the overall gear ratio.
  • Check for excessive friction in the drivetrain or wheel bearings.
  • Ensure adequate airflow around the motor.

8. Specifications

9. Warranty and Support

For warranty information and technical support, please refer to the official HOBBYWING website or contact your authorized HOBBYWING dealer. Keep your purchase receipt as proof of purchase for any warranty claims.

Online Resources: For the latest updates, FAQs, and additional support, visit the official HOBBYWING website: www.hobbywing.com
