Prolux RS7 PET Cordless Handheld Stick Vacuum Instruction Manual

Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Prolux RS7 PET Cordless Handheld Stick Vacuum. Please read all instructions carefully before use and retain this manual for future reference.

Image: The Prolux RS7 PET Cordless Handheld Stick Vacuum, fully assembled with its main powerhead, extendable wand, and handheld unit. Various accessories and two batteries are also visible.

What's in the Box

Your Prolux RS7 PET Cordless Handheld Stick Vacuum package includes the following components:

• RS7-vac (Main Handheld Unit)
• RS7- Extendable Wand
• Wessel Werk EBK250 Electric Powerhead
• RS7- Crevice Tool
• RS7- Duster Brush
• RS7- Wall Mount
• RS7- Charger
• RS7- Battery (2 Included)
• HEPA Filter Cartridge
• RS7- Pet Brushroll

Image: A visual guide to all included parts: the main vacuum unit, extendable wand, electric powerhead, crevice tool, duster, wall mount, charger, two batteries, HEPA filter, and pet brushroll.

Setup

1. Initial Charging

Before first use, fully charge both 2500mAh Lithium-Ion batteries. The hypercharger can fully charge a battery in approximately 2.5 hours. Most other vacuum cleaners take 4-5 hours to charge.

• Connect the charger to a power outlet.
• Insert a battery into the charger. The battery indicator lights will show charging progress.
• Once fully charged, remove the battery and repeat for the second battery.

Image: Two removable batteries and the charging adapter for the Prolux RS7 vacuum.

2. Assembly

1. Attach the desired brushroll (standard or pet) to the Wessel Werk EBK250 Electric Powerhead.
2. Connect the Electric Powerhead to the Extendable Wand. Ensure it clicks securely into place.
3. Connect the Extendable Wand to the main RS7-vac handheld unit. Ensure a secure connection.
4. Insert a fully charged battery into the main handheld unit.

Image: The Prolux RS7 vacuum fully assembled, showing the main unit, extendable wand, and electric powerhead.

3. Wall Mount Installation (Optional)

The included wall mount allows for convenient storage and charging. Install the wall mount in a suitable location near a power outlet, following the instructions provided with the mounting hardware.

Image: The wall mount for the Prolux RS7, designed to hold the vacuum and its accessories.

Operating Instructions

1. Powering On/Off and Mode Selection

Press the power button on the main handheld unit to turn the vacuum on or off. The vacuum features 3 power levels (speeds) and an LED display that indicates battery life and filter status. The display changes color as you change speeds.

Image: A woman holding the Prolux RS7 handheld unit, demonstrating the LED display which shows battery level and power mode.

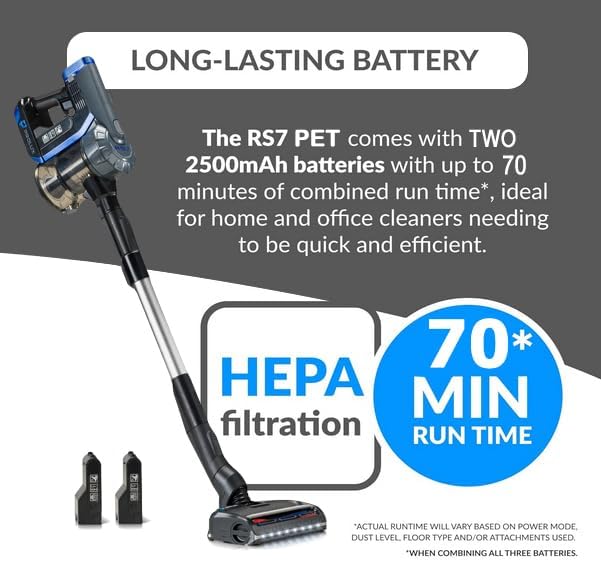

The RS7 PET boasts 360 Airwatts and a max continuous runtime up to 70 minutes with two batteries. Actual runtime will vary based on power mode, dust level, floor type, and/or attachments used.

2. Using Attachments

The RS7 is a versatile 15-in-1 vacuum cleaner. To change attachments:

1. Press the release button on the main handheld unit or wand to detach the current attachment.
2. Select the desired attachment (crevice tool, duster brush, etc.).
3. Align the attachment with the connection point and push until it clicks securely into place.

Quality attachments are designed for durability and ease, locking onto the wand to ensure they stay in place during use. The flexible powerhead allows for easy maneuvering under furniture and around obstacles.

Image: A man operating the Prolux RS7 stick vacuum on a rug, demonstrating its maneuverability.

Maintenance

1. Emptying the Dustbin

The dustbin has a capacity of 1.2 liters. When the dustbin is full, the LED display will indicate this. To empty:

1. Ensure the vacuum is turned off.
2. Press the dustbin release button, usually located near the bottom of the handheld unit.
3. Empty the contents into a trash receptacle.
4. Reattach the dustbin securely.

2. Cleaning/Replacing the HEPA Filter

The RS7 PET includes an Advanced HEPA Filtration System, trapping 99.97% of dust and allergens. The LED display will indicate when the filter needs attention. To clean or replace:

1. Ensure the vacuum is turned off and the dustbin is removed.
2. Locate and remove the HEPA filter cartridge.
3. Tap the filter gently to remove loose debris. If heavily soiled, rinse under cold water (ensure it's completely dry before reinserting, which may take 24 hours).
4. Replace the filter if it's damaged or no longer cleans effectively.
5. Reinsert the clean/new HEPA filter and reattach the dustbin.

Image: The circular HEPA filter and two smaller pre-filters for the Prolux RS7 vacuum.

3. Cleaning the Brushroll

The Prolux RS7 PET features an easy-to-remove brushroll for quick maintenance. This is especially useful for pet owners to remove tangled hair.

1. Ensure the vacuum is turned off.
2. Locate the brushroll release mechanism on the electric powerhead (often a dial or latch).
3. Turn the dial or open the latch and pull the brushroll out.
4. Remove any tangled hair or debris from the brushroll.
5. Reinsert the clean brushroll and secure the release mechanism.

Image: A close-up view of the powerhead with the quick-release pet hair brush, highlighting its easy removal for cleaning.

Troubleshooting

If you encounter any issues with your Prolux RS7 vacuum, please refer to the following common troubleshooting steps:

Specifications

Warranty & Support

The Prolux RS7 PET Cordless Handheld Stick Vacuum comes with a 2-Year Protection Plan available for purchase. For any product inquiries, technical support, or warranty claims, please contact Prolux customer service directly.

Visit the Prolux Store for more information and contact details.
