Weiworld Passive Air Vent User Manual

1. Overview

The Weiworld Passive Air Vent is designed to provide natural, energy-efficient ventilation for your indoor spaces. This system utilizes natural pressure differences to introduce fresh outdoor air and exhaust stale indoor air, improving air quality without the need for electrical power or mechanical components. It contributes to a healthier living environment by reducing humidity and pollutants, and helps lower energy costs by minimizing reliance on air conditioning and heating systems.

Figure 1: Weiworld Passive Air Vent - Main Product View

2. Key Features

• Natural Ventilation: Operates without electricity, using natural forces to circulate air.
• Improved Air Quality: Helps reduce indoor humidity and pollutants for a healthier environment.
• Energy and Cost Savings: No operating costs, reduces dependence on HVAC systems.
• Automatic Airflow Adjustment: Adapts to indoor and outdoor temperature changes for optimal ventilation.
• Noise and Dust Reduction: Provides a quiet and clean living space.
• Easy Installation: Designed for straightforward setup with minimal wall modification.
• Easy Maintenance: Simple cleaning and filter replacement process.

2.1. Two-Step Diffuser Cyclic Compression Design

The vent features a two-step diffuser design that allows for adjustable air volume. The intake of fresh air can be precisely controlled by pressing the panel, providing flexibility in managing airflow within your space.

Figure 2: Adjustable Air Volume Mechanism

2.2. Micron Filter Layer

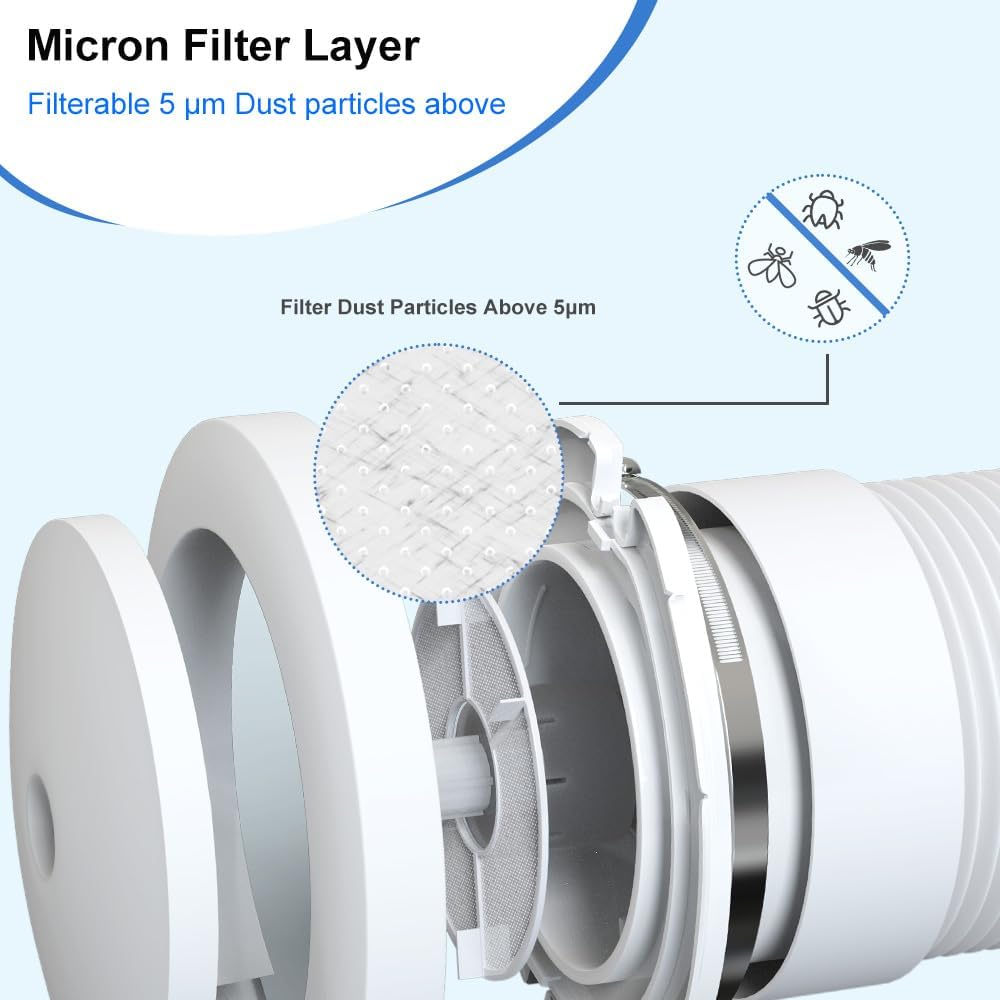

Equipped with a micron filter layer, this vent is capable of filtering dust particles larger than 5 µm, contributing to cleaner indoor air by preventing the ingress of common airborne particulates, insects, and other debris.

Figure 3: Micron Filter for Dust and Debris

2.3. Durable Stainless Steel Outside Grille

The exterior grille is constructed from SS304 stainless steel, ensuring durability and resistance to sun exposure and corrosion. It features built-in 45° louvers designed to prevent rain entry while maintaining optimal airflow.

Figure 4: Exterior Stainless Steel Grille with Anti-Rain Louvers

2.4. Extensible Ducting Design

The telescopic aluminum duct provides flexible installation, accommodating wall thicknesses ranging from 80 mm to 600 mm. This adaptability ensures a secure fit for various wall structures.

Figure 5: Telescopic Duct Dimensions and Flexibility

2.5. Versatile Application

The Passive Air Vent is suitable for various indoor environments, including bedrooms, living rooms, bathrooms, and offices, where fresh air intake is desired to enhance comfort and air quality.

Figure 6: Example Applications of the Passive Air Vent

2.6. Additional Benefits

• Storm Shield: Ensures proper air distribution and comfort regardless of weather conditions.
• Energy Saving: Prevents energy loss compared to traditional vents, especially in strong winds.
• Discreet Design: Timeless design that can be painted or wallpapered to blend with your interior.
• Air Direction: Two-step diffuser prevents cold drafts and condensation, ensuring pleasant air circulation.
• Telescopic: Flexible installation for wall thicknesses from 80 - 600 mm.

Figure 7: Summary of Key Advantages

3. Installation Guide

Installation of the Passive Air Vent is designed to be straightforward. Please follow these steps carefully to ensure proper function and safety.

3.1. Safety Precautions

• Always wear appropriate personal protective equipment, including safety glasses and gloves, to prevent injury from sharp edges or debris during installation.
• Ensure the installation area is clear of electrical wiring, plumbing, and other obstructions before drilling.
• If you are unsure about any step, consult a qualified professional.

3.2. Tools Required

• Hole Saw (appropriate size for duct diameter, typically 4-5 inches or 100-125 mm)
• Drill
• Measuring Tape
• Pencil/Marker
• Screwdriver
• Level

3.3. Installation Steps

1. Select Location: Choose a suitable location on an exterior wall for the vent. Consider airflow patterns and aesthetic integration.
2. Mark Hole: Using the vent's dimensions as a guide, mark the center point for the hole. Ensure the marked area is free from internal obstructions.
3. Drill Pilot Hole: Drill a small pilot hole through the wall from the inside to the outside.
4. Cut Opening: From the outside, use an appropriate hole saw (recommended 100-125 mm or 4-5 inches) to cut the opening for the duct. Ensure the hole is clean and smooth. Note: A 4-inch hole may be too small for the full assembly; a slightly larger hole (e.g., 5 inches) might be necessary to accommodate the clamp and ensure proper fit.
5. Insert Duct: Carefully insert the telescopic aluminum duct through the prepared hole. Adjust its length to fit the wall thickness.
6. Secure Exterior Grille: Attach the exterior stainless steel grille to the outside wall using appropriate fasteners (not included, depending on wall material). Ensure it is flush and sealed to prevent water intrusion.
7. Attach Interior Assembly: From the inside, connect the interior vent assembly to the duct. Secure it firmly, ensuring a tight seal.
8. Final Check: Verify that the vent is securely installed, level, and that the adjustable panel operates smoothly.

4. Operation

The Weiworld Passive Air Vent operates automatically based on natural pressure differences. However, you can manually adjust the airflow to suit your preferences.

4.1. Adjusting Airflow

The vent features a two-step diffuser with adjustable air volume. To adjust the airflow, simply press the central button on the interior panel. This mechanism allows you to cycle through different settings (e.g., closed, low, medium, high) to control the amount of fresh air entering your room. The vent can be fully closed to prevent airflow when desired.

5. Maintenance

Regular maintenance ensures optimal performance and longevity of your Passive Air Vent.

5.1. Cleaning the Mesh Filter

The internal mesh filter should be cleaned periodically to maintain efficient air filtration and airflow.

1. Remove Panel: Rotate the round interior panel to the left until it is completely separated from the vent cover.
2. Remove Retainer: Pull out the retainer upwards to access the mesh filter.
3. Clean Filter: Gently remove the mesh filter. Clean it using a soft brush or by rinsing with water. Allow it to dry completely before reinstallation.
4. Reinstall: Place the clean, dry filter back into position, secure the retainer, and reattach the round panel by rotating it to the right until it locks into place.

Note: The mesh filter can also be replaced if it is damaged or excessively dirty.

6. Troubleshooting

7. Specifications

8. Warranty and Support

Weiworld stands behind the quality of its products. For specific warranty information, please refer to the documentation included with your purchase or visit the official Weiworld website. If you encounter any issues or require technical assistance, please contact Weiworld customer support through the details provided on our website or your purchase platform.

For further assistance, please visit the Weiworld Store on Amazon.
