JOYMOR 7-in-1 Nursery Center Instruction Manual

1. Safety Information

WARNING: Failure to follow these warnings and instructions could result in serious injury or death.

• Never leave your child unattended. Always keep an eye on your child.
• Discontinue use of the upper sleeping pad (bassinet level) when your baby begins to push up on hands and knees or has reached 18 lbs, whichever comes first. Use it as a playpen instead.
• Always ensure all locking mechanisms are engaged before placing a child in the nursery center.
• Do not use this product if any parts are broken, torn, or missing.
• Keep all small parts and packaging materials away from children.
• Ensure proper ventilation.
• Regularly inspect the product for wear and tear.
• Maximum weight recommendation for the entire unit is 33 pounds.

Image: A close-up of the warning label on the bassinet, indicating the maximum weight of 33 lbs and the recommendation to discontinue use of the upper sleeping pad when the baby can push up on hands and knees.

2. Package Contents

Verify that all components are present before assembly:

• Main Nursery Center Frame
• Thick Mattress / Playard Base
• Replacement Sheet
• Removable Rock-A-Bye Bassinet
• Diaper Changing Table
• Canopy
• Storage Shelf / Organizer
• Hanging Toy Mobile
• Carry Bag

3. Setup Instructions

3.1 Unfolding the Nursery Center

1. Remove the nursery center from its carry bag.
2. Stand the folded unit upright.
3. Separate the four corner posts slightly.
4. Push down on the center of the base until it locks into place.
5. Ensure all four side rails are locked securely. If a side rail does not lock, pull the red rope upward to make it upright, then try locking the side again.

Image: A sequence of four images demonstrating the unfolding process of the nursery center, from folded to fully assembled frame.

3.2 Installing the Bassinet Level

For newborns and infants, the bassinet level provides a higher sleeping surface.

1. Place the bassinet fabric insert into the main frame, securing it with the clips or zippers provided on each side.
2. Insert the support bars into the designated sleeves under the bassinet fabric.
3. Place the mattress pad on top of the bassinet fabric.

Image: A fully assembled nursery center with the bassinet level in place, showing a baby sleeping comfortably. This illustrates the "all nursery center" feature.

3.3 Attaching the Changing Table

1. Locate the changing table attachment points on the top rail of the nursery center.
2. Align the changing table with these points and securely attach it until it clicks into place.

Image: A nursery center with the changing table accessory attached, demonstrating its use for diaper changes.

3.4 Attaching the Removable Rock-A-Bye Bassinet

1. Assemble the Rock-A-Bye Bassinet frame according to its specific instructions.
2. Attach the bassinet fabric to the frame.
3. The Rock-A-Bye Bassinet can be placed inside the main nursery center or used independently.

Image: A standalone image of the removable Rock-A-Bye Bassinet with its canopy, ready for use.

3.5 Attaching the Canopy and Toy Mobile

1. Attach the canopy to the designated points on the Rock-A-Bye Bassinet or the main bassinet level.
2. Mount the toy mobile arm to the side rail of the nursery center.
3. Hang the included toys from the mobile arm.

Image: A close-up of the hanging toy mobile with three colorful plush toys.

Image: A mosquito net draped over a bassinet, providing protection.

3.6 Attaching the Storage Shelf

1. Hook the storage shelf onto the side rail of the nursery center, typically near the changing table.
2. Ensure it is securely attached to hold baby essentials.

Image: A close-up of the storage shelf accessory, showing compartments for diapers and wipes, attached to the side of the nursery center.

4. Operating Instructions

4.1 Using as a Bedside Sleeper

The nursery center can be positioned next to your bed for easy access to your baby. Ensure the side closest to your bed is lowered and secured according to the product's specific mechanism (if applicable) and that the unit is securely fastened to your bed if straps are provided.

Image: A nursery center positioned next to an adult bed, functioning as a bedside sleeper with a baby sleeping inside.

4.2 Using as a Playpen

Once your child outgrows the bassinet level (typically around 18 lbs or when they can push up on hands and knees), remove the bassinet insert and use the main playard area. The playpen features a zippered game entrance for older babies to crawl in and out.

Image: A nursery center configured as a playpen, showing a baby playing on the lower level, demonstrating the "Grow with Your Baby" feature.

4.3 Mobility and Portability

The nursery center is equipped with wheels for easy movement between rooms. To move, simply unlock the wheels (if applicable) and roll the unit. For transport or storage, fold the unit as described in the "Folding for Storage" section and place it in the carry bag.

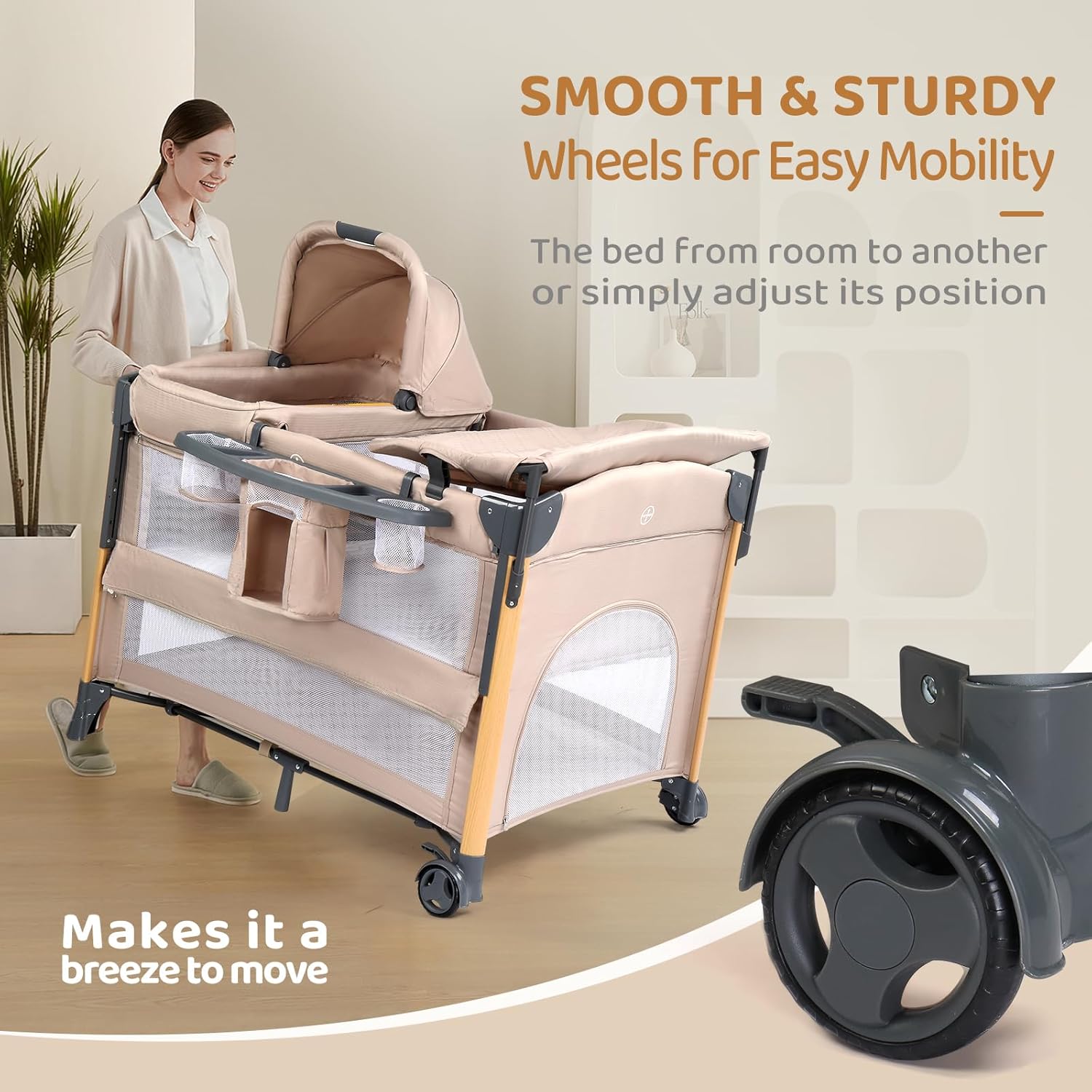

Image: A woman easily moving the nursery center across a room, highlighting the smooth and sturdy wheels for mobility.

Image: A woman carrying the folded nursery center in its travel bag, illustrating its easy transport and storage.

5. Maintenance and Care

5.1 Cleaning Instructions

The nursery center features removable and washable components for easy cleaning.

• Fabric Parts: The replacement sheet and changing table cover are removable and machine washable. Refer to the care label for specific washing instructions.
• Frame and Mesh: Wipe down the frame and mesh sides with a damp cloth and mild soap. Rinse thoroughly and allow to air dry completely before reassembly or use.
• Mattress Pad: Wipe with a dry cloth or a slightly damp cloth with mild soap. Do not immerse in water.

Image: An illustration showing parents cleaning the removable and washable sheet and changing table cover, emphasizing the "Easy Cleaning" feature.

Image: A folded replacement sheet, indicating its availability for easy cleaning and change.

5.2 Storage

When not in use, fold the nursery center and store it in its carry bag in a dry, cool place away from direct sunlight.

6. Troubleshooting

6.1 Side Rails Not Locking

If a long or short side rail refuses to lock during setup:

1. Ensure the center of the playard base is not pushed down yet. The side rails must lock before the base is fully lowered.
2. Pull the red rope located in the center of the playard base upwards to make the unit upright.
3. Firmly pull up on the center of the side rail until it clicks into place. Repeat for all sides.
4. Once all side rails are locked, push the center of the playard base down until it is flat and secure.

7. Specifications

Image: A diagram illustrating the dimensions of the main nursery center, bassinet, changing table, and folded unit, along with the 33 lbs maximum load warning.

8. Warranty and Support

For warranty information or product support, please contact JOYMOR customer service directly. Refer to the product packaging or the official JOYMOR website for contact details.
