CAHAYA CY0334 Standard Drum Throne Instruction Manual

1. Introduction

This manual provides essential instructions for the safe and effective assembly, operation, and maintenance of your CAHAYA CY0334 Standard Drum Throne. Please read this manual thoroughly before use and retain it for future reference.

2. Safety Information

Warning:

Exceeding the recommended load capacity of 370 lbs may result in damage or instability of the stool, potentially causing injury. Always ensure the drum throne is placed on a stable, level surface before use.

3. Package Contents

Verify that all components are present before beginning assembly:

• 1 x Tripod Stand
• 1 x Nut
• 1 x Screw
• 1 x Cushion (Padded Seat)

Image: Components of the drum throne including the tripod stand, cushion, nut, and screw, alongside visual assembly steps.

4. Setup and Assembly

The CAHAYA CY0334 Drum Throne is designed for simple and quick assembly. Follow these steps:

1. Unfold the Tripod Stand: Carefully unfold the three legs of the tripod base until they are fully extended and locked into position. Ensure the support bars are properly aligned.
2. Attach the Cushion: Place the padded cushion onto the top of the main vertical post of the tripod stand.
3. Secure the Cushion: Insert the provided screw through the bottom of the tripod stand's vertical post and into the threaded insert on the underside of the cushion. Tighten the nut securely to fix the cushion in place.

No additional tools are required for assembly.

Image: A fully assembled CAHAYA CY0334 Drum Throne, showcasing its design and stability.

5. Operating Instructions

The CAHAYA CY0334 Drum Throne provides a stable and comfortable seating solution for drummers.

• Positioning: Place the drum throne on a flat, stable surface. Ensure all three legs are fully extended and making firm contact with the ground to maximize stability.
• Seating: Sit centrally on the padded cushion. The 2.6-inch thick foam cushion is designed to provide comfort during extended playing sessions.
• Load Capacity: The drum throne has a maximum load capacity of 370 lbs (approximately 167 kg). Do not exceed this weight limit to maintain structural integrity and safety.
• Non-Slip Design: The legs are equipped with non-slip covers to increase friction with the floor, further enhancing stability during use.

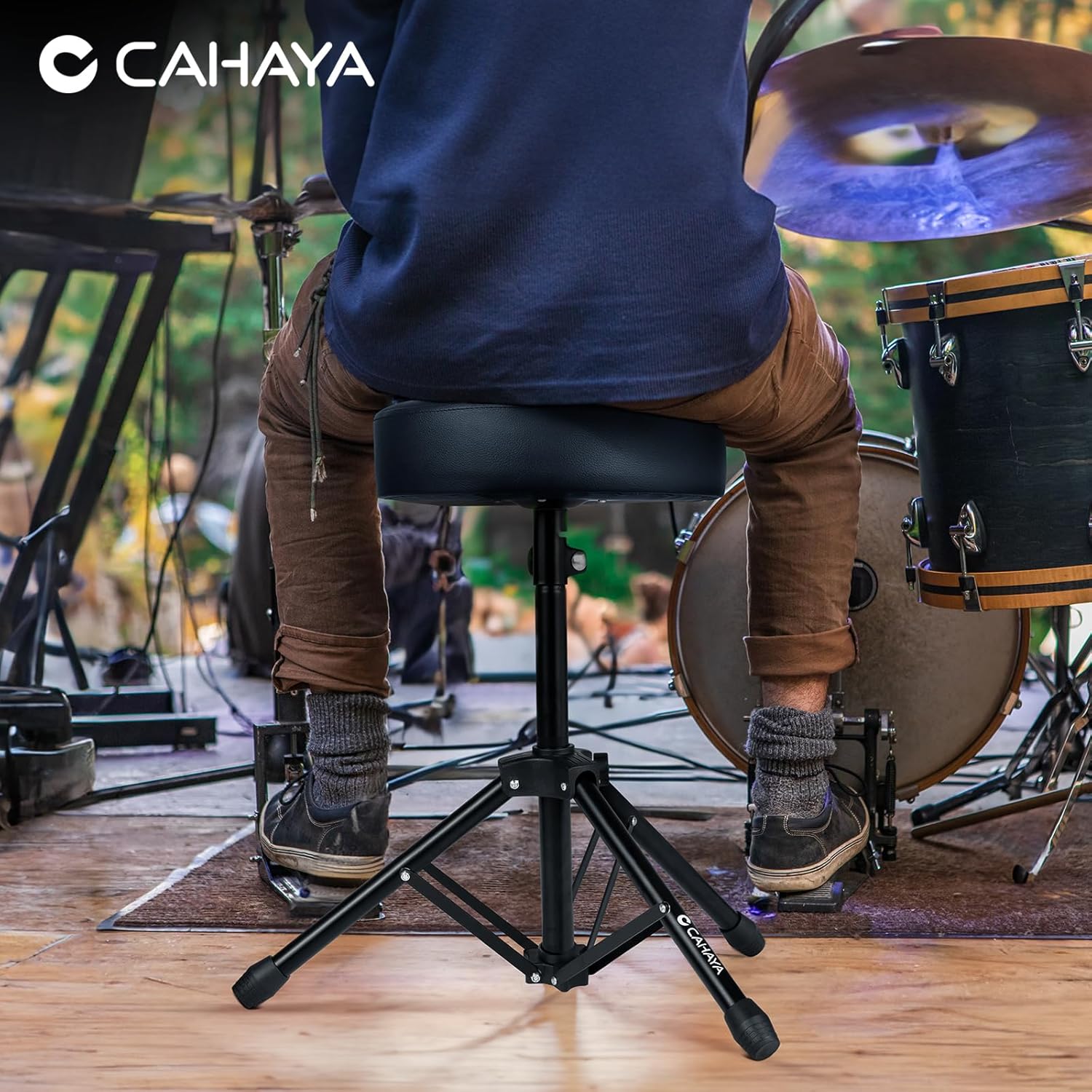

Image: A drummer seated on the CAHAYA CY0334 Drum Throne, demonstrating its use in a performance setting.

6. Maintenance

To ensure the longevity and optimal performance of your drum throne, follow these simple maintenance guidelines:

• Cleaning: Wipe the padded seat and metal frame with a damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these may damage the finish or upholstery.
• Inspection: Periodically check all screws and connections to ensure they remain tight. Retighten if necessary.
• Storage: When not in use, the drum throne can be folded for compact storage. Store in a dry environment away from extreme temperatures.

7. Troubleshooting

If you encounter any issues with your CAHAYA CY0334 Drum Throne, consider the following:

• Instability: Ensure all three legs are fully extended and locked. Verify that the drum throne is on a flat, even surface. Check that the cushion is securely fastened to the post.
• Cushion Movement: If the cushion feels loose, ensure the screw and nut securing it to the post are tightened firmly.
• Noise: Check for any loose connections or components. Tighten all fasteners.

If problems persist, please contact CAHAYA customer support for assistance.

8. Specifications

Image: Detailed dimensions of the drum throne, including seat diameter, height, and base width.

9. Warranty and Support

CAHAYA products are manufactured to high-quality standards. For information regarding warranty coverage, returns, or technical support, please refer to the official CAHAYA website or contact their customer service department directly. Contact details are typically found on the product packaging or the brand's official online presence.

For further assistance, you may visit the CAHAYA Store on Amazon.
