VINGVO Electric Walnut Cake Maker Instruction Manual

Important Safety Instructions

Please read all instructions carefully before using the appliance. Keep this manual for future reference.

• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.

Product Overview

The VINGVO Electric Walnut Cake Maker is designed to quickly and easily prepare up to 24 mini walnut-shaped cakes or similar small baked goods. It features non-stick cooking plates and temperature control for consistent results.

Figure 1: VINGVO Electric Walnut Cake Maker with finished cakes.

Figure 2: Open view of the VINGVO Electric Walnut Cake Maker's non-stick plates.

Setup

1. Unpacking: Carefully remove the appliance and all packaging materials. Retain packaging for future storage or transport if needed.
2. Initial Cleaning: Before first use, wipe the cooking plates with a damp cloth or sponge. Dry thoroughly. The non-stick coating does not require seasoning.
3. Placement: Place the walnut cake maker on a stable, flat, heat-resistant surface. Ensure there is adequate ventilation around the appliance. Keep it away from walls, curtains, and other heat-sensitive materials.
4. Power Connection: Ensure the appliance is closed and the temperature control (if present) is set to the lowest setting. Plug the power cord into a standard 110V AC electrical outlet.

Operating Instructions

1. Preheating: Close the lid and plug in the appliance. The indicator light(s) will illuminate, typically an orange light indicating heating. Allow the maker to preheat for approximately 3-5 minutes. The green indicator light should illuminate when the desired temperature is reached, signaling it's ready for use. Note: The visibility of the green indicator light may vary.
2. Adding Batter: Once preheated, carefully open the lid. Pour or spoon your prepared batter into each of the 24 molds on the bottom plate. Do not overfill, as the batter will expand during cooking.
3. Cooking: Close the lid firmly. The orange indicator light may come back on as the appliance maintains temperature. Cook for approximately 3-7 minutes, or until the walnut cakes are golden brown and cooked through. Cooking time may vary based on batter consistency and desired crispness. If cakes are unevenly cooked, try adjusting the cooking time or ensuring even batter distribution.
4. Removing Cakes: Once cooked, carefully open the lid. Use a heat-resistant plastic or wooden utensil to gently remove the walnut cakes from the non-stick plates. Avoid using metal utensils, which can damage the non-stick coating.
5. Repeat: Close the lid to allow the appliance to reheat for a minute or two before adding the next batch of batter.
6. Finishing: When finished cooking, unplug the appliance from the power outlet and allow it to cool completely before cleaning and storing.

Figure 3: Pouring batter into the walnut cake maker molds.

Figure 4: Cooked walnut cakes in the maker, ready for removal.

Maintenance and Cleaning

Proper maintenance ensures the longevity and performance of your VINGVO Electric Walnut Cake Maker.

1. Cool Down: Always ensure the appliance is unplugged and completely cool before attempting to clean it.
2. Cleaning Plates: Wipe the non-stick cooking plates with a soft, damp cloth or sponge. For stubborn residue, a small amount of mild dish soap can be used. Avoid abrasive cleaners, scouring pads, or metal utensils, as these can damage the non-stick coating.
3. Exterior Cleaning: Wipe the exterior housing with a damp cloth. Do not immerse the appliance in water or any other liquid.
4. Drying: Ensure all parts are thoroughly dry before storing.
5. Storage: Store the appliance in a clean, dry place. The compact design allows for easy storage.

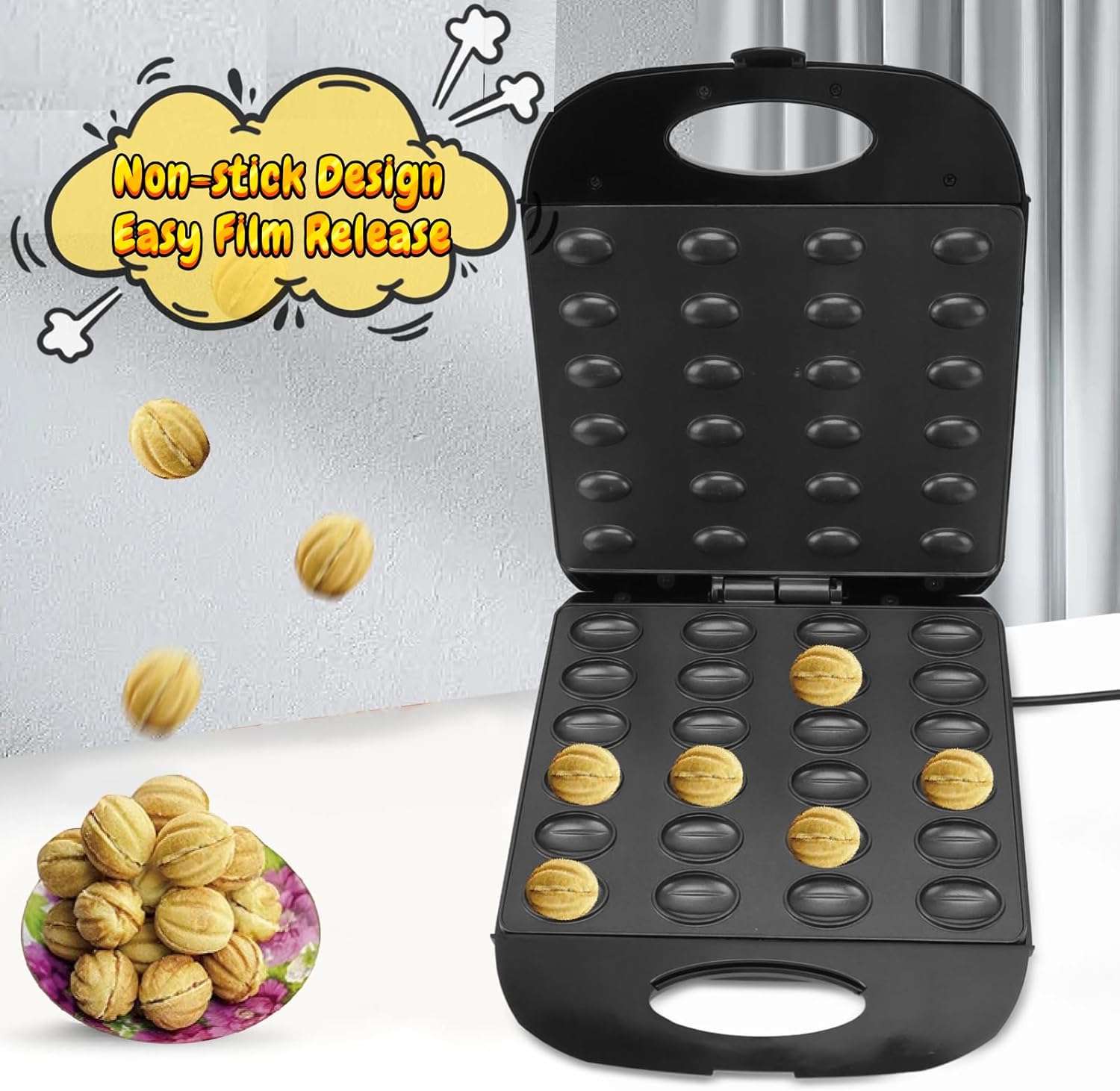

Figure 5: Non-stick design for easy cleaning and cake removal.

Troubleshooting

Specifications

• Model: VINGVOfhy6otsguv-11
• Brand: VINGVO
• Power: 1400W
• Voltage: 110V
• Material: ABS, Aluminum Alloy
• Color: Black
• Special Feature: Non-Stick Coating, Temperature Control
• Product Dimensions: 11.81 x 10.24 x 3.54 inches (30 x 26 x 9 cm)
• Item Weight: 4.99 pounds (approx. 2.26 kg)
• Capacity: 24 pieces

Figure 6: Product dimensions and individual mold size.

Warranty and Support

This VINGVO product is covered by a standard manufacturer's warranty. For specific warranty details, please refer to the documentation included with your purchase or contact VINGVO customer support.

If you encounter any issues or have questions regarding your Electric Walnut Cake Maker, please contact VINGVO customer support through the retailer's platform or the official VINGVO website. Please have your model number (VINGVOfhy6otsguv-11) and purchase date available when contacting support.
