Fanttik X9 Pro Tire Inflator and 38W Fast Charging Car Adapter User Manual

Introduction

The Fanttik X9 Pro is a versatile and efficient tire inflator, designed for swift and effortless inflation of various items, from motorcycle tires to sports balls. It boasts a rapid 27-second inflation time for standard motorcycle tires and a maximum pressure of 150 PSI, catering to a wide range of vehicles and inflatables. This compact, battery-powered device features a built-in 5000mAh battery, ensuring long-lasting use and a convenient auto-shutoff function for safety and energy conservation. With its integrated hose and storage slot for accessories, the X9 Pro offers easy portability and organization. The device also stands out with its user-friendly, large-screen display, providing excellent readability even in bright sunlight.

Safety Information

• Read all instructions before use.
• Keep out of reach of children.
• Do not operate in wet conditions.
• Do not expose to fire or extreme temperatures.
• Ensure proper connection to avoid air leakage or damage.
• The device may become warm during prolonged use; handle with care.

Package Contents

The Fanttik X9 Pro package includes the following items:

• Fanttik X9 Pro Tire Inflator with integrated hose
• 38W Dual Port Fast Charging Car Adapter
• USB-C Charging Cable
• Needle valve adapter (for sports balls)
• Presta valve adapter (for bicycles)
• Storage bag
• User Manual

Image: The Fanttik X9 Pro features a convenient storage slot for various inflation accessories, ensuring they are always at hand.

Setup

Charging the Device

The Fanttik X9 Pro comes with a built-in 5000mAh battery. Before first use, ensure the device is fully charged using the provided USB-C charging cable. Connect the USB-C end to the inflator and the USB-A end to a compatible power source (e.g., wall adapter, car charger).

Attaching the Inflation Hose

The inflation hose is integrated into the device. To activate the inflator, pull out the yellow end of the hose. To turn it off, push it back into the inflator's body. Select the appropriate adapter for your item (e.g., needle for balls, Presta for certain bike valves) and securely attach it to the hose.

Operating Instructions

Turning On/Off and Display

The device automatically turns on when the hose is pulled out. The large screen display will activate, showing current pressure and selected mode. You can also manually turn it on/off using the power button on the control panel. If left unused for 3 minutes, it will automatically shut down to conserve energy.

Selecting Inflation Modes

The X9 Pro features 4+N intelligent modes. Use the mode selection button on the control panel to cycle through presets for car, motorcycle, bicycle, and sports ball. An additional manual mode allows for custom pressure settings. Each mode has a default PSI setting, which can be adjusted using the '+' and '-' buttons.

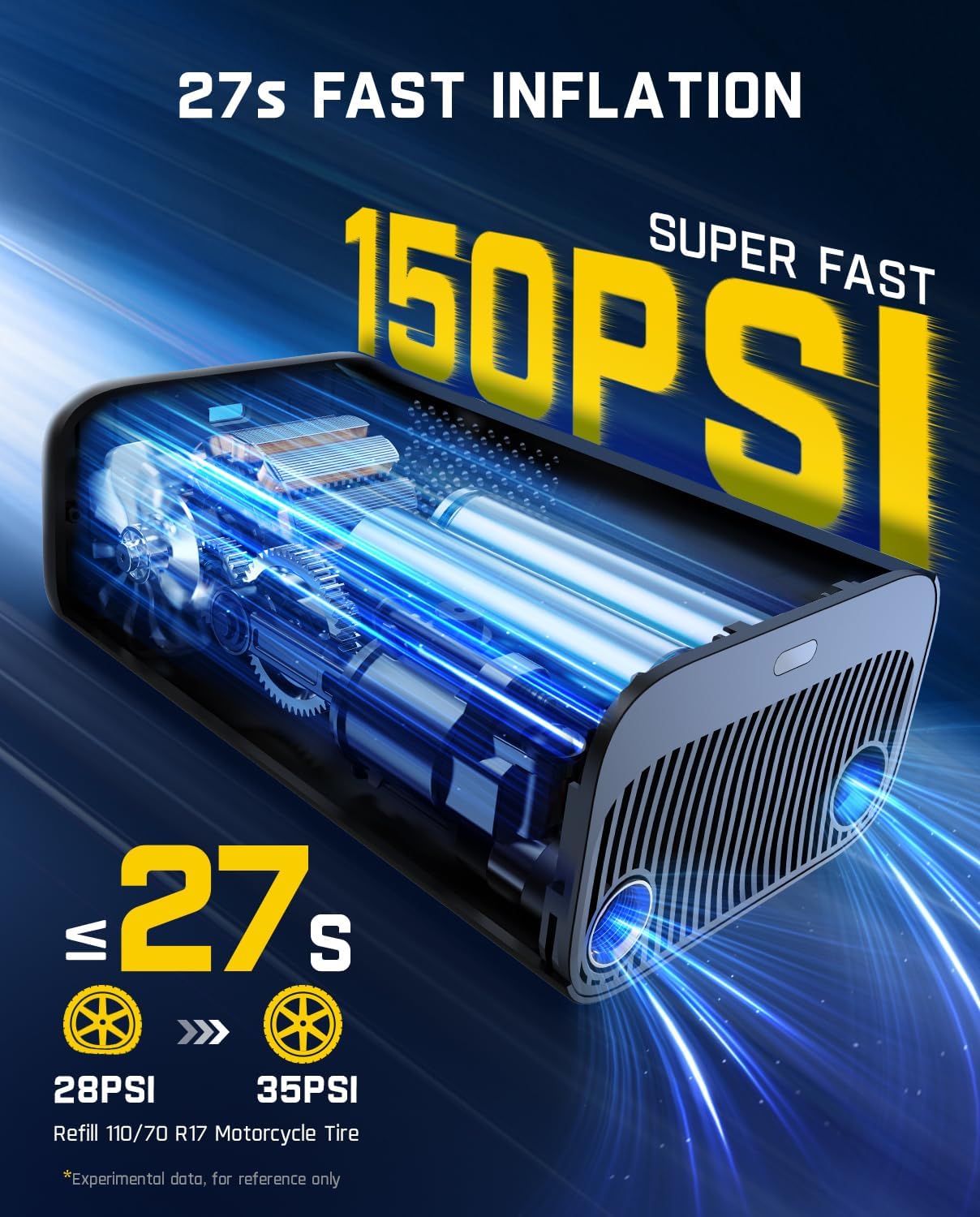

Image: The Fanttik X9 Pro can inflate a standard motorcycle tire from 28 to 35 PSI in just 27 seconds, with a maximum pressure of 150 PSI.

Setting Target Pressure and Inflation

Once a mode is selected, the display shows the current pressure and the default/set target pressure. Use the '+' and '-' buttons to adjust the target pressure as needed. Connect the hose securely to the item's valve. Press the power button to begin inflation. The device will automatically shut off once the target pressure is reached.

Image: The auto-shutoff feature of the Fanttik X9 Pro automatically stops inflation once the preset pressure is reached, allowing for hands-free operation.

Using the Integrated Light

The inflator includes an integrated light for visibility in low-light conditions. Press the light button on the control panel to cycle through different light modes (e.g., steady on, SOS flashing, off).

Official Product Videos

38W Dual Port Fast Charging Car Adapter

The Fanttik X9 Pro package includes a 38W Dual Port Fast Charging Car Adapter, designed to quickly charge two devices simultaneously while on the go.

Features:

• Dual Port Charging: Allows charging of two devices concurrently.
• Fast Charging: Delivers up to 38W total power, significantly faster than standard 5W chargers.
• Universal Compatibility: Compatible with a wide range of devices including iPhones, iPads, and Android phones.
• Superior Safety: Built-in protections against over-current, over-voltage, overcharge, and high-temperature to ensure safe charging.

Image: The 38W Dual Port Fast Charging Car Adapter can charge two devices simultaneously, delivering 18W to one and 20W to another.

Image: The car adapter includes multiple safety protections such as over-current, over-voltage, overcharge, and high-temperature protection.

Maintenance

• Clean the device with a soft, dry cloth.
• Do not use harsh chemicals or abrasive cleaners.
• Store the inflator and accessories in the provided storage bag in a cool, dry place.
• Ensure the hose is properly stored in its integrated slot to prevent accidental activation.

Troubleshooting

• Device not turning on: Ensure the hose is fully pulled out. Check battery level and recharge if necessary.
• Inflation is slow or not working: Verify the hose is securely attached to both the inflator and the item's valve. Check for leaks. Ensure the correct mode and target pressure are set.
• Inaccurate pressure reading: Ensure the hose is properly connected without leaks. Compare with a trusted pressure gauge if uncertainty persists.
• Device overheating: The X9 Pro has a cooling system. If it feels excessively hot, allow it to cool down before continuing use.

Specifications

Warranty & Support

For warranty information, technical support, or to purchase additional accessories, please visit the official Fanttik store or contact their customer service. Details can be found in the included User Manual or on the Fanttik Amazon Store.
