Introduction
Thank you for choosing the WELLFOR 55"x35" Wall Mounted Bathroom Medicine Cabinet. This manual provides essential information for the safe and proper installation, operation, and maintenance of your new cabinet. Please read these instructions thoroughly before assembly and retain them for future reference.
Image: The WELLFOR 55"x35" Wall Mounted Bathroom Medicine Cabinet, featuring two mirrored doors and open shelving, installed above a double vanity.
Safety Information
Please observe the following safety precautions during installation and use:
- Always wear appropriate safety gear, including eye protection, during installation.
- Ensure the wall structure is capable of supporting the cabinet's weight (83.6 lbs) plus the weight of its contents. Consult a professional if unsure about wall integrity.
- Locate and avoid electrical wires, water pipes, and gas lines before drilling into walls.
- Handle glass mirrors with care to prevent breakage and injury.
- Keep small parts and hardware out of reach of children.
- Do not overload shelves. Distribute weight evenly.
- Ensure all mounting hardware is securely fastened before use.
Package Contents
Verify that all components are present before beginning assembly:
- Medicine Cabinet Unit (pre-assembled frame with mirrors)
- Adjustable Shelves (quantity: 4)
- Mounting Hardware Kit (screws, anchors, mounting brackets)
- Instruction Manual
If any parts are missing or damaged, please contact WELLFOR customer service.
Specifications
| Brand | WELLFOR |
| Model Number | MED55YS1TG |
| Dimensions (W x H x D) | 55" x 35" x 5.9" |
| Item Weight | 83.6 lbs |
| Color | Titanium Grey |
| Material | Wood frame, eco-friendly veneer plywood, 5mm silver coated mirror glass |
| Mounting Type | Wall Mount |
| Number of Shelves | 4 (adjustable) + built-in open shelves |
| Special Features | Soft-close hinges, double mirrored doors, open shelving |

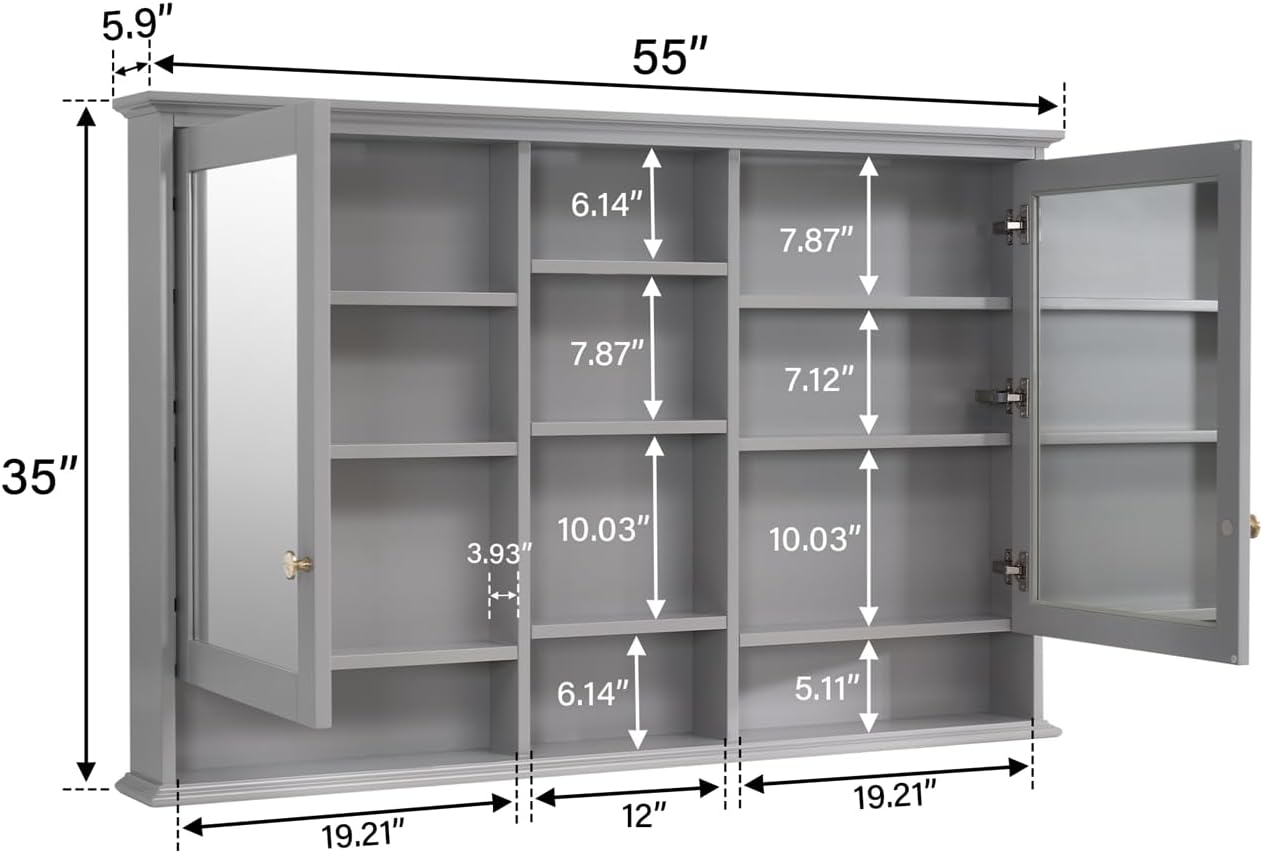

Image: Technical drawing illustrating the overall dimensions (55" W x 35" H x 5.9" D) and internal shelf measurements of the cabinet.
Setup and Installation
This medicine cabinet is designed for wall-mounted installation. Professional installation is recommended for optimal safety and stability. Ensure you have the necessary tools:
- Pencil
- Measuring Tape
- Level
- Drill with appropriate drill bits
- Stud Finder (recommended)
- Screwdriver (Phillips head)
Installation Steps:
- Prepare the Wall: Choose a suitable location on a sturdy wall. Use a stud finder to locate wall studs for secure mounting. If studs are not available at desired locations, use appropriate wall anchors for your wall type (e.g., drywall anchors, masonry anchors).
- Mark Mounting Points: Hold the cabinet against the wall at the desired height and use a level to ensure it is straight. Mark the positions for the mounting brackets on the wall. Refer to the back of the cabinet for bracket locations.
- Install Mounting Brackets: Drill pilot holes at the marked points. Attach the mounting brackets securely to the wall using the provided screws and anchors. Ensure they are level and firmly attached.
- Mount the Cabinet: Carefully lift the cabinet and align the pre-installed hanging rails on the back of the cabinet with the wall-mounted brackets. Gently lower the cabinet onto the brackets, ensuring it is fully seated and stable.
- Secure the Cabinet (Optional but Recommended): Depending on the design, there may be additional securing points inside the cabinet. Use screws to fasten the cabinet directly to the wall through these points for added stability.
- Install Shelves: Insert the adjustable shelves into the desired positions within the cabinet.

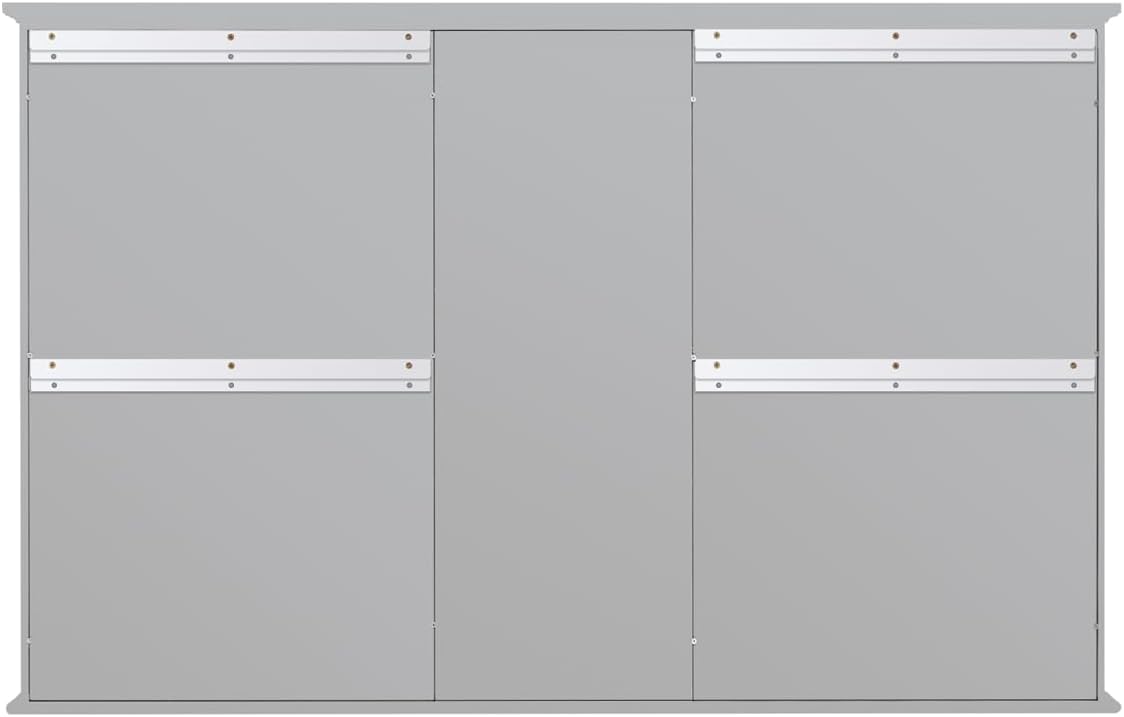

Image: Rear view of the cabinet, highlighting the horizontal mounting rails designed for wall attachment.
Operation
Your WELLFOR medicine cabinet is designed for convenient storage and daily use.
- Mirrored Doors: Gently pull the decorative knobs to open the mirrored doors. The soft-close hinges will ensure a quiet and smooth closing action, preventing slamming.
- Adjustable Shelves: The internal shelves can be repositioned to accommodate items of various heights. To adjust, carefully lift the shelf, remove the shelf pins, reposition the pins to the desired height, and then place the shelf back on the pins.
- Open Shelving: Utilize the central open shelves for frequently accessed items or decorative display.

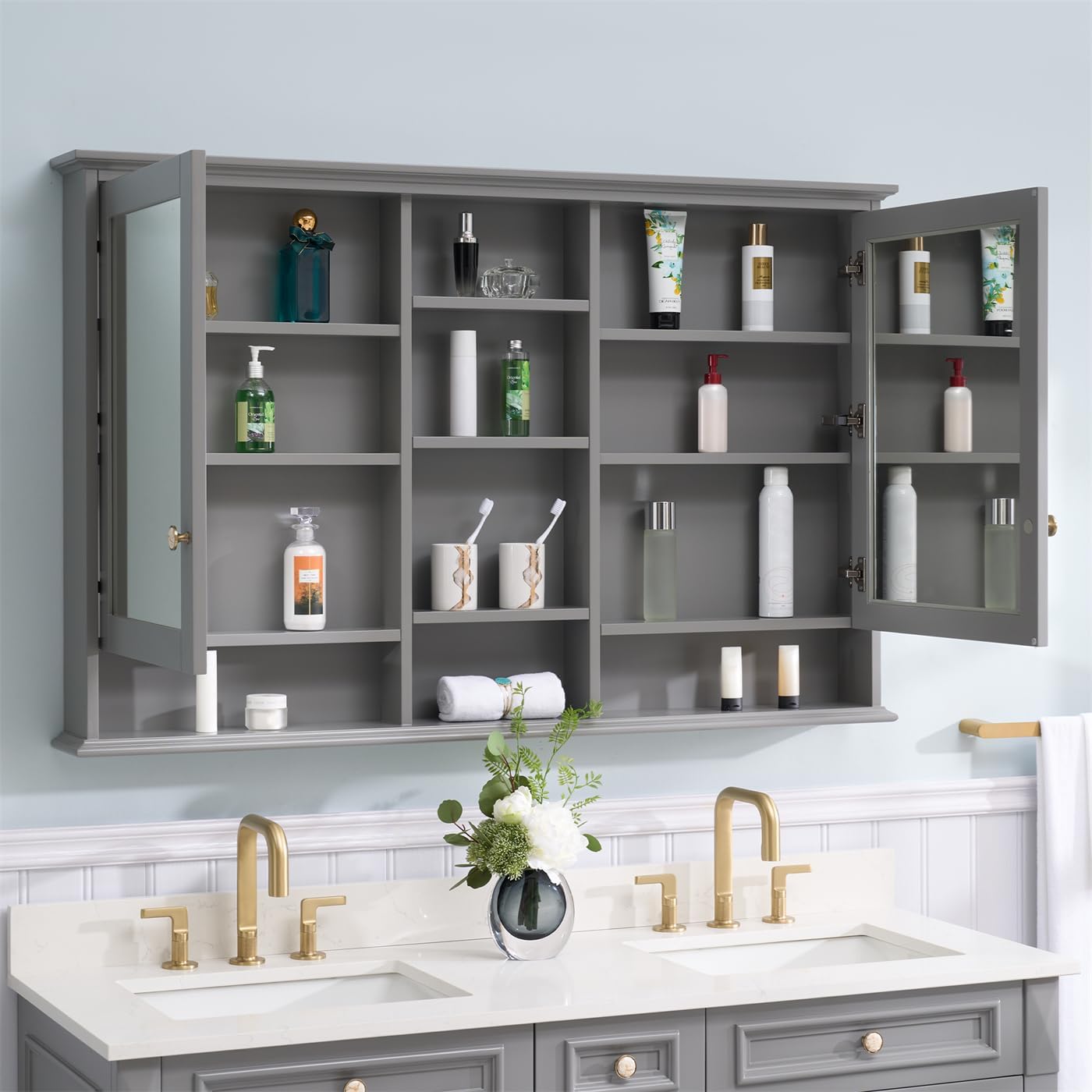

Image: The medicine cabinet with both mirrored doors open, revealing multiple internal shelves and compartments for organized storage.

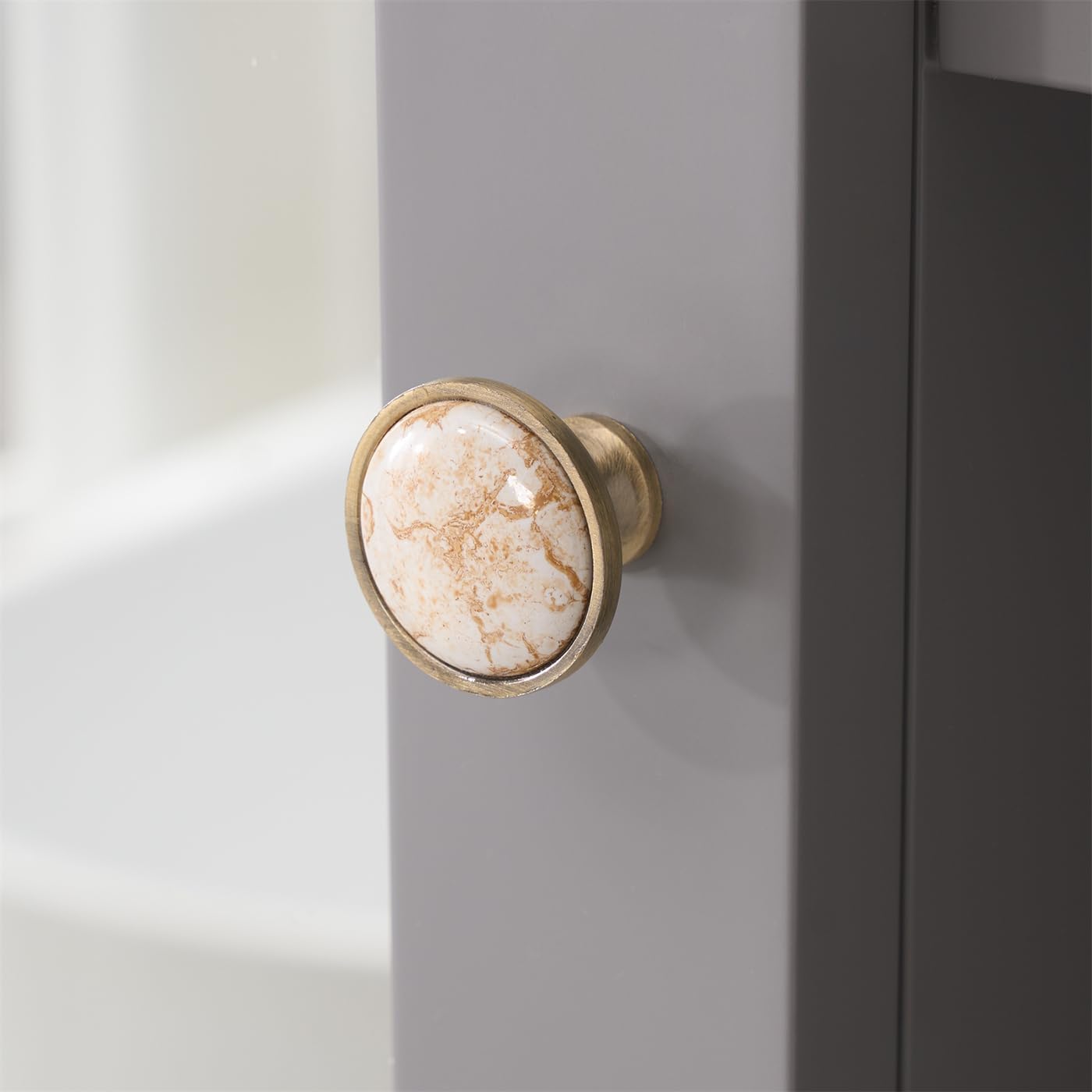

Image: A close-up view of the round, marble-patterned knob with a brass-tone base, used to open the cabinet doors.
Maintenance
Regular cleaning and care will help maintain the appearance and functionality of your cabinet.
- Cleaning the Mirror: Use a soft, lint-free cloth and a non-abrasive glass cleaner. Spray cleaner onto the cloth, not directly onto the mirror, to avoid liquid seeping into edges.
- Cleaning the Cabinet: Wipe the wood surfaces with a soft, damp cloth. For stubborn marks, use a mild, non-abrasive cleaner specifically designed for wood finishes. Dry immediately with a clean cloth. Avoid harsh chemicals or abrasive cleaning tools.
- Hinge Care: The soft-close hinges are designed for durability. If they become stiff or noisy over time, a small amount of silicone-based lubricant can be applied to the moving parts. Avoid oil-based lubricants.
- Moisture Control: In humid environments like bathrooms, ensure adequate ventilation to prevent moisture buildup, which can affect wood and mirror longevity.
Image: A detailed view of the Austria BLUM soft-close hinge, demonstrating the mechanism that ensures smooth and quiet door closure.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Cabinet feels unstable or wobbly. | Improper wall mounting; loose screws or anchors. | Ensure all mounting hardware is securely tightened. Verify wall studs or appropriate anchors were used. Re-mount if necessary. |
| Doors do not close smoothly or are misaligned. | Hinges require adjustment; obstruction. | Check for any items obstructing the door path. Adjust the soft-close hinges using a screwdriver (refer to hinge manufacturer's instructions for specific adjustment points). |
| Mirror appears foggy or streaky after cleaning. | Improper cleaning technique or product. | Use a clean, lint-free cloth and a streak-free glass cleaner. Avoid spraying directly onto the mirror. Buff gently until clear. |
| Shelves are difficult to insert or remove. | Shelf pins are misaligned or damaged. | Ensure shelf pins are fully inserted and aligned horizontally. Check for any damage to pins or shelf holes. |
Warranty and Support
WELLFOR products are manufactured with quality and durability in mind. For specific warranty details, please refer to the warranty card included with your purchase or visit the official WELLFOR website.
If you encounter any issues or have questions regarding your WELLFOR 55"x35" Bathroom Medicine Cabinet, please contact our customer support team:
- Brand: WELLFOR
- Website: Visit the WELLFOR Store on Amazon (for general product information)
- For direct support, please refer to the contact information provided in your product packaging.
