1. Introduction and Overview
This manual provides essential information for the safe and efficient operation of your Procool CSD-1000-CB 35.3 cubic foot 2-door commercial display refrigerator. Designed for commercial use, this unit features glass doors, LED lighting, and a robust cooling system to showcase and preserve beverages or other merchandise. Please read this manual thoroughly before installation and use, and retain it for future reference.
2. Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury. This appliance is intended for commercial use only.
- Ensure the unit is properly grounded.
- Do not operate the unit with a damaged power cord or plug.
- Keep ventilation openings clear of obstructions.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Only qualified personnel should perform repairs.
- Unplug the unit before cleaning or performing maintenance.
3. Setup and Installation
Proper setup ensures optimal performance and longevity of your refrigerator.
3.1 Unpacking
Carefully remove all packaging materials. The unit comes with casters (attached), 8 shelves, and 32 shelf clips. Inspect the unit for any shipping damage.
3.2 Placement
Place the refrigerator on a flat, stable surface. Ensure adequate clearance around the unit for proper ventilation (at least 4 inches from walls). This is a freestanding unit. Avoid direct sunlight or heat sources.
3.3 Leveling
The unit is equipped with 4 front-locking casters. Ensure the refrigerator is level by adjusting the casters. Lock the front casters to prevent movement.
3.4 Power Connection
Connect the unit to a dedicated 110 Volt electrical outlet. Do not use extension cords or adapters.
3.5 Initial Cleaning
Before loading products, clean the interior with a mild detergent and water. Wipe dry thoroughly.
4. Operating Instructions
Familiarize yourself with the controls and features for optimal product display and preservation.
4.1 Temperature Control
The refrigerator features a digital control screen for precise temperature management. The temperature can be set between 34°F and 50°F (1°C to 10°C). Allow the unit to reach the desired temperature before loading products.
4.2 LED Lighting
The interior LED lighting and the canopy lightbox have separate switches, allowing you to control illumination independently. This enhances product visibility.
4.3 Adjustable Shelves
The unit includes 8 wire shelves and 32 shelf clips. The shelf support rails are numbered, making it easy to adjust and level shelves to accommodate various product heights and sizes.
4.4 Door Operation
The two glass doors are self-closing to maintain internal temperature and are lockable for security. Ensure doors close completely after each use.
5. Maintenance
Regular maintenance ensures efficient operation and extends the lifespan of your refrigerator.
5.1 Cleaning
Clean the white aluminum interior regularly with a mild, non-abrasive cleaner and a soft cloth. The exterior can be wiped with a damp cloth. Ensure the unit is unplugged before cleaning.
5.2 Defrost System
This unit features programmable auto-defrost, minimizing the need for manual defrosting. The self-evaporating water tray handles condensate.
5.3 Air Circulation
The internal cooling fan ensures even temperature distribution. Keep the internal fans clear of obstructions to maintain optimal air circulation.
5.4 Door Seals
Regularly inspect door gaskets for wear and tear. Clean them to ensure a tight seal, which is crucial for energy efficiency.
6. Troubleshooting
Refer to this section for common issues and their potential solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit not cooling | Power supply issue, thermostat setting, door not sealed. | Check power connection, adjust thermostat, ensure doors are closed and seals are intact. |
| Excessive noise | Unit not level, fan obstruction, compressor issue. | Level the unit, clear fan area, contact support if noise persists. |
| Water on floor | Drainage issue, excessive humidity, door left open. | Check drain pan, ensure doors are closed, reduce humidity if possible. |
| Temperature fluctuation | Frequent door openings, ambient temperature, fan obstruction. | Minimize door openings, ensure proper ventilation, clear fan area. |
If problems persist after attempting these solutions, please contact customer support.

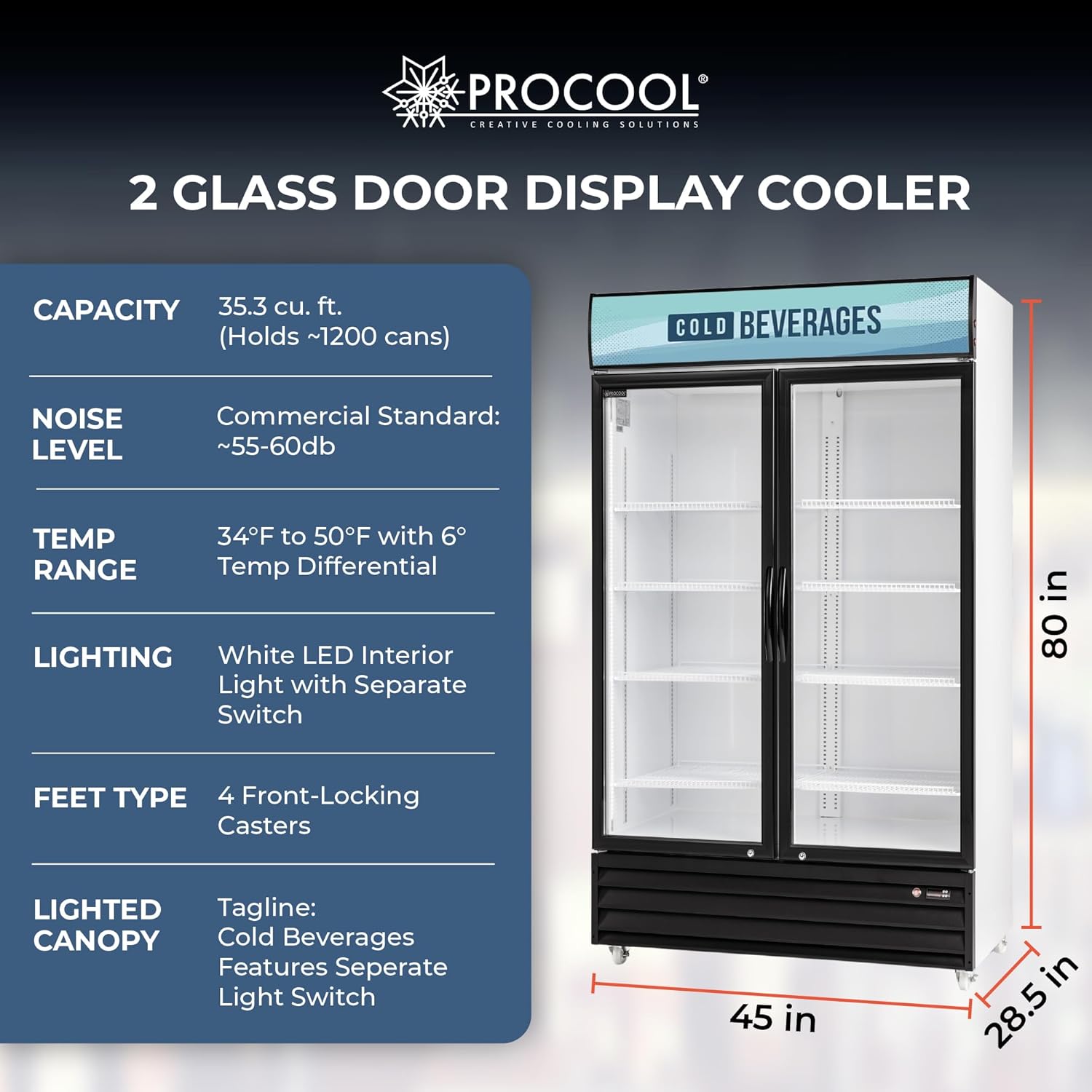

7. Specifications
Detailed technical specifications for the Procool CSD-1000-CB refrigerator.
- Brand: Procool Creative Cooling Solutions
- Model: CSD-1000-CB
- Capacity: 35.3 Cubic Feet
- Dimensions (D x W x H): 28.5" x 45" x 80"
- Item Weight: 357 Pounds
- Voltage: 110 Volts
- Annual Energy Consumption: 1226 Kilowatt Hours Per Year
- Defrost System: Automatic
- Number of Doors: 2 (Swing Doors)
- Door Material Type: Glass (Double-paned, outer tempered)
- Shelf Type: Wire (8 shelves included, 32 shelf clips)
- Temperature Range: 34°F to 50°F (with 6°F differential)
- Noise Level: Approximately 55-60 dB
- Refrigerant: R290 (Eco-Friendly)
- Special Features: Adjustable Shelves, Automatic Defrost, Digital Temperature Control, Door Lock, LED Lights
- Certifications: ETL Approved, DOE Compliant, Conforms to NSF Std7
- Included Components: Casters (attached), Shelf Clips (32), Shelves (8)
8. Warranty and Support
Procool Creative Cooling Solutions is an American-owned and operated company committed to providing quality products and customer service.
8.1 Warranty Information
Your Procool refrigerator is backed by US-based customer service with fast in-house warranty support. For specific warranty terms and conditions, please refer to the warranty card included with your product or contact customer service.
8.2 Customer Support
For any questions, technical assistance, or warranty claims, please contact our highly trained, onsite support team. Contact information can be found on our official website or the product packaging.
8.3 Official Product Videos
Video 8.1: Procool Customer Experience. This video provides an overview of the customer support experience offered by Iron Mountain Refrigeration & Equipment LLC, highlighting their responsive and trained team.
Video 8.2: Procool Refrigeration Double Door Commercial Display Cooler. This video showcases the double-door commercial display cooler, demonstrating its features and design.
