MasterChef 5.5L 1500W Digital Air Fryer Instruction Manual

1. Product Overview

The MasterChef 5.5L 1500W Digital Air Fryer is designed for healthy cooking, utilizing 360° hot air circulation to prepare a variety of dishes with minimal to no oil. This appliance features a digital touchscreen for easy operation, adjustable temperature control, and multiple preset cooking programs.

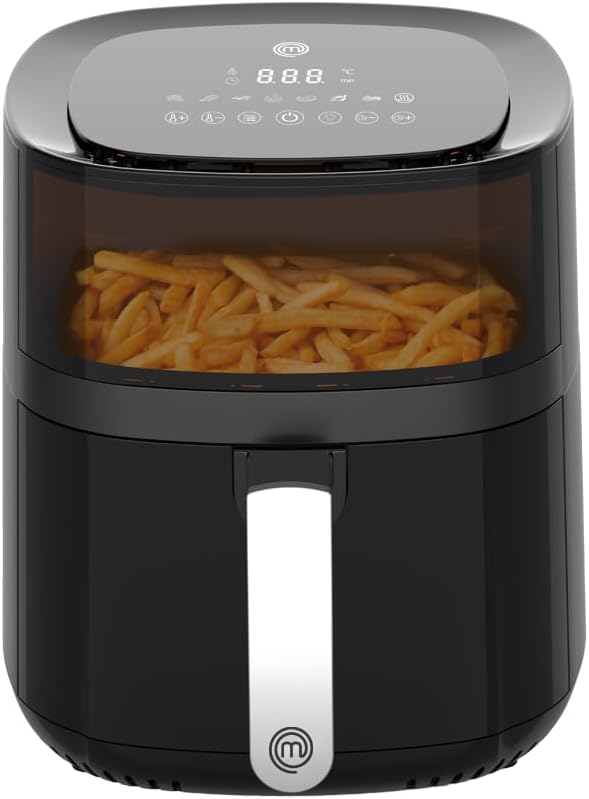

Image: MasterChef 5.5L Digital Air Fryer, showcasing its sleek black design and digital touchscreen. Golden-brown fries are visible through the transparent window of the cooking basket. The handle for the removable basket is also visible.

2. Safety Instructions

• Read all instructions before use.
• Do not immerse the main unit, cord, or plug in water or other liquids.
• Ensure the appliance is placed on a stable, heat-resistant surface, away from walls or other appliances to allow proper air circulation.
• Do not block the air inlet or outlet vents.
• Keep children and pets away from the appliance during operation.
• Unplug the appliance when not in use and before cleaning.
• Do not operate the appliance if the cord or plug is damaged, or if the appliance malfunctions.
• The appliance operates at high temperatures; use oven mitts when handling hot components.

3. Setup and First Use

3.1 Unpacking

1. Carefully remove all packaging materials from the air fryer.
2. Check for any damage during transit. If damaged, do not use and contact customer support.
3. Remove any stickers or labels from the appliance.

3.2 Initial Cleaning

• Wipe the exterior of the air fryer with a damp cloth.
• Wash the removable basket and grill plate with hot, soapy water. Rinse thoroughly and dry completely.
• Do not use abrasive cleaning materials or metal scouring pads, as these can damage the non-stick coating.

3.3 Placement

• Place the air fryer on a stable, level, and heat-resistant surface.
• Ensure there is at least 10 cm (4 inches) of clear space around the back and sides of the appliance for adequate ventilation.
• Plug the power cord into a grounded electrical outlet.

4. Operating Instructions

4.1 Control Panel Overview

The digital touchscreen control panel allows you to adjust settings and select cooking programs. It typically includes:

• Power Button: To turn the appliance on/off.
• Temperature Control: Buttons to increase or decrease cooking temperature (80°C - 200°C).
• Timer Control: Buttons to set cooking time (up to 60 minutes).
• Preset Programs: Icons representing various food types (e.g., fries, chicken, fish) for one-touch cooking.
• Start/Pause Button: To begin or temporarily stop cooking.
• Keep Warm Function: To maintain food temperature after cooking.

4.2 Basic Operation

1. Prepare Food: Place ingredients into the air fryer basket. Do not overfill the basket to ensure even cooking.
2. Insert Basket: Slide the basket firmly back into the air fryer until it clicks into place.
3. Power On: Press the Power Button to turn on the display.
4. Set Temperature and Time:
   • Manual Setting: Use the temperature and timer control buttons to set your desired cooking parameters.
   • Preset Program: Select one of the 7 preset icons for automatic temperature and time settings. You can adjust these manually after selection if needed.
5. Start Cooking: Press the Start/Pause Button to begin the cooking cycle. The fan and heating element will activate.
6. Shake Basket (Optional): For some foods, such as fries, it is recommended to shake the basket halfway through cooking to ensure even crisping. Pull out the basket, shake, and reinsert. The air fryer will resume cooking automatically.
7. End of Cooking: The air fryer will beep when the cooking time is complete. Carefully remove the basket and transfer the cooked food.
8. Keep Warm: If desired, activate the Keep Warm function after cooking to maintain food temperature.

4.3 Cooking Tips

• For best results, preheat the air fryer for 3-5 minutes before adding food.
• Lightly coat some foods with a small amount of oil for extra crispiness.
• Cook in batches if necessary to avoid overcrowding the basket.
• Refer to a reliable air fryer recipe guide for specific cooking times and temperatures for various ingredients.

5. Cleaning and Maintenance

5.1 Cleaning

1. Unplug and Cool: Always unplug the air fryer and allow it to cool completely before cleaning.
2. Basket and Grill Plate: The removable basket and grill plate have a non-stick coating. Wash them with hot, soapy water and a non-abrasive sponge. They are also dishwasher-safe, but hand washing is recommended to prolong the life of the non-stick coating.
3. Interior: Wipe the interior of the appliance with a damp cloth. For stubborn food residue, use a mild detergent and a soft sponge.
4. Exterior: Clean the exterior with a damp cloth. Do not use harsh chemicals or abrasive cleaners.
5. Heating Element: Gently clean the heating element with a cleaning brush to remove any food particles.

5.2 Storage

Ensure the air fryer is clean and completely dry before storing. Store it in a cool, dry place, away from direct sunlight and moisture. Do not wrap the power cord tightly around the appliance.

6. Troubleshooting

7. Specifications

• Brand: MasterChef
• Model Number: Hei"fluftfritteuse 5,5L
• Capacity: 5.5 Liters
• Power: 1500 Watts
• Voltage: 220 Volts (AC)
• Temperature Range: 80°C - 200°C
• Material: Plastic (exterior), Metal with PTFE non-stick coating (basket/interior)
• Dimensions (L x W x H): 34 x 34 x 37.5 cm
• Weight: 5.59 Kilograms
• Special Feature: Automatic Shut-off

8. Warranty and Support

For warranty information, please refer to the documentation provided with your purchase or contact MasterChef customer support. Keep your proof of purchase for any warranty claims.

If you encounter any issues not covered in this manual, or require further assistance, please contact MasterChef customer service through their official website or the contact details provided in your product packaging.

Note: Availability of spare parts information is not provided in the product details.
