JCROBOT 3-Axis Phone Gimbal User Manual

1. Introduction

Thank you for choosing the JCROBOT 3-Axis Phone Gimbal. This device is designed to provide stable and smooth video recording for smartphones, featuring an innovative magnetic AI active tracker that operates without the need for a dedicated application. This manual will guide you through the setup, operation, and maintenance of your gimbal to ensure optimal performance.

2. Package Contents

Please verify that all items listed below are included in your package:

• JCROBOT 3-Axis Phone Gimbal
• Magnetic AI Active Tracker
• Mini Tripod
• USB Charging Cable
• Storage Pouch
• User Manual (this document)

3. Setup

3.1 Charging the Gimbal

Before first use, fully charge the gimbal. Connect the provided USB charging cable to the gimbal's charging port and to a USB power source. The indicator lights will show charging status.

3.2 Attaching Your Smartphone

1. Unfold the gimbal to its operational position.
2. Extend the phone clamp and securely place your smartphone in the center.
3. Attach the magnetic AI Active Tracker to the designated magnetic area on the phone clamp. Ensure it clicks into place. The AI tracker can be powered by the gimbal or can power the gimbal in reverse.

This gimbal is designed for immediate use without complex balancing. Simply clip your phone in the center, and it's ready.

3.3 Attaching the Tripod

For stable tabletop use or extended shooting, screw the mini tripod into the 1/4-inch thread at the bottom of the gimbal handle.

4. Operating the Gimbal

4.1 Power On/Off

Press and hold the power button located on the handle to turn the gimbal on or off. Indicator lights will illuminate when the device is active.

4.2 3-Axis Stabilization

The gimbal features advanced 3-axis stabilization to ensure your footage remains smooth and free of shake, regardless of hand movement. This technology automatically compensates for motion, providing professional-grade stability.

4.3 Magnetic AI Active Tracker

The AI Active Tracker provides intelligent face and body tracking without requiring any external application. It ensures the subject remains in focus and centered within the frame. The tracker can rotate 180 degrees for forward and reverse tracking.

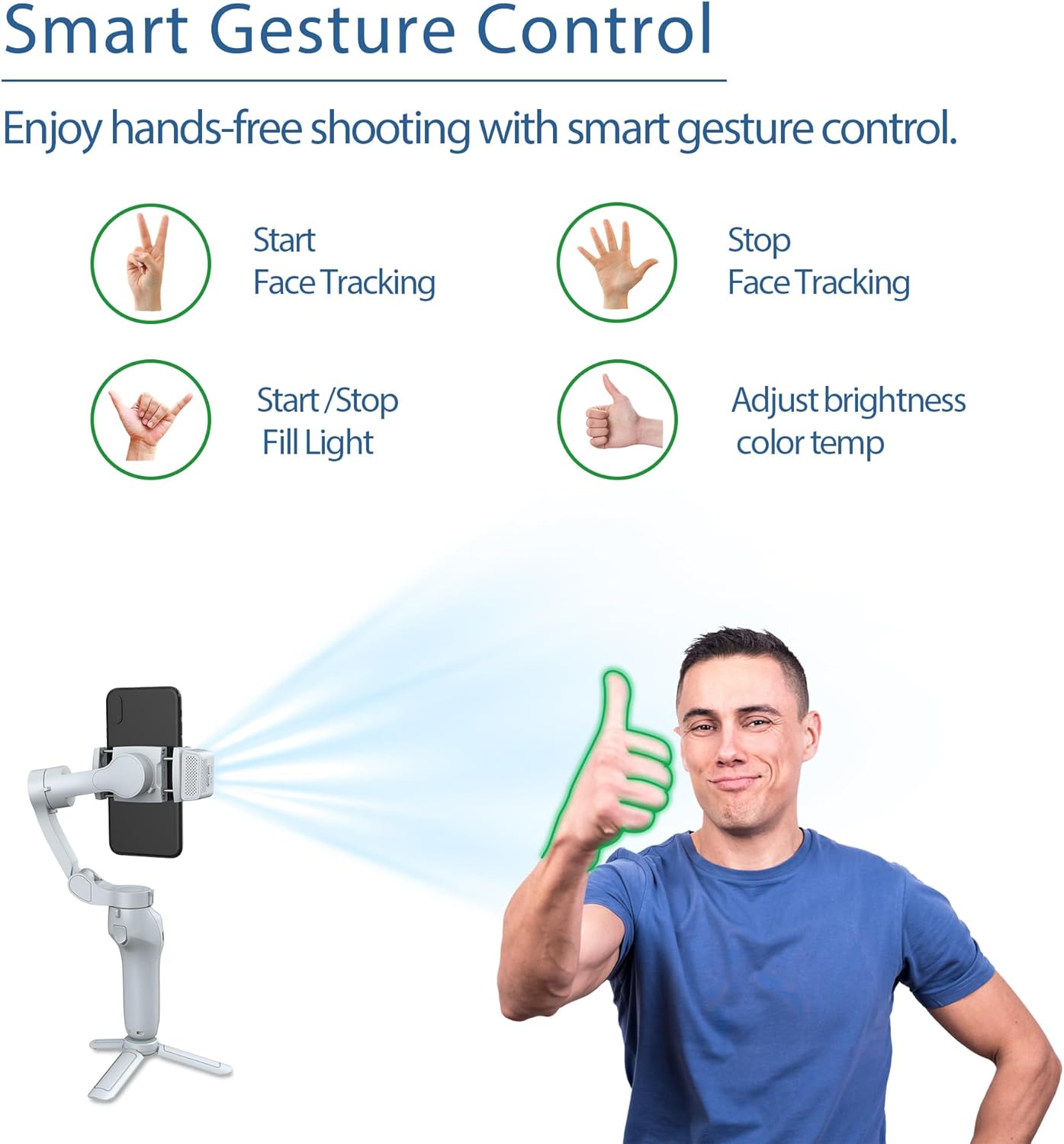

4.4 Gesture Control

The AI tracking unit supports gesture control for hands-free operation:

• Start Face Tracking: Make a 'V' sign with your fingers.
• Stop Face Tracking: Show an open palm.
• Start/Stop Fill Light: Make an 'OK' sign.
• Adjust Brightness/Color Temperature: Give a 'thumbs up' gesture.

4.5 Fill Light

The AI tracking unit integrates a fill light with 3 different color temperatures and 9 levels of brightness settings. This allows you to customize lighting for various shooting conditions and enhance your video quality.

4.6 Multiple Shooting Angles

The gimbal supports a variety of shooting angles to capture dynamic shots:

• Pan (Horizontal Rotation): 340°
• Tilt (Vertical Rotation): 160°
• Roll (Rotation along lens axis): 325°

5. Maintenance

5.1 Cleaning

Wipe the gimbal with a soft, dry cloth. Do not use liquid cleaners or solvents, as they may damage the device.

5.2 Storage

When not in use, fold the gimbal to its compact size and store it in the provided storage pouch. Keep it in a cool, dry place away from direct sunlight and extreme temperatures.

5.3 Battery Care

To prolong battery life, avoid fully discharging the battery frequently. Charge the gimbal regularly, even if not in use for extended periods.

6. Troubleshooting

6.1 Gimbal Not Powering On

• Ensure the gimbal is fully charged. Connect it to a power source and wait for the charging indicator to show sufficient charge.
• Press and hold the power button for a few seconds to ensure it registers.

6.2 Unstable Footage

• Ensure your smartphone is securely clamped in the center of the phone holder.
• Check for any obstructions preventing the gimbal motors from moving freely.
• Verify the gimbal is powered on and properly initialized.

6.3 AI Tracker Not Responding

• Ensure the AI Active Tracker is securely attached to the magnetic mount.
• Check if the AI tracker's indicator light is on.
• Ensure you are performing the gestures correctly and within the tracker's detection range.

6.4 Charging Issues

• Try a different USB charging cable and power adapter.
• Ensure the charging port on the gimbal is clean and free of debris.

7. Specifications

8. Warranty and Support

For warranty information and detailed support, please refer to the official JCROBOT website or the warranty card included with your product. If you encounter issues not covered in this manual, please contact JCROBOT customer service for assistance.

Customer Support: Please visit the manufacturer's official website for contact details.
