Bergner BOHIO BG-50043-BK 1300W Stand Mixer User Manual

1. Important Safety Instructions

Please read these instructions carefully before using your Bergner BOHIO Stand Mixer and retain them for future reference. Incorrect operation may cause damage to the appliance or injury to the user.

• Always ensure the appliance is unplugged from the power outlet before assembly, disassembly, or cleaning.
• Do not immerse the motor unit in water or any other liquid. Clean with a damp cloth only.
• Keep hands, hair, clothing, and utensils away from moving parts during operation to prevent injury.
• This appliance is not intended for use by children. Close supervision is necessary when any appliance is used near children.
• Do not operate the appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
• Place the mixer on a stable, flat, and dry surface during operation.
• Do not use attachments not recommended or sold by the manufacturer, as this may cause fire, electric shock, or injury.
• The appliance is equipped with overheat protection. If the motor stops due to overheating, unplug the unit and allow it to cool down for at least 30 minutes before resuming operation.
• For household use only. Do not use outdoors.

2. Product Overview

The Bergner BOHIO BG-50043-BK Stand Mixer is designed for efficient mixing, kneading, and whisking tasks in your kitchen. It features a robust design and powerful motor for consistent performance.

Components:

• Motor Unit: Contains the powerful 1300W motor and speed control.
• Mixing Bowl: 5.0-liter capacity, made of Type 304 stainless steel.
• Dough Hook: Made of aluminum alloy, ideal for kneading heavy doughs.
• Mixing Blade (Beater): Made of aluminum alloy, suitable for mixing batters, cakes, and frostings.
• Egg Whisk: Made of POM and Type 304 stainless steel, perfect for whisking eggs, cream, and light batters.
• Speed Control Knob: Rotary control with 6 speeds and a Pulse function.
• Anti-slip Rubber Feet: Ensures stability during operation.

Image 2.1: Overview of the Bergner BOHIO Stand Mixer with its main components.

3. Setup and Assembly

Before first use, ensure all packaging materials are removed and clean the components as described in the 'Maintenance and Cleaning' section.

Assembly Steps:

1. Place the motor unit on a clean, dry, and stable surface. Ensure the speed control knob is set to '0' (OFF) and the appliance is unplugged.
2. Lift the mixer head by pressing the release button (if applicable, usually located on the side or back of the motor unit).
3. Place the 5.0L stainless steel mixing bowl onto the base, twisting it clockwise until it locks securely into place.
4. Select the desired attachment (dough hook, mixing blade, or egg whisk). Align the attachment with the shaft and push upwards, then twist to secure it. Ensure it is firmly locked.
5. Lower the mixer head until it locks into position. You should hear a click.

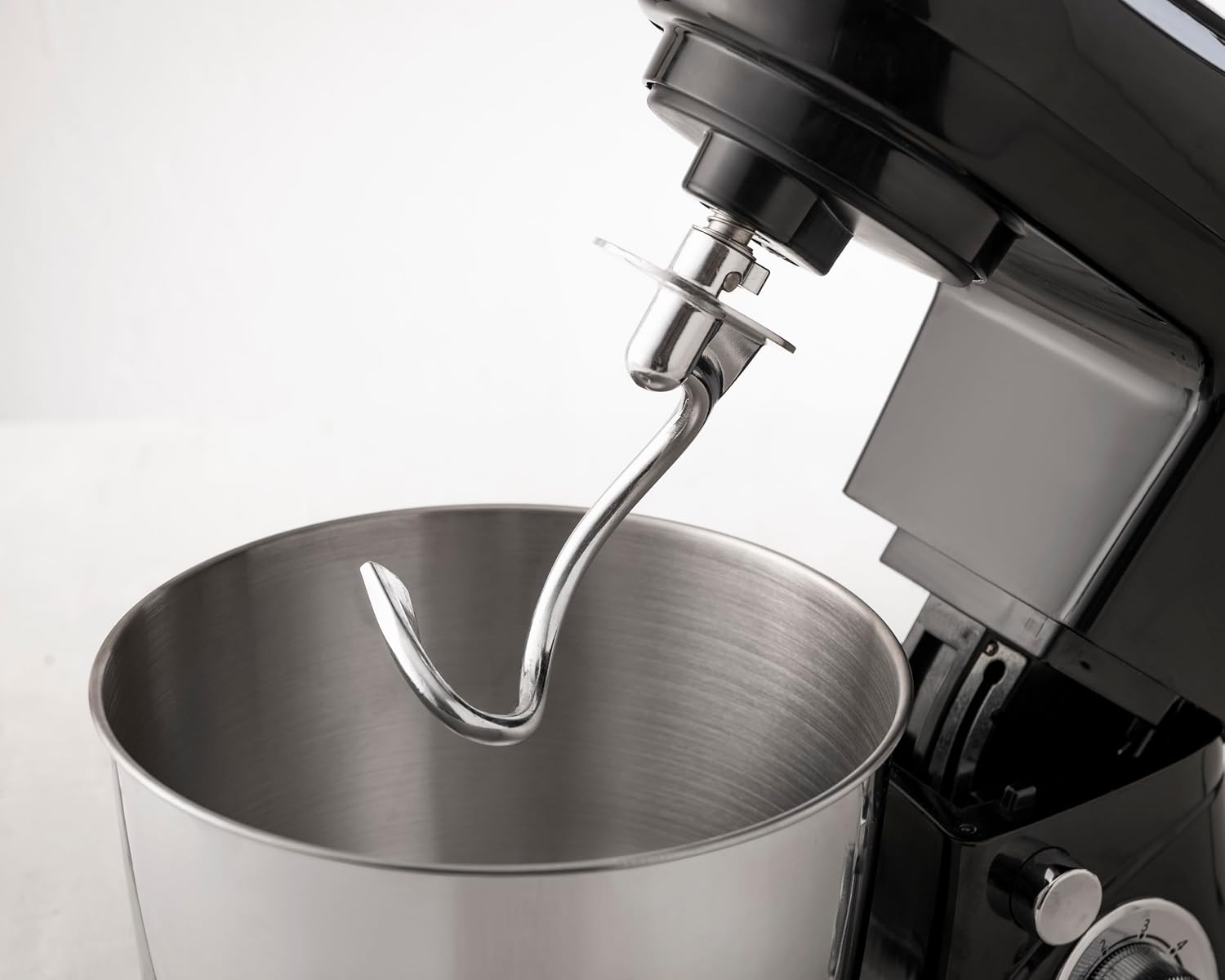

Image 3.1: Dough hook attachment securely fitted to the mixer head.

4. Operating Instructions

Follow these steps for safe and effective operation of your stand mixer.

General Operation:

1. Ensure the mixer is correctly assembled and the speed control is set to '0'.
2. Add your ingredients to the mixing bowl. Do not overfill the bowl.
3. Plug the appliance into a suitable 230V power outlet.
4. Turn the speed control knob to the desired speed setting (1-6). Start with a lower speed and gradually increase to prevent splashing.
5. For short bursts of maximum power, turn the knob to the 'Pulse' (P) setting and hold it. Release to stop.
6. When finished, turn the speed control knob back to '0' and unplug the appliance.
7. Lift the mixer head and remove the attachment and mixing bowl.

Attachment Usage Guide:

• Dough Hook: Use for kneading heavy mixtures such as bread dough, pizza dough, or pasta dough. Recommended speeds: 1-3.
• Mixing Blade (Beater): Ideal for medium-heavy mixtures like cake batters, cookie dough, frostings, or mashed potatoes. Recommended speeds: 2-4.
• Egg Whisk: Best for light mixtures such as whipping cream, egg whites, meringues, or light batters. Recommended speeds: 4-6.

Dough Mixing Guidelines:

• Optimal Dough Mixing: For best results, use 800g of flour with 440g of water.
• Suggested Maximum Dough Mixing: The mixer can handle up to 1000g of flour with 550g of water. Do not exceed these quantities to prevent motor strain.

5. Maintenance and Cleaning

Regular cleaning and proper maintenance will ensure the longevity and optimal performance of your stand mixer.

Cleaning Instructions:

1. Always unplug the appliance from the power outlet before cleaning.
2. Motor Unit: Wipe the exterior of the motor unit with a soft, damp cloth. Do not use abrasive cleaners or immerse the unit in water.
3. Mixing Bowl: The 5.0L stainless steel mixing bowl is dishwasher safe. Alternatively, wash it with warm soapy water and rinse thoroughly.
4. Attachments (Dough Hook, Mixing Blade, Egg Whisk): These attachments are dishwasher safe. For hand washing, use warm soapy water and a non-abrasive sponge, then rinse and dry completely.
5. Ensure all parts are completely dry before reassembling or storing the appliance.

Storage:

Store the stand mixer and its attachments in a clean, dry place, away from direct sunlight and out of reach of children.

6. Troubleshooting

If you encounter any issues with your stand mixer, please refer to the following common problems and solutions before contacting customer support.

7. Specifications

Detailed technical specifications for the Bergner BOHIO BG-50043-BK Stand Mixer.

8. Warranty and Support

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. If you require technical assistance or have questions not covered in this manual, please contact Bergner customer support through their official website or the contact details provided with your product.
