1. Important Safety Information
Please read this manual carefully before using your CHiQ FCF98DE Chest Freezer. Keep it for future reference. Always follow basic safety precautions to reduce the risk of fire, electric shock, or injury.
- Ensure the appliance is properly grounded.
- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Do not damage the refrigerant circuit.
- This appliance is intended for household use only.
- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
- Unplug the appliance before cleaning or performing maintenance.
2. Product Overview
The CHiQ FCF98DE is a compact and efficient chest freezer designed for optimal food preservation. With a total capacity of 99 liters, it offers ample storage while occupying minimal floor space, making it ideal for small apartments, offices, or as an auxiliary freezer.
Front view of the CHiQ FCF98DE Chest Freezer.
Key Features:
- Compact Design: External dimensions of 54.5 x 47.6 x 83.5 cm (W*D*H) with a footprint of only 0.26 m².
- 4-Star Freezing: Excellent freezing performance with a capacity of 4.5 kg/24h.
- Energy Efficient: Energy Class E certification with low energy consumption.
- Low Noise Operation: Operates quietly at 39 dB.
- Convertible Mode: Can switch between refrigerator and freezer modes.
- 7-Temperature Control: Adjustable thermostat for precise temperature settings.
- Floating Door: The lid stays open at angles between 45° and 75° for easy access.
- Included Accessories: Comes with a frost scraper and a movable wire basket for organized storage.
The chest freezer includes a movable wire basket and a frost scraper.
3. Setup and Installation
3.1 Unpacking
- Carefully remove all packaging materials, including foam and adhesive tape.
- Inspect the freezer for any shipping damage. If damaged, do not plug it in and contact your retailer.
- Keep packaging materials out of reach of children.
3.2 Placement
Choose a location that is dry, well-ventilated, and away from direct sunlight or heat sources (e.g., stove, radiator). Ensure sufficient clearance around the appliance for proper ventilation.
- Allow at least 5 cm (2 inches) of space on the sides and back for air circulation.
- The freezer should be placed on a firm, level surface to prevent vibrations and noise.
- This compact freezer is suitable for various locations including living rooms, kitchens, or garages.
External dimensions: 54.5 cm (W) x 47.6 cm (D) x 83.5 cm (H).
The compact design allows for versatile placement in various home environments.
3.3 Power Connection
- Before plugging in, allow the freezer to stand upright for at least 2-4 hours to allow the refrigerant to settle.
- Connect the appliance to a dedicated, properly grounded electrical outlet (220-240V, 50Hz).
- Do not use extension cords or ungrounded adapters.
4. Operating Instructions
4.1 Temperature Control
The freezer features a 7-level external temperature control knob, allowing you to adjust the internal temperature according to your needs. The numbers on the dial do not indicate exact temperatures but represent different temperature ranges:
- Setting 1 (Refrigerator): Approximately 5°C
- Settings 2-4 (Freezer): Approximately -12°C to -18°C
- Settings 4-7 (Freezer): Approximately -18°C to -24°C
- Setting 7 (Deep Freeze): Below -24°C
The external temperature control dial for easy adjustment.
4.2 Convertible Mode (Fridge/Freezer)

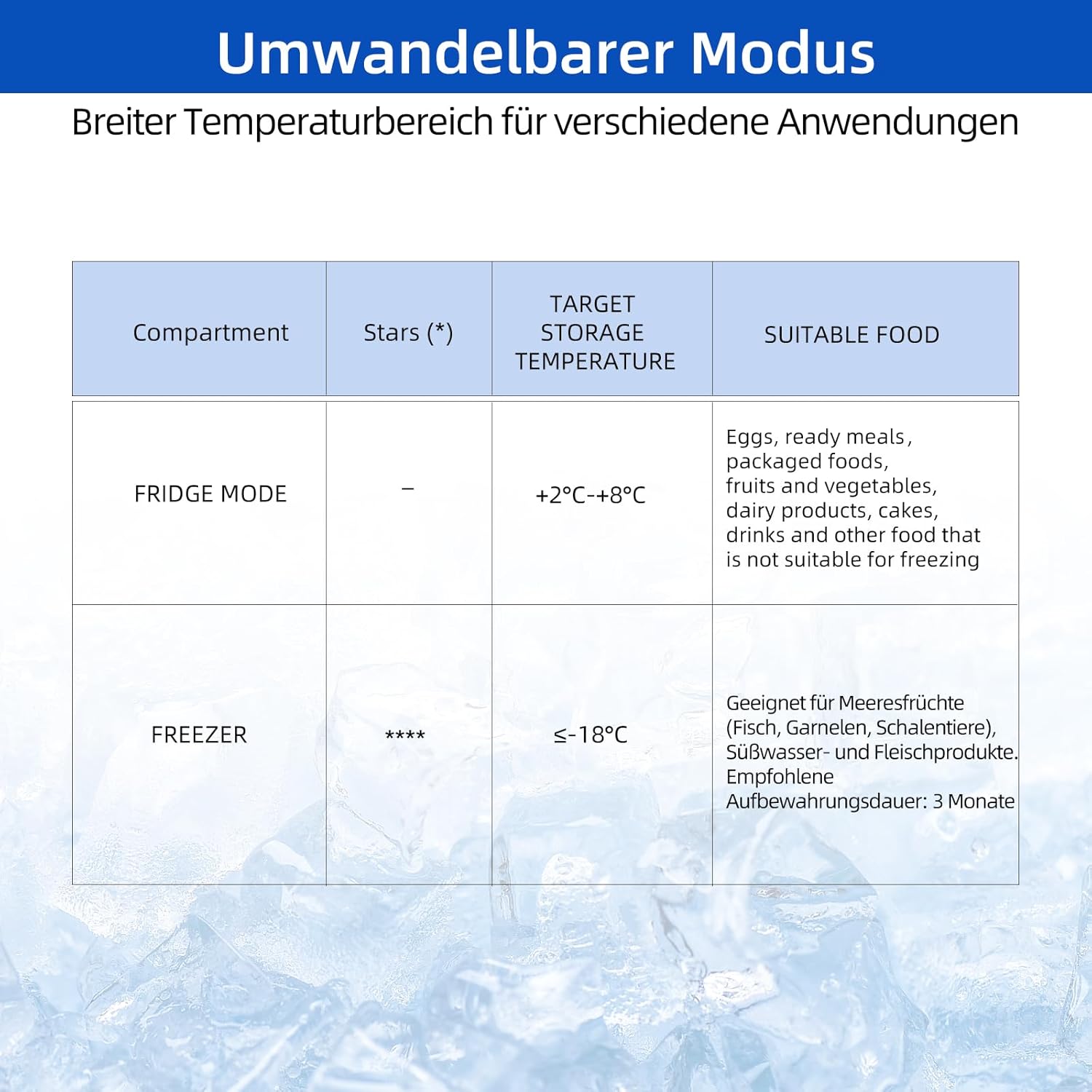

This appliance offers a versatile convertible mode, allowing it to function as either a refrigerator or a freezer, depending on your temperature setting. Refer to the table below for recommended settings and suitable food types:
| Compartment | Stars (*) | Target Storage Temperature | Suitable Food |
|---|---|---|---|
| Fridge Mode | - | +2°C ~ +8°C | Eggs, ready meals, packaged foods, fruits and vegetables, dairy products, cakes, drinks and other food that is not suitable for freezing. |
| Freezer | **** | ≤ -18°C | Suitable for seafood (fish, shrimp, shellfish), freshwater products, and meat products. Recommended storage duration: 3 months. |
Detailed guide for using the convertible mode.
4.3 Floating Door Feature
The chest freezer is equipped with a floating door mechanism that allows the lid to remain open at angles between 45° and 75°. This feature provides convenient hands-free access to the contents, making loading and unloading easier.
The floating door provides convenient access to the freezer's interior.
5. Maintenance
5.1 Defrosting
Over time, frost will accumulate inside the freezer. For optimal performance and energy efficiency, defrost the freezer when the frost layer is about 5-10 mm (0.2-0.4 inches) thick.
- Unplug the freezer from the power outlet.
- Remove all food items and store them in another freezer or cooler.
- Leave the lid open to allow the frost to melt naturally. You can place towels at the bottom to absorb water.
- Use the provided plastic scraper to gently remove ice. Do not use sharp metal objects.
- Once defrosted, wipe the interior dry with a soft cloth before plugging it back in and returning food.
5.2 Cleaning
Regular cleaning helps maintain hygiene and efficiency.
- Always unplug the freezer before cleaning.
- Clean the interior with a solution of mild detergent and warm water. Rinse thoroughly and dry completely.
- Wipe the exterior with a soft, damp cloth.
- Clean the condenser coils at the back of the freezer periodically with a soft brush or vacuum cleaner to ensure efficient operation.
6. Troubleshooting
Before contacting customer service, please check the following common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Freezer does not operate. | No power supply; power cord unplugged; circuit breaker tripped. | Check power connection; reset circuit breaker. |
| Temperature is not cold enough. | Temperature setting too high; lid not closed properly; excessive door openings; warm food placed inside; poor ventilation. | Adjust temperature setting lower; ensure lid is sealed; reduce door openings; allow warm food to cool before storing; ensure adequate clearance for ventilation. |
| Excessive noise. | Freezer not level; contact with wall/other objects; normal compressor operation. | Adjust leveling feet; move freezer away from objects; some noise is normal during operation. |
| Excessive frost buildup. | Lid not sealed properly; frequent or prolonged lid openings; high humidity environment. | Check lid seal; reduce lid openings; defrost as needed. |
7. Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | CHIQ (Changhong) |
| Model Identifier | FCF98DE |
| Product Dimensions (W x D x H) | 54.5 x 47.6 x 83.5 cm |
| Capacity | 99 Liters |
| Annual Energy Consumption | 169 kWh per year |
| Airborne Acoustical Noise Emission | 39 dB |
| Installation Type | Freestanding |
| Special Features | 99 Liters, 7-Temperature Control, Refrigerator & Freezer Convertible, Slim Design, 4D Fast Freezing, Energy Efficient, Low Noise |
| Color | White |
| Voltage | 220 Volt |
| Wattage | 220 Watts |
| Door Hinge | Right |
| Door Material | Stainless Steel |
| Certification | CE |
| Scope of Delivery | Side Handle, Frost Scraper, Manual, Warranty Card |
| Batteries Included | No |
| Batteries Required | No |
| Weight | 21 Kilograms |
| Country of Origin | China |
Energy Efficiency
The energy label for the CHiQ FCF98DE Chest Freezer.
For more detailed energy information, please refer to the EPREL database.
8. Warranty and Support
CHiQ is committed to ensuring long-term customer satisfaction. Your CHiQ FCF98DE Chest Freezer comes with comprehensive warranty coverage:
- Compressor Warranty: 12-year warranty on the compressor.
- Product Service: 2-year product service across Europe.
12-year warranty on the compressor.
For warranty claims, technical support, or any inquiries, please refer to the contact information provided in your purchase documentation or visit the official CHiQ website for customer service details.
