Gaabor Mini Air Fryer 1.4L Instruction Manual

Introduction

Thank you for choosing the Gaabor Mini Air Fryer. This compact electric fryer features a 1.4L capacity, analog control, and 360° three-dimensional hot air circulation for healthier cooking. Please read this manual thoroughly before use to ensure safe and optimal operation of your appliance.

Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all instructions before using the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or the appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• This appliance operates at a fixed temperature of 200°C.

Product Overview

Familiarize yourself with the components of your Gaabor Mini Air Fryer.

Figure 1: Front view of the Gaabor Mini Air Fryer, showing the timer dial and power indicator.

Figure 2: Angled view of the air fryer, highlighting the cooking presets for various food types located on the top surface.

Figure 3: Side view of the Gaabor Mini Air Fryer, showcasing its compact design.

Figure 4: Back view of the Gaabor Mini Air Fryer.

Figure 5: Close-up view of the air fryer basket's wavy surface design, which promotes 360° air circulation and keeps oil away from food for healthier cooking.

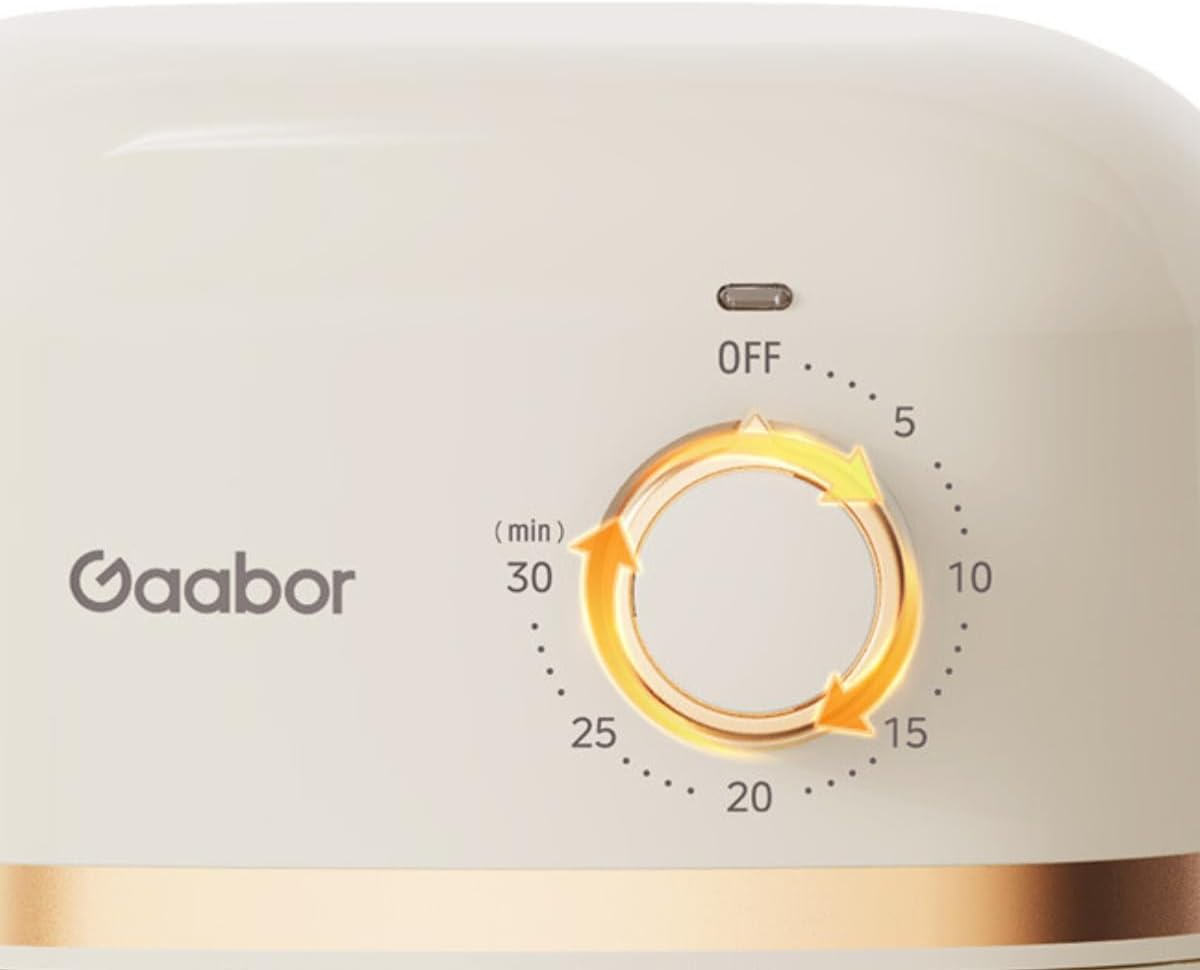

Figure 6: Detailed view of the analog timer dial, allowing settings up to 30 minutes.

Setup

1. Unpacking: Carefully remove the air fryer and all packaging materials. Retain packaging for future storage or transport if needed.
2. Initial Cleaning: Before first use, wipe the exterior of the air fryer with a damp cloth. Wash the frying basket and pan with hot water, dish soap, and a non-abrasive sponge. Rinse thoroughly and dry completely.
3. Placement: Place the air fryer on a stable, heat-resistant, and level surface. Ensure there is at least 10 cm (4 inches) of free space on the back and sides, and 10 cm (4 inches) above the appliance to allow for proper air circulation.
4. Power Connection: Ensure the voltage of your power outlet matches the voltage specified on the appliance (110 Volts for this model). Plug the power cord into a grounded wall outlet.

Operating Instructions

Basic Operation

1. Prepare Food: Place the food you wish to air fry into the frying basket. Do not overfill the basket to ensure even cooking.
2. Insert Basket: Slide the frying basket back into the air fryer until it clicks securely into place. The appliance will not operate if the basket is not fully inserted.
3. Set Timer: Turn the timer dial to your desired cooking time (up to 30 minutes). The air fryer operates at a fixed temperature of 200°C (392°F).
4. Cooking Process: The power indicator light will illuminate, and the air fryer will begin heating. The fan will operate, circulating hot air.
5. Shaking/Flipping (Optional): For some foods, it is recommended to shake or flip the contents halfway through the cooking time to ensure even browning. To do this, carefully pull out the basket. The air fryer will automatically pause. Once shaken, reinsert the basket, and the cooking will resume.
6. Completion: When the timer reaches zero, the air fryer will automatically shut off and a bell will ring. Carefully pull out the basket and remove the cooked food.

Figure 7: The air fryer basket containing a meal of chicken and vegetables, demonstrating the appliance's cooking capacity.

Figure 8: A piece of toast being placed into the air fryer basket, illustrating its versatility for various food items.

Cooking Tips

• For crispy results, lightly brush or spray food with oil.
• Smaller food items usually require a slightly shorter cooking time than larger items.
• Pre-packaged foods often have recommended air frying times on their packaging.
• The air fryer is surprisingly silent during operation.

Maintenance and Cleaning

Proper maintenance ensures the longevity and performance of your air fryer.

1. Unplug and Cool: Always unplug the air fryer from the power outlet and allow it to cool completely before cleaning.
2. Clean Basket and Pan: The frying basket and pan are non-stick. Clean them with hot water, dish soap, and a non-abrasive sponge. For stubborn residue, soak them in hot water for about 10 minutes. Do not use metal utensils or abrasive cleaning materials, as this can damage the non-stick coating.
3. Clean Exterior: Wipe the exterior of the air fryer with a damp cloth. Do not immerse the main unit in water or any other liquid.
4. Clean Heating Element: Use a cleaning brush to remove any food residue from the heating element inside the air fryer.
5. Storage: Ensure all parts are clean and dry before storing the appliance. Store it in a cool, dry place.

Troubleshooting

Specifications

Figure 9: Dimensional diagram of the Gaabor Mini Air Fryer.

Warranty and Support

For warranty information and customer support, please refer to the warranty card included with your product or visit the official Gaabor website. Keep your purchase receipt as proof of purchase for any warranty claims.

For further assistance, you may contact Gaabor customer service through their official channels. The brand store can be found at: Gaabor Official Store.
