1. Introduction and Safety Information
Thank you for choosing the Gaabor Mini Electric Non-Stick Grill Sandwich Maker. This manual provides important information for the safe and efficient use of your appliance. Please read all instructions carefully before first use and retain for future reference.
Important Safety Precautions:
- Always ensure the appliance is connected to a power outlet with the correct voltage (110V).
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electrical shock, do not immerse the cord, plugs, or the appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- Do not use outdoors.
2. Product Overview
The Gaabor Mini Electric Non-Stick Grill Sandwich Maker is designed for quick and easy preparation of sandwiches and grilled items. Its compact design and non-stick removable plates ensure convenience and simple cleaning.
Key Features:
- 600W Power: Ensures rapid heating for efficient cooking.
- Non-Stick Coating: Prevents food from sticking and simplifies cleaning.
- Removable Grill Plates: Easy to detach for thorough washing.
- Compact Design: Ideal for small kitchens and easy storage.
- Lightweight: Easy to handle and move.
Components:
- Main Housing
- Upper and Lower Grill Plates (Removable)
- Handle with Locking Clip
- Power Indicator Light
- Power Cord
Image: The Gaabor Mini Electric Sandwich Maker in its closed position, highlighting its compact and sleek design.
Image: A diagram illustrating the dimensions of the sandwich maker: 210mm (depth), 125mm (width), and 90mm (height).
3. Setup
- Unpacking: Carefully remove the sandwich maker from its packaging. Retain packaging for storage or disposal.
- Initial Cleaning: Before first use, wipe the exterior of the appliance with a damp cloth. Remove the grill plates and wash them with warm, soapy water. Rinse thoroughly and dry completely.
- Placement: Place the appliance on a stable, heat-resistant, and dry surface, away from flammable materials. Ensure there is adequate ventilation around the unit.
4. Operating Instructions
- Preheating: Close the sandwich maker and plug it into a 110V power outlet. The power indicator light will illuminate, indicating that the appliance is heating up. Allow it to preheat for approximately 3-5 minutes until it reaches the optimal cooking temperature.
- Preparing Food: While the appliance preheats, prepare your ingredients. For sandwiches, butter the outer sides of the bread for a crispier result.
- Cooking: Once preheated, carefully open the sandwich maker. Place your ingredients onto the lower grill plate. Close the lid and gently press down the handle until the locking clip engages.
- Cooking Time: Cook for approximately 3-5 minutes, or until your food is golden brown and cooked to your preference. Cooking time may vary depending on the ingredients and desired crispness.
- Removing Food: Once cooked, carefully open the lid. Use a heat-resistant plastic or wooden utensil to remove the food. Do not use metal utensils as they can damage the non-stick coating.
- Finishing: Unplug the appliance from the power outlet after use. Allow it to cool completely before cleaning or storing.
Image: The sandwich maker in operation, grilling a sandwich filled with various ingredients.

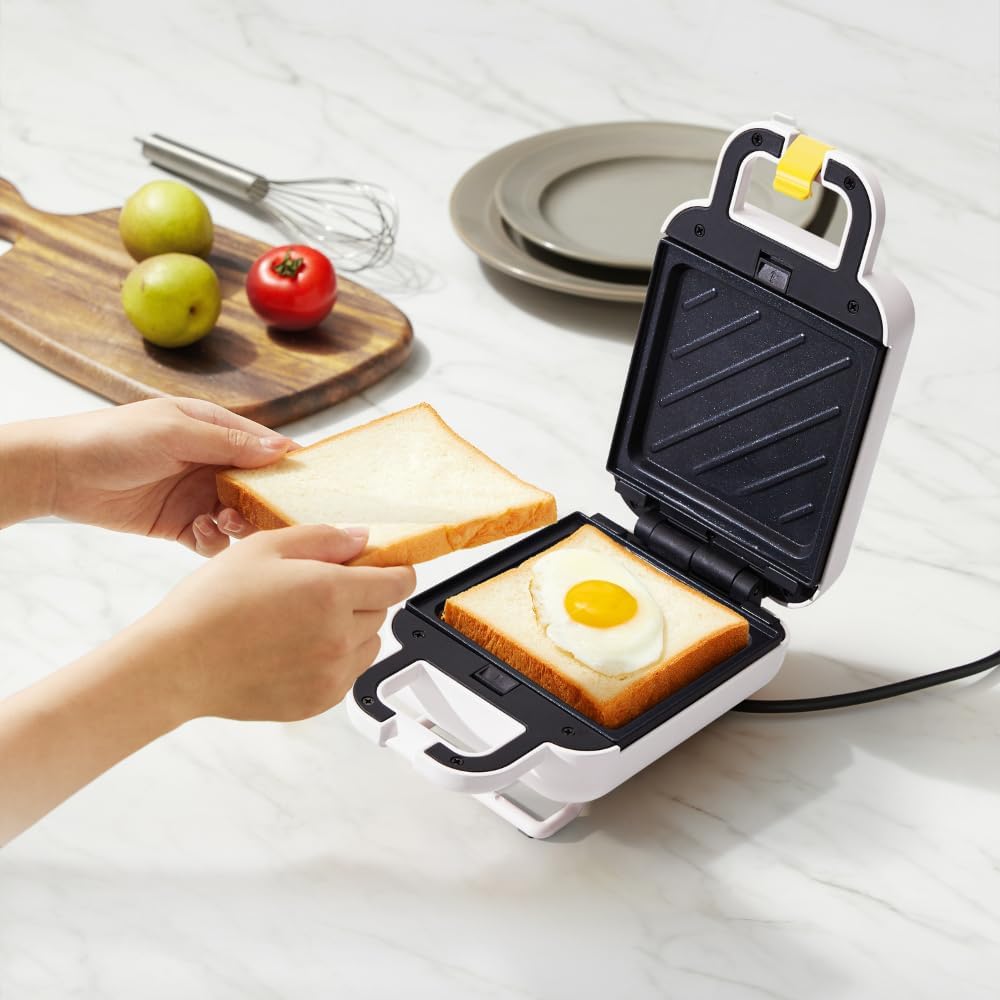

Image: Demonstrating how to place food, such as a slice of bread with a fried egg, onto the lower grill plate.
5. Cleaning and Maintenance
Regular cleaning ensures the longevity and optimal performance of your sandwich maker.
- Cool Down: Always unplug the appliance and allow it to cool completely before cleaning.
- Remove Grill Plates: Unlock and carefully remove the upper and lower grill plates.
- Wash Plates: Wash the removable grill plates with warm, soapy water using a soft sponge or cloth. For stubborn residue, soak the plates for a few minutes before cleaning. Rinse thoroughly and dry completely before reattaching.
Image: A detailed view of the removable grill plate, emphasizing its non-stick surface and ease of detachment for cleaning.
- Clean Exterior: Wipe the exterior of the appliance with a damp cloth. Do not use abrasive cleaners or scouring pads, as they may damage the finish.
- Do Not Immerse: Never immerse the main unit, power cord, or plug in water or any other liquid.
- Storage: Once clean and dry, store the sandwich maker in a cool, dry place. The compact design allows for vertical storage to save space.
Image: A user demonstrating the easy cleaning process of the removable grill plate under running water.
6. Troubleshooting
If you encounter any issues with your sandwich maker, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not heat up. | Not plugged in, power outlet malfunction, or appliance fault. | Ensure the power cord is securely plugged into a working 110V outlet. Check the circuit breaker. If the issue persists, contact customer support. |
| Food sticks to the plates. | Plates not properly cleaned, non-stick coating damaged, or insufficient butter/oil. | Ensure plates are clean before use. Lightly grease plates with butter or cooking spray. Avoid using metal utensils that can scratch the coating. |
| Uneven cooking. | Uneven food distribution or insufficient preheating. | Distribute food evenly on the plates. Ensure the appliance is fully preheated before adding food. |
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | SM60M-WH01A-1 |
| Brand | Gaabor |
| Power | 600 Watts |
| Voltage | 110 Volts |
| Dimensions (D x W x H) | 21 cm x 12.5 cm x 9 cm |
| Material | Ceramic, Plastic |
| Color | Beige (Off White) |
| Special Features | Compact, Lightweight, Non-Stick Removable Plates |
8. Warranty and Support
Limited Warranty:
This Gaabor appliance comes with a limited warranty against manufacturing defects. Please refer to the warranty card included with your product for specific terms, conditions, and duration. Keep your purchase receipt as proof of purchase.
Customer Support:
For technical assistance, warranty claims, or product inquiries, please contact Gaabor customer support. Contact details can typically be found on the official Gaabor website or on the product packaging.
