Balay XXL American Refrigerator User Manual
Model: 3FAE494XE
Introduction
Thank you for choosing the Balay XXL American Refrigerator. This appliance is designed to provide ample storage and advanced features for your food preservation needs. It boasts a total useful volume of 562 liters, divided into a 371-liter refrigerator compartment and a 191-liter freezer compartment, making it ideal for large families. Key features include NoFrost technology, a convenient water and ice dispenser, and specialized Fresh drawers to keep your produce fresh longer. Its elegant stainless steel design with external handles and integrated touch electronics offers both functionality and aesthetic appeal.

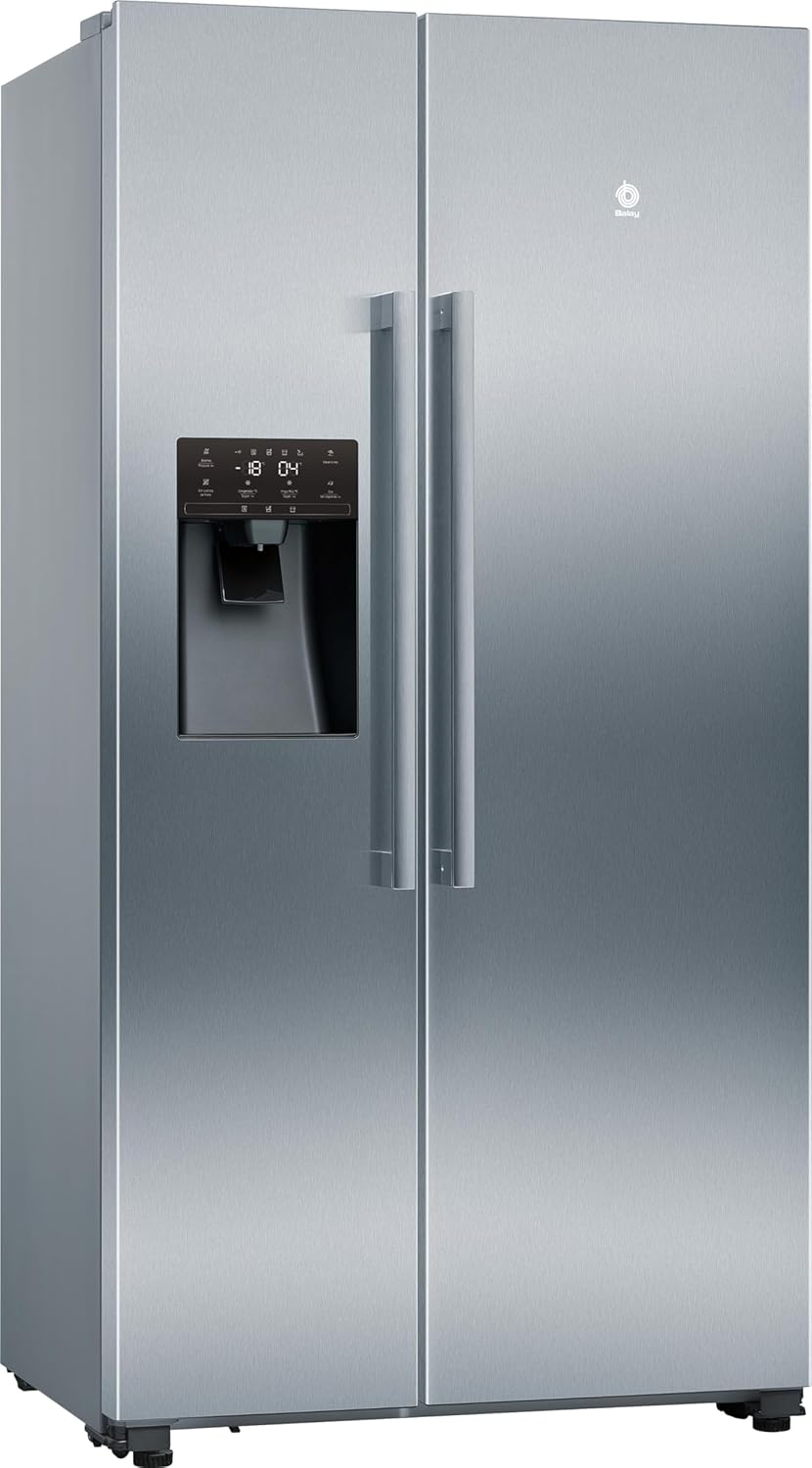

Image: Front view of the Balay XXL American Refrigerator with water and ice dispenser.
Setup and Installation
Unpacking and Placement
Carefully unpack your new refrigerator. Ensure all packaging materials are removed. The appliance dimensions are 178.7 cm (height) x 90.8 cm (width) x 70.7 cm (depth). Allow sufficient space around the refrigerator for proper ventilation, especially at the back and sides, to ensure optimal performance and energy efficiency.
Image: Technical diagram illustrating the dimensions of the refrigerator in millimeters.
Image: Close-up view of the robust door hinge and handle design.
Initial Power-On
Before plugging in the appliance, allow it to stand upright for at least 4 hours to allow the refrigerant to settle. Plug the refrigerator into a grounded electrical outlet. The internal temperature will gradually reach the set levels. It is recommended to run the refrigerator empty for a few hours before loading food.
Water Dispenser Setup
This model features a water and ice dispenser that operates using an internal, refillable 4-liter water tank. It does not require a direct plumbing connection. Locate the water tank inside the refrigerator compartment, typically on the left door. Fill the tank with potable water. For ice production, ensure the tank is filled and the ice maker function is activated via the control panel.
Image: Detailed view of the internal ice maker and water reservoir system.
What's in the Box
- 1x Balay Refrigerator
- 1x Egg tray
- 1x Instruction Manual
Operating Instructions
Control Panel
The refrigerator features an intuitive touch control panel integrated into the door, allowing easy adjustment of temperatures and activation of special functions. The display shows the current temperatures for both the refrigerator and freezer compartments.
Image: Detailed view of the touch control panel with temperature display and function icons.
Temperature Control
- Use the 'Frigorífico °C' (Refrigerator °C) and 'Congelador °C' (Freezer °C) buttons on the control panel to adjust the desired temperatures.
- Recommended refrigerator temperature: 4°C.
- Recommended freezer temperature: -18°C.
NoFrost Technology
This refrigerator is equipped with NoFrost technology in both the freezer and refrigerator compartments. This system prevents ice build-up, eliminating the need for manual defrosting and ensuring consistent cooling performance.
Fresh Drawers
The dedicated Fresh drawers are designed to maintain optimal humidity levels, keeping your fruits and vegetables fresh for longer periods. Store produce in these drawers to maximize their shelf life.
Image: Close-up of the Fresh drawers inside the refrigerator, designed for fruits and vegetables.
Water and Ice Dispenser
To dispense water, crushed ice, or ice cubes, place a glass under the dispenser spout and press the corresponding icon on the control panel. Ensure the internal water tank is filled for continuous operation. The dispenser accommodates glasses up to 27 cm in height.

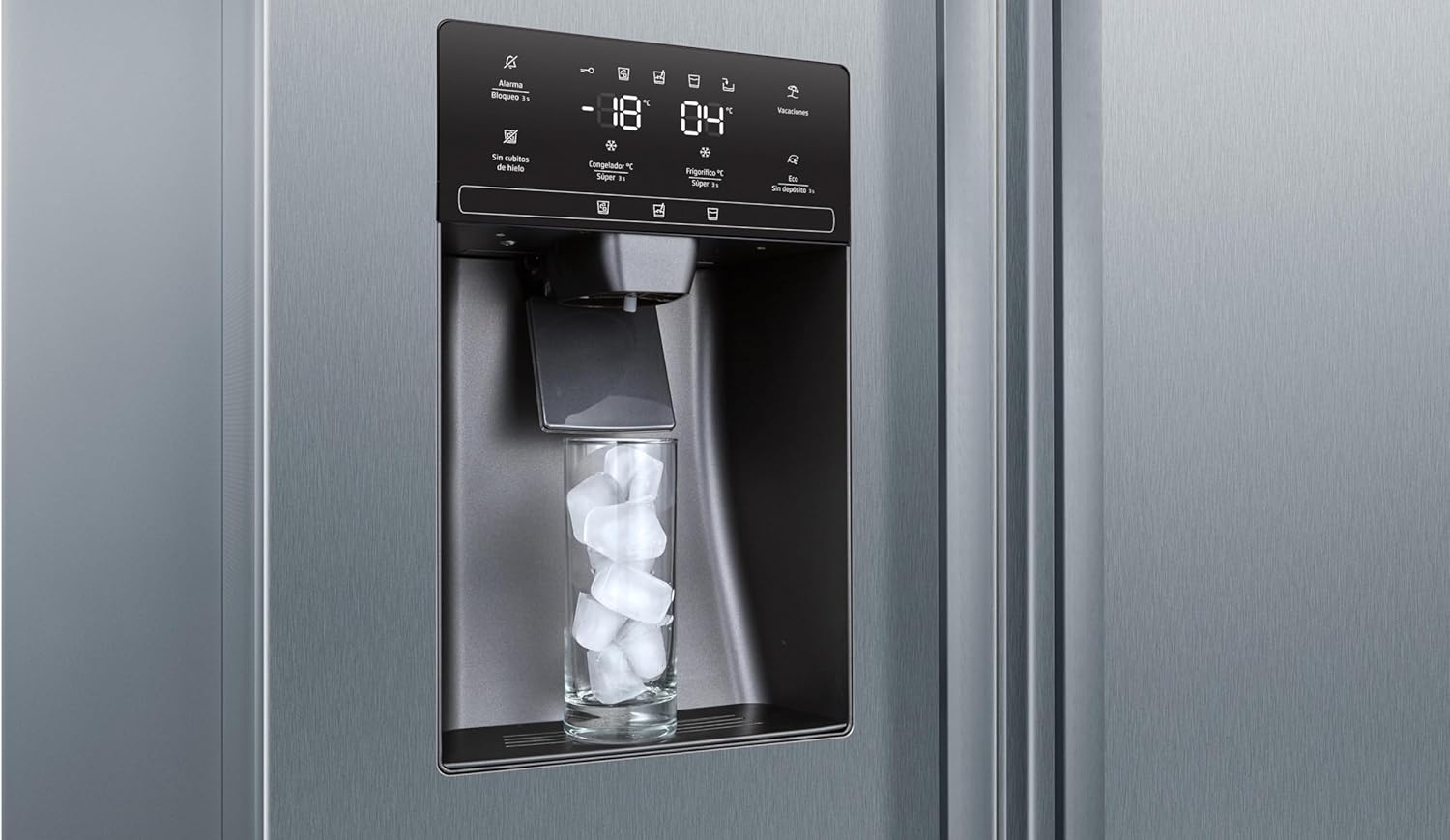

Image: A glass being filled with ice from the external dispenser on the refrigerator door.
Maintenance and Care
Cleaning the Interior
Regularly clean the interior of your refrigerator with a soft cloth and a mild, non-abrasive cleaning solution. Remove shelves and drawers for thorough cleaning. Avoid using harsh chemicals or abrasive pads that could damage surfaces. Ensure the appliance is unplugged before cleaning.

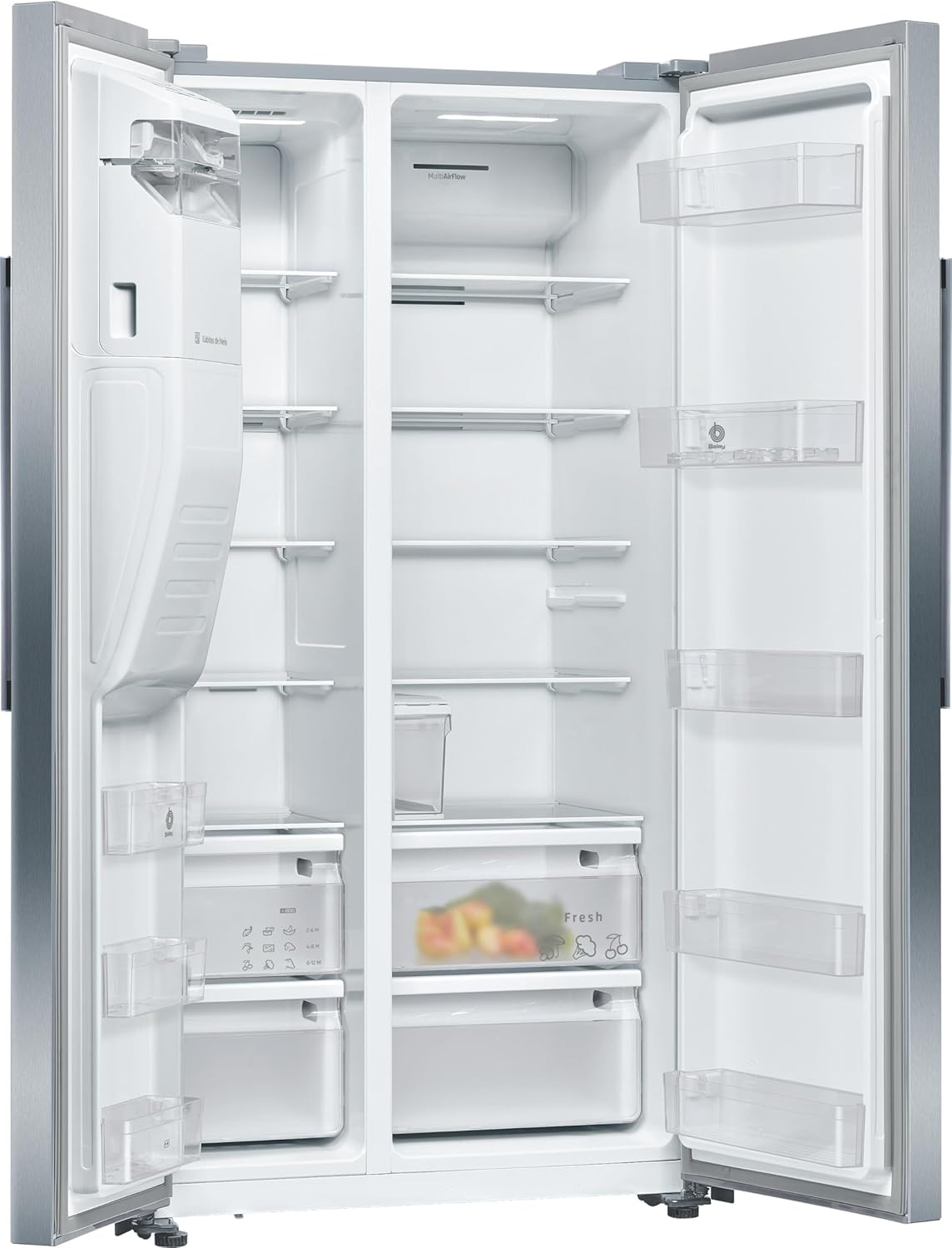

Image: Open refrigerator and freezer doors revealing the spacious interior with various shelves and compartments.
Cleaning the Exterior
Wipe the stainless steel exterior with a soft, damp cloth. For stubborn marks, use a specialized stainless steel cleaner. Avoid abrasive cleaners or scouring pads. Keep the door seals clean to ensure a tight closure and efficient operation.
Water Tank and Dispenser Cleaning
Periodically clean the internal water tank and the dispenser components to prevent mineral buildup and ensure hygienic operation. Refer to the detailed cleaning instructions in the full manual for specific steps.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator not cooling | Power supply issue, door not closed properly, temperature setting too high. | Check power connection, ensure door is sealed, lower temperature setting. |
| Water dispenser not working | Water tank empty, dispenser locked, ice maker off. | Refill water tank, check control panel for lock/ice maker settings. |
| Unusual noise | Appliance not level, items touching back wall, normal operating sounds. | Adjust leveling feet, reposition items, note that some sounds (e.g., refrigerant flow) are normal. The appliance operates at a quiet 42 dB. |
| Ice build-up (despite NoFrost) | Door left open frequently, seal damaged. | Ensure door is closed completely, check door seal for damage. |
For more detailed troubleshooting, please refer to the complete instruction manual or contact Balay customer support.
Specifications
| Feature | Detail |
|---|---|
| Brand | Balay |
| Model Number | 3FAE494XE |
| Configuration | Side by Side |
| Total Useful Volume | 562 Liters |
| Refrigerator Capacity | 371 Liters |
| Freezer Capacity | 191 Liters |
| Dimensions (H x W x D) | 178.7 x 90.8 x 70.7 cm |
| Weight | 115.2 kg |
| Noise Level | 42 dB |
| Energy Efficiency Class | E |
| Annual Energy Consumption | 323 kWh/annum |
| Defrost System | Automatic (NoFrost) |
| Special Features | External Ice Dispenser, Low Noise, Water Dispenser, Door Open Alarm, No Frost |
| Country of Origin | China |
Image: Energy efficiency label for the Balay 3FAE494XE refrigerator, showing Class E rating and consumption details.
For more details, visit the EPREL database.
Warranty and Support
Your Balay refrigerator comes with a standard 24-month manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
For technical assistance, service requests, or to inquire about spare parts, please contact Balay customer support. You can find contact information on the official Balay website or in the full instruction manual provided with your appliance.
For additional information and resources, you may visit the Balay Store on Amazon.
