1. Introduction
This manual provides essential instructions for setting up, operating, maintaining, and troubleshooting your Brother MFC-L2800DW Monochrome Multifunction Laser Printer. Please read this manual thoroughly before using the device to ensure proper and safe operation.

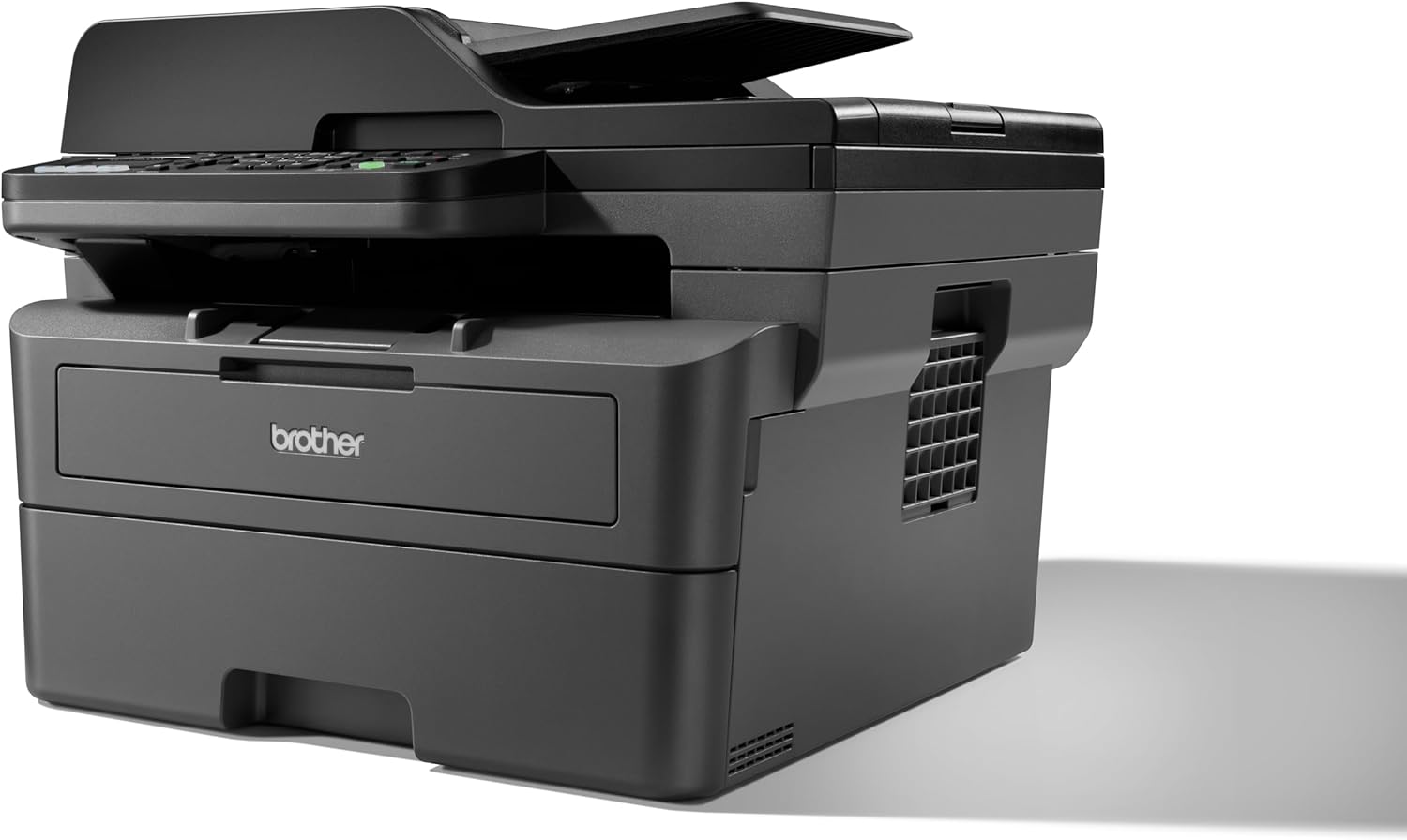

Image 1.1: Front view of the Brother MFC-L2800DW printer.
2. Setup
2.1 Unpacking and Component Check
Carefully remove the printer from its packaging. Verify that all included components are present:
- Brother MFC-L2800DW Printer
- Toner Cartridge (Starter)
- Drum Unit
- Power Cord
- Quick Setup Guide
2.2 Toner and Drum Unit Installation
- Open the front cover of the printer.
- Remove the drum unit and toner cartridge assembly from its protective bag.
- Insert the toner cartridge firmly into the drum unit until it locks into place.
- Slide the combined drum unit and toner cartridge assembly into the printer until it stops.
- Close the front cover.
2.3 Loading Paper
The printer features a 250-sheet paper input tray and a 50-sheet Automatic Document Feeder (ADF).
- Pull out the paper tray completely.
- Adjust the paper guides to fit the paper size (e.g., A4).
- Load paper into the tray, ensuring it is flat and below the maximum fill line.
- Gently push the paper tray back into the printer.
Image 2.1: Top-down view of the printer with the paper tray open, ready for paper loading.
2.4 Power Connection and Initial Power On
- Connect the power cord to the printer and then to an electrical outlet.
- Press the power button to turn on the printer.
- Follow the on-screen instructions on the LCD display to select your language and region.
2.5 Network Connectivity
The MFC-L2800DW supports Ethernet, Wi-Fi (5 GHz), and USB connections.
- USB Connection: Connect a USB cable from the printer to your computer.
- Ethernet Connection: Connect an Ethernet cable from the printer to your network router or switch.
- Wi-Fi Connection: Use the printer's control panel to navigate to the Network settings. Select WLAN, then follow the prompts to connect to your wireless network.
2.6 Driver and Software Installation
Insert the installation CD (if provided) into your computer or download the latest drivers and software from the official Brother support website. Follow the on-screen instructions to complete the installation.
3. Operating the Printer
3.1 Control Panel Overview
Image 3.1: Close-up view of the printer's control panel with LCD display and buttons.
The control panel features a 2-tier LCD display for menu navigation and status updates, along with various buttons for functions like Copy, Scan, Fax, Wi-Fi, and Start.
3.2 Printing Documents
- Ensure the printer is powered on and connected to your computer or network.
- Open the document you wish to print on your computer or mobile device.
- Select the print option from your application.
- Choose the Brother MFC-L2800DW from the list of available printers.
- Adjust print settings (e.g., number of copies, paper size, duplex printing) as needed.
- Click 'Print'.
Image 3.2: The Brother MFC-L2800DW printer actively printing a document.
3.3 Copying Documents
- Place the document face down on the scanner glass or face up in the Automatic Document Feeder (ADF).
- Press the Copy button on the control panel.
- Use the arrow keys to select copy options (e.g., number of copies, reduction/enlargement, 2-sided copy).
- Press Start.
3.4 Scanning Documents
- Place the document on the scanner glass or in the ADF.
- Press the Scan button on the control panel.
- Select your desired scan destination (e.g., PC, Email, FTP).
- Adjust scan settings as prompted by the display.
- Press Start.
3.5 Faxing Documents
- Place the document face down on the scanner glass or face up in the ADF.
- Press the Fax button on the control panel.
- Enter the recipient's fax number using the numeric keypad.
- Press Start.
4. Maintenance
4.1 Replacing the Toner Cartridge
When the 'Toner Low' or 'Replace Toner' message appears on the LCD, it is time to replace the toner cartridge.
- Open the front cover.
- Remove the drum unit and toner cartridge assembly from the printer.
- Press the green lock lever and remove the old toner cartridge from the drum unit.
- Unpack the new toner cartridge and gently shake it horizontally several times.
- Insert the new toner cartridge firmly into the drum unit until it locks.
- Slide the assembly back into the printer and close the front cover.
4.2 Replacing the Drum Unit
The drum unit is a consumable item that needs replacement after a certain number of pages. The LCD will indicate when replacement is necessary.
- Follow steps 1-3 for toner replacement to remove the old toner and drum assembly.
- Remove the old toner cartridge from the old drum unit.
- Unpack the new drum unit.
- Insert the existing toner cartridge into the new drum unit until it locks.
- Slide the new drum unit and toner cartridge assembly back into the printer and close the front cover.
- Reset the drum counter through the printer's menu.
4.3 Cleaning the Printer
- Exterior: Wipe the exterior with a soft, lint-free cloth.
- Scanner Glass: Clean the scanner glass with a soft, dry cloth. For stubborn marks, use a small amount of glass cleaner applied to the cloth (not directly to the glass).
- Corona Wire: Periodically clean the corona wire inside the drum unit by gently sliding the green tab from left to right several times. Return the tab to its home position.
5. Troubleshooting
This section addresses common issues you might encounter. For more detailed troubleshooting, refer to the official Brother support website.
5.1 Paper Jams
If a paper jam occurs, the LCD will display an error message. Follow these general steps:
- Turn off the printer and unplug the power cord.
- Open the front cover and carefully remove the drum unit and toner cartridge assembly.
- Gently pull out any jammed paper. Check all paper paths, including the back cover and duplex tray.
- Reinstall the drum unit and toner cartridge assembly, close the cover, and reconnect the power cord.
- Turn on the printer.
5.2 Print Quality Issues
- Faded Print: Toner may be low. Replace the toner cartridge.
- Streaks or Spots: Clean the corona wire in the drum unit. If the issue persists, the drum unit may need replacement.
- Uneven Density: Ensure the paper type setting matches the paper loaded.
5.3 Connectivity Problems
- No Connection: Verify all cables are securely connected (USB/Ethernet). For Wi-Fi, ensure the printer is connected to the correct network and the signal is strong.
- Printer Offline: Check printer status on your computer. Restart both the printer and your computer.
6. Specifications
| Feature | Specification |
|---|---|
| Model Name | MFC-L2800DW |
| Printing Technology | Laser |
| Printer Output | Monochrome |
| Max Print Speed (Monochrome) | 32 ppm |
| Max Print Resolution (B&W) | 1200 x 1200 dpi |
| Dual-sided Printing | Yes |
| Scanner Type | ADF |
| Scanner Resolution | 1200 x 1200 |
| Max Copy Speed (B&W) | 32 ppm |
| Max Copies Per Run | 50 |
| Connectivity Technology | Ethernet, USB, Wi-Fi (5 GHz) |
| Max Input Sheet Capacity | 250 sheets |
| Automatic Document Feeder (ADF) | 50 sheets |
| Maximum Media Size | A4 |
| Display Type | LCD (2-tier) |
| Memory Storage Capacity | 128 MB |
| Power Consumption | 480 Watts |
| Product Dimensions (LxWxH) | 39.9 x 41 x 31.9 cm |
| Item Weight | 11.6 Kilograms |
| Included Components | Toner Cartridge, Drum Unit, 250 Sheets Paper Input Tray, 50 Sheets Automatic Document Feeder |
7. Warranty and Support
7.1 Product Warranty
Your Brother MFC-L2800DW printer is covered by a manufacturer's warranty. Please refer to the warranty card included with your product or visit the official Brother website for detailed warranty terms and conditions specific to your region.
7.2 Customer Support
For further assistance, technical support, driver downloads, or to access frequently asked questions, please visit the official Brother support website:
