CLP Damaso E Velvet Bar Stool Instruction Manual

1. Product Overview

The CLP Damaso E Bar Stool is designed for comfort and modern aesthetics, featuring a velvet upholstered seat and a sturdy stainless steel frame. It offers adjustable height and a 360-degree swivel function for versatile use in various settings.

Image 1.1: Front view of the CLP Damaso E Velvet Bar Stool.

2. Setup and Assembly

This section provides general guidelines for assembling your bar stool. While specific assembly instructions may vary, the following steps outline the typical process.

2.1 Unpacking and Part Identification

• Carefully unpack all components from the packaging.
• Verify that all parts are present and undamaged against the included parts list (if provided).
• Place all components on a soft, clean surface to prevent scratches during assembly.

2.2 Assembly Steps

1. Attach the footrest to the central column. Ensure it is securely fastened.
2. Insert the gas lift cylinder into the base.
3. Place the seat assembly onto the gas lift cylinder. Ensure it is properly seated and stable.
4. Test the stability and functionality of the stool before use.

Image 2.1: The square base of the bar stool, designed with floor protection.

3. Operating Instructions

The Damaso E Bar Stool is designed for ease of use and comfort.

3.1 Height Adjustment

• To raise the seat: While standing, pull the lever located under the seat upwards. The seat will automatically rise. Release the lever at the desired height.
• To lower the seat: While seated, pull the lever located under the seat upwards. The seat will lower under your weight. Release the lever at the desired height.
• The seat height can be continuously adjusted from 58 cm to 83 cm.

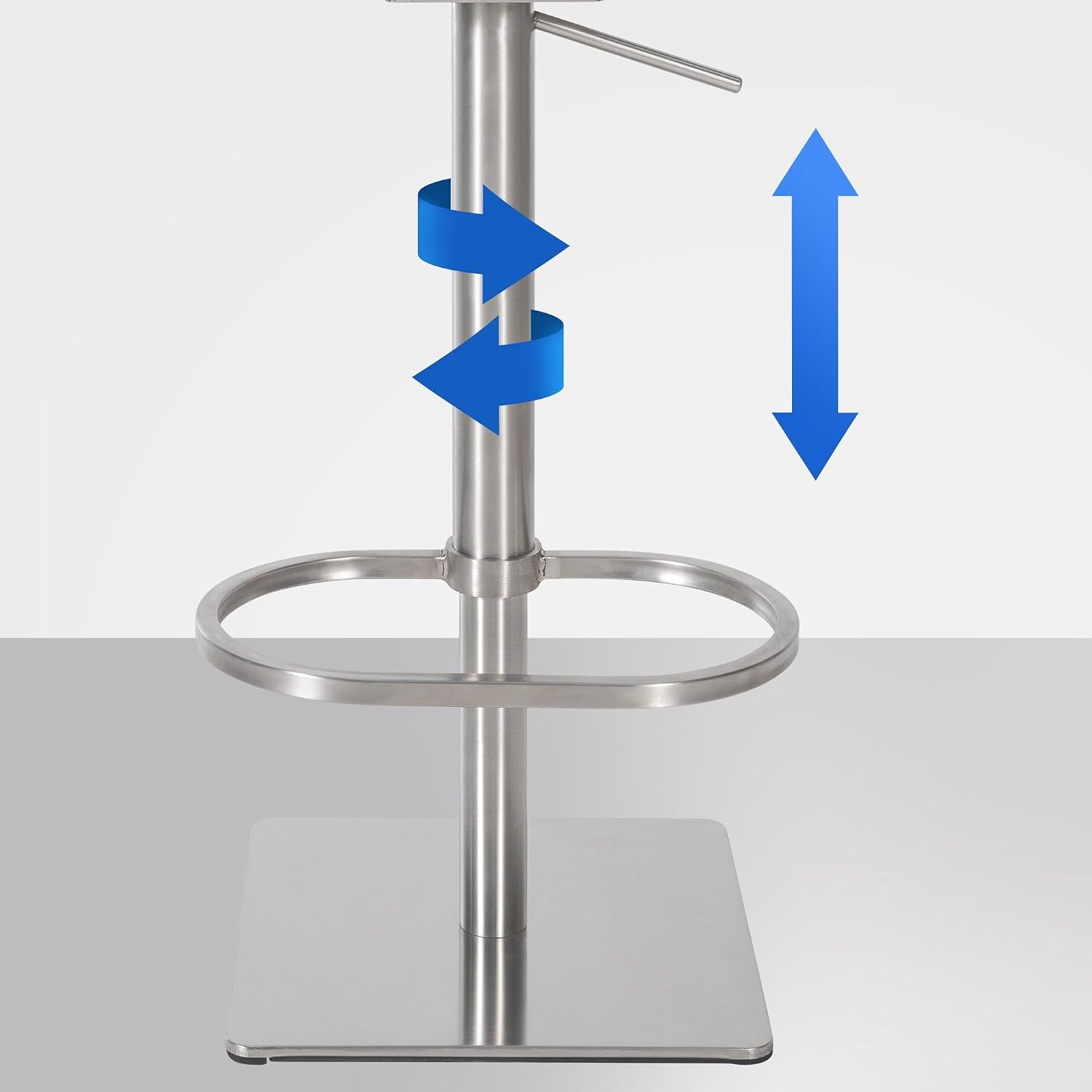

Image 3.1: Visual representation of height adjustment and swivel.

3.2 Swivel Function

• The seat is designed to rotate 360 degrees freely. Simply turn the seat to face any direction.

3.3 Footrest Usage

• The integrated footrest provides additional comfort and support for your feet while seated.

Image 3.2: Detail of the sturdy footrest.

4. Maintenance and Care

Proper maintenance ensures the longevity and appearance of your bar stool.

4.1 Velvet Upholstery Care

• For general cleaning, gently vacuum the velvet fabric using an upholstery attachment to remove dust and loose debris.
• For spills, blot immediately with a clean, dry cloth. Avoid rubbing, as this can spread the stain and damage the fabric pile.
• For stubborn stains, consult a professional upholstery cleaner or use a velvet-safe cleaning product according to its instructions. Always test on an inconspicuous area first.
• Avoid direct sunlight exposure for prolonged periods to prevent fading.

Image 4.1: Detail of the velvet seat texture.

4.2 Metal Frame Care

• Wipe the stainless steel frame with a soft, damp cloth.
• For a streak-free finish, dry immediately with a clean, dry cloth.
• Avoid abrasive cleaners or harsh chemicals, as these can damage the finish.

5. Troubleshooting

This section addresses common issues you might encounter with your bar stool.

5.1 Seat Not Adjusting Height

• Check the lever: Ensure the height adjustment lever is fully engaged when attempting to raise or lower the seat.
• Gas lift cylinder: If the seat consistently fails to hold its height or adjust, the gas lift cylinder may need replacement. Contact customer support for assistance.

5.2 Stool Feels Unstable or Wobbly

• Check connections: Ensure all screws and bolts used during assembly are tightened securely. Do not overtighten.
• Even surface: Verify that the stool is placed on a flat, even surface. Uneven flooring can cause wobbling.
• Base integrity: Inspect the base for any damage or deformation.

6. Specifications

Detailed specifications for the CLP Damaso E Bar Stool.

Image 6.1: Detailed dimensions of the bar stool.

7. Warranty and Support

For warranty information or technical support, please refer to your purchase documentation or contact the retailer/manufacturer directly.

• Spare Parts: Information regarding the availability of spare parts is not provided. Please contact the manufacturer or seller for inquiries.
• Contact: For any issues or questions not covered in this manual, please reach out to CLP customer service or your point of purchase.
