1. Important Safety Information
Please read this user manual thoroughly before installing, operating, or maintaining your appliance. Keep this manual for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Ensure the appliance is properly grounded.
- Do not damage the refrigerant circuit.
- Do not use electrical appliances inside the food storage compartments.
- Keep ventilation openings clear of obstruction.
- Only qualified personnel should perform repairs.
2. Setup and Installation
2.1 Unpacking
Carefully remove all packaging materials. Inspect the appliance for any damage during transit. Report any damage to your retailer immediately. Keep packaging materials out of reach of children.
2.2 Placement
Place the appliance on a firm, level surface. Ensure adequate ventilation around the unit. Do not place the appliance in direct sunlight or near heat sources such as stoves, ovens, or radiators. Maintain the following minimum clearances:
- Sides: 5 cm
- Rear: 10 cm
- Top: 10 cm
Figure 2.1: Front view of the Beko B5RCNA365HG refrigerator-freezer combination.
2.3 Door Reversal
The door hinges on this appliance are reversible, allowing you to change the opening direction to suit your kitchen layout. Refer to the separate door reversal instructions provided with your appliance for detailed steps. This procedure should ideally be performed by a qualified technician.
2.4 First Use
Before plugging in the appliance, clean the interior with a damp cloth and a mild detergent. After cleaning, allow the appliance to air dry completely. Plug the appliance into a grounded power outlet. Wait at least 4 hours before placing food inside to allow the internal temperatures to stabilize.
3. Operating Instructions
3.1 Control Panel
The control panel is located inside the refrigerator compartment, typically at the top. It features an LED display and touch controls for adjusting temperature settings and activating special functions.
Figure 3.1: Interior top section with control panel and AeroFlow indicator.
3.2 Temperature Settings
Use the control panel to set the desired temperature for both the refrigerator and freezer compartments. Recommended settings are typically +4°C for the refrigerator and -18°C for the freezer.
3.3 Special Features
- HarvestFresh™: This innovative 3-color technology in the crisper drawer mimics the natural light cycle of the sun (sunrise, peak, and sunset). This process helps to preserve vitamins in fruits and vegetables for longer periods, keeping them fresh and nutritious.
Figure 3.2: HarvestFresh technology simulating natural light cycles.

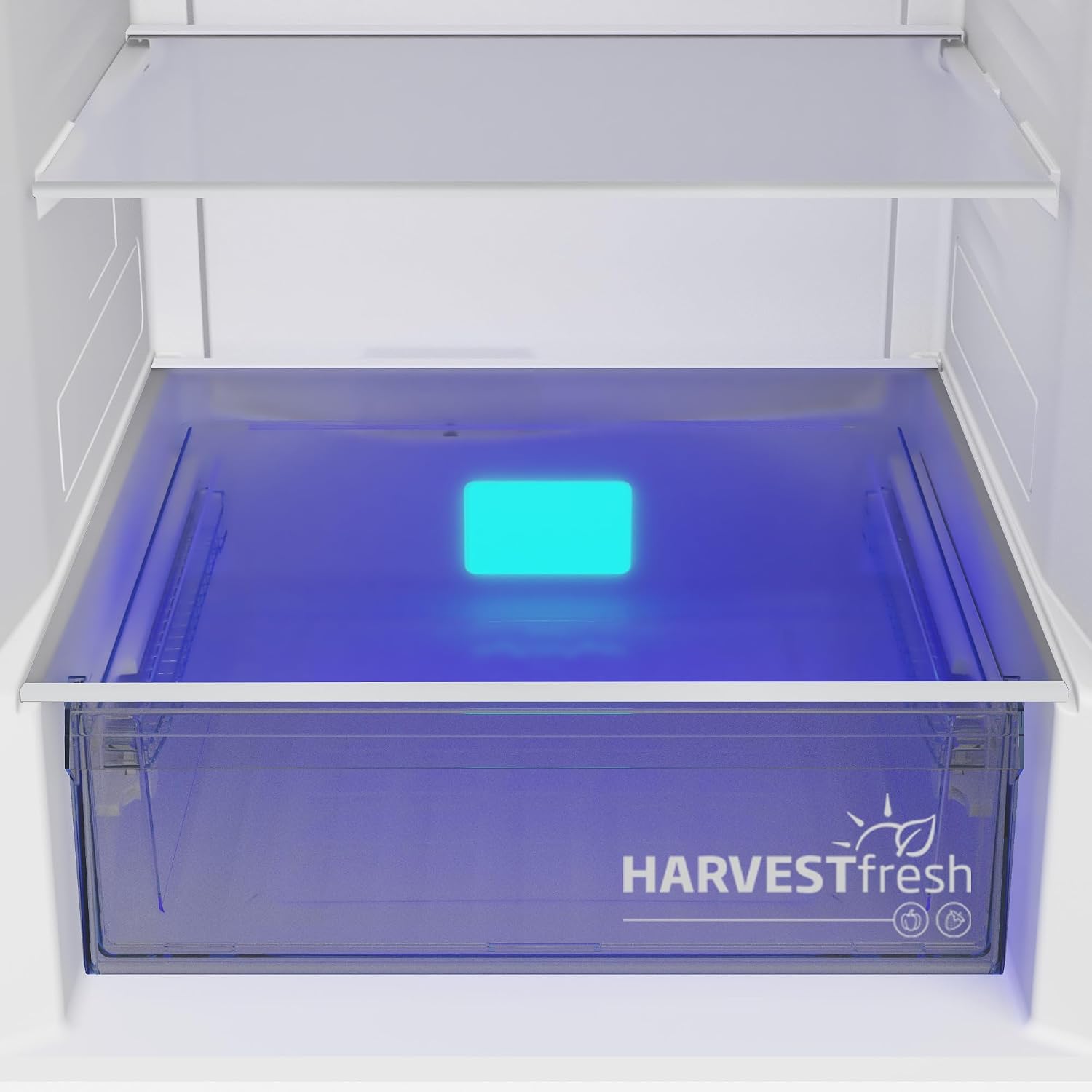

Figure 3.3: Close-up of the HarvestFresh drawer.
- NoFrost Dual Cooling: Beko's NoFrost refrigerator-freezer combinations feature separate cooling circuits for the refrigerator and freezer compartments. This prevents air and odors from mixing between the two sections, ensuring uniform, energy-efficient, and quiet cooling without frost buildup.
Figure 3.4: NoFrost Dual Cooling system with independent air circulation.
- AeroFlow: This feature helps preserve food freshness by circulating cold air evenly throughout the entire interior. This reduces moisture loss and maintains freshness longer in the entire refrigeration area.
Figure 3.5: AeroFlow system ensuring even air distribution.
- ProSmart™ Inverter Compressor: The innovative design of the ProSmart Inverter Compressor provides faster cooling with lower energy consumption and operates four times quieter than conventional refrigerator compressors. It adjusts its speed to maintain optimal temperature, extending the appliance's lifespan.
Figure 3.6: ProSmart Inverter Compressor benefits: Efficient, Durable, Quiet.
- Holiday Mode: This mode helps save energy while you are away. It allows only the freezer compartment to remain operational, while the refrigerator compartment operates at a higher, energy-saving temperature, preventing odors and mold growth.
3.4 Storage Recommendations
Utilize the various shelves and drawers for optimal food storage. The safety glass shelves are made of tempered glass and can support up to 25 kg, allowing you to safely store large and heavy pots.
Figure 3.7: Interior layout of the refrigerator and freezer.

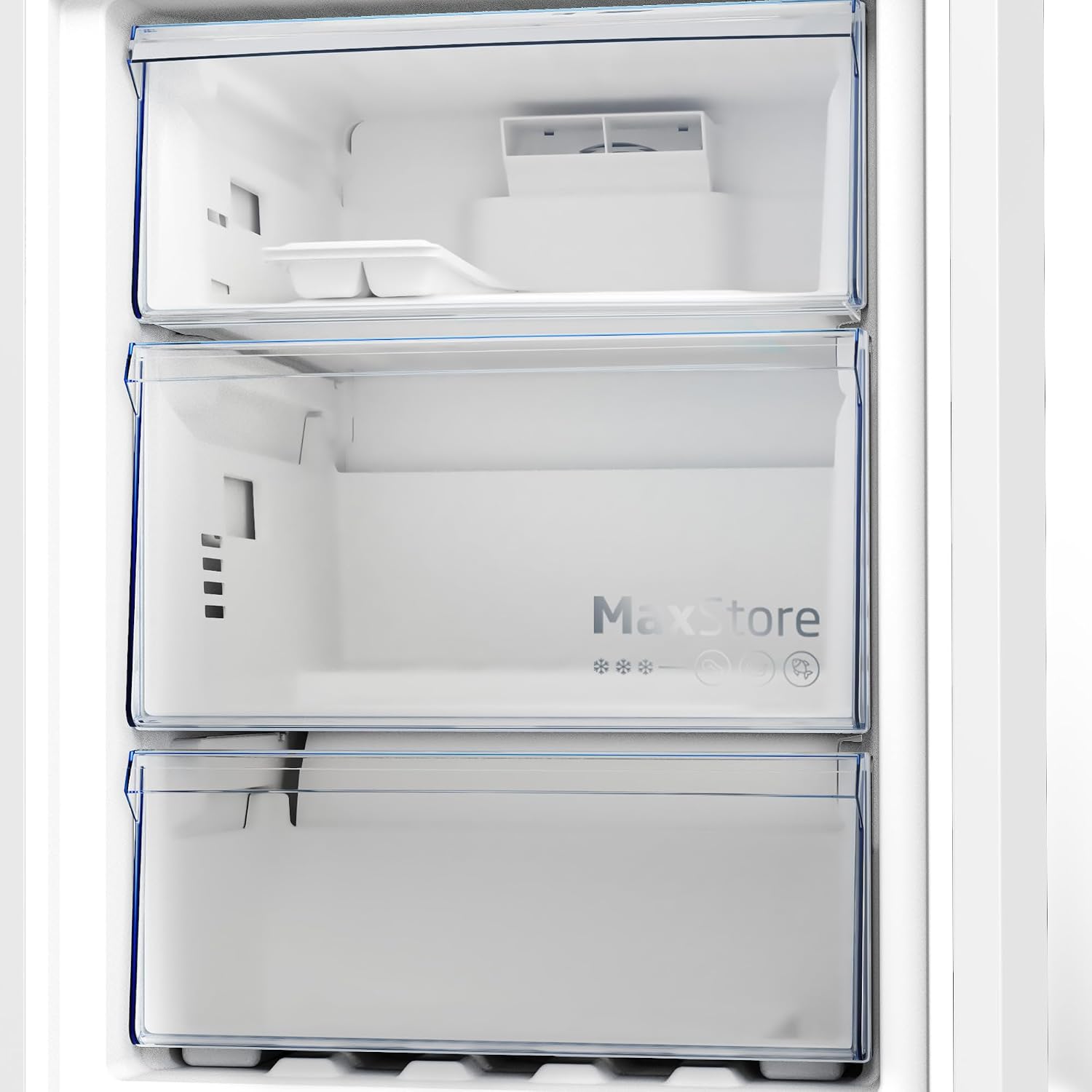

Figure 3.8: MaxStore freezer drawer for increased storage capacity.
4. Maintenance and Cleaning
4.1 Cleaning the Interior
Unplug the appliance before cleaning. Clean the interior regularly with a solution of lukewarm water and a mild, non-abrasive detergent. Rinse with clean water and dry thoroughly. Do not use harsh chemicals or abrasive cleaners.
4.2 Cleaning the Exterior
Wipe the exterior surfaces with a soft, damp cloth. For stubborn stains, use a mild detergent. Avoid using abrasive materials or solvents that could damage the finish.
4.3 Defrosting
Thanks to the NoFrost technology, manual defrosting of the freezer compartment is not required. Any ice buildup in the refrigerator compartment will automatically melt and evaporate.
4.4 Door Seals
Regularly check and clean the door seals to ensure they are free of food particles and remain flexible. A clean and intact seal ensures efficient operation and prevents cold air leakage.
5. Troubleshooting
Before contacting customer service, please refer to the following table for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not operate. | No power supply. | Check if the power cord is plugged in. Check the fuse/circuit breaker. |
| Temperature inside is not cold enough. | Door opened too frequently or left open. Too much food loaded. Appliance placed near a heat source. | Ensure door is closed properly. Reduce amount of food. Relocate appliance away from heat sources. Adjust temperature setting. |
| Appliance is noisy. | Appliance is not level. Objects touching the back of the appliance. | Adjust leveling feet. Move appliance away from walls or other objects. |
| Water accumulates at the bottom of the refrigerator compartment. | Drain hole is blocked. | Clear the drain hole with a small, soft object (e.g., cotton swab). |
6. Specifications
Key technical specifications for the Beko B5RCNA365HG Refrigerator-Freezer Combination:
| Feature | Specification |
|---|---|
| Model Identifier | B5RCNA365HG |
| Product Dimensions (D x W x H) | 66.3 x 59.5 x 186.5 cm |
| Weight | 69.3 Kilograms |
| Total Capacity | 316 Liters |
| Refrigerator Compartment Capacity | 210 Liters |
| Freezer Compartment Capacity | 106 Liters |
| Annual Energy Consumption | 198 kWh per year |
| Star Rating (Freezer) | **** |
| Installation Type | Freestanding |
| Defrost System | Frost-free |
| Door Hinge | Reversible |
| Color | Manhattan Gray |
| Number of Shelves | 4 |
| Number of Drawers (Freezer) | 3 |
| Voltage | 230 Volt |
7. Warranty and Support
Your Beko B5RCNA365HG refrigerator-freezer combination comes with a manufacturer's warranty. Please refer to the warranty card included with your appliance for specific terms and conditions. For technical support, spare parts, or service requests, please contact Beko customer service or your authorized dealer. Always have your model number (B5RCNA365HG) and serial number ready when contacting support.
The delivery includes the refrigerator-freezer combination and this user manual.
