1. Introduction
Thank you for purchasing the Magic Chef MCB17CHW Beverage Cooler. This manual provides important information regarding the installation, operation, maintenance, and troubleshooting of your appliance. Please read this manual thoroughly before use to ensure proper function and safety. Keep this manual for future reference.

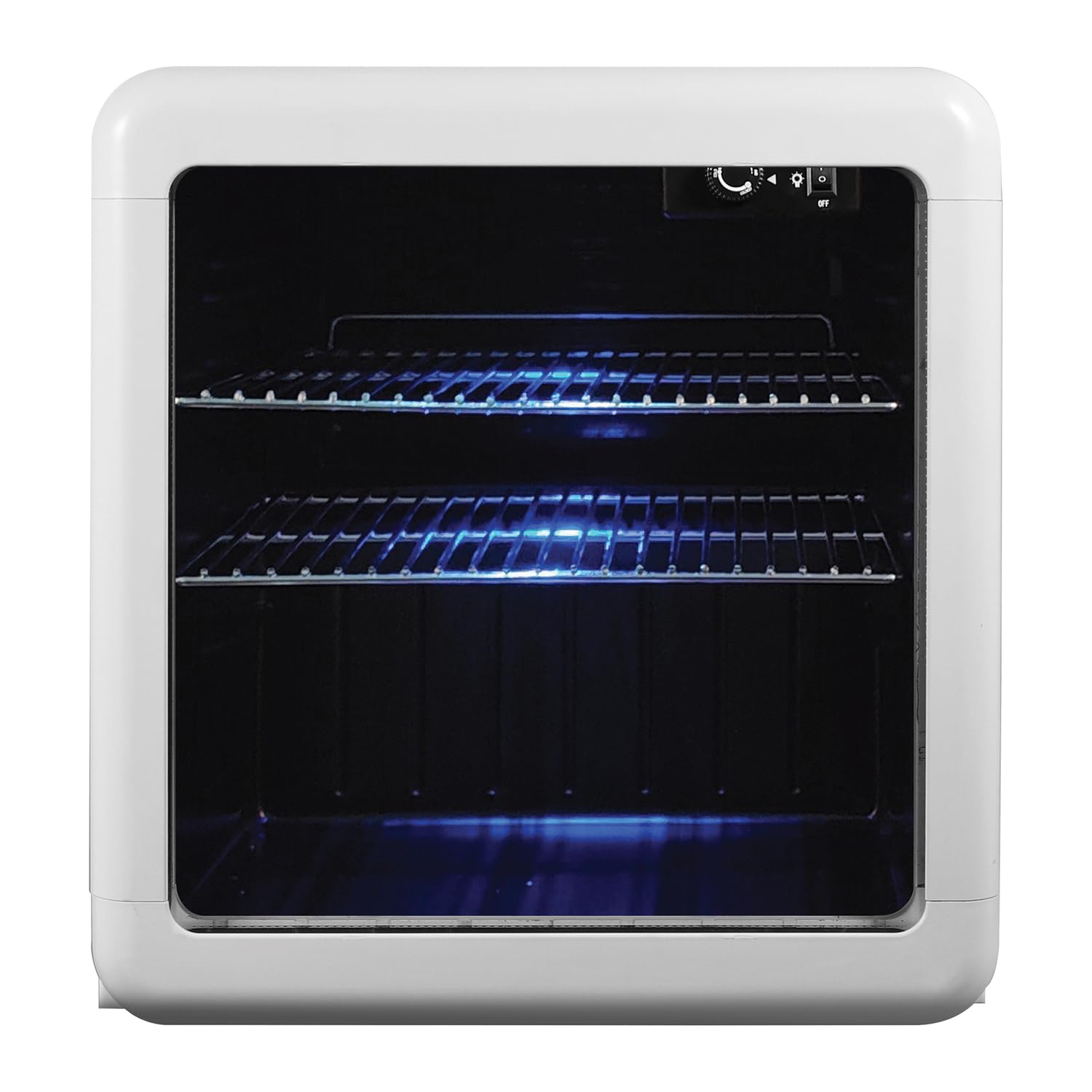

Figure 1: Front view of the Magic Chef MCB17CHW Beverage Cooler.
2. Safety Information
To reduce the risk of fire, electric shock, or injury when using your appliance, follow these basic precautions:
- Read all instructions before using the appliance.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- This appliance must be properly installed and located in accordance with the Installation Instructions before it is used.
- Do not allow children to climb, stand, or hang on the shelves in the appliance. They could seriously injure themselves.
- Do not touch the cold surfaces in the appliance compartment when hands are damp or wet. Skin may stick to these extremely cold surfaces.
- Unplug the appliance before cleaning or making any repairs.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
- Use only a qualified service person to repair or replace parts.
- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
3. Setup and Installation
3.1 Unpacking
Carefully remove all packaging materials. Dispose of packaging responsibly. Ensure all components are present and undamaged. Keep packaging materials away from children.
3.2 Placement
Place the beverage cooler on a firm, level surface that is strong enough to support the unit when fully loaded. Allow at least 5 inches (12.7 cm) of space between the back and sides of the cooler and any adjacent walls to ensure proper air circulation. Avoid placing the unit in direct sunlight or near heat sources like ovens or radiators. The appliance is designed for freestanding installation.

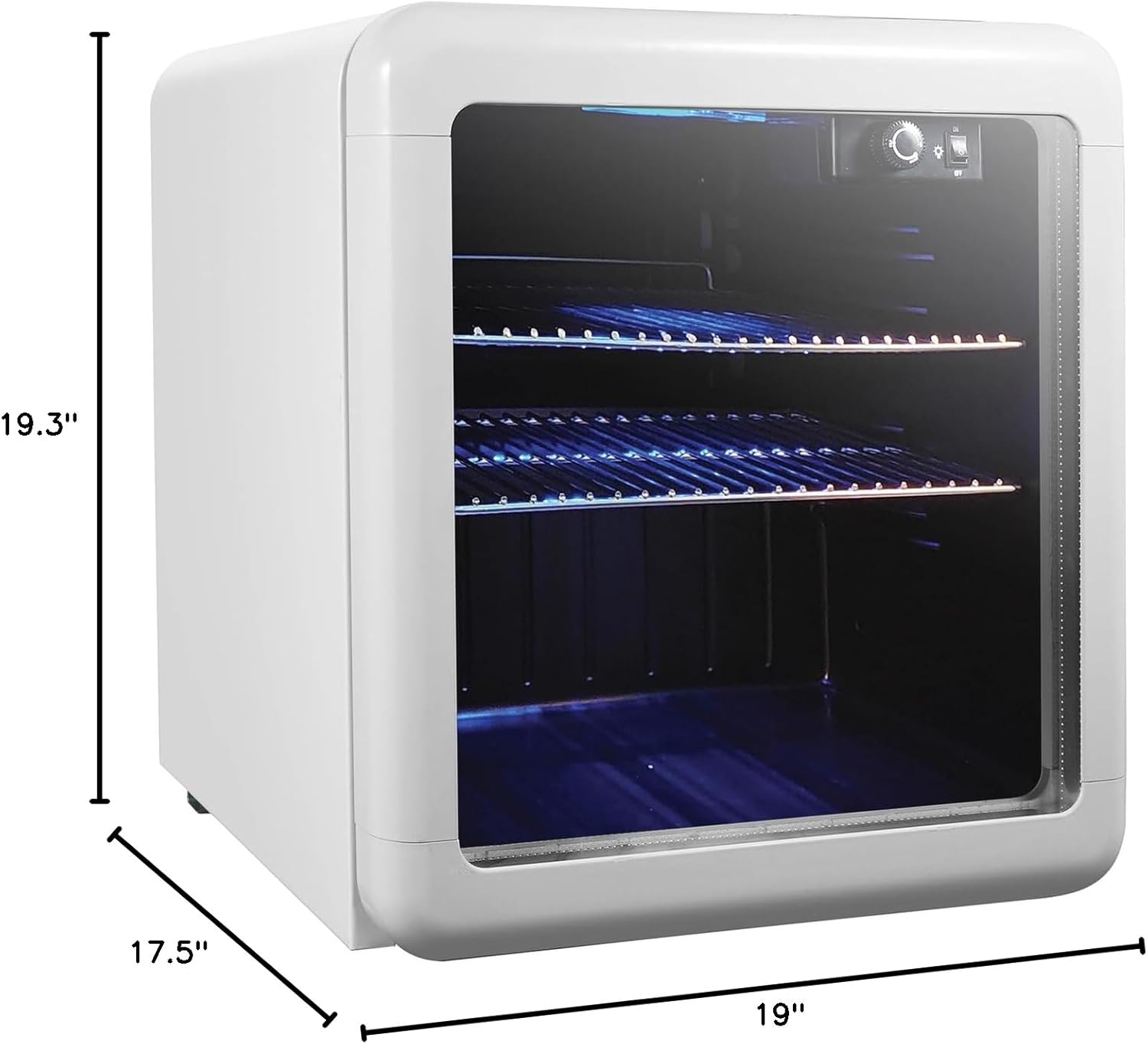

Figure 2: Product dimensions for proper placement. Dimensions are approximately 19"D x 19.3"W x 17.5"H.
3.3 Electrical Connection
Before plugging in the unit, ensure the voltage specified on the rating label matches your household voltage (120 Volts). Plug the appliance into an exclusive, properly grounded wall outlet. Do not use an extension cord or adapter plug.
3.4 Door Reversal
The door hinges are reversible, allowing you to change the door swing direction to suit your installation needs. Refer to the detailed instructions in the full product manual for the specific steps to reverse the door.
3.5 Initial Use
After installation, allow the unit to stand upright for at least 2-4 hours before plugging it in. This allows the refrigerant to settle. Once plugged in, let the cooler operate empty for a few hours to reach its stable operating temperature before loading beverages.
4. Operating Instructions
4.1 Temperature Control
The beverage cooler features an adjustable temperature control knob located inside the unit. Turn the knob to adjust the cooling intensity. Higher numbers typically indicate colder temperatures. Adjust gradually and allow several hours for the temperature to stabilize between adjustments.
4.2 Interior LED Lighting
The unit is equipped with interior LED lighting to showcase your beverages. There is an on/off switch for the LED light, usually located near the temperature control knob. Toggle the switch to turn the light on or off as desired.

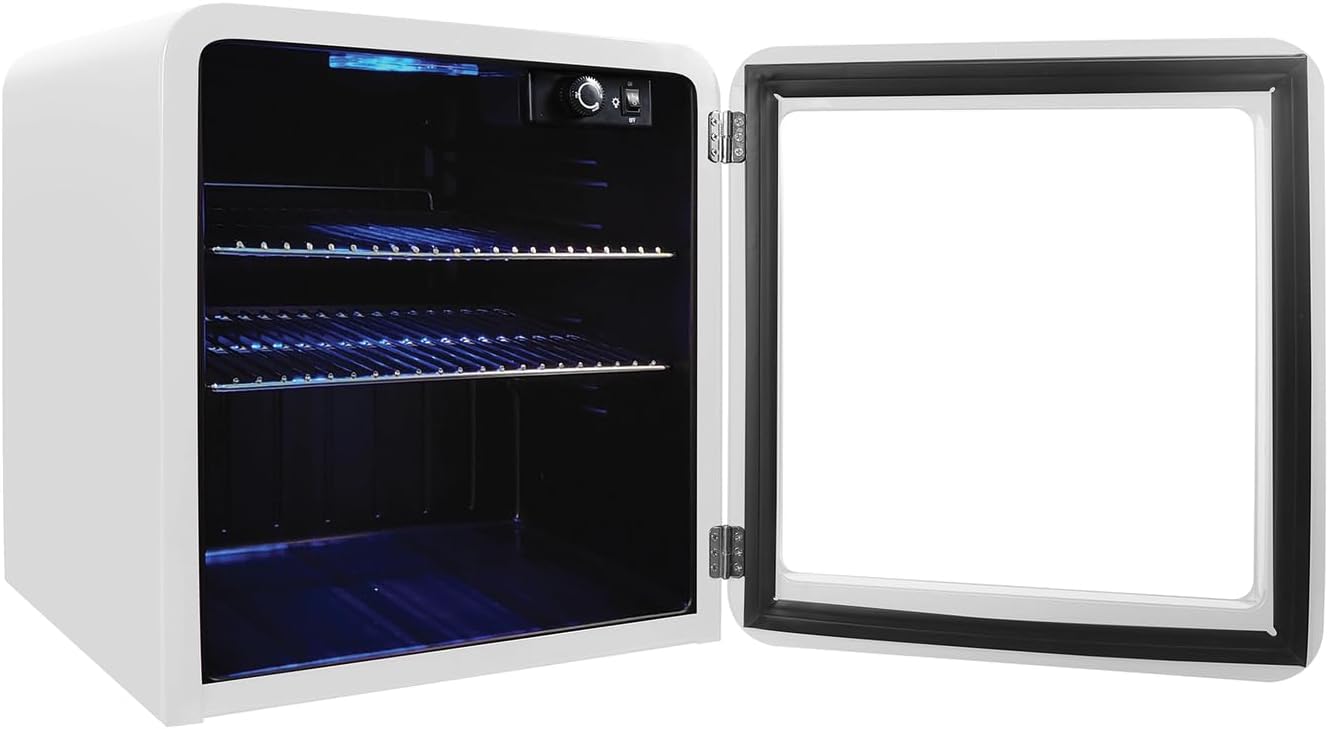

Figure 3: Interior view showing LED lighting, temperature control, and wire shelves.
4.3 Shelf Adjustment
The beverage cooler includes 2 removable wire shelves. These shelves can be adjusted to accommodate various beverage sizes. To adjust, carefully lift the shelf and slide it out. Reinsert into the desired shelf supports. Ensure shelves are securely seated before placing items on them.
Figure 4: Example of beverage arrangement on adjustable shelves.
5. Maintenance
5.1 Cleaning
Always unplug the appliance before cleaning. Clean the interior and exterior surfaces with a soft cloth and a mild detergent solution. Do not use abrasive cleaners or harsh chemicals. The removable wire shelves can be washed with warm soapy water. Ensure all parts are dry before plugging the unit back in.
5.2 Defrosting
This appliance features manual defrost. Frost buildup on the interior cooling surfaces is normal. When the frost layer becomes approximately 1/4 inch (0.6 cm) thick, the unit should be defrosted. To defrost:
- Unplug the unit from the power outlet.
- Remove all beverages and shelves.
- Leave the door open to allow frost to melt naturally. Place towels at the bottom to absorb water.
- Once defrosted, clean and dry the interior thoroughly.
- Plug the unit back in and allow it to cool before reloading.
6. Troubleshooting
Before contacting service, review the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not operate | Not plugged in; Circuit breaker tripped/fuse blown; Power outage. | Ensure plug is secure; Check circuit breaker/fuse; Verify power supply. |
| Temperature is not cold enough | Temperature control set too warm; Door opened too frequently; Poor air circulation; Unit overloaded. | Adjust temperature control to a colder setting; Minimize door openings; Ensure adequate clearance around unit; Reduce load. |
| Excessive noise | Unit not level; Contacting a wall; Loose parts. | Level the unit using adjustable feet; Ensure clearance from walls; Check for loose components. |
| Interior light not working | Light switch off; LED bulb failure. | Ensure light switch is in the 'on' position; Contact service for bulb replacement if necessary. |
7. Specifications
Detailed specifications for the Magic Chef MCB17CHW Beverage Cooler:
- Model: MCB17CHW
- Capacity: 1.7 Cubic Feet
- Installation Type: Freestanding
- Product Dimensions (D x W x H): Approximately 19 x 19.3 x 17.5 inches
- Item Weight: Approximately 40.8 pounds
- Voltage: 120 Volts
- Defrost System: Manual
- Door Hinges: Reversible
- Door Material Type: Glass
- Shelves: 2, Wire
- Color: White
Figure 5: Rear view of the appliance, illustrating the compressor and electrical components.
8. Warranty and Support
The Magic Chef MCB17CHW Beverage Cooler comes with the following warranty:
- 1-Year Parts and Labor Warranty: Covers defects in materials or workmanship for one year from the date of purchase.
- 5-Year Compressor Part Warranty: Covers the compressor part for five years from the date of purchase.
For warranty service or technical support, please refer to the contact information provided with your purchase documentation or visit the official Magic Chef website. When contacting support, please have your model number (MCB17CHW) and proof of purchase readily available.
