1. Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons. Read all instructions carefully before operating this appliance.
- Read All Instructions: Familiarize yourself with the appliance before use.
- Hot Surfaces: The appliance surfaces become hot during use. Do not touch hot surfaces. Use handles or knobs.
- Electrical Safety: Do not immerse cord, plugs, or the appliance housing in water or other liquid to protect against electrical shock.
- Children: Close supervision is necessary when any appliance is used by or near children.
- Unplug When Not In Use: Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Proper Placement: Do not place on or near a hot gas or electric burner, or in a heated oven.
- Ventilation: Ensure adequate air circulation around the appliance during operation. Do not block any ventilation openings.
- Stable Surface: Use the appliance on a stable, heat-resistant surface.
- Avoid Overfilling: Do not overfill the basket, as this may impede proper cooking and airflow.
- Power Cord: Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
2. Product Overview
The Zenith AirMax 2.1 Qt Compact Air Fryer uses rapid air circulation technology to cook food with little to no oil, providing a healthier alternative to traditional frying. It features adjustable temperature control and a 30-minute timer with auto shut-off.
Components:
- Main Unit Housing
- Temperature Control Dial
- Timer Dial
- Removable Frying Basket with Handle
- Removable Crisper Plate (Nonstick)
Image Description: A front view of the Zenith AirMax 2.1 Qt Compact Air Fryer in black. It features a sleek, oval design with a silver top panel. The front has two prominent black dials: a larger one for the timer (0-30 minutes) and a smaller one on top for temperature control (175°F-400°F). A sturdy handle extends from the bottom front, indicating the removable frying basket.
3. Setup and First Use
Unpacking:
- Remove all packaging materials, stickers, and labels from the appliance.
- Ensure all components are present and undamaged.
Initial Cleaning:
- Wash the frying basket and crisper plate thoroughly with hot water, dish soap, and a non-abrasive sponge.
- Wipe the inside and outside of the appliance with a damp cloth.
- Ensure all parts are completely dry before use.
Placement:
- Place the air fryer on a stable, level, and heat-resistant surface.
- Ensure there is at least 4 inches (10 cm) of clear space around the back and sides of the appliance for proper ventilation.
Pre-heating (Recommended):
- Plug the air fryer into a grounded wall outlet.
- Set the temperature dial to 400°F (200°C).
- Set the timer dial to 5 minutes. The appliance will begin heating.
- Once the timer rings, the pre-heating cycle is complete. This helps to burn off any manufacturing residues and ensures optimal cooking performance.
4. Operating Instructions
The Zenith AirMax Air Fryer is designed for user-friendly operation with manual temperature and timer controls.
Controls Overview:

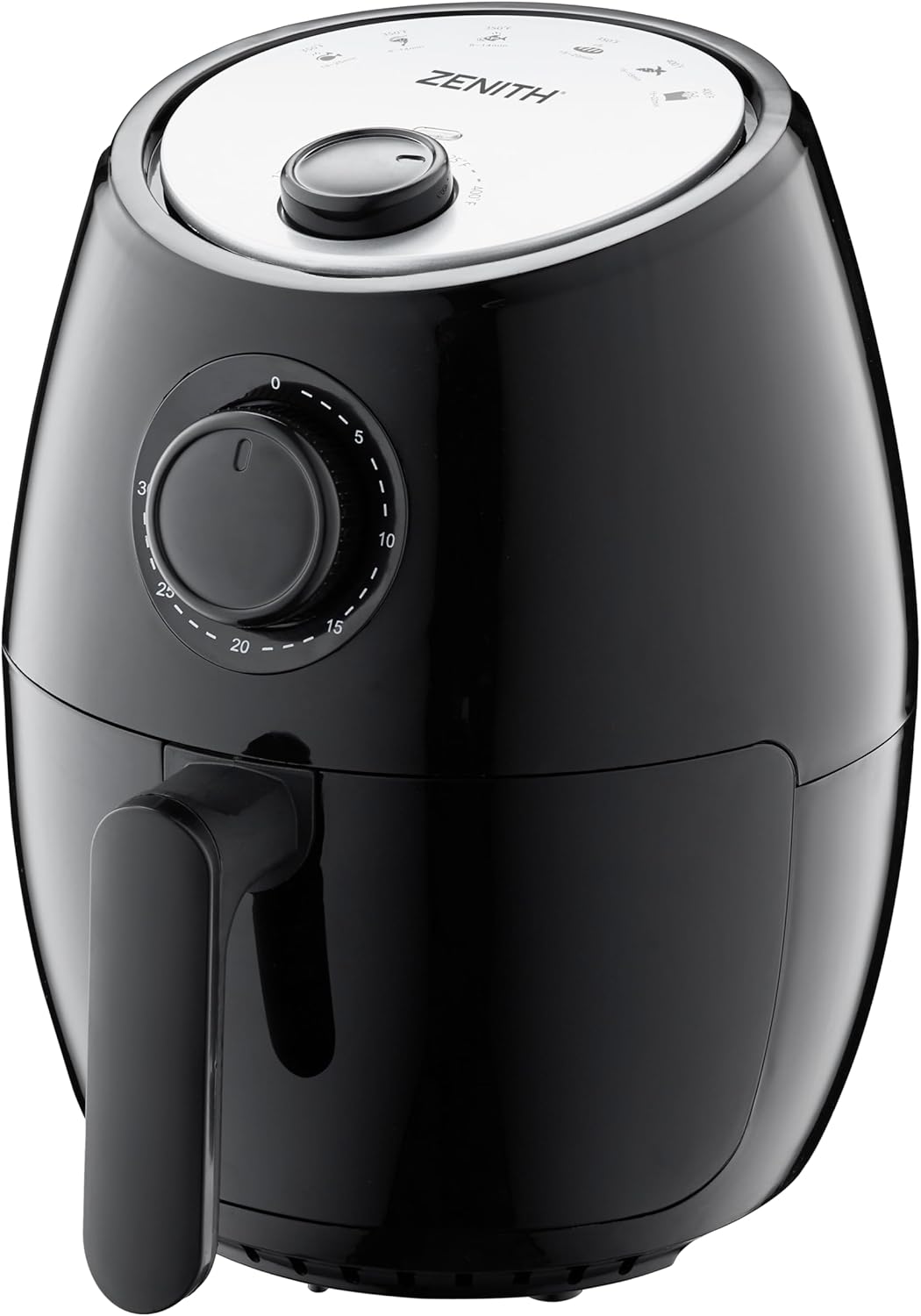

Image Description: An angled view of the Zenith AirMax 2.1 Qt Compact Air Fryer, highlighting the two control dials. The larger dial on the front is the timer, marked from 0 to 30 minutes. The smaller dial on the top panel is the temperature control, with markings for 175°F, 250°F, 325°F, and 400°F.
- Temperature Control Dial: Located on the top, this dial allows you to set the cooking temperature from 175°F to 400°F (80°C to 200°C).
- Timer Dial: Located on the front, this dial sets the cooking time up to 30 minutes. It features an automatic shut-off function.
Cooking Process:
- Prepare Food: Place your desired food items into the frying basket. For best results, do not overfill. A single layer is often ideal for even cooking.
- Insert Basket: Slide the frying basket back into the main unit until it clicks securely into place.
- Set Temperature: Turn the temperature control dial to your desired cooking temperature. Refer to recipes or food packaging for recommended settings.
- Set Timer: Turn the timer dial to the required cooking time. The air fryer will begin heating immediately.
- Monitor Cooking: For some foods, it may be necessary to shake the basket halfway through the cooking time to ensure even browning. To do this, carefully pull out the basket, shake it, and then reinsert it. The air fryer will resume cooking.
- Completion: When the set time has elapsed, the timer will ring, and the air fryer will automatically shut off.
- Remove Food: Carefully pull out the frying basket. Use tongs to remove the cooked food. Be cautious of hot steam.
Image Description: The Zenith AirMax 2.1 Qt Compact Air Fryer with its frying basket partially pulled out, revealing a generous portion of golden-brown french fries inside. This illustrates the capacity and how food is placed for cooking.
5. Maintenance and Cleaning
Regular cleaning ensures optimal performance and extends the lifespan of your Zenith AirMax Air Fryer.
Before Cleaning:
- Always unplug the air fryer from the power outlet.
- Allow the appliance to cool down completely before handling any parts.
Cleaning the Frying Basket and Crisper Plate:
Image Description: The removable frying basket and the crisper plate of the Zenith AirMax 2.1 Qt Compact Air Fryer are shown separated. The basket is black with a handle, and the crisper plate is a round, perforated insert, both designed for easy cleaning.
- The frying basket and crisper plate are dishwasher safe for convenient cleaning.
- Alternatively, wash them in hot water with dish soap and a non-abrasive sponge.
- The nonstick coating ensures easy food release and simplifies cleaning. Avoid using metal utensils or abrasive cleaning materials that could damage the coating.
- For stubborn food residue, soak the basket and plate in warm, soapy water for about 10 minutes before cleaning.
Cleaning the Main Unit:
- Wipe the exterior of the air fryer with a damp cloth.
- Clean the interior of the appliance with a damp cloth and mild detergent if necessary.
- Never immerse the main unit in water or any other liquid.
- Ensure all parts are completely dry before storing or using again.
6. Troubleshooting
If you encounter issues with your Zenith AirMax Air Fryer, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Air fryer does not turn on. | Appliance is not plugged in. The timer is not set. The frying basket is not inserted correctly. | Ensure the power cord is securely plugged into a grounded outlet. Turn the timer dial to the desired cooking time. Push the frying basket firmly into the main unit until it clicks into place. |
| Food is not cooked evenly. | Basket is overfilled. Temperature or time settings are incorrect. Food was not shaken. | Reduce the amount of food in the basket. Cook in smaller batches. Adjust temperature and time according to recipe recommendations. Shake the basket halfway through cooking for even results. |
| White smoke comes from the appliance. | Grease residue from previous use. High fat content food. | Clean the basket and crisper plate thoroughly after each use. Remove excess oil from food before air frying. |
| Food is not crispy. | Not enough oil (for some foods). Temperature too low or time too short. Moisture in food. | Lightly brush or spray food with a small amount of oil. Increase temperature or cooking time. Pat wet ingredients dry before cooking. |
7. Specifications
Detailed technical specifications for the Zenith AirMax 2.1 Qt Compact Air Fryer.
- Model Name: AirMax 2.1 Qt (TurboFry Black Air Fryer)
- Capacity: 2.1 Quarts (approximately 2 Liters)
- Temperature Range: 175°F - 400°F (80°C - 200°C)
- Timer: 0-30 minutes with Automatic Shut-off
- Wattage: 1000 Watts
- Voltage: 120 Volts
- Control Method: Manual Dials (Temperature and Timer)
- Product Dimensions: 9.75" (Depth) x 9.75" (Width) x 12.5" (Height)
- Item Weight: 5.69 Pounds
- Material: Plastic (Housing), Nonstick (Basket & Crisper Plate)
- Dishwasher Safe Parts: Frying Basket, Crisper Plate
- UPC: 850027077109
Image Description: The Zenith AirMax 2.1 Qt Compact Air Fryer shown with its key dimensions labeled: 9.75 inches in depth, 9.75 inches in width, and 12.5 inches in height. This provides a clear visual reference for the appliance's size.
8. Customer Support
For any questions, concerns, or assistance regarding your Zenith AirMax 2.1 Qt Compact Air Fryer, please contact us directly via Amazon. We are committed to providing a satisfactory solution to all customer inquiries.
