1. Product Overview
The Doredo 5-Tier Adjustable Wire Shelving Unit (Model ZWJ-5T03) is a versatile storage solution designed for various environments such as kitchens, pantries, garages, and laundry rooms. Constructed from durable carbon steel with a protective coating, this unit offers adjustable shelves and a high weight capacity to help organize your space efficiently.
Key Features:
- Flexible Storage Space: Features 5 adjustable shelves to suit specific storage needs. Includes two 5-hook side rails for additional hanging space.
- Changeable Assembly: Can be configured in different ways to fit various spaces and requirements.
- Reliable & Sturdy Construction: Made from carbon steel with a total maximum load weight of 550 lbs. Equipped with 8 leveling feet for stability on uneven floors.
- Durable Design: Specially coating-plated finish protects against water, rust, and corrosion, making it easy to clean and suitable for multiple environments.
2. Safety Information
Please read all safety instructions carefully before assembly and use. Failure to follow these instructions may result in injury or damage to the product.
- Always ensure the shelving unit is level and stable before placing items on it.
- Do not overload the shelves. The maximum weight capacity is 550 lbs (250 kg) distributed evenly across all shelves.
- Always follow the installation instructions carefully to prevent accidents.
- Keep small parts away from children during assembly to avoid choking hazards.
- Do not climb on the shelving unit.
- Place heavier items on lower shelves for increased stability.
3. Parts List
Before beginning assembly, ensure all parts are present and undamaged. If any parts are missing or damaged, please contact customer support.
- (4) Bottom Poles
- (4) Top Poles
- (5) Wire Shelves
- (8) Leveling Feet
- (40) Plastic Clips (8 per shelf)
- (2) 5-Hook Side Rails (optional attachment)
Image 3.1: Components of the 5-Tier Wire Shelving Unit. Note: Actual parts may vary slightly in appearance.
4. Setup and Assembly Instructions
Assembly typically requires no tools. Follow these steps for a secure setup.
- Attach Leveling Feet: Screw the 8 leveling feet into the bottom of the (4) bottom poles.
- Connect Poles: Insert the (4) top poles into the (4) bottom poles. Ensure they are securely connected.
- Install Plastic Clips:
- Locate the desired height for your first shelf. Each pole has grooves to guide placement.
- Snap two plastic clips around each pole at the same height. The clips are designed to not fully close; a small gap is normal.
- Important Tip: Pay attention to the "TOP" arrows on the clips; the orientation matters. Line the top of the clip just underneath one of the lines on the poles, press the sides together, and then slide down until you hear a click.
- Place First Shelf: Slide a wire shelf over the top of the poles, ensuring the shelf's collars fit over the plastic clips. The shelf should rest securely on the clips. Ensure the overhang portion of the shelf faces down.
- Repeat for Remaining Shelves: Repeat step 3 and 4 for the remaining four shelves, adjusting the height as desired.
- Attach Side Rails (Optional): If using, attach the 5-hook side rails to the desired side of the shelving unit.
- Final Check: Gently push down on each shelf to ensure it is firmly seated on the clips. Adjust leveling feet to ensure the unit is stable and does not wobble.

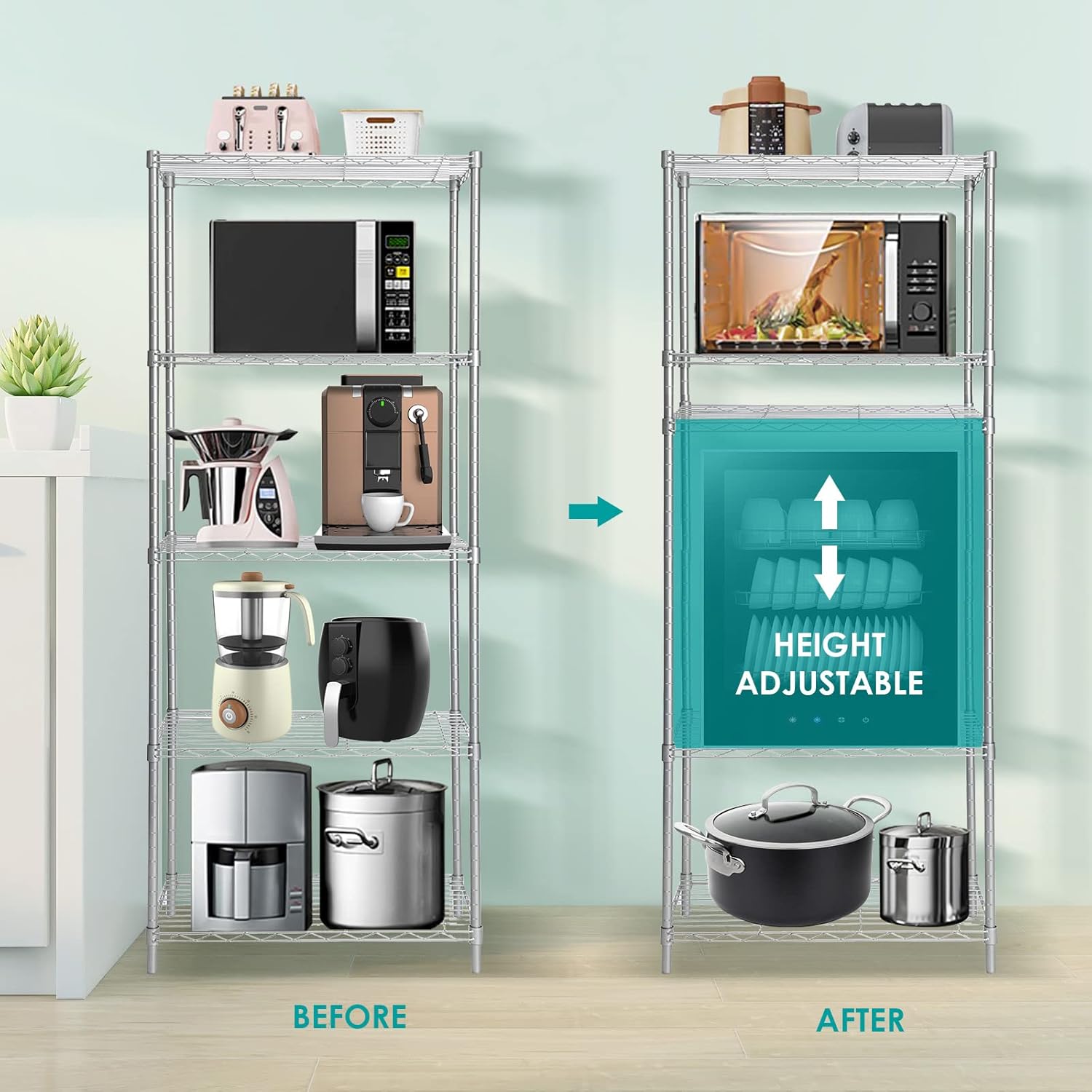

Image 4.1: Illustration of height adjustable shelves.
Image 4.2: Examples of changeable assembly configurations.
5. Operating Instructions
The Doredo 5-Tier Adjustable Wire Shelving Unit is designed for straightforward use.
- Loading Shelves: Distribute weight evenly on each shelf. Do not exceed the maximum weight capacity of 550 lbs for the entire unit. Each individual shelf can typically hold up to 110 lbs when weight is evenly distributed.
- Adjusting Shelf Height: To adjust a shelf's height, remove all items from the shelf. Carefully lift the shelf off the clips. Remove the plastic clips, reposition them at the desired height on all four poles, and then re-seat the shelf firmly onto the clips.
- Stability: Regularly check the stability of the unit. If it wobbles, adjust the leveling feet until it is firm.
6. Maintenance
Proper maintenance will ensure the longevity and appearance of your shelving unit.
- Cleaning: Wipe the shelving unit with a dry cloth to remove dust and debris. For tougher stains, use a damp cloth with mild soap and water, then dry immediately to prevent water spots.
- Avoid Harsh Chemicals: Do not use abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the protective coating.
- Regular Inspection: Periodically check all connections and leveling feet to ensure they remain secure.
7. Troubleshooting
If you encounter issues during assembly or use, refer to the following common solutions:
- Shelves are wobbly:
- Ensure all plastic clips are securely snapped onto the poles at the same height.
- Verify that the shelves are fully seated over the clips.
- Adjust the leveling feet to compensate for uneven floor surfaces.
- Difficulty snapping clips:
- The clips are designed to have a small gap when snapped; they do not fully close.
- Ensure the "TOP" arrows on the clips are facing upwards.
- Line the top of the clip just below a groove on the pole, press the sides together, and slide down until it clicks into place.
- Shelf not fitting over clips:
- Ensure the plastic clips are all at the exact same height on all four poles.
- Make sure the shelf is oriented correctly, with the wider collar openings facing downwards to slide over the clips.
8. Specifications
| Brand | Doredo |
| Model Number | ZWJ-5T03 |
| Material | Metal (Carbon Steel) |
| Color | Silver |
| Product Dimensions (D x W x H) | 11.5"D x 21"W x 59"H |
| Number of Shelves | 5 |
| Weight Capacity (Total) | 550 Pounds |
| Mounting Type | Freestanding |
| Required Assembly | Yes |
| Special Features | Changeable assembly, Height adjustable, Open design, Stable, Large capacity |
9. Product Video
Video 9.1: An official product video demonstrating the features and assembly of the Doredo 5-Tier Changeable Wire Shelving Unit. This video highlights the layered storage, adjustability, and various usage scenarios in different rooms.
10. Warranty and Support
Doredo is committed to providing high-quality products and customer satisfaction.
- Manufacturer Warranty: For any issues or concerns, please contact our customer service. We offer 24-hour after-sales service to address your inquiries.
- Contact Support: If you have questions, require assistance with assembly, or need to report missing/damaged parts, please refer to the contact information provided with your purchase or visit the official Doredo store on Amazon.
Thank you for choosing Doredo. We hope our shelving unit helps you create a more organized and comfortable living space.
