Fredbeck 42in x 84in White Glass Barn Door Instruction Manual

1. Introduction

Thank you for choosing the Fredbeck 42in x 84in White Glass Barn Door. This manual provides essential information for the safe and proper assembly, operation, and maintenance of your new barn door. Please read all instructions carefully before beginning installation and retain this manual for future reference.

This barn door features frosted and toughened glass for enhanced privacy and durability. The door panel is constructed from solid wood, MDF, and a glossy PVC surface, making it easy to clean and water-resistant. The included 7FT sliding hardware kit ensures smooth operation.

2. Safety Information

• Always wear appropriate safety gear, including gloves and eye protection, during assembly and installation.
• Ensure the mounting surface (wall) is structurally sound and capable of supporting the weight of the door and hardware. Consult a professional if unsure.
• Keep children and pets away from the work area during installation.
• Handle glass components with extreme care to prevent breakage and injury.
• Do not attempt to install the door alone. Two or more people are recommended for safe handling and installation due to the door's weight (approximately 50 lbs).
• Verify all parts are present and undamaged before starting assembly.

3. Package Contents

Carefully unpack all components and verify that you have received the following items:

• 1 x Door Panel (42" Width x 84" Height)
• 1 x 7FT Sliding Door Hardware Kit (includes track, rollers, handle, floor guide, and fasteners)
• 1 x Installation Manual

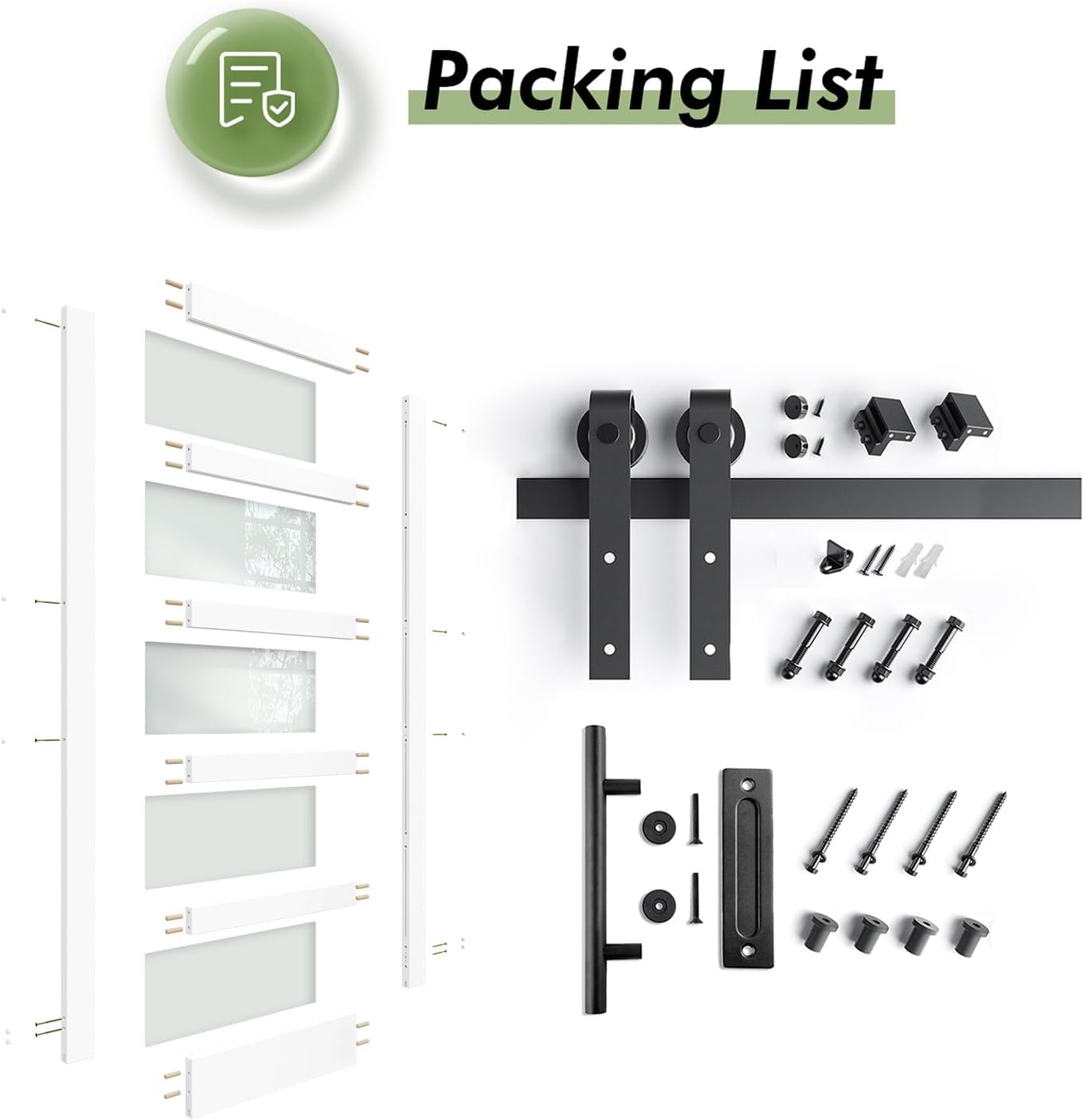

Image: Detailed view of all components included in the Fredbeck barn door package, showing the door panel, sliding track, rollers, handle, and various fasteners.

4. Assembly and Installation

The Fredbeck barn door is designed for straightforward assembly. Follow these steps carefully for proper installation.

4.1 Pre-Installation Checks

• Measure your door opening to ensure the 42in x 84in door size is appropriate.
• Confirm you have all necessary tools (e.g., drill, level, measuring tape, screwdriver).
• Identify the location for the track installation, ensuring at least 5 5/8" clearance above the door opening.

Image: Diagram illustrating key dimensions for installation, including door height (84"), door width (42"), track length (7ft), handle length (12"), door thickness (1 3/8"), and required clearance (5 5/8").

4.2 Door Assembly

Assemble the door panel according to the detailed instructions provided in the included installation manual. This typically involves connecting the frame pieces and securing the glass panels.

Image: Visual representation of the four simplified installation steps: 1. Install the door components, 2. Complete door assembly, 3. Install the hardware, 4. Complete installation.

4.3 Hardware Installation

1. Mount the Track: Secure the 7FT sliding track to the wall above your door opening using the provided fasteners. Ensure the track is perfectly level.
2. Attach Rollers: Fasten the rollers to the top edge of the assembled door panel.
3. Install Handle: Attach the handle to the door panel at your desired height. The two-way design allows for comfortable grip from either side.
4. Hang the Door: Carefully lift the door and hook the rollers onto the track.
5. Install Floor Guide: Position and secure the floor guide at the bottom of the door opening to prevent the door from swinging out.
6. Adjust Door Stops: Install the door stops on the track to control the door's travel distance.

For detailed, step-by-step instructions, refer to the separate installation manual included in your package.

5. Operating Instructions

To open or close your Fredbeck barn door, simply grasp the handle and slide the door along the track. The rollers are designed for smooth and quiet operation. Ensure the path of the door is clear of obstructions before sliding.

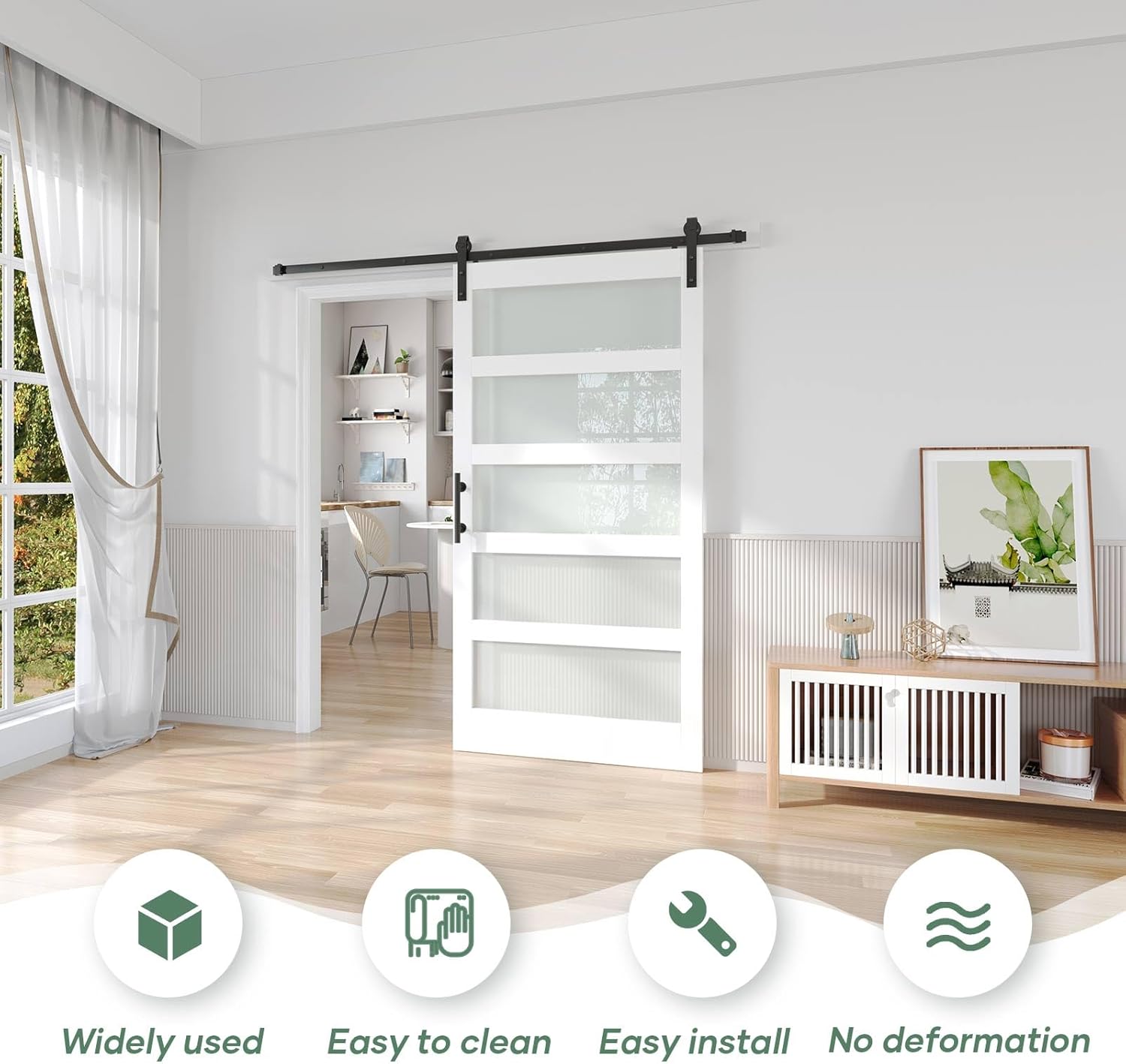

Image: A Fredbeck white glass barn door installed in a modern kitchen entryway, demonstrating its functional use and aesthetic appeal in various home settings.

6. Maintenance

Regular maintenance will ensure the longevity and optimal performance of your Fredbeck barn door.

6.1 Cleaning

• The PVC surface is water-proof and easy to clean. Use a soft, damp cloth with mild soap and water to wipe down the door panel. Avoid abrasive cleaners or harsh chemicals.
• For glass panels, use a standard glass cleaner and a lint-free cloth.
• Wipe the hardware components with a dry or slightly damp cloth to remove dust.

Image: The Fredbeck barn door lying on grass with water droplets, illustrating its waterproof multi-layer wood construction suitable for kitchen and bathroom use.

6.2 General Care

• Periodically check all fasteners and tighten if necessary to ensure the door remains secure.
• Inspect the sliding track and rollers for any debris or obstructions that might hinder smooth operation. Clean as needed.
• Avoid hanging heavy objects on the door or applying excessive force, which could damage the door or hardware.

Image: Cross-section view of the Fredbeck barn door's pine wood core, highlighting its stable, water-proof, non-warping, and easy-to-clean PVC+MDF+Wood material construction.

7. Troubleshooting

8. Specifications

• Brand: FREDBECK
• Model: 42x84
• Color: White
• Door Dimensions: 42 inches (Width) x 84 inches (Height)
• Track Length: 7 feet (84 inches)
• Material: Engineered Wood, Polyvinyl Chloride (PVC), Wood, Frosted Tempered Glass
• Item Weight: Approximately 50 Pounds
• Style: Modern
• Assembly Required: Yes
• Included Components: Door panel, 7FT sliding door hardware kit

9. Warranty and Support

For warranty information or technical support, please refer to the documentation included with your purchase or contact FREDBECK customer service directly. Keep your purchase receipt as proof of purchase.

Customer Service: Please visit the official FREDBECK website or contact your retailer for support contact details.
